Toyota Liteace Van Wagon

1992-01 → 1995-01 · chassis CR2#,KR2#,YR2# · catalogue 651540 · Europe

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

12 part groups · 3 illustrations

Illustrations

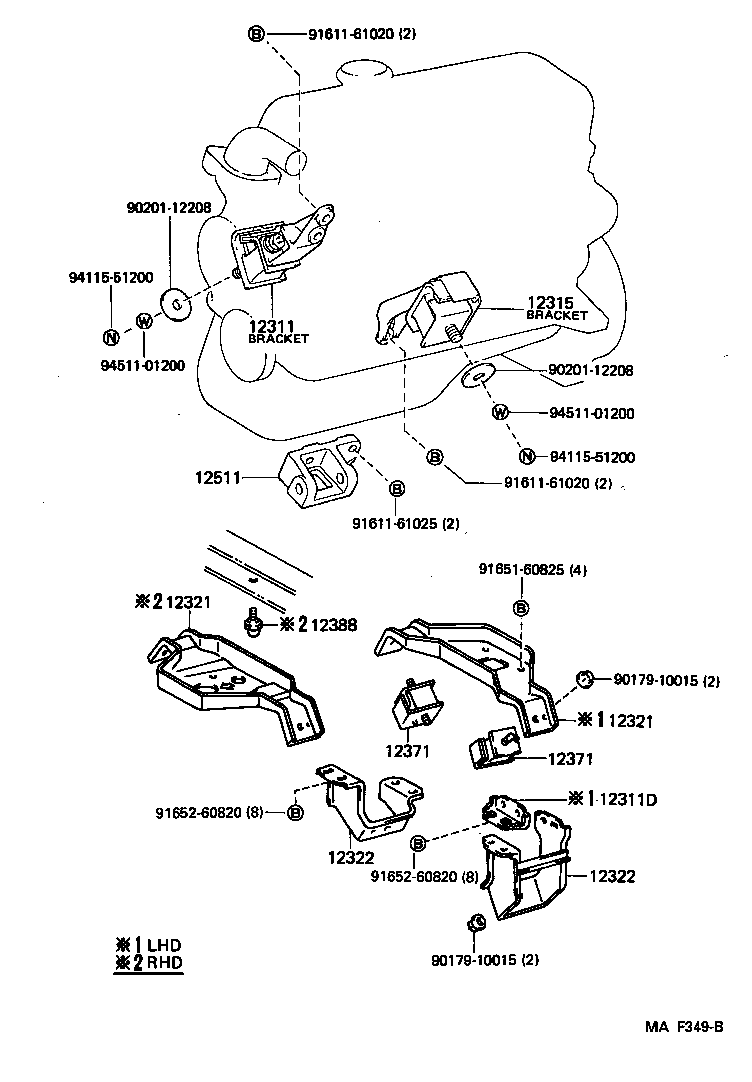

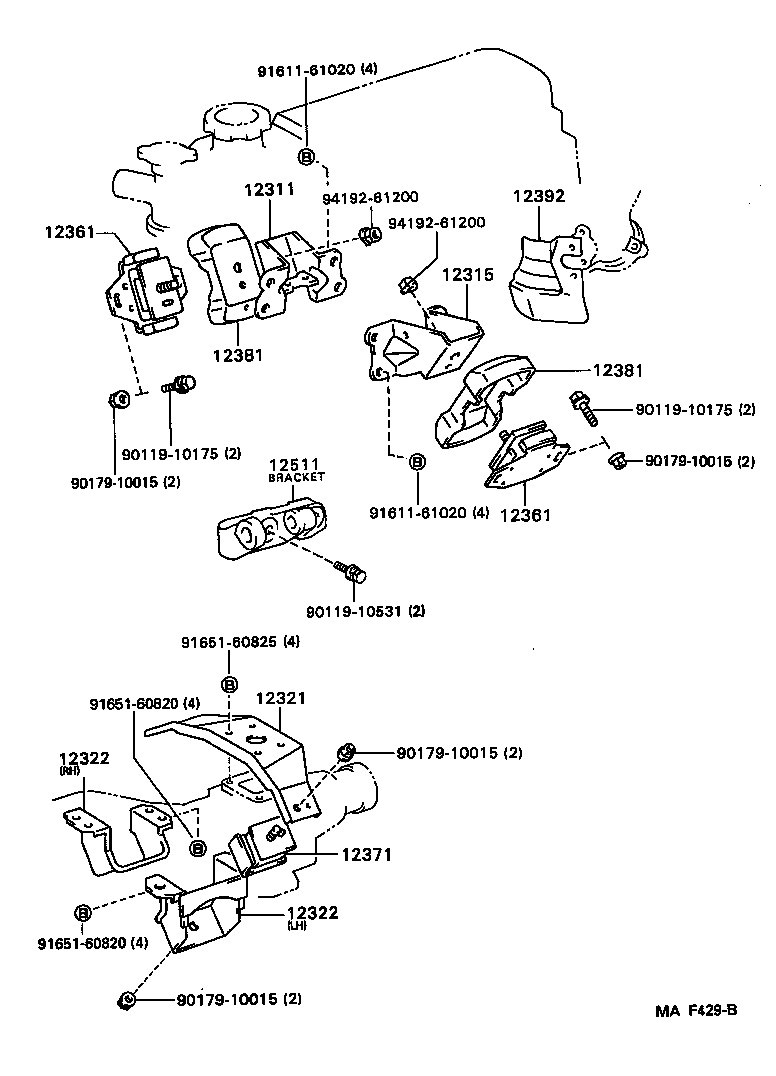

Figure MAF416C MAF416C 1992-01 → — Figure MAF349B MAF349B 1992-01 → — Figure MAF429B MAF429B 1992-01 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12311D Bracket, Engine Mounting
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12322 Bracket, Engine Mounting, Rear NO.2
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12388 Stopper, Engine Mounting Bracket, Rear
12392 Insulator, Engine Mounting Heat, Front LH
12511 Bracket, Alternator, NO.1
12582 Insulator, Cylinder Block, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
