Toyota Liteace Van Wagon

1992-01 → 1995-01 · chassis CR2#,KR2#,YR2# · catalogue 651540 · Europe

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camshaft & Valve

40 part groups · 3 illustrations

Illustrations

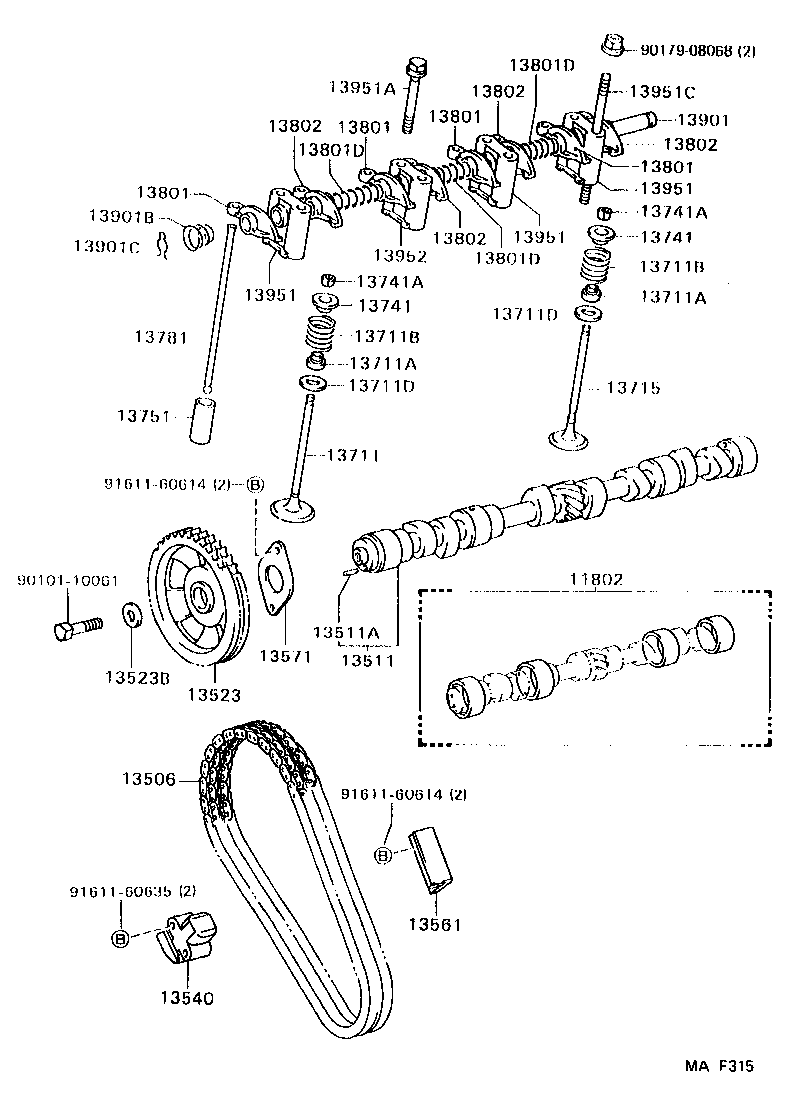

Figure MA8559C MA8559C 1992-01 → — Figure MAF315 MAF315 1992-01 → — Figure MAB670 MAB670 1992-01 → —

Part groups

PNCDescription
11802 Bearing Set, Camshaft
13502 Idler Sub-assy, Timing Belt, NO.2
13505 Idler Sub-assy, Timing Belt, NO.1
13505A Spring, Tension(FOR IDLER)
13505C Pin(FOR IDLER SPRING TENSION)
13506 Chain Sub-assy
13511 Camshaft
13511A Pin, Straight(FOR CAMSHAFT KNOCK)
13523 Gear OR Sprocket, Camshaft Timing
13523A Key, Woodruff(FOR TIMING GEAR)
13523B Washer, Plate(FOR TIMING GEAR)
13523P Pulley, Camshaft Timing
13540 Tensioner Assy, Chain, NO.1
13540A Spring, Compression(FOR CHAIN TENSIONER)
13545 Plunger, Chain Tensioner
13561 Damper, Chain Vibration, NO.1
13568 Belt, Timing
13571 Plate, Camshaft Thrust
13613P Pulley, Injection Pump Drive
13711 Valve, Intake
13711A Seal OR Ring, O(FOR VALVE STEM OIL)
13711B Spring, Compression(FOR INNER)
13711D Washer, Plate(FOR VALVE SPRING SEAT)
13715 Valve, Exhaust
13741 Retainer, Valve Spring
13741A Lock, Valve Spring Retainer
13751 Lifter, Valve
13753 Shim, Valve Adjusting
13781 Rod, Valve Push
13801 Arm Sub-assy, Valve Rocker, NO.1
13801D Spring, Compression(FOR ROCKER ARM)
13802 Arm Sub-assy, Valve Rocker, NO.2
13901 Shaft Sub-assy, Valve Rocker, NO.1
13901B Spring, Conical(FOR VALVE ROCKER SHAFT)
13901C Spring, Retainer(FOR VALVE ROCKER SHAFT)
13951 Support, Valve Rocker, NO.1
13951A Bolt(FOR ROCKER SUPPORT SET)
13951C Bolt, Stud(FOR ROCKER SUPPORT)
13952 Support, Valve Rocker, NO.2
13994 Bolt, Rocker Shaft Stud
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
