Toyota Liteace Van Wagon
1992-01 → 1995-01 · chassis CR2#,KR2#,YR2# · catalogue 651540 · Europe
Discontinued model
Data version 1995-10

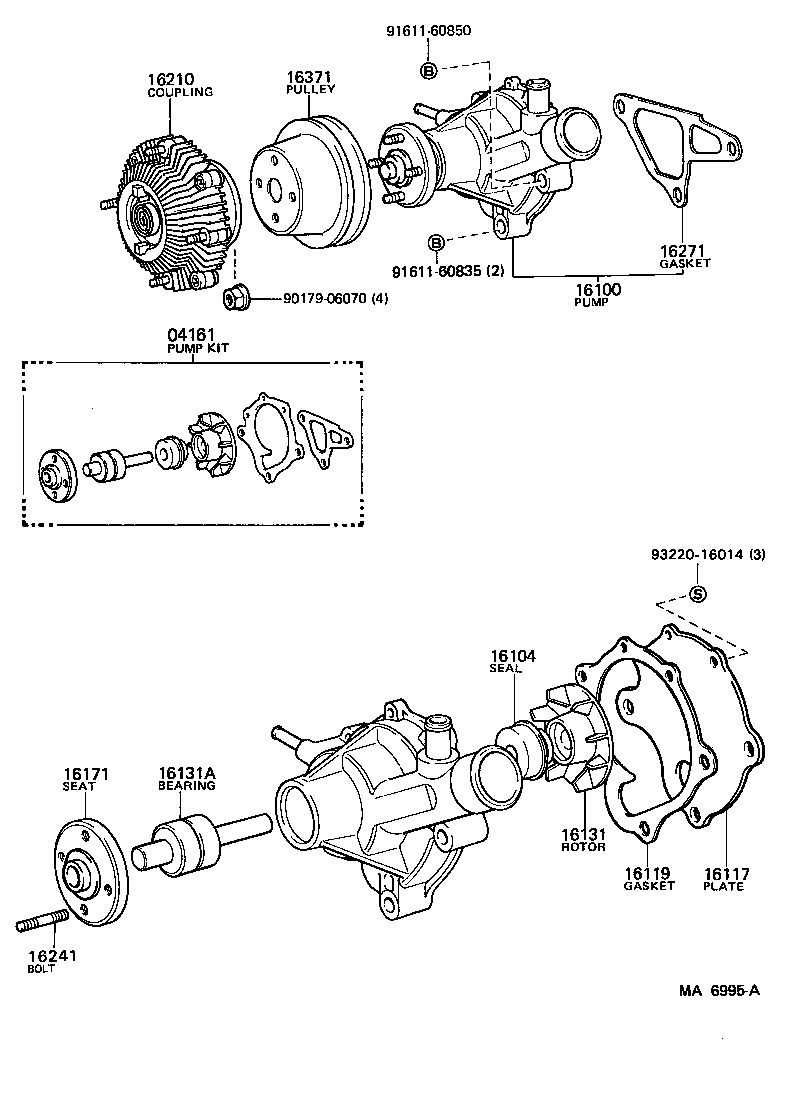

Water Pump
15 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 04161 | Pump Kit, Water |
| 16100 | Pump Assy, Engine Water |
| 16100B | Pin, Ring(FOR WATER PUMP SET) |
| 16104 | Seal Set, Water Pump |
| 16117 | Plate, Water Pump |
| 16119 | Gasket, Water Pump Body |
| 16124 | Gasket, Water Pump Cover |
| 16131 | Rotor, Water Pump |
| 16131A | Bearing, Water Pump |
| 16171 | Seat, Water Pump Pulley |
| 16210 | Coupling Assy, Fluid |
| 16211 | Bracket, Fluid Coupling |
| 16241 | Bolt, Stud(FOR WATER PUMP COUPLING) |
| 16271 | Gasket, Water Pump |
| 16371 | Pulley, Fan |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
