Toyota Liteace Van Wagon

1992-01 → 1995-01 · chassis CR2#,KR2#,YR2# · catalogue 651540 · Europe

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

32 part groups · 6 illustrations

Illustrations

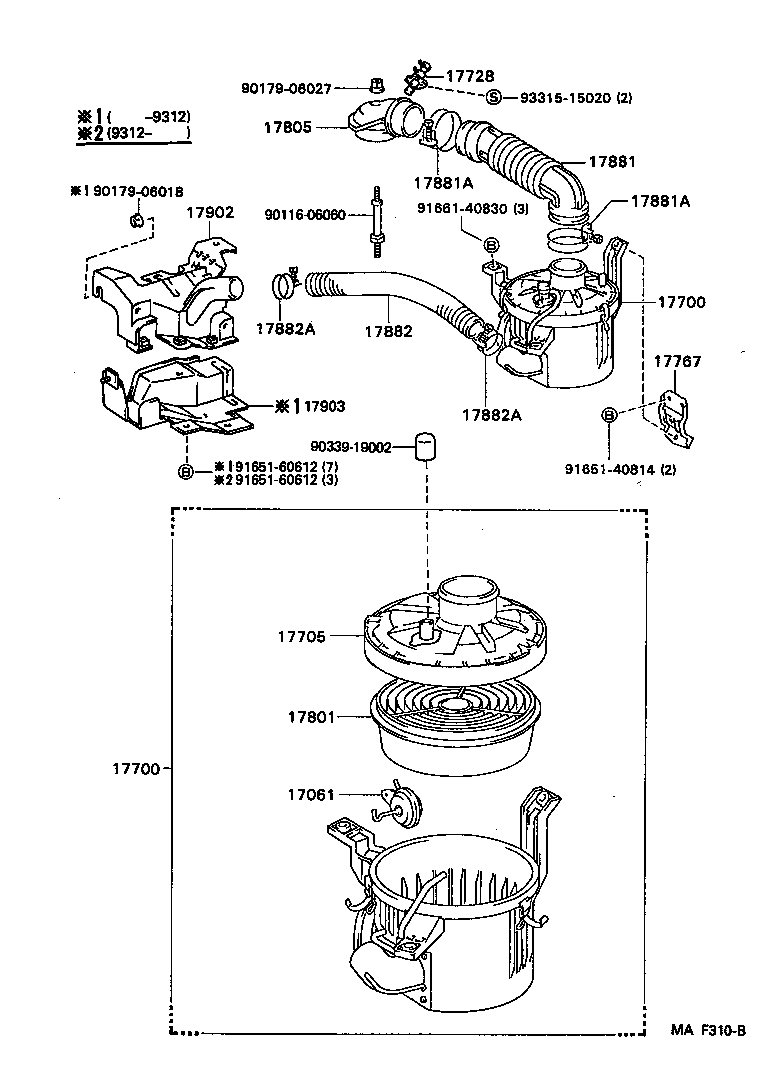

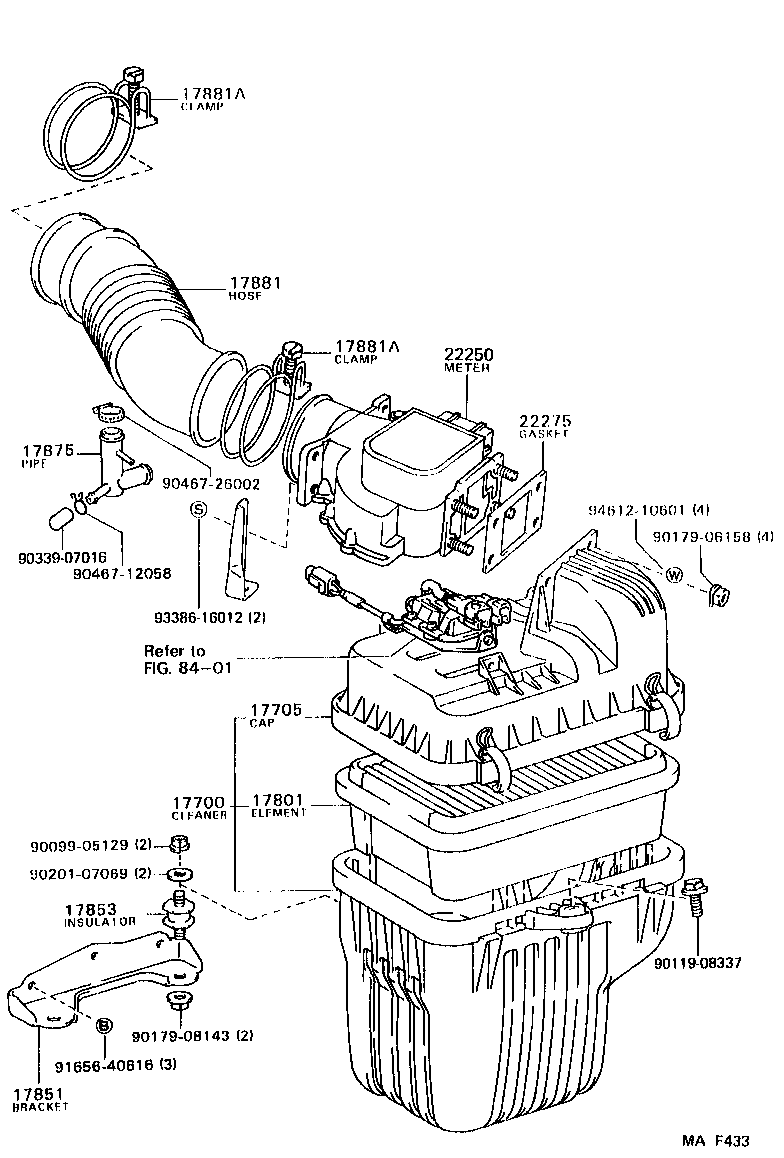

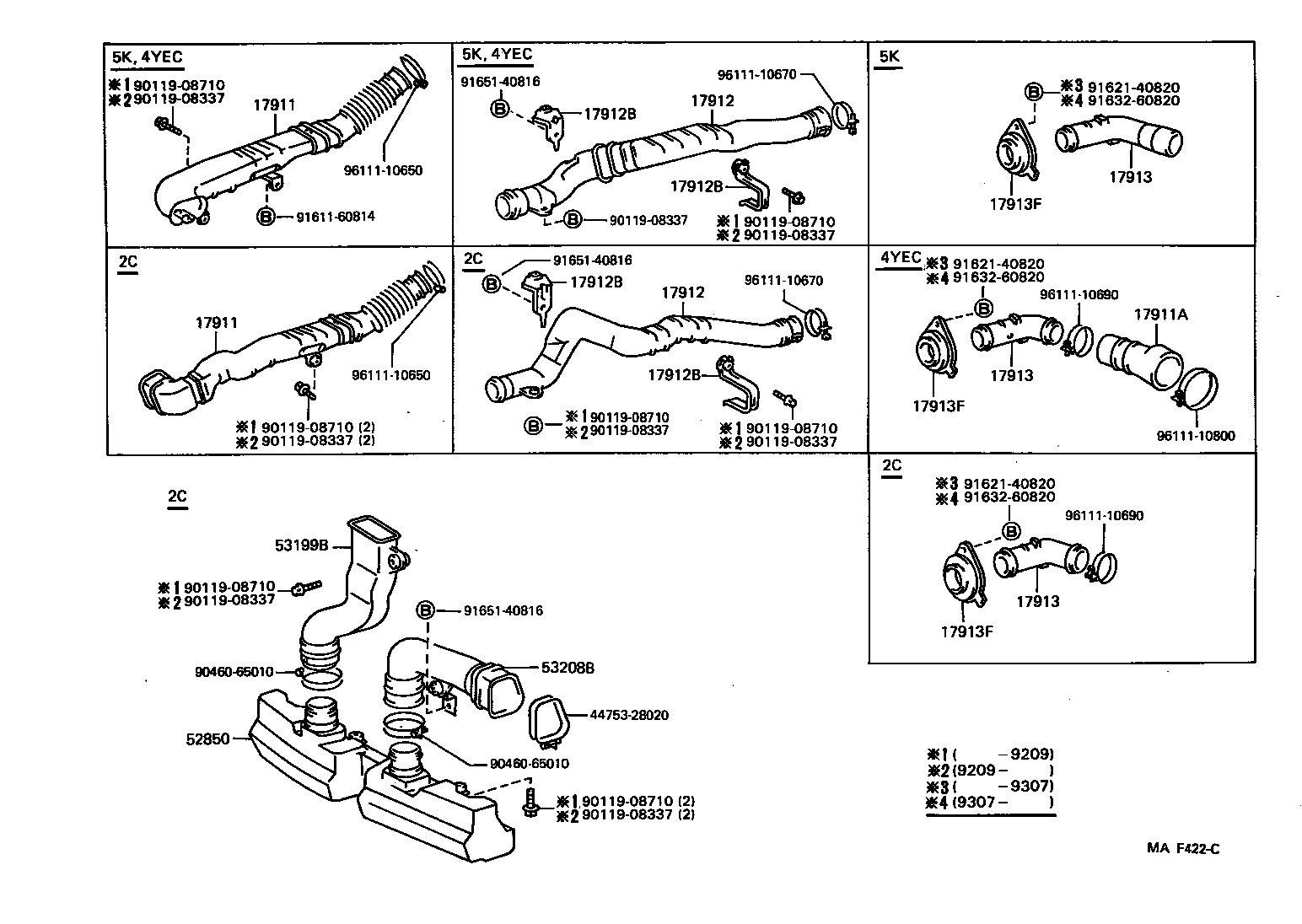

Figure MAF420B MAF420B 1992-01 → — Figure MAF422C MAF422C 1992-01 → — Figure MAF310B MAF310B 1992-01 → — Figure MAF422C MAF422C 1992-01 → — Figure MAF433 MAF433 1992-01 → — Figure MAF422C MAF422C 1992-01 → —

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700B Washer, Seal(FOR AIR CLEANER)
17700W Spacer(FOR AIR CLEANER)
17705 Cap Sub-assy, Air Cleaner
17728 Valve, Thermostatic
17767 Bracket, Air Cleaner
17775 Wing, Cyclone
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17807 Plate Sub-assy, Air Cleaner Filter Set
17851 Bracket, Air Cleaner Support
17853 Insulator, Air Cleaner Bracket
17875 Pipe, Intake Air Connector
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17902 Inlet Sub-assy, Hot Air Intake, NO.1
17903 Inlet Sub-assy, Hot Air Intake, NO.2
17911 Duct, Cool Air Intake, NO.1
17911A Hose, Cool Air Intake, NO.1
17912 Duct, Cool Air Intake, NO.2
17912B Bracket, Cool Air Intake Duct, NO.2
17913 Duct, Cool Air Intake, NO.3
17913F Flange, Cool Air Intake Duct, NO.3
22250 Meter Assy, Intake Air Flow
22275 Gasket, Air Flow Meter
52850 Chamber Assy, Cool Air Intake
53199B Duct Sub-assy, Cool Air Intake
53208B Duct Sub-assy, Cool Air Intake, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
