Toyota Liteace Van Wagon

1992-01 → 1995-01 · chassis CR2#,KR2#,YR2# · catalogue 651540 · Europe

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

18 part groups · 5 illustrations

Illustrations

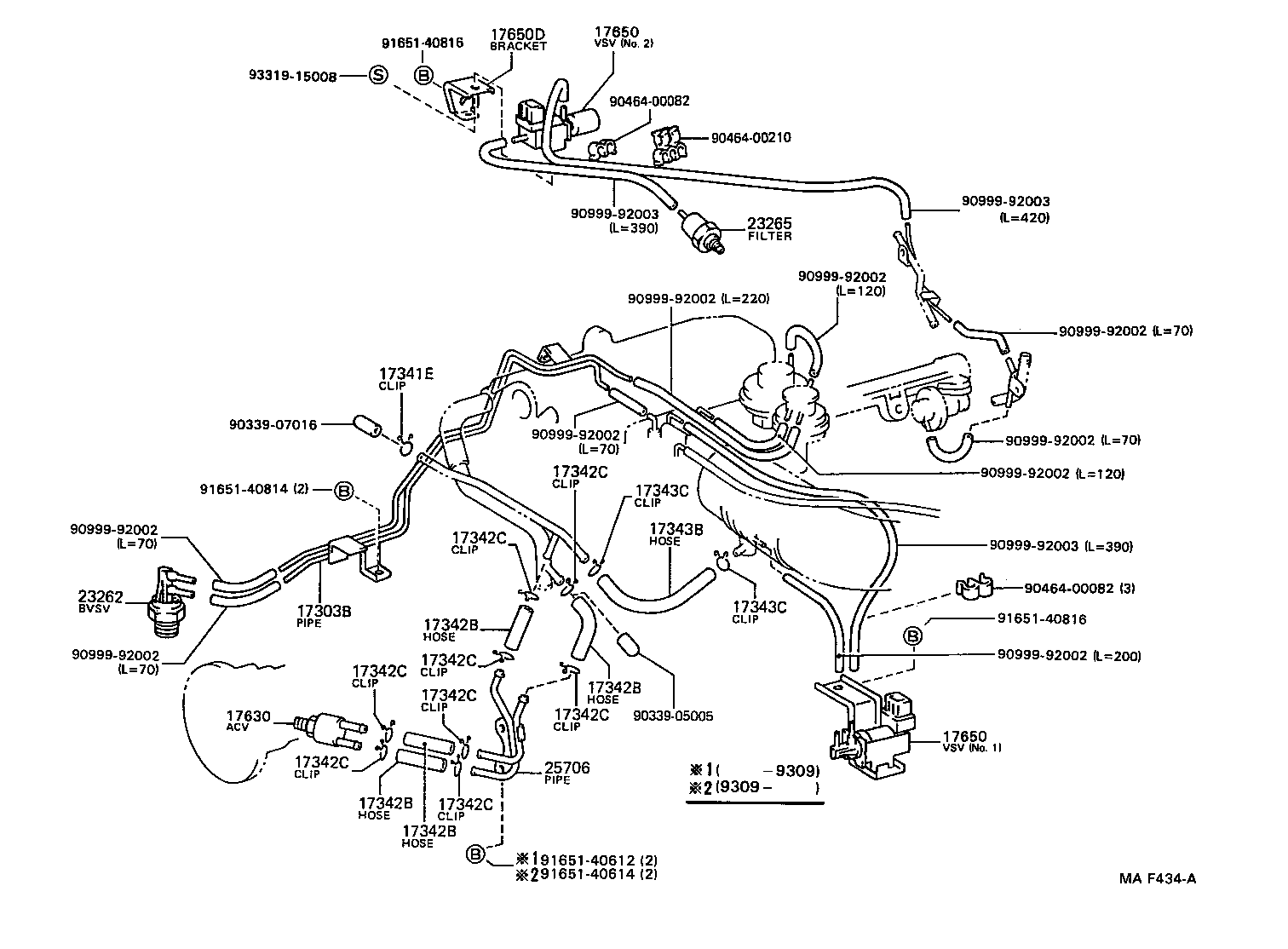

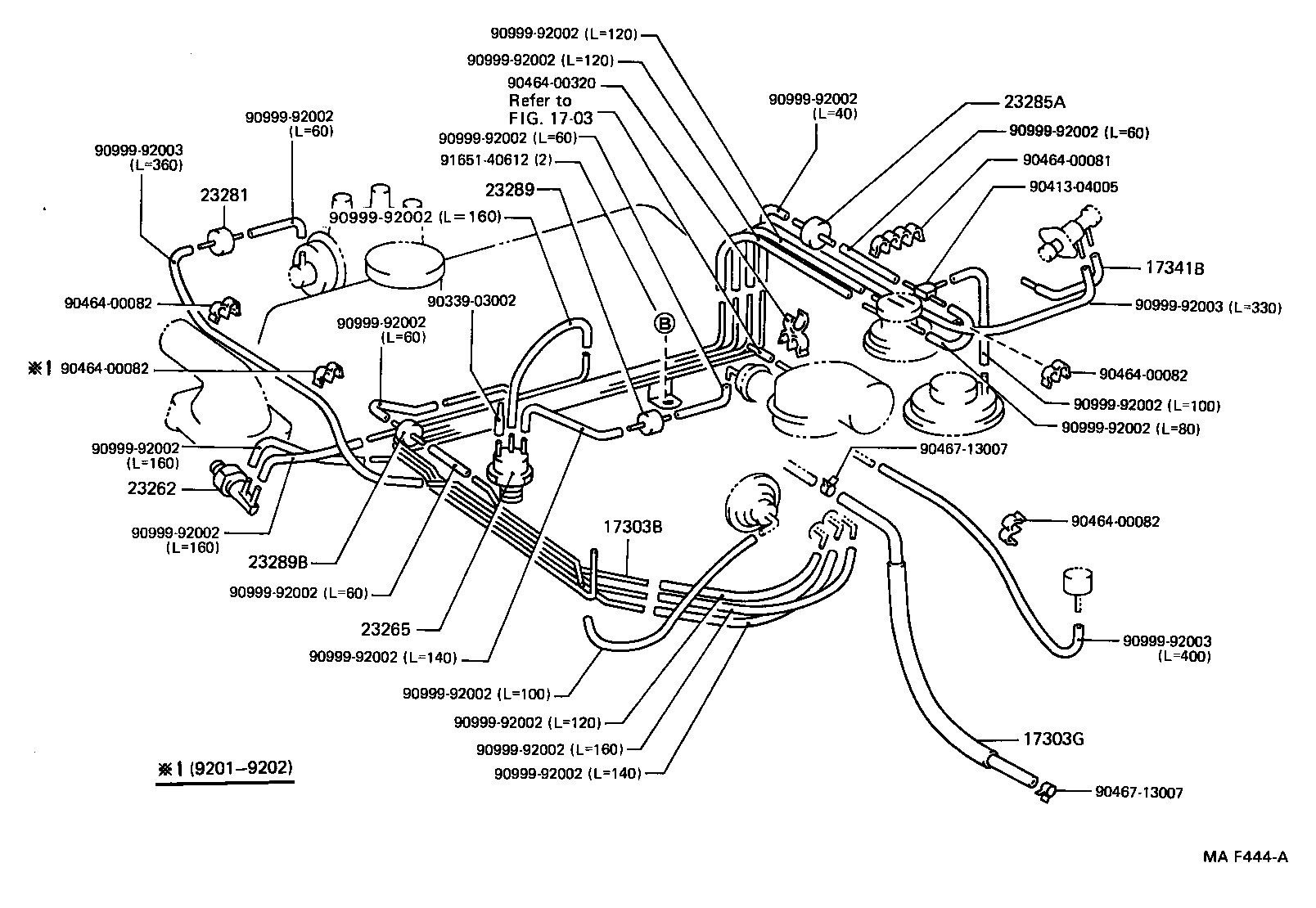

Figure MA9504B MA9504B 1992-01 → — Figure MA9504B MA9504B 1992-01 → — Figure MAF444A MAF444A 1992-01 → — Figure MA9504B MA9504B 1992-01 → — Figure MAF434A MAF434A 1992-01 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17303G Hose, NO.3(FOR AIR PIPE)
17341B Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650D Bracket, Vacuum Switching Valve
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23285A Valve, Check, NO.1
23289 Jet, NO.2
23289B Jet, NO.3
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
