Toyota Liteace Van Wagon

1992-01 → 1995-01 · chassis CR2#,KR2#,YR2# · catalogue 651540 · Europe

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

38 part groups · 5 illustrations

Illustrations

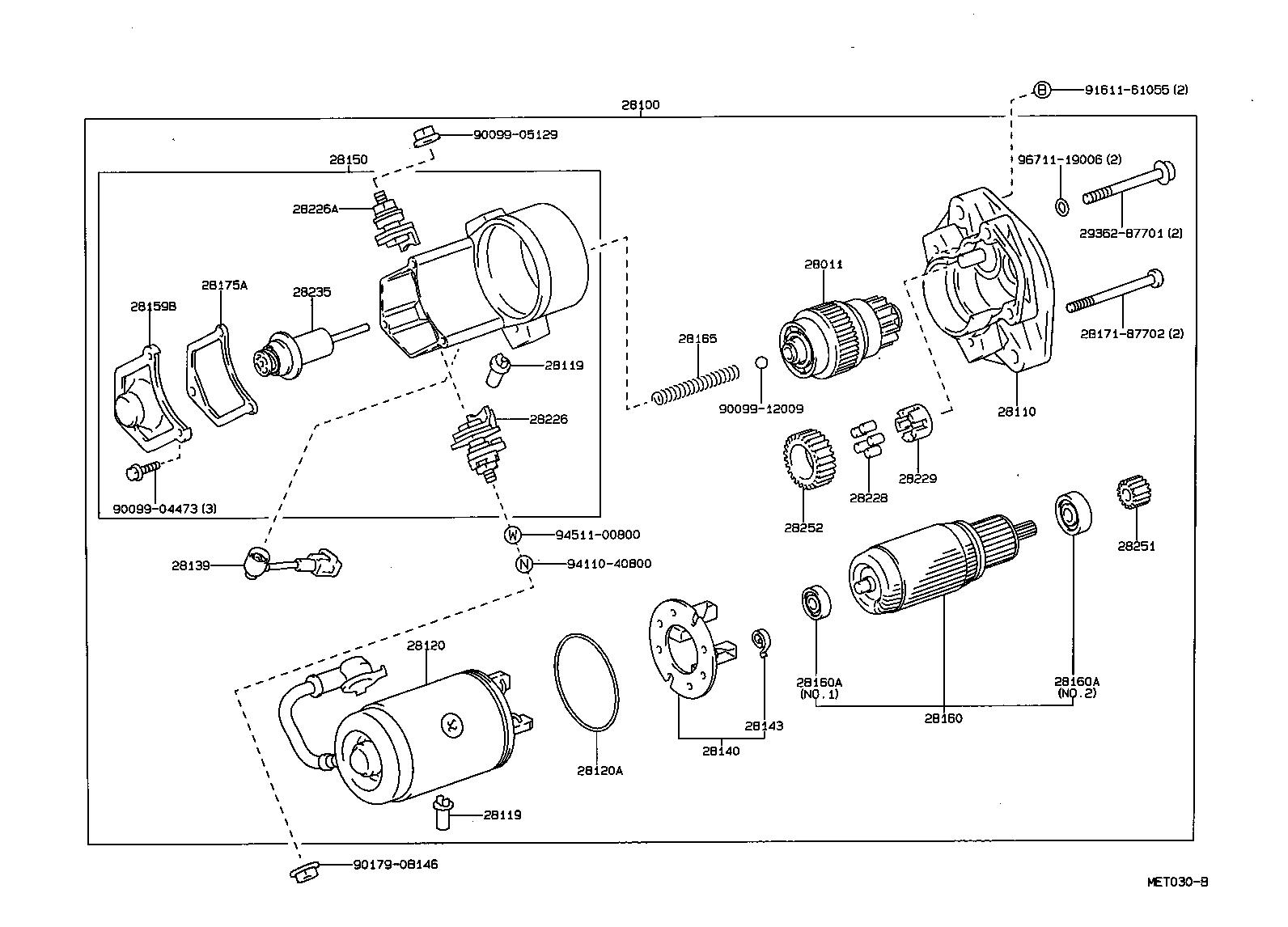

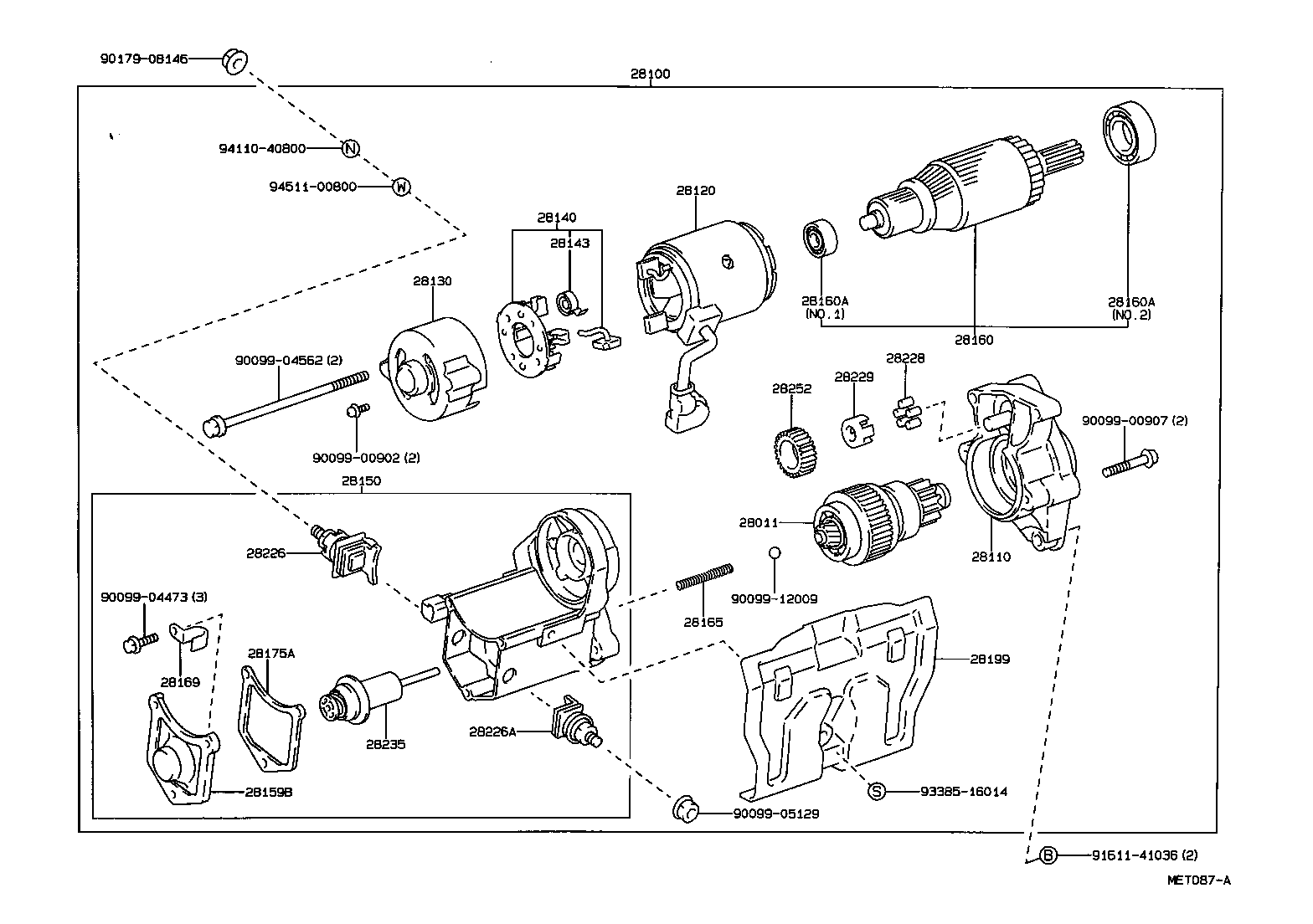

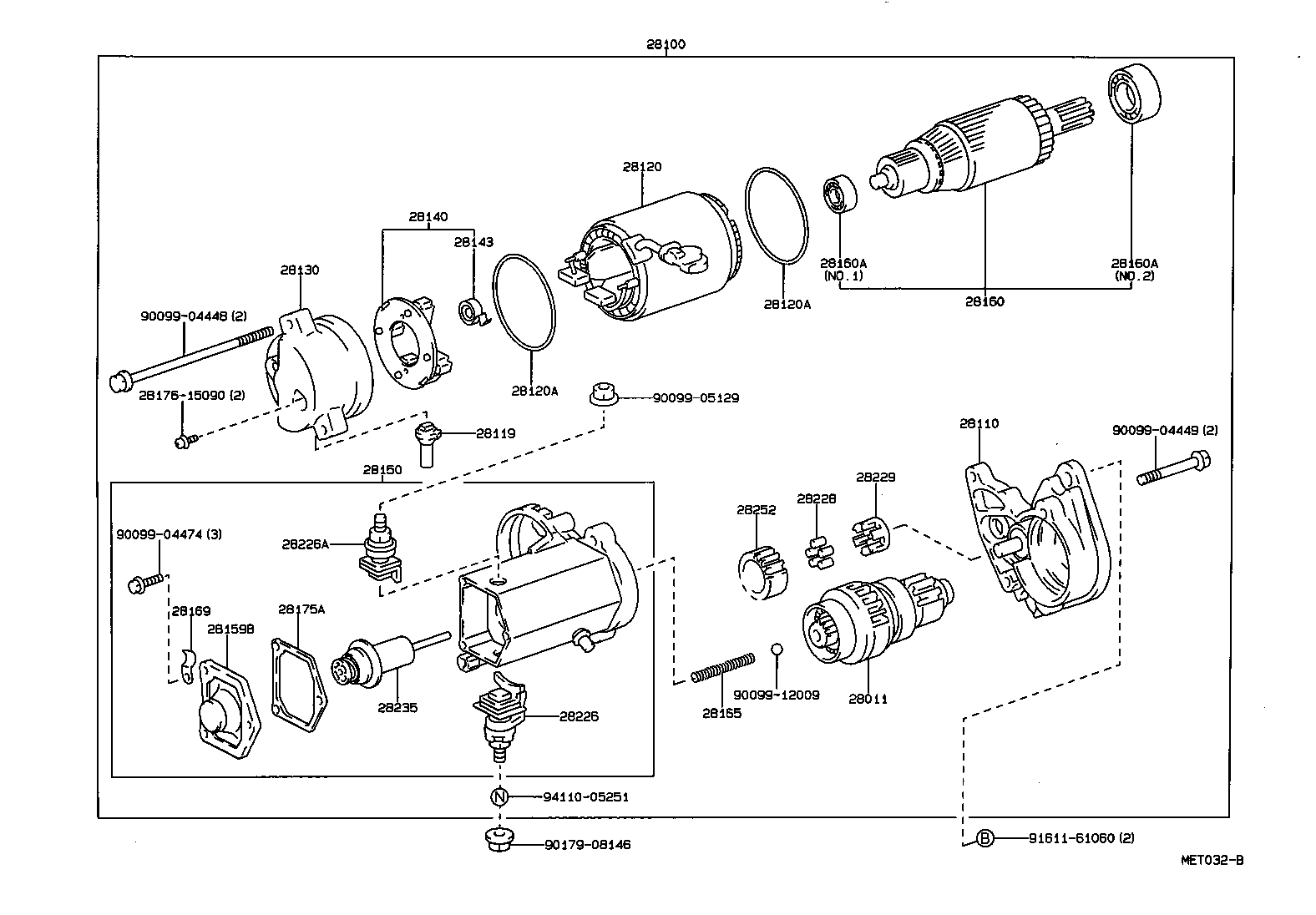

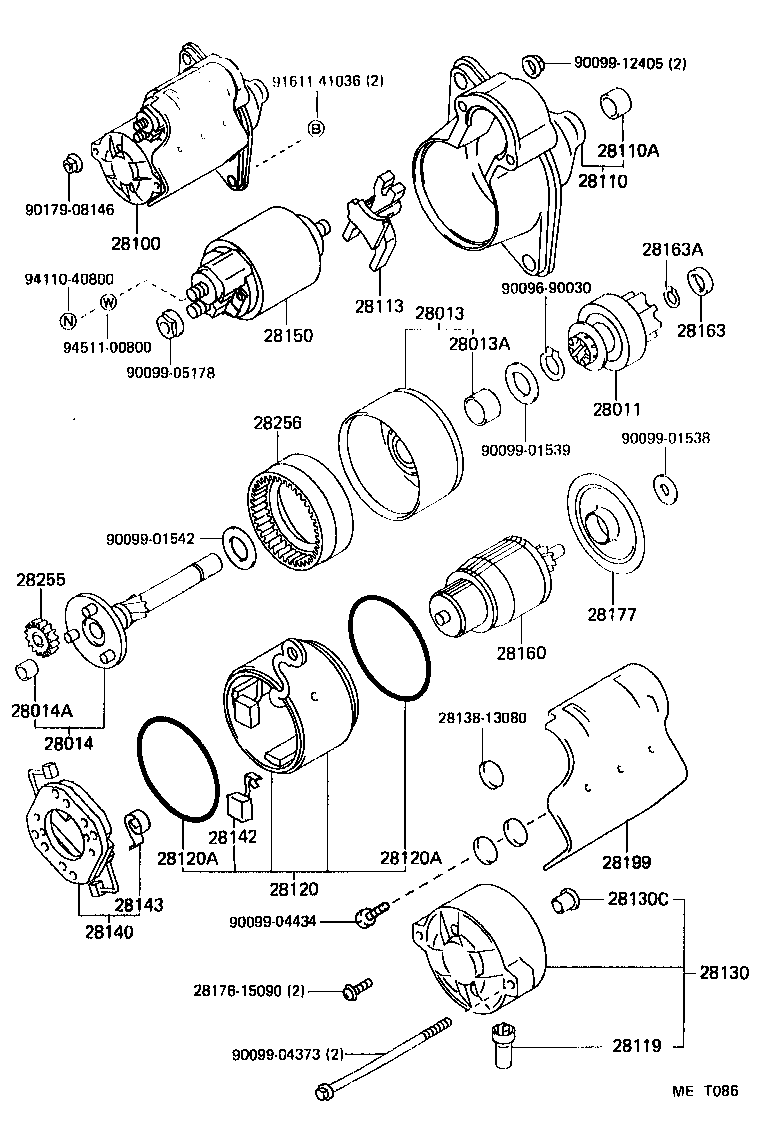

Figure MET029B MET029B 1992-01 → — Figure MET030B MET030B 1992-01 → — Figure MET086 MET086 1992-01 → — Figure MET087A MET087A 1992-01 → — Figure MET032B MET032B 1992-01 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28013 Bearing, Starter Center & Shock Absorber, NO.1
28013A Bearing, Starter Center & Shock Absorber, NO.2
28014 Shaft Sub-assy, Planet Carrier
28014A Bush OR Bearing, Planet Carrier Shaft
28100 Starter Assy
28110 Housing Assy, Starter Drive
28110A Bearing(FOR STARTER HOUSING)
28113 Lever, Starter Pinion Drive
28119 Cover, Starter End Frame
28120 Yoke Assy, Starter
28120A Ring, O(FOR STARTER YOKE)
28130 Frame Assy, Starter Commutator End
28130C Bearing, Starter Flange
28139 Wire, Lead, NO.1(FOR STARTER)
28140 Holder Assy, Starter Brush
28142 Brush, Starter
28143 Spring, Starter Brush
28150 Switch Assy, Magnet Starter
28159B Cover, Magnet Switch
28160 Armature Assy, Starter
28160A Bearing, Starter Armature
28163 Nut OR Collar, Pinion Stop, Starter
28163A Ring, Snap(FOR STARTER PINION STOP NUT)
28165 Spring, Starter Magnet Switch Return
28169 Clamp, Starter Motor Lead Wire
28175A Gasket, Magnet Switch Cover
28177 Plate(FOR STARTER ARMATURE)
28199 Cover, Starter
28226 Starter Kit, Battery Terminal
28226A Starter Kit, Motor Terminal
28228 Roller, Starter Idle Gear Clutch
28229 Retainer, Starter Idle Gear
28235 Plunger, Magnet Switch
28251 Pinion, Starter Drive
28252 Gear, Starter Idle
28255 Gear, Planet
28256 Gear, Starter Internal
