Toyota Liteace Van Wagon

1992-01 → 1995-01 · chassis CR2#,KR2#,YR2# · catalogue 651540 · Europe

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Pedal & Flexible Hose

19 part groups · 5 illustrations

Illustrations

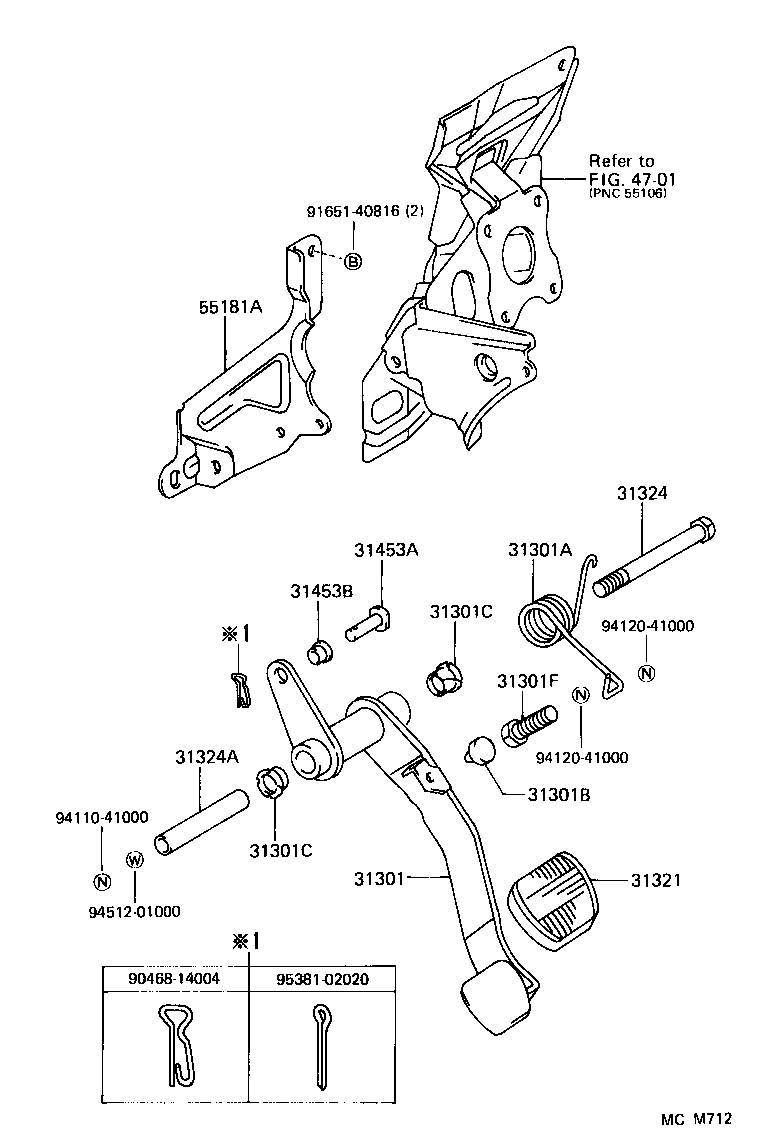

Figure MCM711 MCM711 1992-01 → — Figure MCM712 MCM712 1992-01 → — Figure MCM713 MCM713 1992-01 → — Figure MCM716 MCM716 1992-01 → — Figure MCM717 MCM717 1992-01 → —

Part groups

PNCDescription
31301 Pedal Sub-assy, Clutch
31301A Spring(FOR CLUTCH PEDAL)
31301B Cushion, NO.1(FOR CLUTCH PEDAL)
31301C Bush(FOR CLUTCH PEDAL)
31301F Bolt(FOR CLUTCH PEDAL STOPPER)
31321 Pad, Clutch Pedal
31324 Shaft, Clutch Pedal
31324A Collar, Clutch Pedal Shaft
31453A Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31453B Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31481 Tube, Clutch Master Cylinder TO Flexible Hose
31481A Hose, Clutch, NO.1
31481B Way(FOR CLUTCH TUBE)
31482 Tube, Clutch Release Cylinder TO Flexible Hose
31484 Bracket, Flexible Hose(FOR CLUTCH)
31489 Tube, Tube Connector TO Flexible Hose
31490 Accumulator Assy, Clutch
55156 Bracket, Clutch Pedal
55181A Support, Clutch Pedal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
