Toyota Liteace Van Wagon

1992-01 → 1995-01 · chassis CR2#,KR2#,YR2# · catalogue 651540 · Europe

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

14 part groups · 5 illustrations

Illustrations

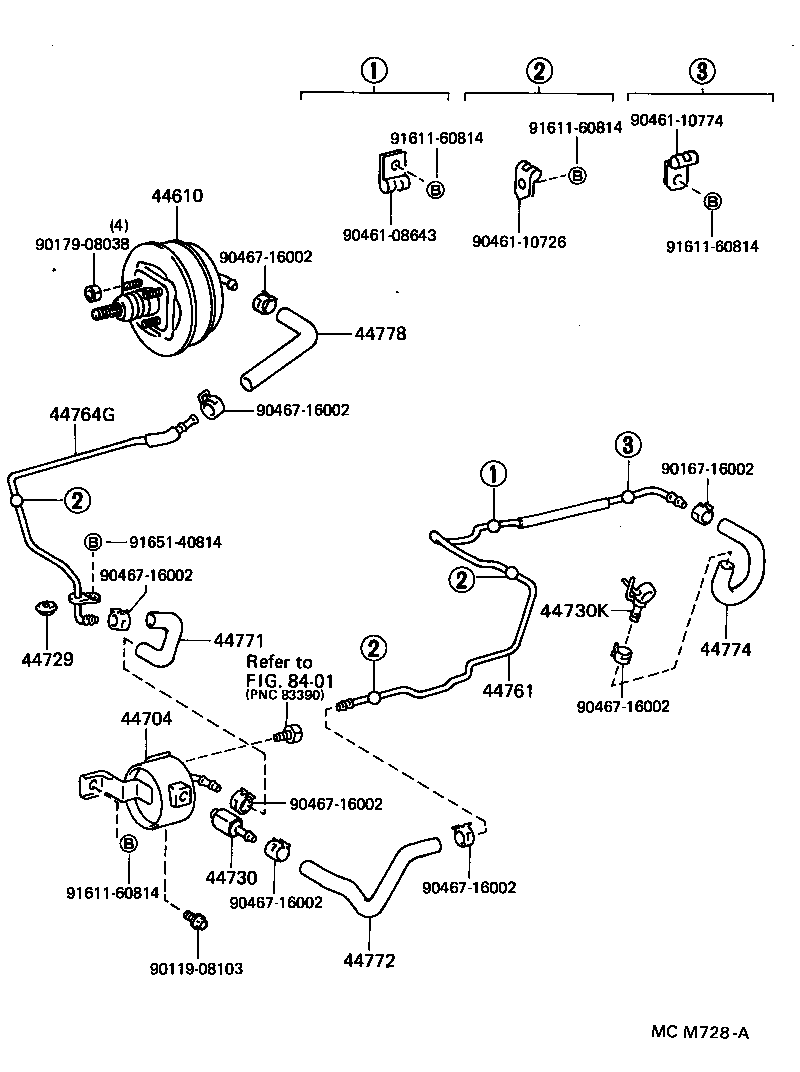

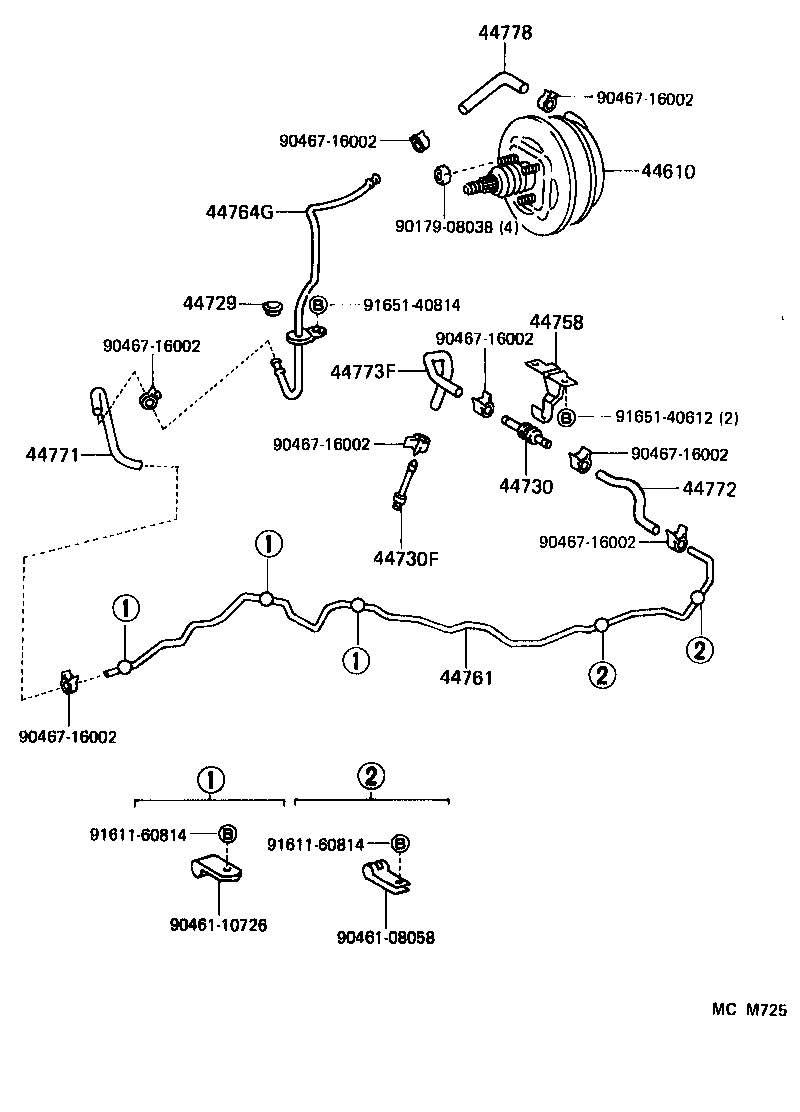

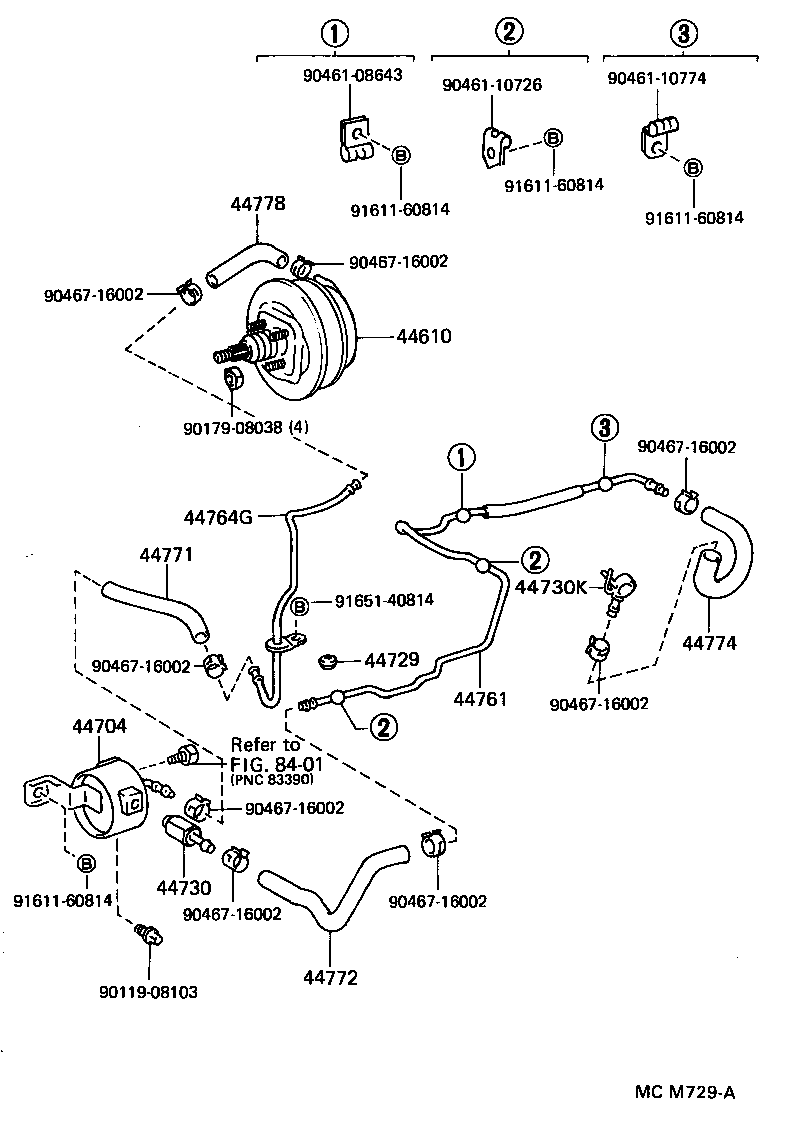

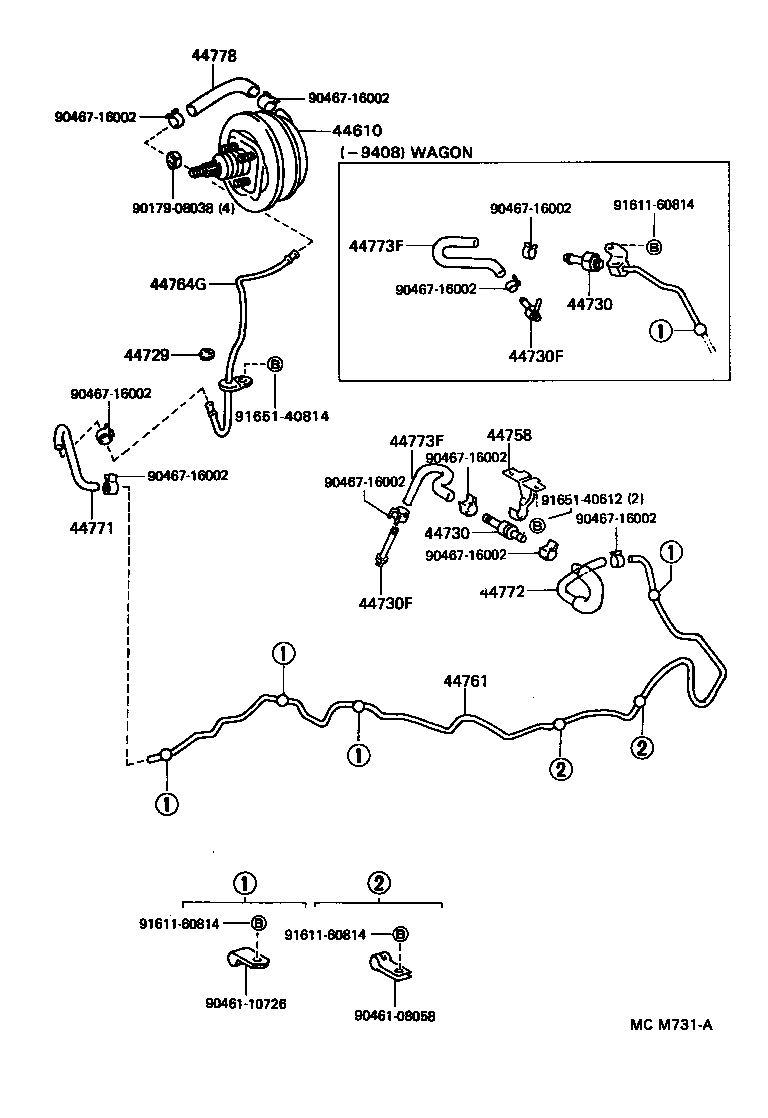

Figure MCM724 MCM724 1992-01 → — Figure MCM725 MCM725 1992-01 → — Figure MCM731A MCM731A 1992-01 → — Figure MCM728A MCM728A 1992-01 → — Figure MCM729A MCM729A 1992-01 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44704 Reservoir Sub-assy, Vacuum
44729 Gasket, Vacuum Tube
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44730K Union, Vacuum Hose(FOR VACUUM PUMP)
44758 Bracket, Vacuum Check Valve
44761 Tube, Intake Manifold OR Vacuum Pump TO Connector
44764G Tube, Connector TO Brake Booster
44771 Hose, Vacuum Tube Connector
44772 Hose, Check Valve TO Connector Tube
44773F Hose, Union TO Check Valve
44774 Hose, Union TO Connector Tube
44778 Hose, Connector TO Check Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
