Toyota Liteace Van Wagon

1992-01 → 1995-01 · chassis CR2#,KR2#,YR2# · catalogue 651540 · Europe

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Disc Brake Caliper & Dust Cover

28 part groups · 3 illustrations

Illustrations

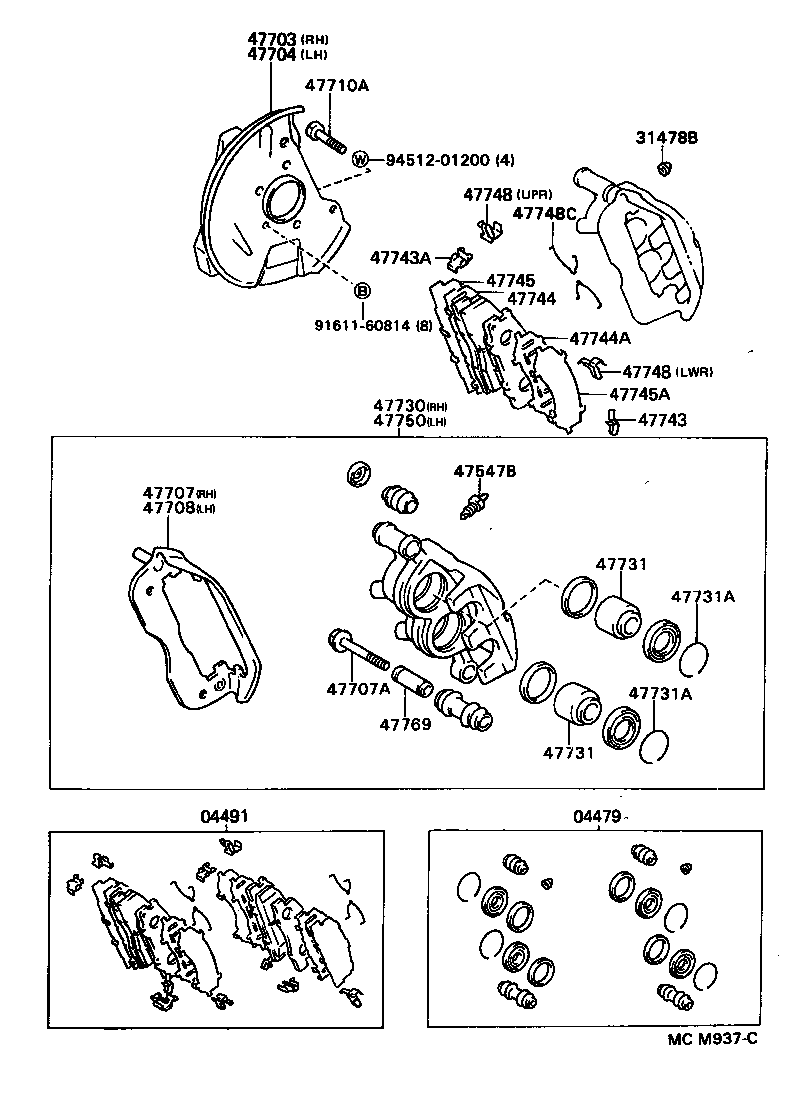

Figure MCM936C MCM936C 1992-01 → — Figure MCM937C MCM937C 1992-01 → — Figure MCT614 MCT614 1992-01 → —

Part groups

PNCDescription
04465 Pad Kit, Disc Brake, Front
04479 Cylinder Kit, Disc Brake, Front
04491 Pad Kit, Disc Brake, Front
04945 Shim Kit, Anti Squeal, Front
04947 Fitting Kit, Disc Brake, Front
31478B Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
47547B Plug, Bleeder(FOR FRONT DISC BRAKE)
47703 Cover Sub-assy, Disc Brake Dust, Front RH
47704 Cover Sub-assy, Disc Brake Dust, Front LH
47707 Plate Sub-assy, Disc Brake Torque, Front RH
47707A Bolt, Hexagon(FOR FRONT DISC BRAKE TORQUE PLATE)
47708 Plate Sub-assy, Disc Brake Torque, Front LH
47710A Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
47730 Cylinder Assy, Front Disc Brake, RH
47731 Piston, Front Disc Brake
47731A Ring, Set(FOR FRONT DISC BRAKE PISTON)
47743 Spring, Anti-rattle, NO.2(FOR FRONT DISC BRAKE)
47743A Spring, Anti-squeal(FOR FRONT DISC BRAKE)
47744 Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE)
47744A Shim, Anti-squeal, NO.3(FOR FRONT DISC BRAKE)
47745 Shim, Anti-squeal, NO.2(FOR FRONT DISC BRAKE)
47745A Shim, Anti-squeal, NO.4(FOR FRONT DISC BRAKE)
47748 Spring, Anti-rattle, NO.1(FOR FRONT DISC BRAKE)
47748C Spring, Anti-rattle, NO.2(FOR FRONT DISC BRAKE)
47750 Cylinder Assy, Disc Brake, LH
47769 Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
47781A Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
47781C Nut(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
