Toyota Liteace Van Wagon
1992-01 → 1995-01 · chassis CR2#,KR2#,YR2# · catalogue 651540 · Europe
Discontinued model
Data version 1995-10

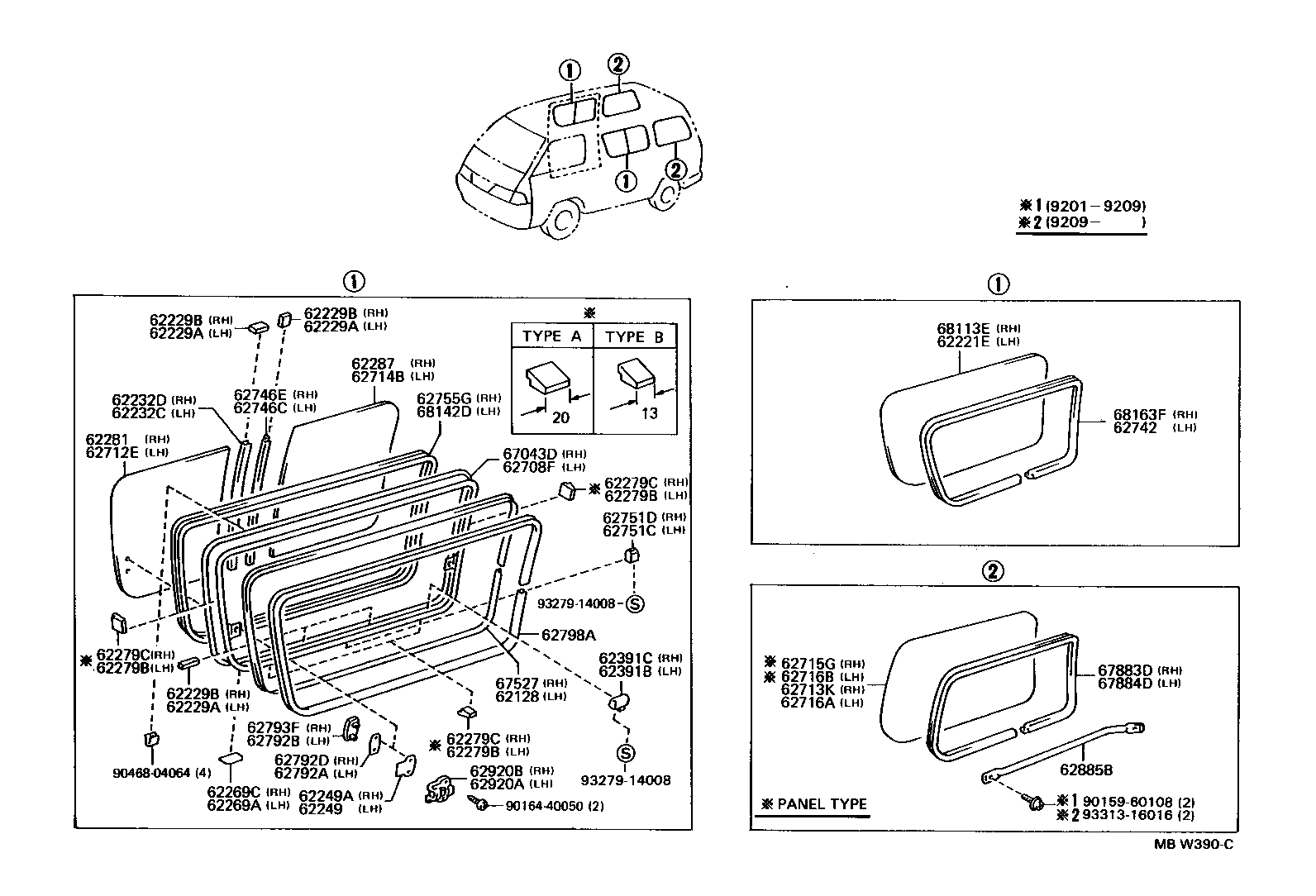

Side Window
56 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62128 | Packing, Side Front Window, LH |
| 62221E | Glass, Side Window, Front LH |
| 62229A | Packing, Side Window, NO.2 |
| 62229B | Packing, Side Window, NO.3 |
| 62232C | Channel, Side Window Glass, Front LH |
| 62232D | Channel, Side Window Glass, RH |
| 62249 | Plate, Side Window, RH |
| 62249A | Plate, Side Window, LH |
| 62253A | Weatherstrip, Side Window, Center RH |
| 62254E | Weatherstrip, Side Window, Center NO.2 |
| 62269A | Film, Side Window Frame, LH |
| 62269C | Film, Side Window Frame, RH |
| 62279B | Spacer, Side Window Frame, LH |
| 62279C | Spacer, Side Window Frame, RH |
| 62281 | Glass, Slide Door Window, Front RH |
| 62287 | Glass, Slide Door Window, Rear RH |
| 62391B | Stopper, Side Window, NO.1 Front LH |
| 62391C | Stopper, Side Window, NO.1 RH |
| 62708F | Frame Sub-assy, Side Front Window, LH |
| 62712E | Glass, Side Front Window, LH |
| 62713K | Glass, Side Window, Rear RH |
| 62714B | Glass, Side Window, Rear LH |
| 62715G | Panel, Side Rear Window, RH |
| 62716A | Glass, Side Rear Window, LH |
| 62716B | Panel, Side Rear Window, LH |
| 62729D | Pad, Rear Window Center Sash, LH |
| 62729E | Pad, Rear Window Center Sash, RH |
| 62732E | Hinge, Quarter Window, LH |
| 62732F | Plate, Rear Side Window Hinge Finish, LH |
| 62735E | Retainer, Side Rear Window Hinge, LH |
| 62742 | Weatherstrip, Quarter Window, LH |
| 62744B | Weatherstrip, Side Rear Window, LH |
| 62746C | Weatherstrip, Side Window Glass, LH |
| 62746E | Weatherstrip, Side Window Glass, RH |
| 62751C | Stop, Side Window Fix Glass |
| 62751D | Stop, Slide Door Window Fix Glass, RH |
| 62754C | Weatherstrip, Side Front Window, Center NO.2 LH |
| 62754D | Weatherstrip, Side Front Window, Center NO.2 RH |
| 62755G | Run, Slide Door Window, RH |
| 62792A | Packing, Side Window Lock, RH |
| 62792B | Retainer, Side Window Lock |
| 62792D | Packing, Side Window Lock |
| 62793F | Retainer, Slide Door Window Lock, RH |
| 62798A | Moulding, Side Window, Front |
| 62885B | Guard, Quarter Window, NO.2 |
| 62920A | Lock Assy, Side Front Window, LH |
| 62920B | Lock Assy, Side Rear Window, LH |
| 67043D | Frame Sub-assy, Slide Door Window, RH |
| 67436F | Frame, Side Front Window, Front Center LH |
| 67436G | Frame, Side Front Window, Center RH |
| 67527 | Packing, Slide Door Window, RH |
| 67883D | Weatherstrip, Quarter Window, Rear |
| 67884D | Weatherstip, Side Window, Rear LH |
| 68113E | Glass, Rear Door, RH |
| 68142D | Run, Side Front Window, LH |
| 68163F | Weatherstrip, Slide Door Glass, RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
