Toyota Liteace Van Wagon
1992-01 → 1995-01 · chassis CR2#,KR2#,YR2# · catalogue 651540 · Europe
Discontinued model
Data version 1995-10
Inside Trim Board

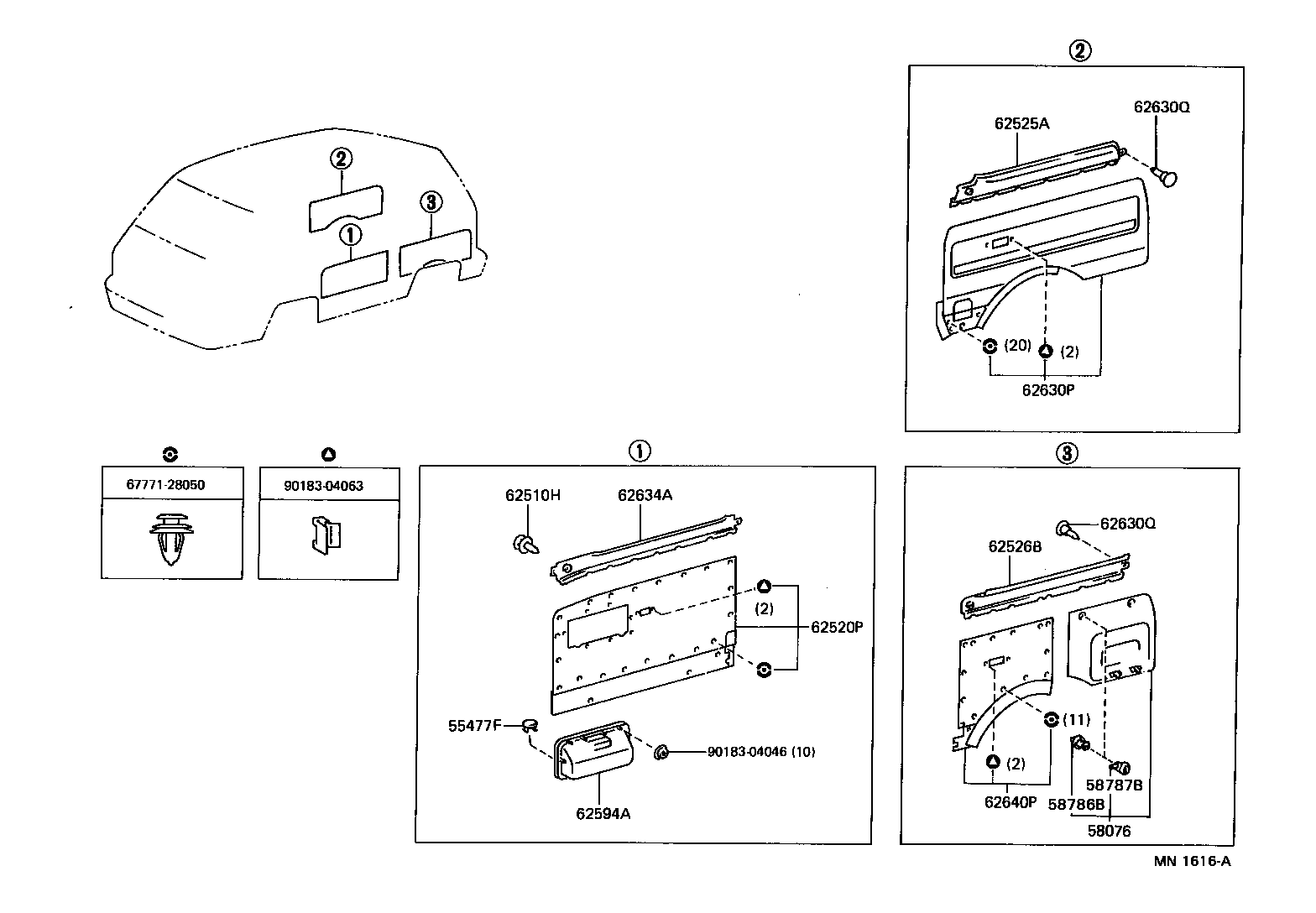

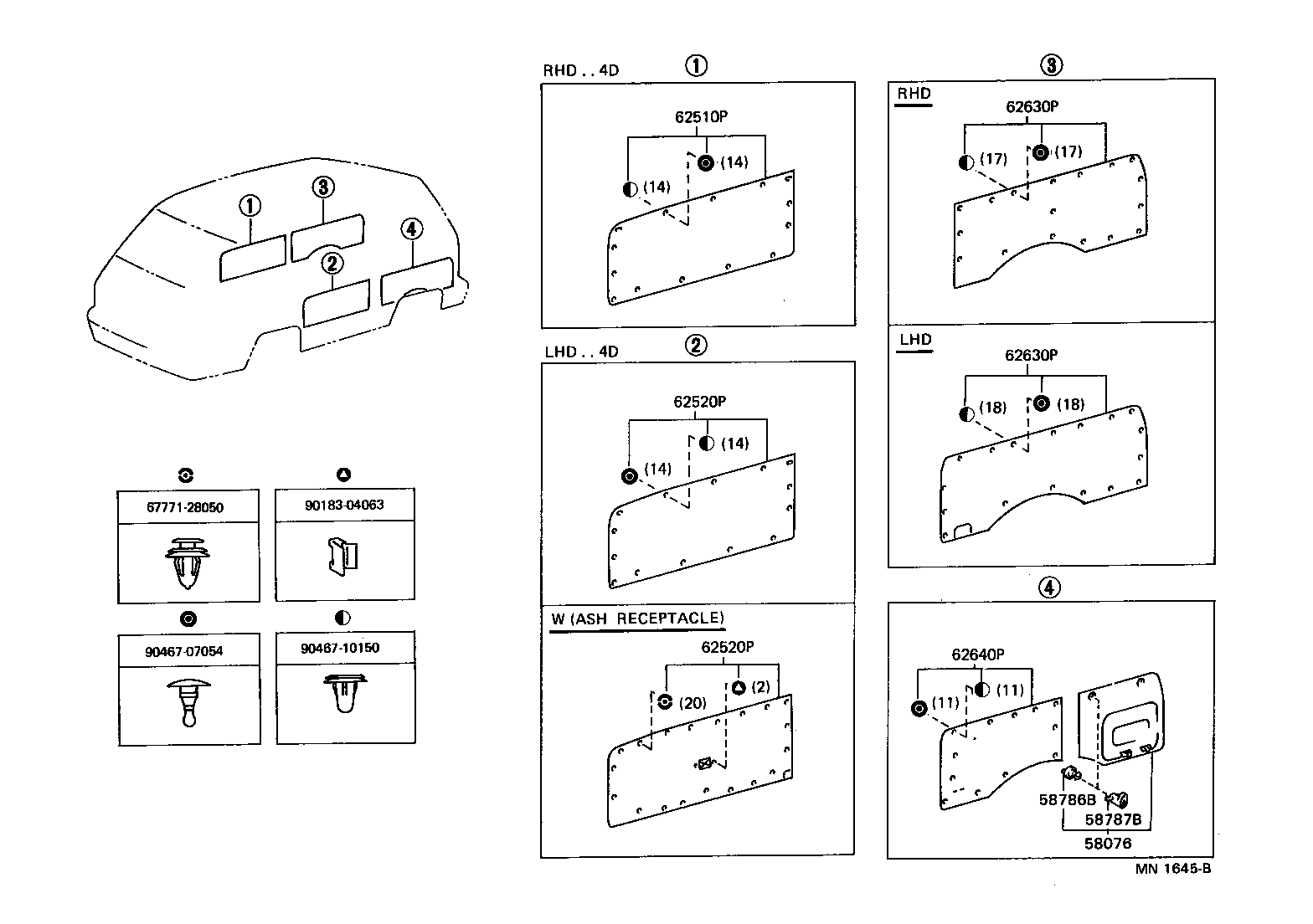

36 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 55477F | Cover, Cigarette Lighter Hole |
| 58076 | Cover Sub-assy, Jack Box Hole |
| 58786B | Stopper, Jack Box Hole Cover |
| 58787B | Packing, Jack Box Hole Cover |
| 62111B | Clip(FOR COWL SIDE TRIM) |
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62313D | Trim, Front Door Opening, RH |
| 62314D | Trim, Front Door Opening, LH |
| 62401A | Clip (FOR CENTER PILLAR GARNISH PANEL, UPPER) |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62413C | Clip (FOR CENTER LOWER GARNISH) |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62471B | Cover, Rear Pillar, RH |
| 62471C | Clip(FOR REAR PILLAR COVER) |
| 62471D | Garnish, Rear Pillar, Upper RH |
| 62471M | Clip |
| 62472B | Cover, Rear Pillar, LH |
| 62472D | Garnish, Rear Pillar, Upper LH |
| 62510H | Clip(FOR QUARTER TRIM FRONT PANEL) |
| 62510P | Panel Assy, Quarter Trim, Front RH |
| 62520P | Panel Assy, Quarter Trim, Front LH |
| 62525A | Cover, Quarter Trim Lower Rear, RH |
| 62526B | Cover, Quarter Trim Lower Rear, LH |
| 62594A | Pocket, Quarter Trim, NO.1 |
| 62630P | Panel Assy, Quarter Trim, Rear RH |
| 62630Q | Clip (FOR QUARTER TRIM) |
| 62634A | Garnish, Quarter Trim, LH |
| 62638A | Garnish, Quarter Pillar, RH |
| 62638B | Clip |
| 62639A | Garnish, Quarter Pillar, LH |
| 62640P | Panel Assy, Quarter Trim, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
