Toyota Liteace Van Wagon

1992-01 → 1995-01 · chassis CR2#,KR2#,YR2# · catalogue 651540 · Europe

Discontinued model Data version 1995-10

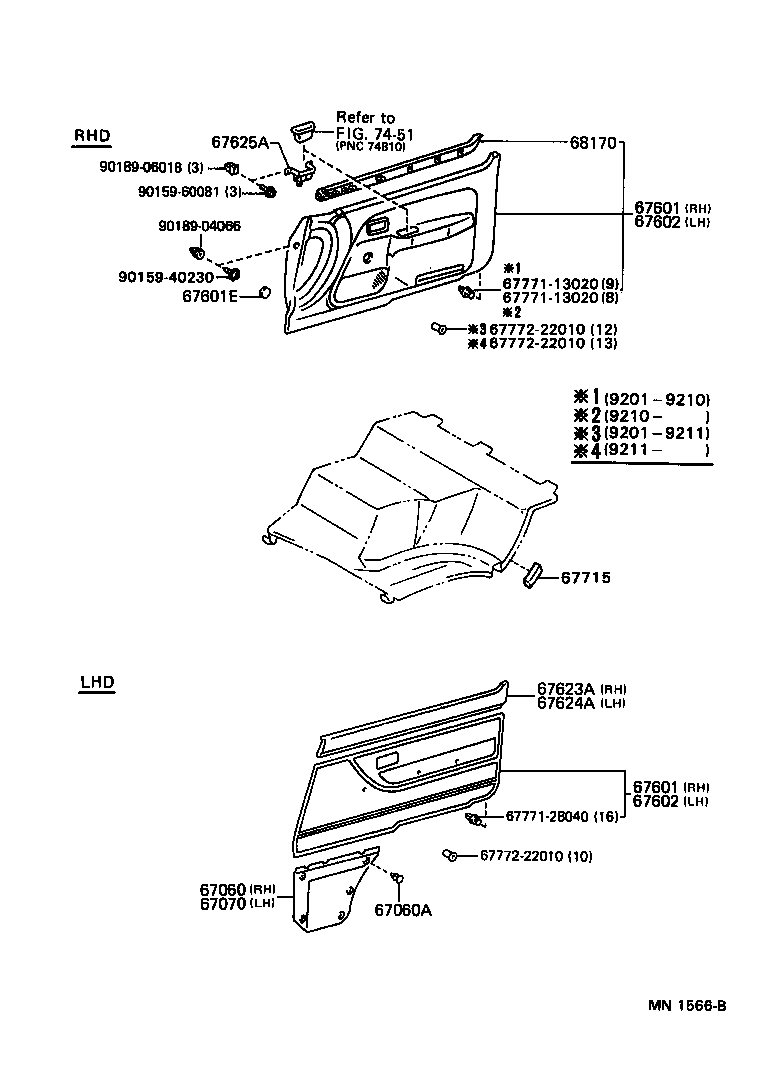

Front Door Panel & Glass

37 part groups · 2 illustrations

PNC	Description
67001	Panel Sub-assy, Front Door, RH
67002	Panel Sub-assy, Front Door, LH
67060	Board Assy, Front Door Trim, Lower RH
67060A	Clip(FOR FRONT DOOR TRIM LOWER BOARD)
67070	Board Assy, Front Door Trim, Lower LH
67111	Panel, Front Door, Outer RH
67112	Panel, Front Door, Outer LH
67403F	Frame Sub-assy, Front Door, Rear Lower RH
67404F	Frame Sub-assy, Front Door, Rear Lower LH
67491A	Garnish, Front Door Lower Frame Bracket, RH
67492A	Garnish, Front Door Lower Frame Bracket, LH
67499	Retainer, Front Door Lower Frame Bracket Garnish
67601	Board Sub-assy, Front Door Trim, RH
67601E	Cap(FOR FRONT DOOR TRIM BOARD)
67602	Board Sub-assy, Front Door Trim, LH
67623A	Board, Front Door Trim, Upper RH
67624A	Board, Front Door Trim, Upper LH
67625A	Bracket, Front Door Trim, NO.1
67715	Pad, Door Trim, NO.1
67831	Cover, Front Door Service Hole, RH
67832	Cover, Front Door Service Hole, LH
67861	Weatherstrip, Front Door, RH
67862	Weatherstrip, Front Door, LH
67863B	Weatherstrip, Front Door, NO.2 RH
67864B	Weatherstrip, Front Door, NO.2 LH
67867C	Retainer, Front Door Weatherstrip, RH
67868C	Retainer, Front Door Weatherstrip, LH
68101	Glass Sub-assy, Front Door, RH
68102	Glass Sub-assy, Front Door, LH
68141	Run, Front Door Glass
68160C	Weatherstrip Assy, Front Door Glass, Outer RH
68161A	Clip(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)
68170	Weatherstrip Assy, Front Door Glass, Inner
68170A	Clip(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
68210C	Weatherstrip Assy, Front Door Glass, Outer LH
68610	Check Assy, Front Door
68617	Pin, Front Door Check

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
