Toyota Liteace Van Wagon

1992-01 → 1995-01 · chassis CR2#,KR2#,YR2# · catalogue 651540 · Europe

Discontinued model Data version 1995-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

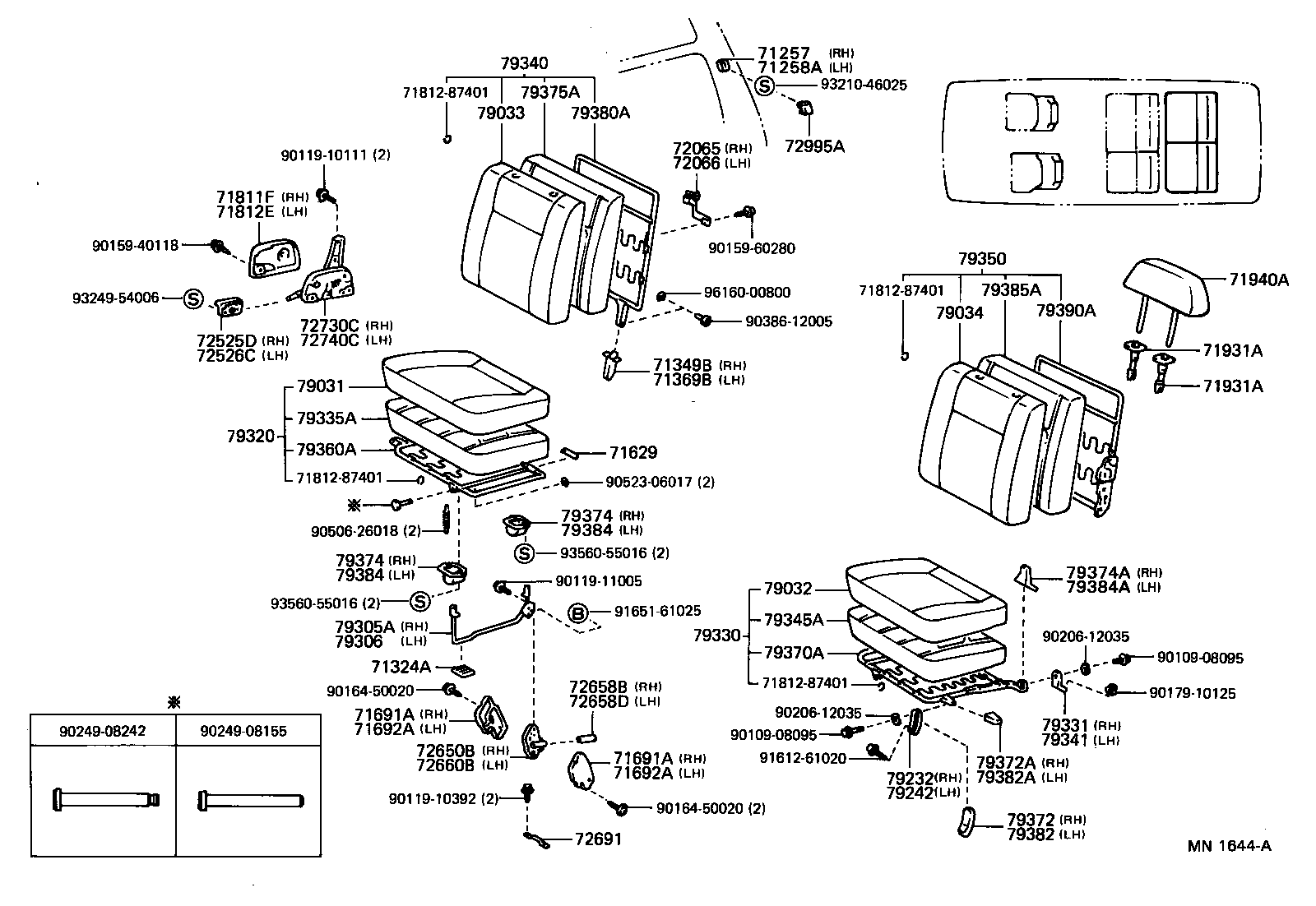

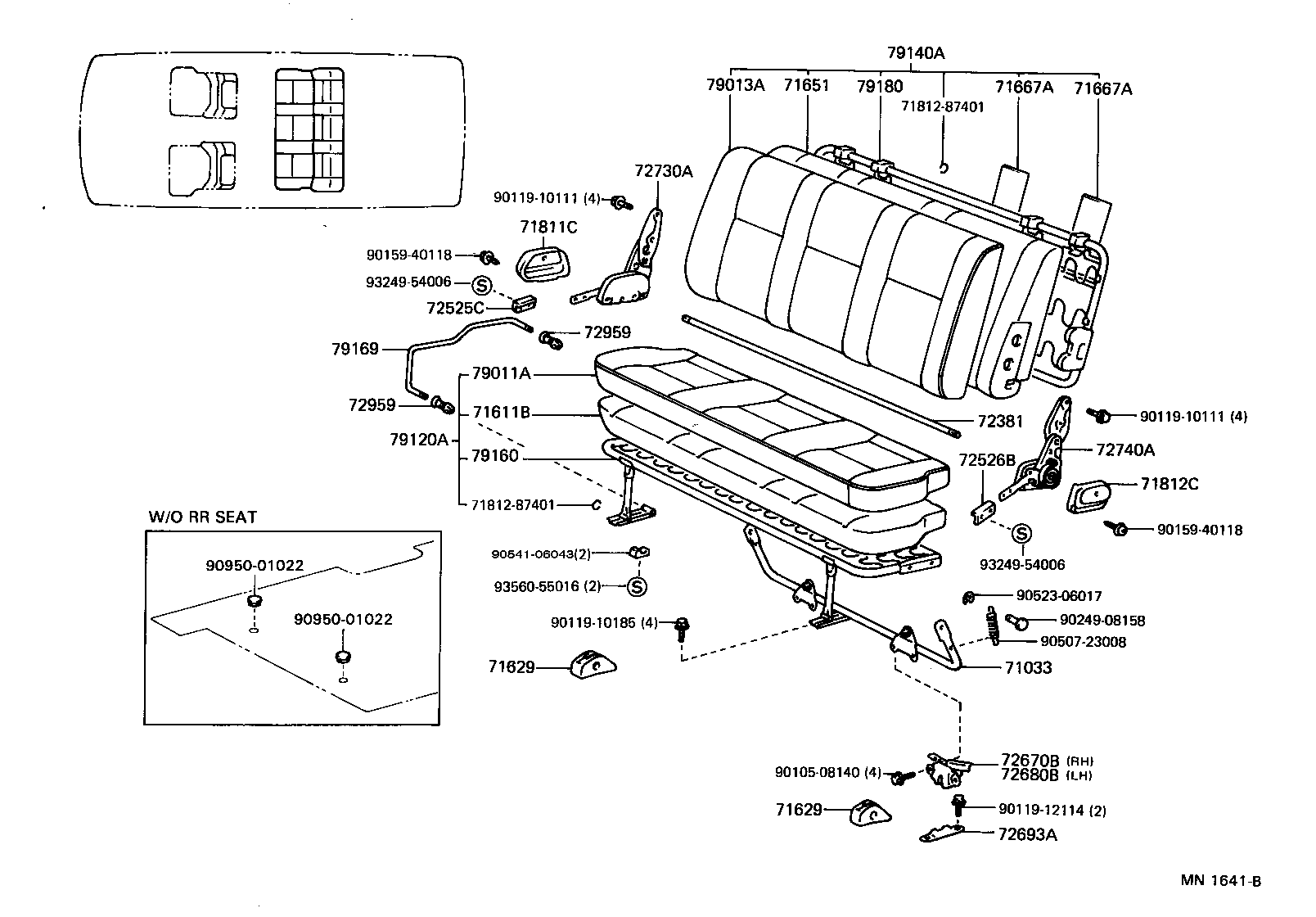

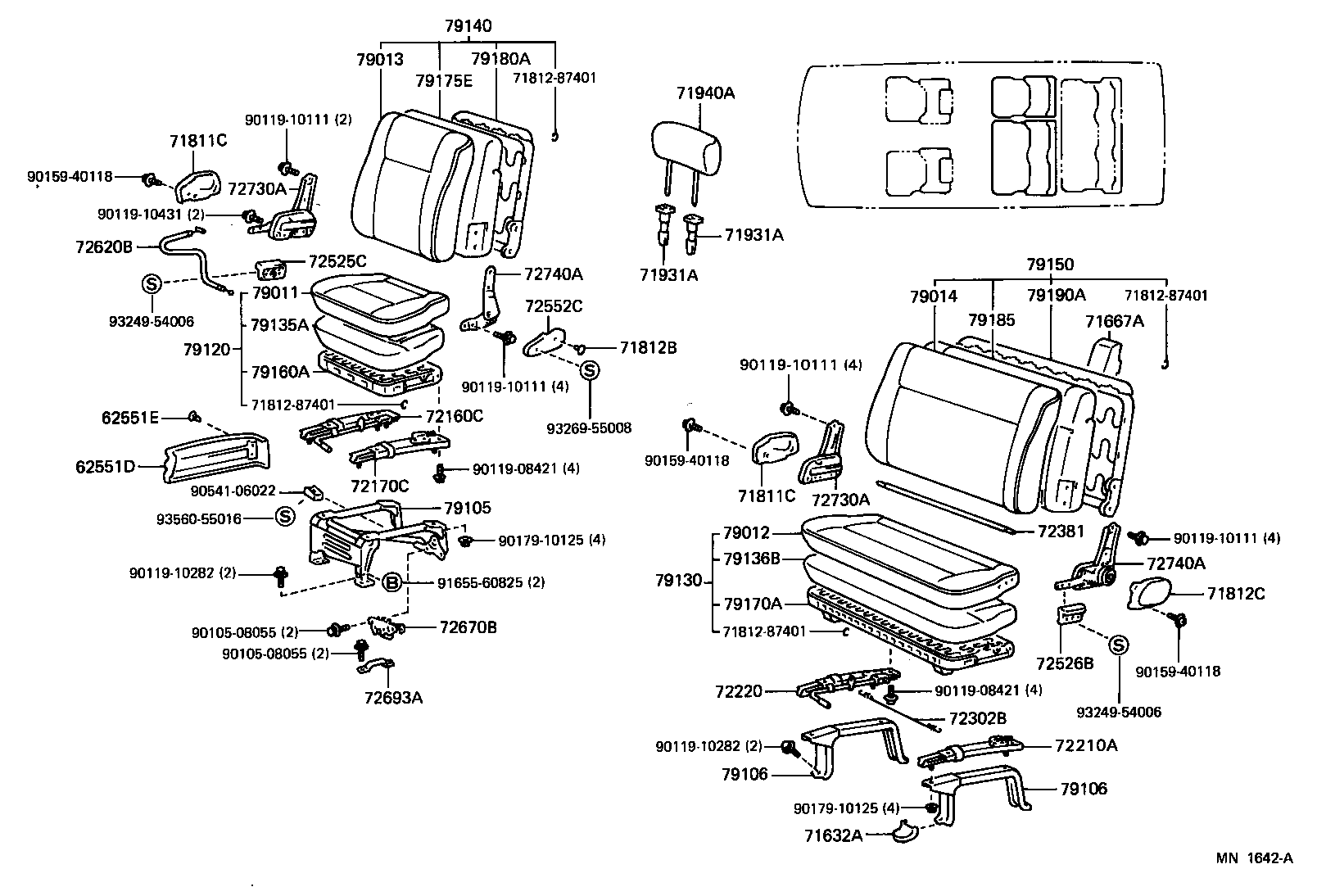

Seat & Seat Track

140 part groups · 4 illustrations

Illustrations

Part groups

PNC	Description
62551D	Garnish, Rear Seat Side, RH
62551E	Clip(FOR REAR SEAT SIDE GARNISH)
71011S	Frame Sub-assy, Front Seat Cushion, RH
71012S	Frame Sub-assy, Front Seat Cushion, LH
71033	Leg Sub-assy, Rear Seat Cushion
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71257	Plate, Rear Seatback Anchor
71258A	Plate, Rear Seatback Anchor, LH
71306D	Bracket Sub-assy, Front Seat Set
71324A	Cushion, Rear Seat
71349B	Cover, Rear Seatback Stay, RH
71362	Bracket, Front Seat Set, NO.2
71369B	Cover, Rear Seatback Stay, LH
71410S	Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S	Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A	Protector, Front Seat Cushion
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587	Protector, Front Seatback Edge
71588	Protector, Front Seatback Edge, NO.2
71611B	Pad, Rear NO.1 Seat Cushion
71629	Cover, Rear Seat Cushion Hinge
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71632A	Cover, Rear Seat, Outer
71640S	Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71651	Pad, Rear NO.1 Seatback
71667A	Pad, Rear Seatback, Center A
71691A	Cover, Rear NO.3 Seat Lock, RH
71692A	Cover, Rear NO.3 Seat Lock, LH
71811C	Cover, Reclining Adjuster, RH
71811F	Cover, Reclining Adjuster, RH
71812B	Clip(FOR REAR SEAT CUSHION COVER)
71812C	Cover, Reclining Adjuster, LH
71812E	Cover, Reclining Adjuster, LH
71831D	Cover, Front Seat Hinge, RH
71832D	Cover, Front Seat Hinge, LH
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
71931A	Support, Rear Seat Headrest
71940A	Headrest Assy, Rear Seat
72011C	Adjuster Sub-assy, Front Seat, RH
72012C	Adjuster Sub-assy, Front Seat, LH
72065	Belt Sub-assy, Rear Seat Hook, RH
72066	Belt Sub-assy, Rear Seat Hook, LH
72110A	Track Assy, Front Seat, Outer RH
72120	Track Assy, Front Seat, Outer LH
72130A	Track Assy, Front Seat, Inner RH
72140A	Track Assy, Front Seat,Inner LH
72160C	Track Assy, Rear NO.1 Seat, Outer RH
72170C	Track Assy, Rear NO.1 Seat, Inner RH
72210A	Track Assy, Rear NO.1 Seat, Outer RH
72220	Track Assy, Rear NO.1 Seat, Inner LH
72302B	Wire Sub-assy, Rear Seat Track Equalizing
72381	Rod, Reclining Adjuster Equalizing, NO.1
72525A	Handle, Reclining Adjuster Release, RH
72525C	Handle, Reclining Adjuster Release, NO.1 RH
72525D	Handle, Reclining Adjuster Release, NO.2 RH
72526	Handle, Reclining Adjuster Release, LH
72526B	Handle, Reclining Adjuster Release, NO.1 LH
72526C	Handle, Reclining Adjuster Release, NO.2 LH
72552C	Cover, Reclining Hinge, LH
72620B	Cable Assy, Rear NO.1 Seat Lock
72650B	Lock Assy, Rear NO.3 Seat, RH
72658B	Knob, Rear Seat Lock Handle
72658D	Knob, Rear Seat Lock Handle
72660B	Lock Assy, Rear NO.3 Seat, LH
72670B	Lock Assy, Rear Seat Cushion, RH
72680B	Lock Assy, Rear Seat Cushion, LH
72691	Striker, Rear NO.3 Seat Lock
72693A	Striker, Rear Seat Cushion Lock, NO.3
72730A	Adjuster Assy, Rear Seat Reclining, RH
72730C	Adjuster Assy, NO.2 Seat Reclining, RH
72740A	Adjuster Assy, Rear Seat Reclining, LH
72740C	Adjuster Assy, NO.2 Seat Reclining, LH
72959	Spacer, Rear Seat Turn Side
72991	Cover, Front Seat Cushion, RH
72992	Cover, Front Seat Cushion, LH
72995A	Cover, Rear Seat
79011	Cover Sub-assy, NO.1 Seat Cushion, RH
79011A	Cover Sub-assy, NO.1 Seat Cushion
79012	Cover Sub-assy, NO.1 Seat Cushion, LH
79013	Cover Sub-assy, NO.1 Seatback, RH
79013A	Cover Sub-assy, NO.1 Seatback
79014	Cover Sub-assy, NO.1 Seatback, LH
79031	Cover Sub-assy, NO.3 Seat Cushion, RH
79032	Cover Sub-assy, NO.3 Seat Cushion, LH
79033	Cover Sub-assy, NO.3 Seatback, RH
79034	Cover Sub-assy, NO.3 Seatback, LH
79105	Leg Sub-assy, NO.1 Seat, RH
79106	Leg Sub Assy, NO.1 Seat, LH
79120	Cushion Assy, NO.1 Seat, RH
79120A	Cushion Assy, NO.1 Seat
79130	Cushion Assy, NO.1 Seat, LH
79135A	Pad, NO.1 Seat Cushion, RH
79136B	Pad, NO.1 Seat Cushion, LH
79140	Back Assy, NO.1 Seat, RH
79140A	Back Assy, NO.1 Seat
79150	Back Assy, NO.1 Seat, LH
79160	Spring Assy, NO.1 Seat Cushion
79160A	Spring Assy, NO.1 Seat Cushion, RH
79169	Rod, Rear Seat Hinge Connector
79170A	Spring Assy, NO.1 Seat Cusuion, LH
79175E	Pad, NO.1 Seatback, RH
79180	Spring Assy, NO.1 Seatback
79180A	Spring Assy, NO.1 Seatback, RH
79185	Pad, NO.1 Seatback, LH
79190A	Spring Assy, NO.1 Seatback, LH
79232	Leg, Rear NO.2 Seat, RH
79242	Leg, Rear NO.2 Seat, LH
79305A	Leg Sub-assy, NO.3 Seat, RH
79306	Leg Sub Assy, NO.3 Seat, LH
79320	Cushion Assy, NO.3 Seat, RH
79330	Cushion Assy, NO.3 Seat, LH
79331	Leg, NO.3 Seat, Outer RH
79335A	Pad, NO.3 Seat Cushion, RH
79340	Back Assy, NO.3 Seat, RH
79341	Leg, NO.3 Seat, Outer LH
79345A	Pad, NO.3 Seat Cushion, LH
79350	Back Assy, NO.3 Seat, LH
79360A	Spring Assy, NO.3 Seat Cushion, RH
79370A	Spring Assy, NO.3 Seat Cushion, LH
79372	Cover, NO.3 Seat Front Bracket, RH
79372A	Cover, NO.3 Seat Front Bracket, RH
79374	Cover, NO.3 Seat Leg, Rear RH
79374A	Cover, NO.3 Seat Leg, Rear RH
79375A	Pad, NO.3 Seatback, RH
79380A	Spring Assy, NO.3 Seatback, RH
79382	Cover, NO.3 Seat Front Bracket, LH
79382A	Cover, NO.3 Seat Front Bracket, LH
79384	Cover, NO.3 Seat Leg, Rear LH
79384A	Cover, NO.3 Seat Leg, Rear LH
79385A	Pad, NO.3 Seatback, LH
79390A	Spring Assy, NO.3 Seatback, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
