Toyota Liteace Van Wagon

1992-01 → 1995-01 · chassis CR2#,KR2#,YR2# · catalogue 651540 · Europe

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

16 part groups · 3 illustrations

Illustrations

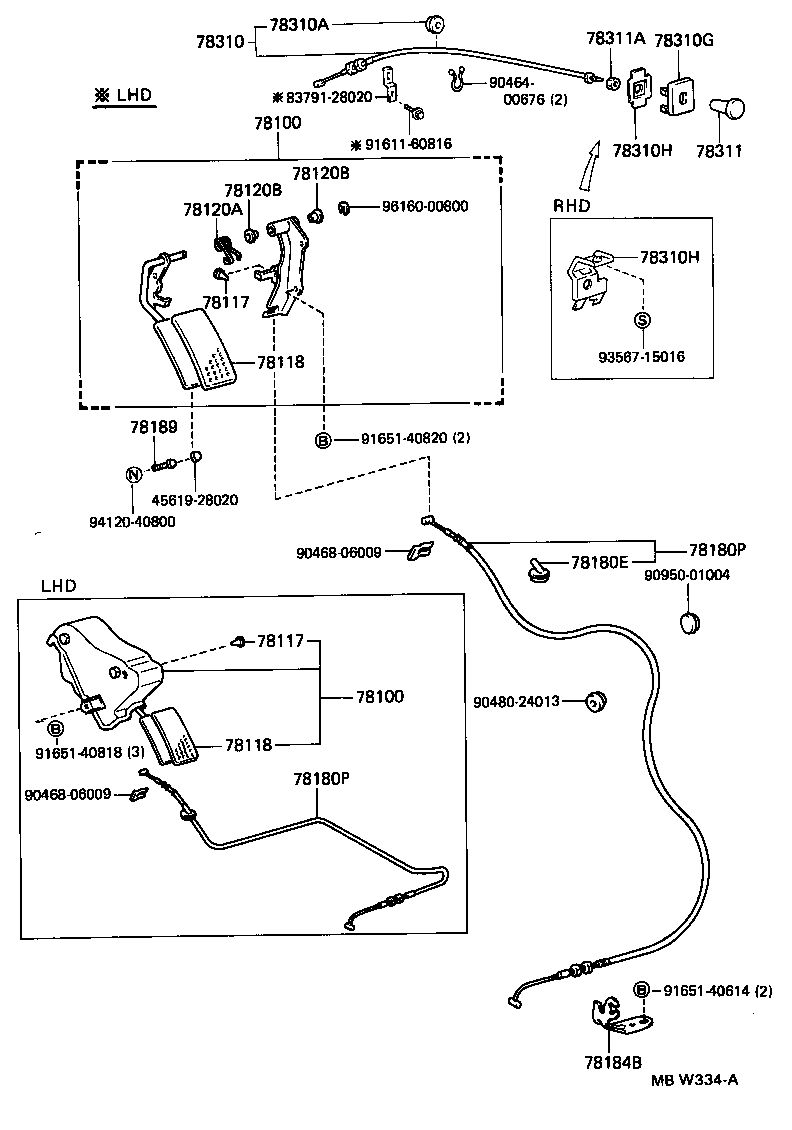

Figure MBW333C MBW333C 1992-01 → — Figure MBW334A MBW334A 1992-01 → 1994-05 Figure MBW336A MBW336A 1992-01 → —

Part groups

PNCDescription
78100 Link Assy, Accelerator
78117 Cushion (FOR ACCELERATOR ROD)
78118 Pad, Accelerator Pedal
78120A Spring, Compression (FOR ACCELERATOR LINK ROD)
78120B Bush (FOR ACCELERATOR LINK ROD)
78180E Grommet (FOR ACCELERATOR WIRE)
78180P Cable Assy, Accelerator Control
78183B Clamp, Accelerator Control Cable
78184B Bracket, Accelerator Control Cable
78189 Bolt, Accelerator Pedal Stopper
78310 Cable Assy, Choke
78310A Grommet, Choke Cable
78310G Cover, Choke Rod Spare Switch Hole
78310H Cover, Choke Rod Spare Switch Hole
78311 Knob, Choke Control Cable
78311A Nut, Choke Shaft Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
