Toyota Liteace Van Wagon

1992-01 → 1995-01 · chassis CR2#,KR2#,YR2# · catalogue 651540 · Europe

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

8 part groups · 2 illustrations

Illustrations

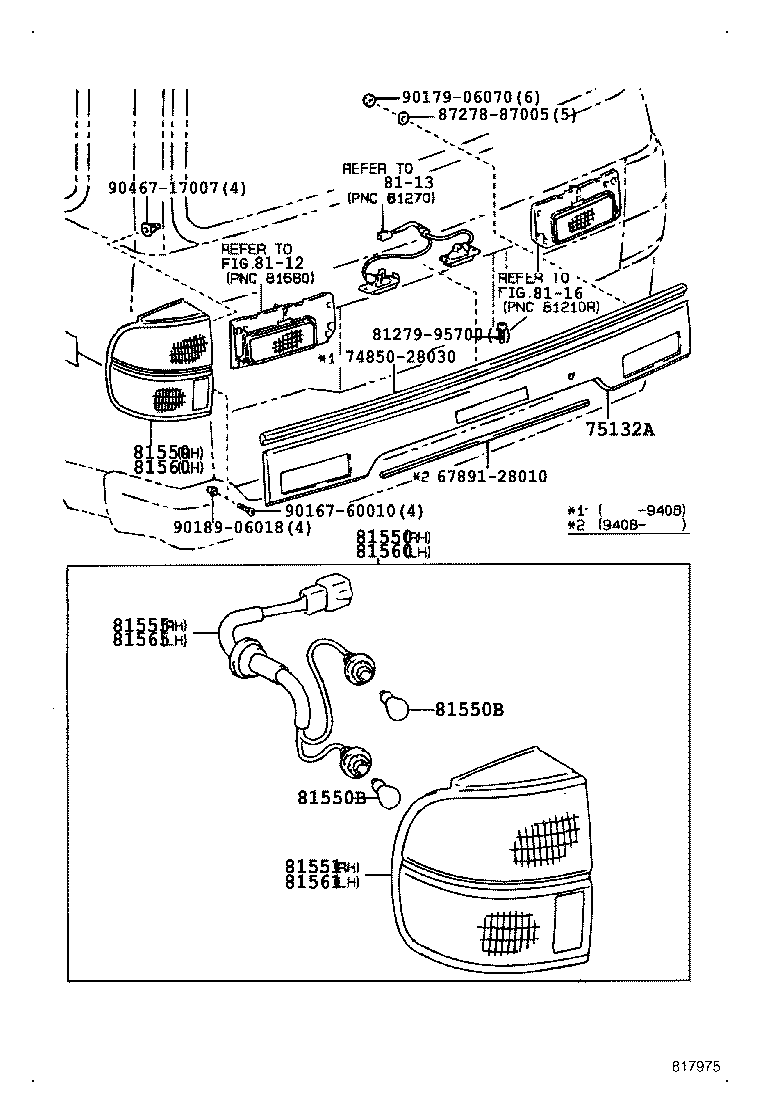

Figure 817974 817974 1992-01 → — Figure 817975 817975 1992-01 → —

Part groups

PNCDescription
75132A Cover, License Rear Lamp
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
