Factory parts data · Europe

Toyota Liteace Van Wagon

1992-01 → 1995-01 · chassis CR2#,KR2#,YR2# · catalogue 651540 · Europe

Discontinued model Data version 1995-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Fog Lamp

4 part groups · 2 illustrations

Illustrations

817976 1992-01 → —

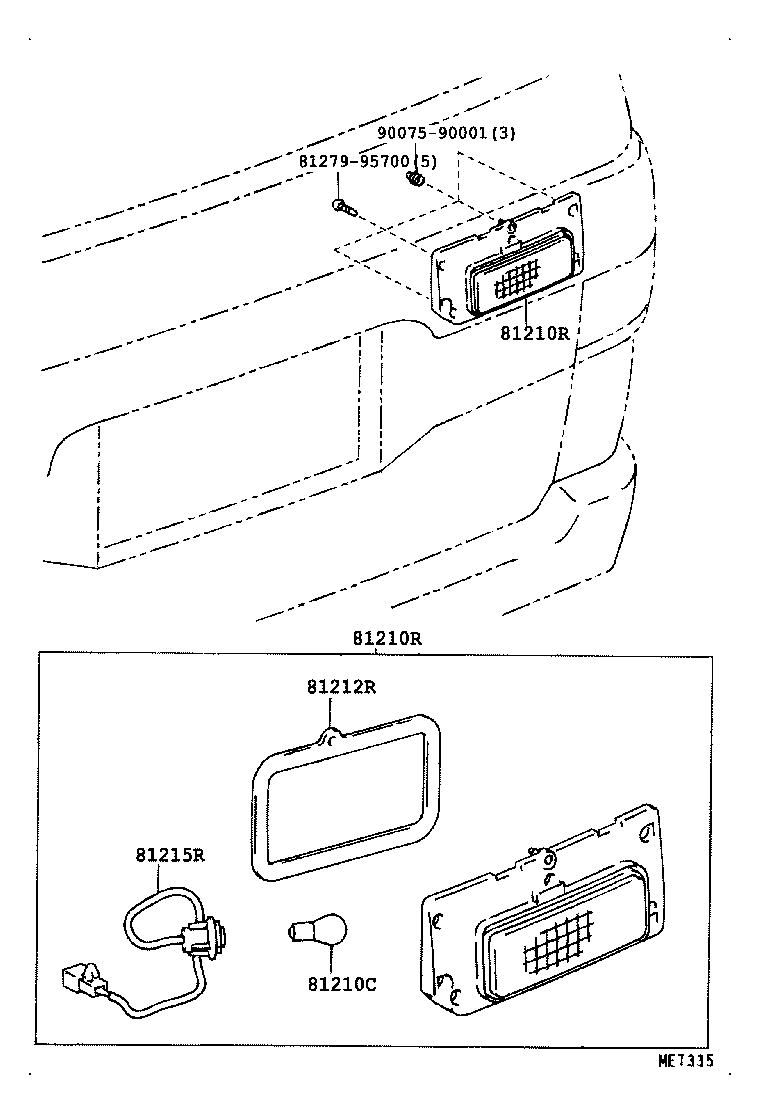

817977 1992-01 → —

Part groups

PNC	Description
81210C	Bulb, Rear Fog Lamp
81210R	Lamp Assy, Rear Fog
81212R	Gasket, Rear Fog Lamp, NO.1
81215R	Socket & Wire, Rear Fog Lamp

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
