Toyota Liteace Van Wagon

1992-01 → 1995-01 · chassis CR2#,KR2#,YR2# · catalogue 651540 · Europe

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

33 part groups · 16 illustrations

Illustrations

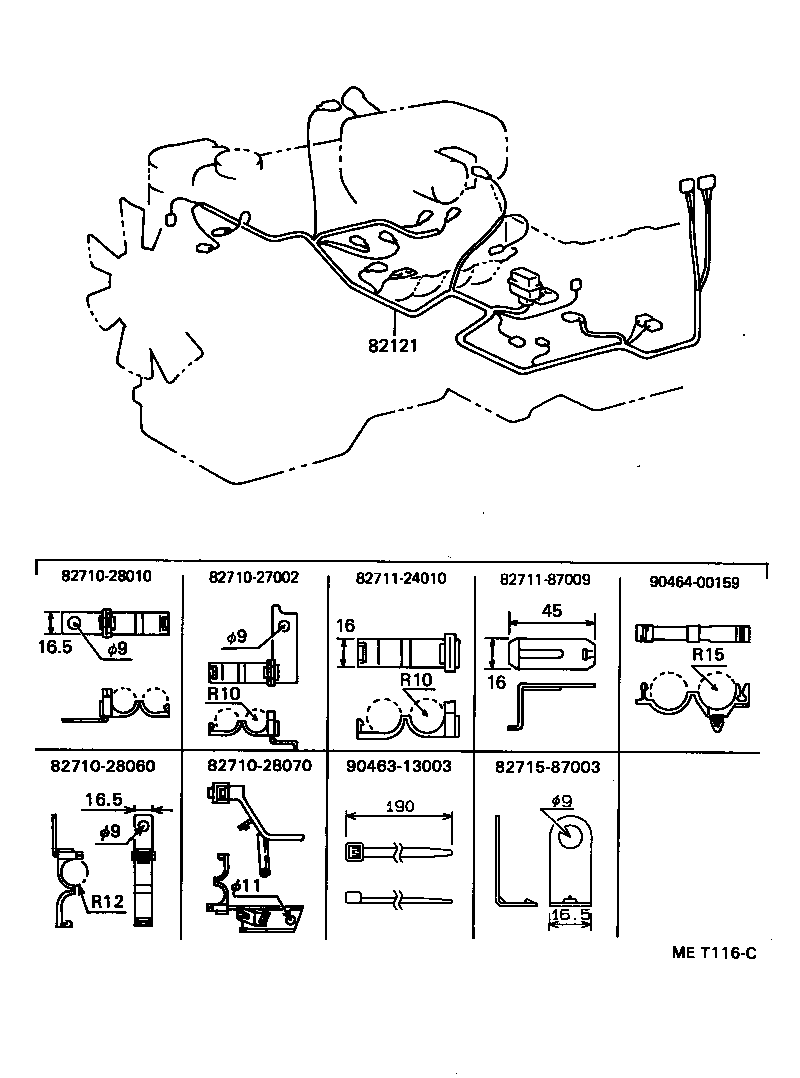

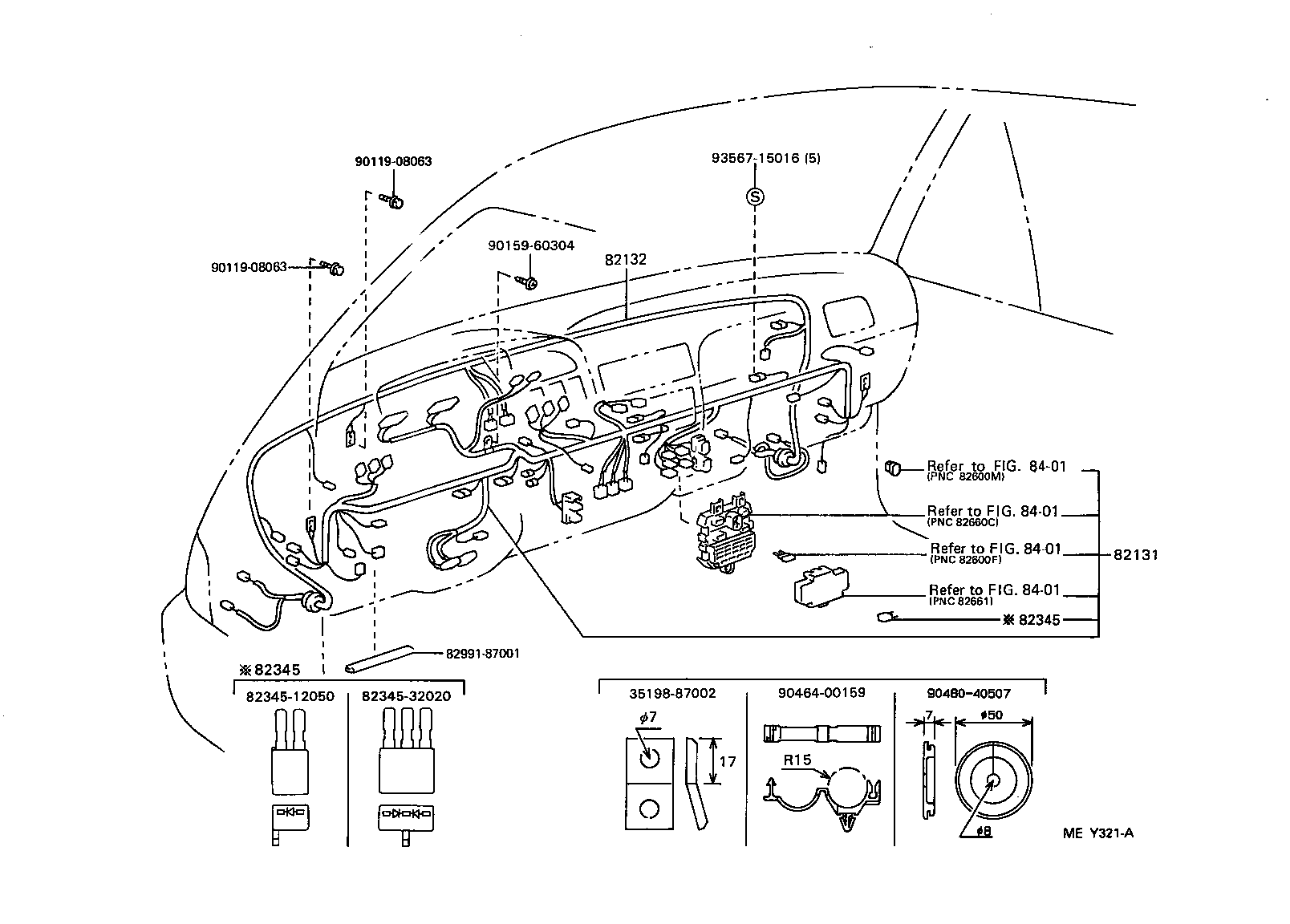

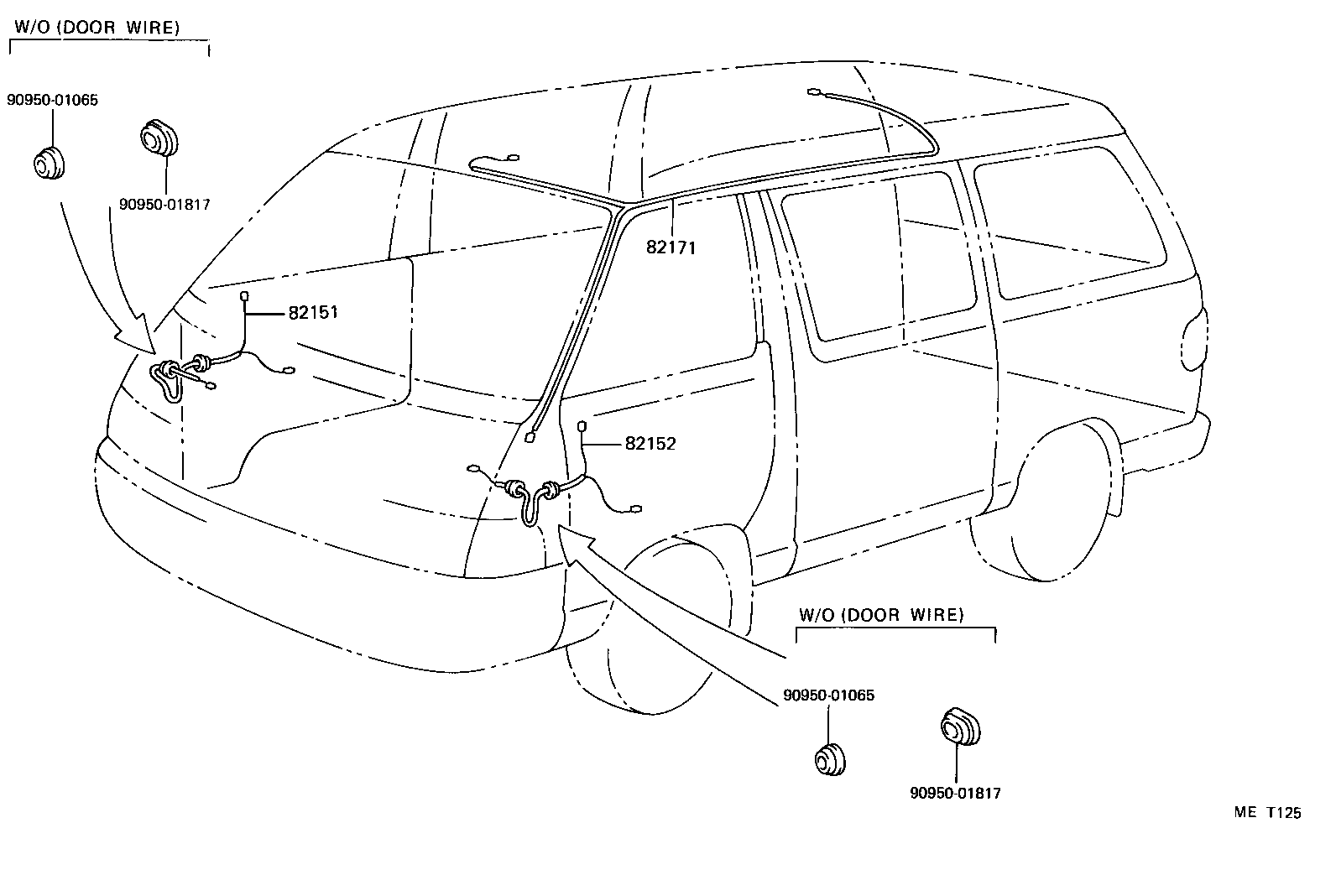

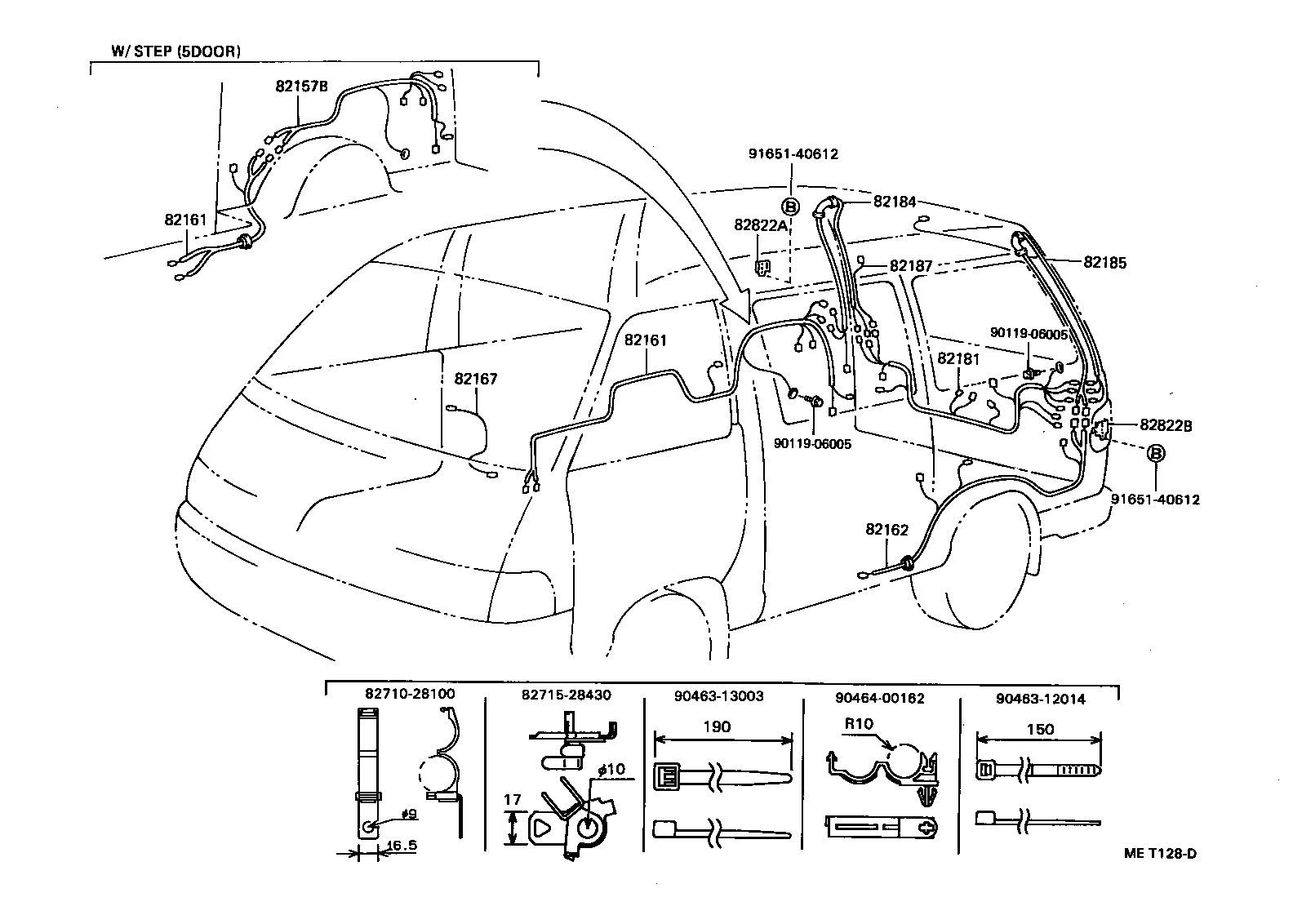

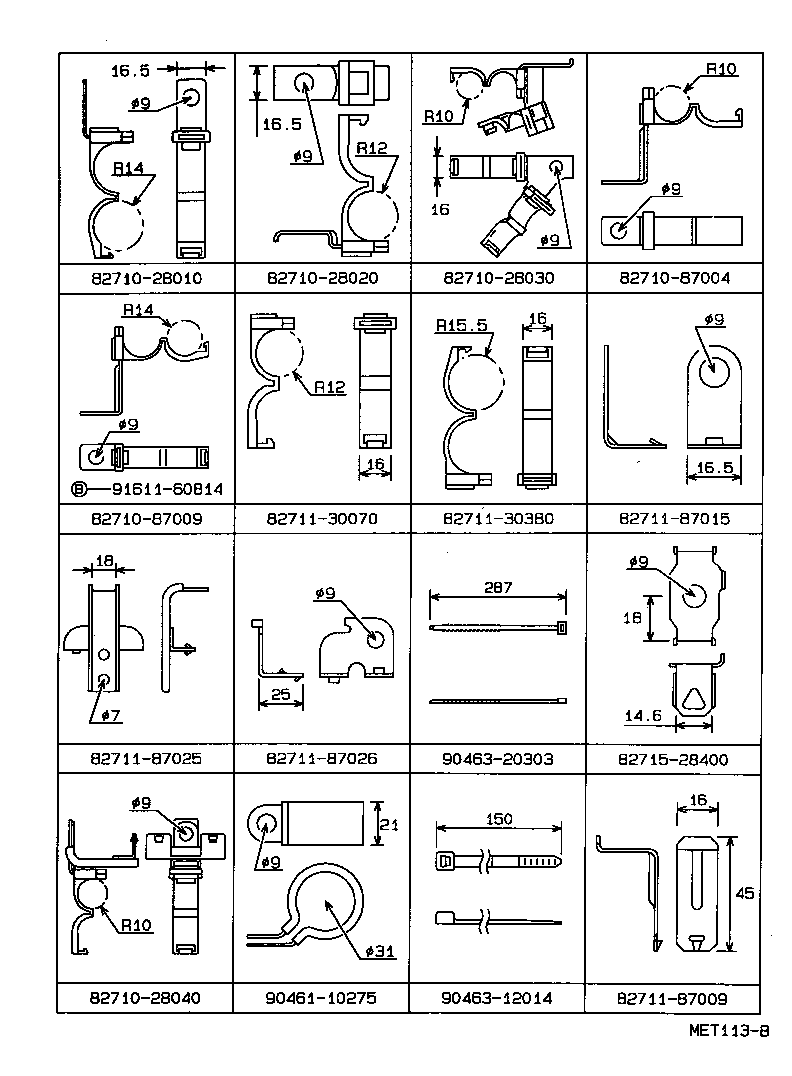

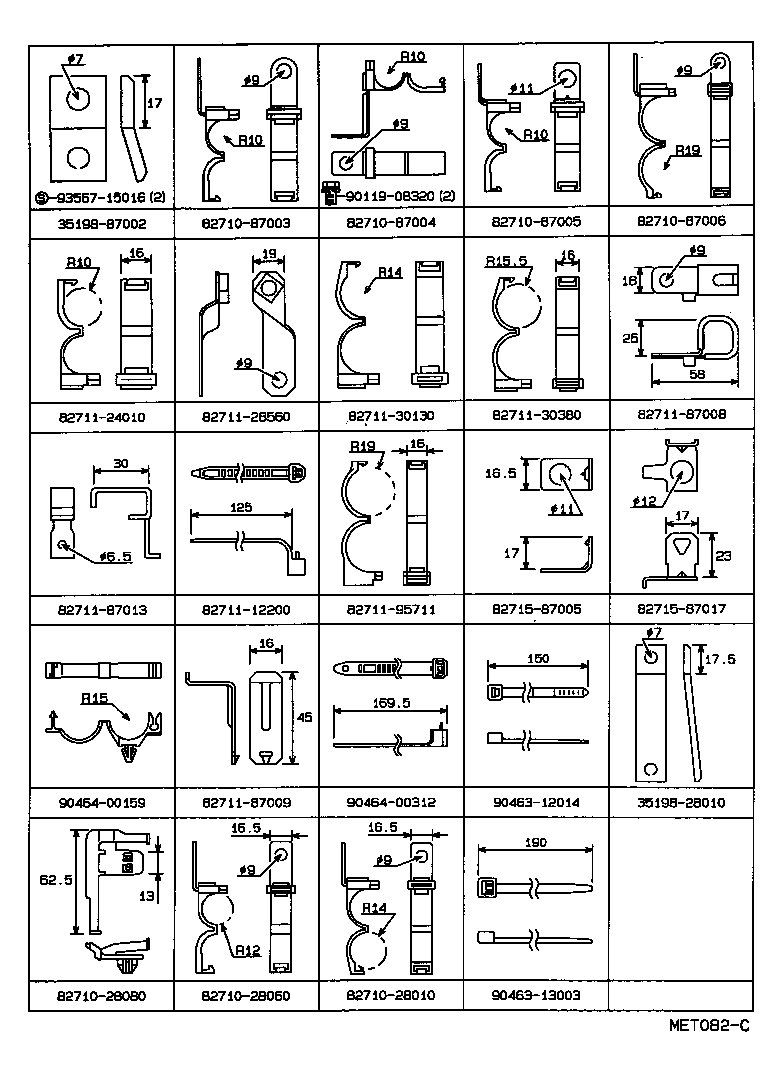

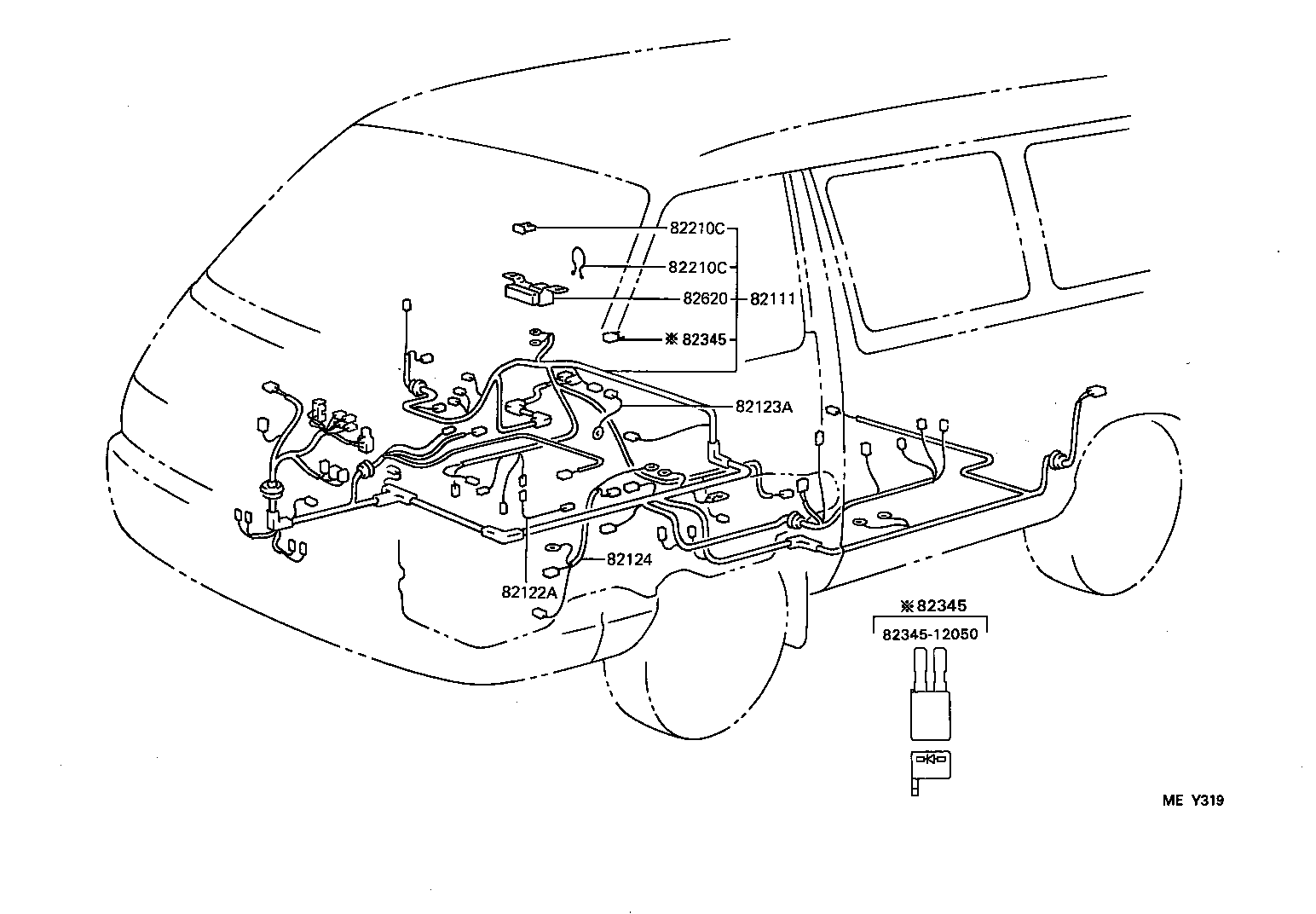

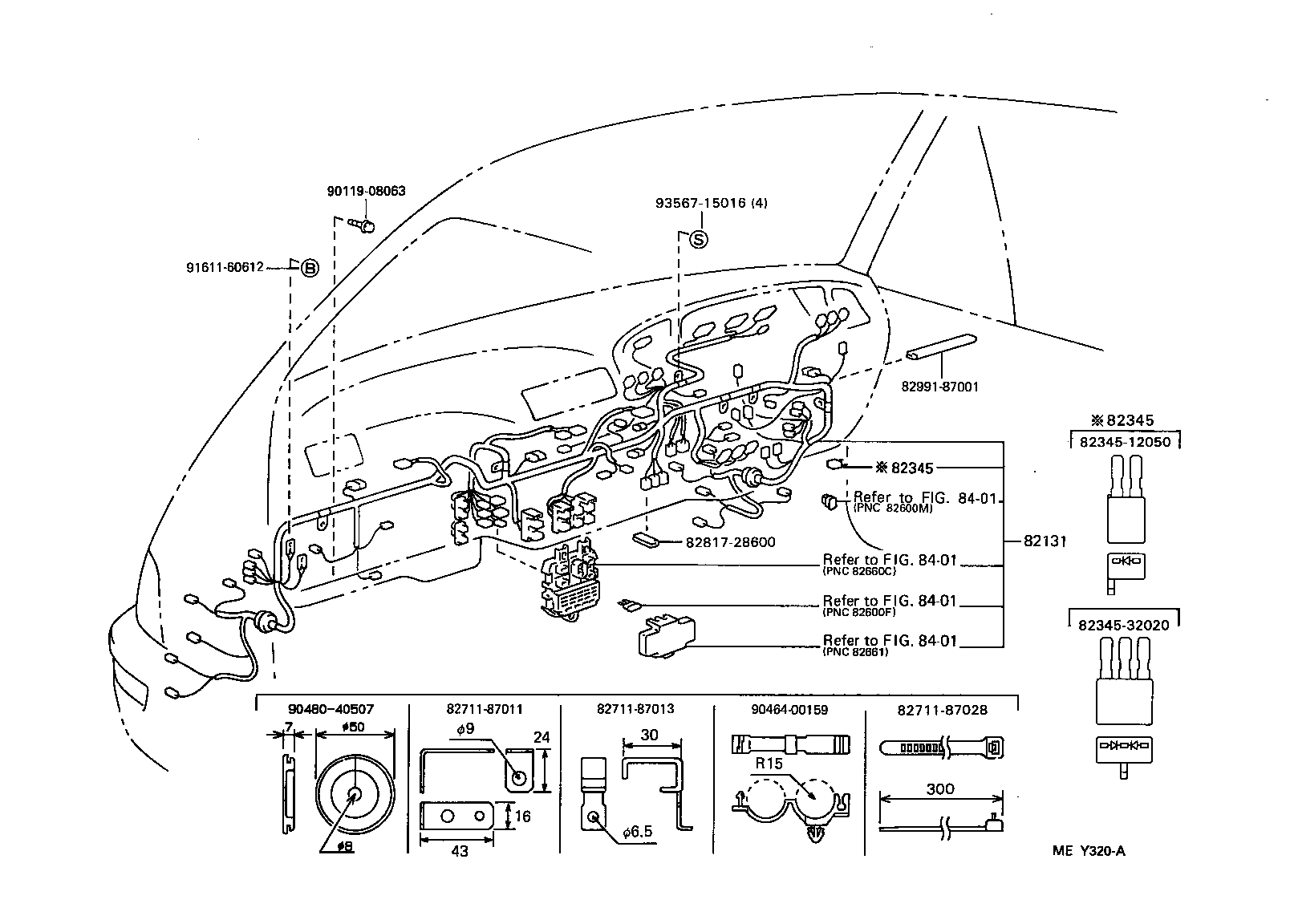

Figure MET083B MET083B 1992-01 → — Figure MEY319 MEY319 1992-01 → — Figure MET082C MET082C 1992-01 → — Figure MEX064B MEX064B 1992-01 → — Figure MET077A MET077A 1992-01 → — Figure MET116C MET116C 1992-01 → — Figure MET112 MET112 1992-01 → — Figure MET113B MET113B 1992-01 → — Figure MEX065A MEX065A 1992-01 → — Figure MEY320A MEY320A 1992-01 → — Figure MEY321A MEY321A 1992-01 → — Figure MET125 MET125 1992-01 → — Figure MET128D MET128D 1992-01 → — Figure MET131C MET131C 1992-01 → — Figure MEX067A MEX067A 1992-01 → — Figure MET137C MET137C 1992-01 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82121 Wire, Engine
82122 Wire, Engine, NO.2
82122A Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82123A Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82131 Wire, Cowl
82132 Wire, Cowl, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82157B Wire, Step Rear Floor, RH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82167 Wire, Seat, NO.1
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82345 Diode
82620 Block Assy, Fusible Link
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817C Protector, Wiring Harness, NO.4
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82822A Bracket, Connector Block
82822B Bracket, Connector Block
82822C Bracket, Connector Block
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
