Toyota Liteace Van Wagon
1992-01 → 1995-01 · chassis CR2#,KR2#,YR2# · catalogue 651540 · Europe
Discontinued model
Data version 1995-10
Meter
19 part groups · 3 illustrations

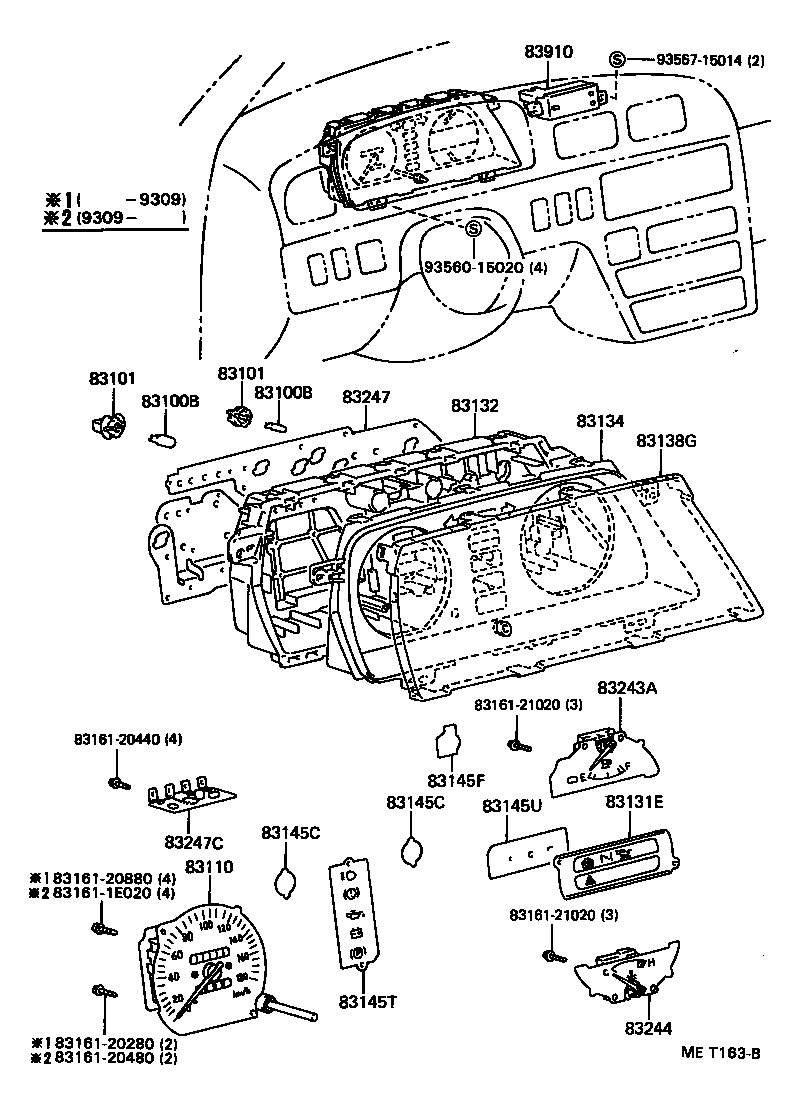

Part groups
| PNC | Description |
|---|---|
| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83110 | Speedometer Assy |
| 83131E | Lens, Meter |
| 83132 | Case, Combination Meter |
| 83134 | Cover, Combination Meter, NO.1 |
| 83138G | Glass, Combination Meter |
| 83145C | Lens, Meter, NO.4 |
| 83145E | Lens, Meter, NO.6 |
| 83145F | Lens, Meter, NO.7 |
| 83145T | Lens, Meter, NO.8 |
| 83145U | Lens, Meter, NO.9 |
| 83181A | Sensor, Speedometer |
| 83181B | Ring, O (FOR SPEEDOMETER SENSOR) |
| 83243A | Gauge Sub-assy, Fuel Receiver |
| 83244 | Gauge Sub-assy, Water Temperature Receiver |
| 83247 | Plate, Meter Circuit |
| 83247C | Plate, Mater Circuit, NO.3 |
| 83910 | Clock Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
