Toyota Liteace Van Wagon

1992-01 → 1995-01 · chassis CR2#,KR2#,YR2# · catalogue 651540 · Europe

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

22 part groups · 3 illustrations

Illustrations

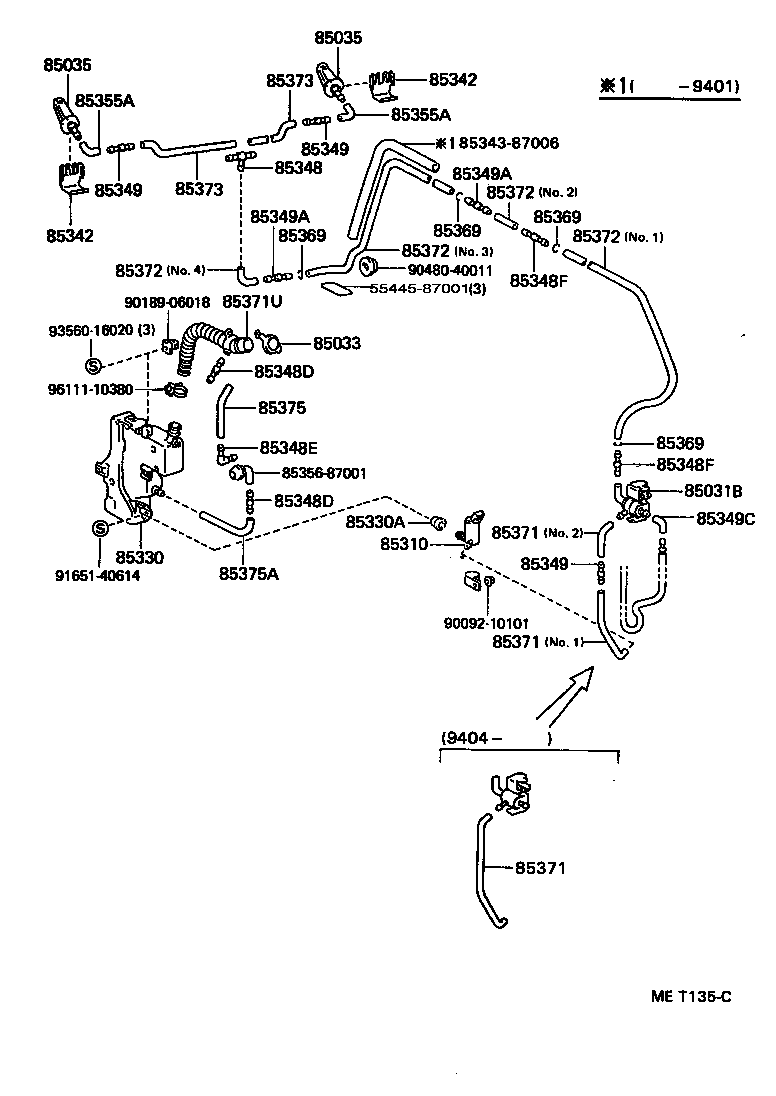

Figure MEU789B MEU789B 1992-01 → — Figure MET135C MET135C 1992-01 → — Figure MET133A MET133A 1992-01 → —

Part groups

PNCDescription
85031B Valve Sub-assy, Washer
85033 Cap Assy, Windshield Washer
85035 Nozzle Sub-assy, Washer
85310 Motor And Pump Assy, Windshield Washer
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85342 Holder, Washer Nozzle
85348 Joint, Windshield Washer Hose, NO.1
85348D Joint, Windshield Washer Elbow, NO.1
85348E Joint, Windshield Washer Elbow, NO.2
85348F Joint, Windshield Washer Elbow, NO.3
85349 Joint, Windshield Washer Hose, NO.1
85349A Joint, Windshield Washer Hose, NO.2
85349C Joint, Windshield Washer Elbow, NO.4
85355A Joint, Windshield Washer Elbow
85369 Clamp
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85371U Tube, Rubber
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
85375 Hose, Windshield Washer, NO.1(FOR LEVEL GAGE)
85375A Hose, Windshield Washer, NO.2(FOR LEVEL GAGE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
