Toyota Liteace Van Wagon

1992-01 → 1995-01 · chassis CR2#,KR2#,YR2# · catalogue 651540 · Europe

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

15 part groups · 2 illustrations

Illustrations

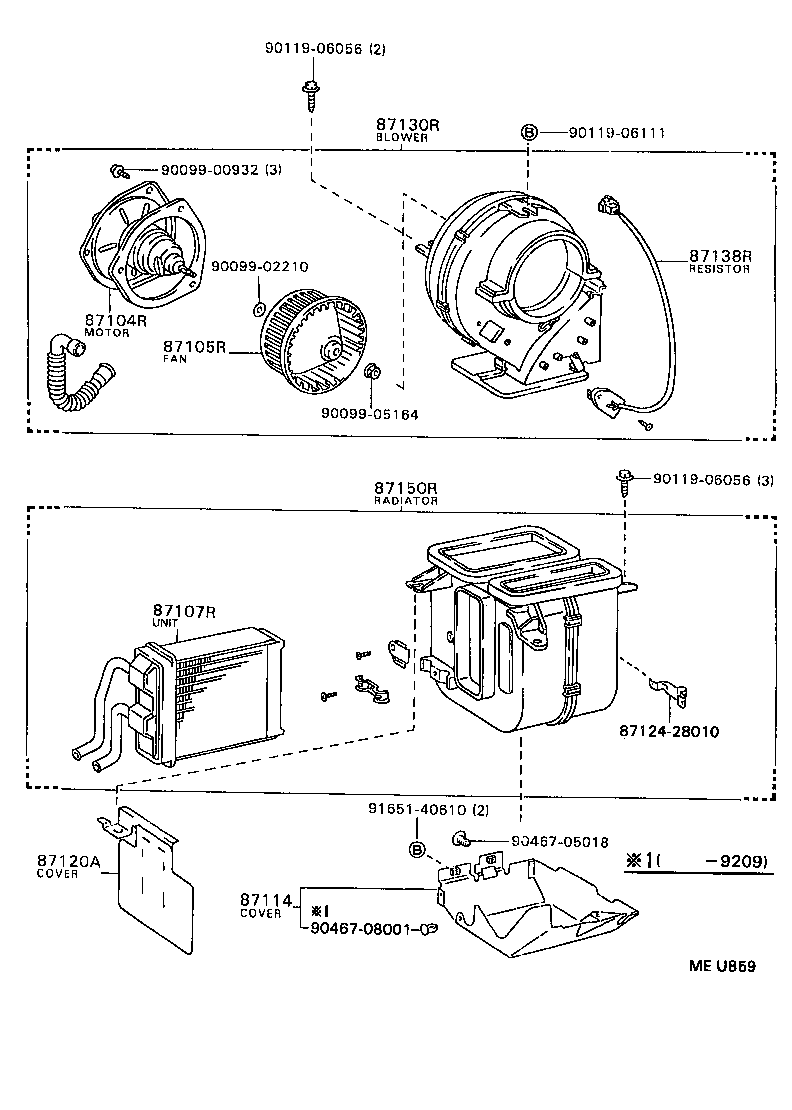

Figure MET169B MET169B 1992-01 → — Figure MEU859 MEU859 1992-01 → —

Part groups

PNCDescription
87103 Motor Sub-assy, Heater Blower, W/Fan
87104R Motor Sub-assy, Rear Heater Blower
87105R Fan Sub-assy, Rear Heater Blower
87107 Unit Sub-assy, Heater Radiator
87107R Unit Sub-assy, Rear Heater
87114 Cover, Heater
87120A Cover, Rear Heater
87126 Clamp, Heater Control
87130 Blower Assy, Heater, Front
87130R Blower Assy, Rear Heater
87138R Resistor, Rear Heater Blower
87150 Radiator Assy, Heater
87150R Radiator Assy, Rear Heater
87187A Wire, Blower Motor Lead
87431B Bracket, Rear Heater
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
