Toyota Liteace Van Wagon

1992-01 → 1995-01 · chassis CR2#,KR2#,YR2# · catalogue 651540 · Europe

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

30 part groups · 6 illustrations

Illustrations

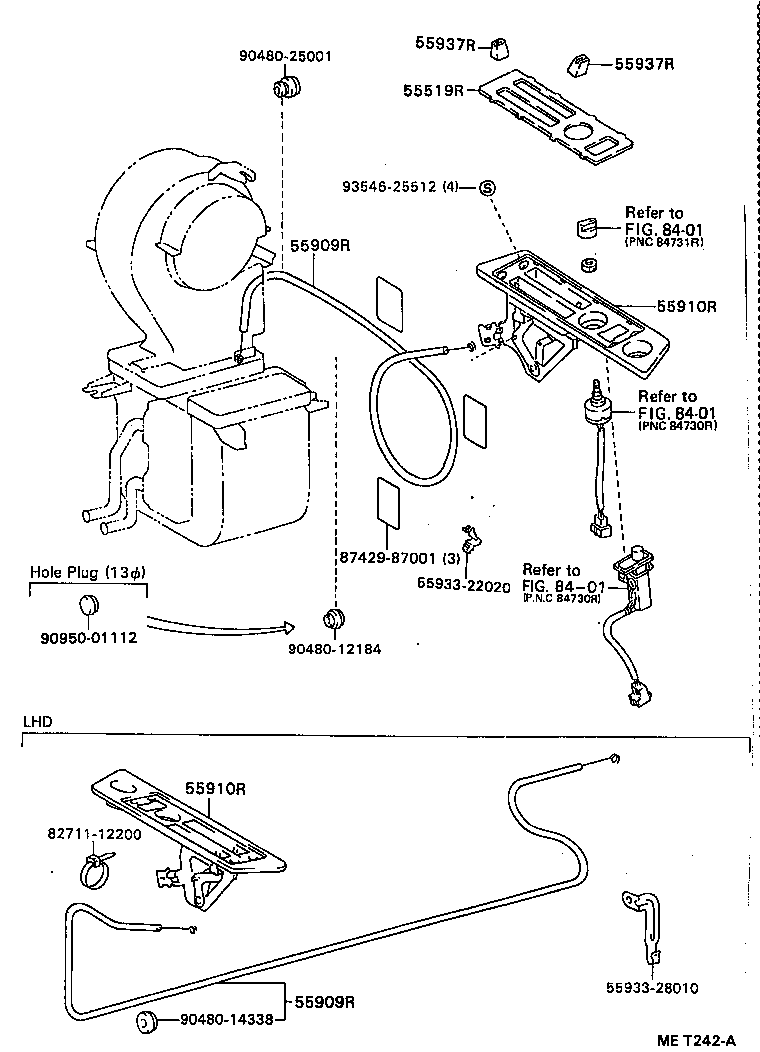

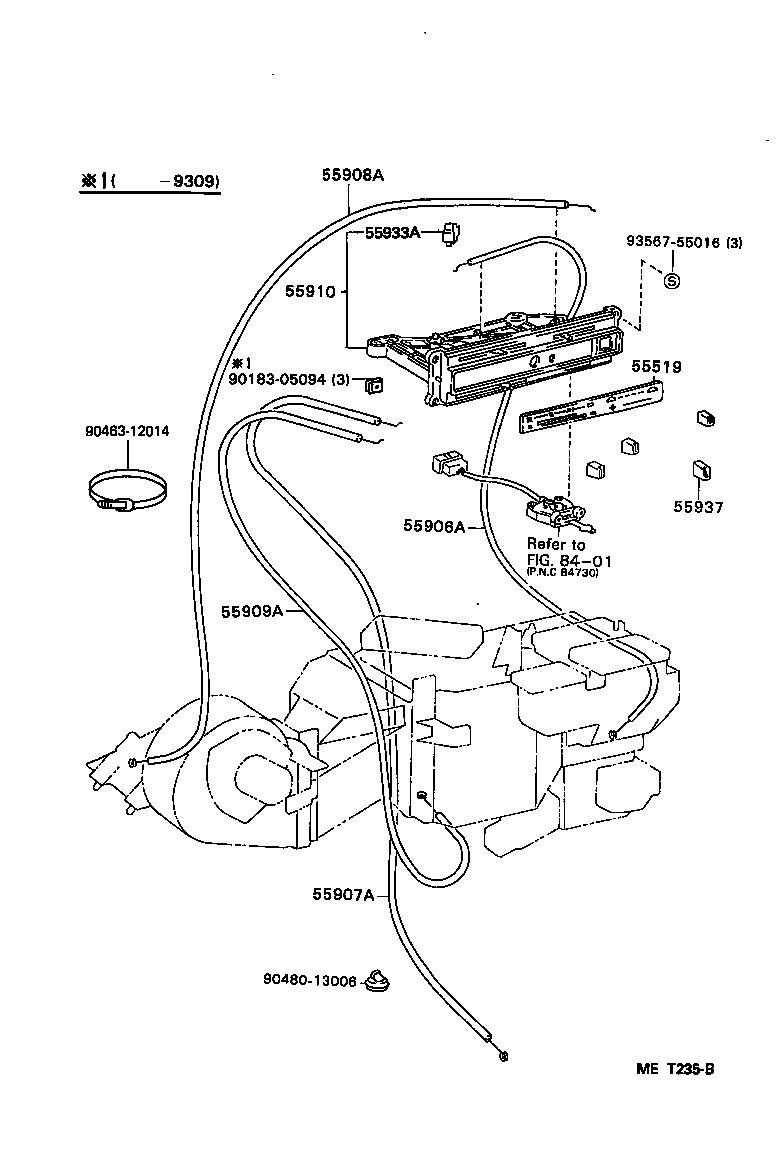

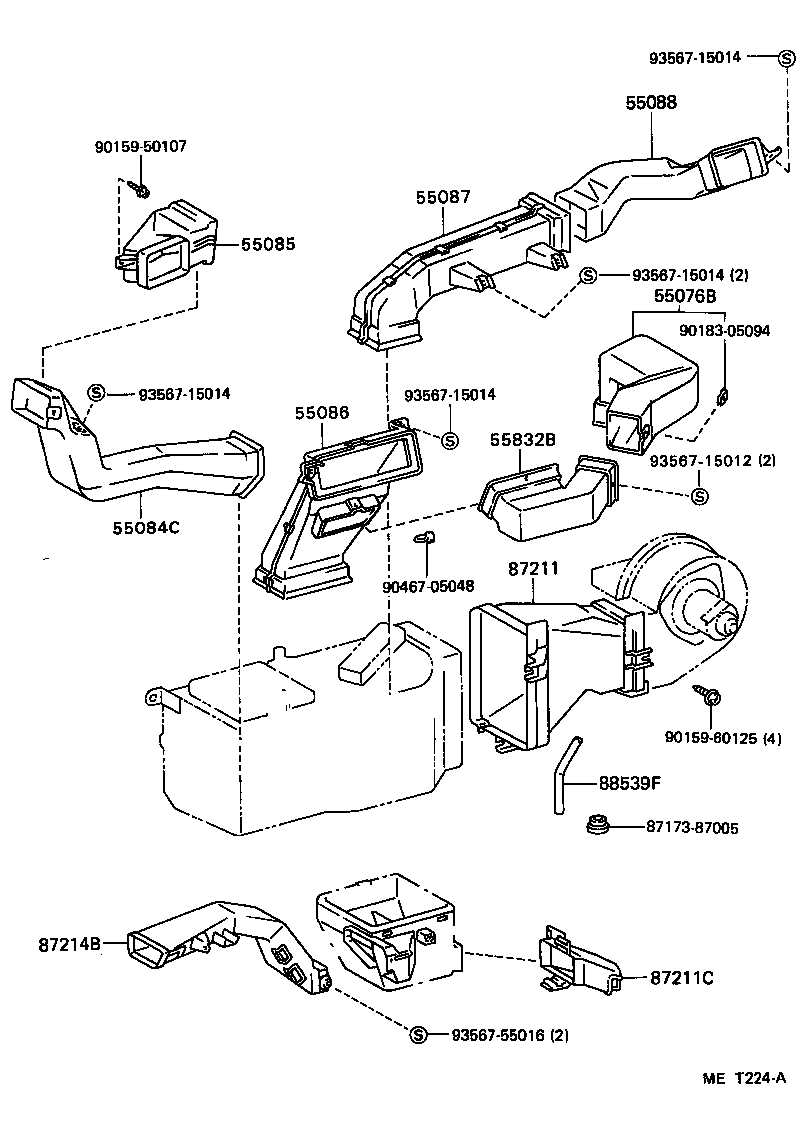

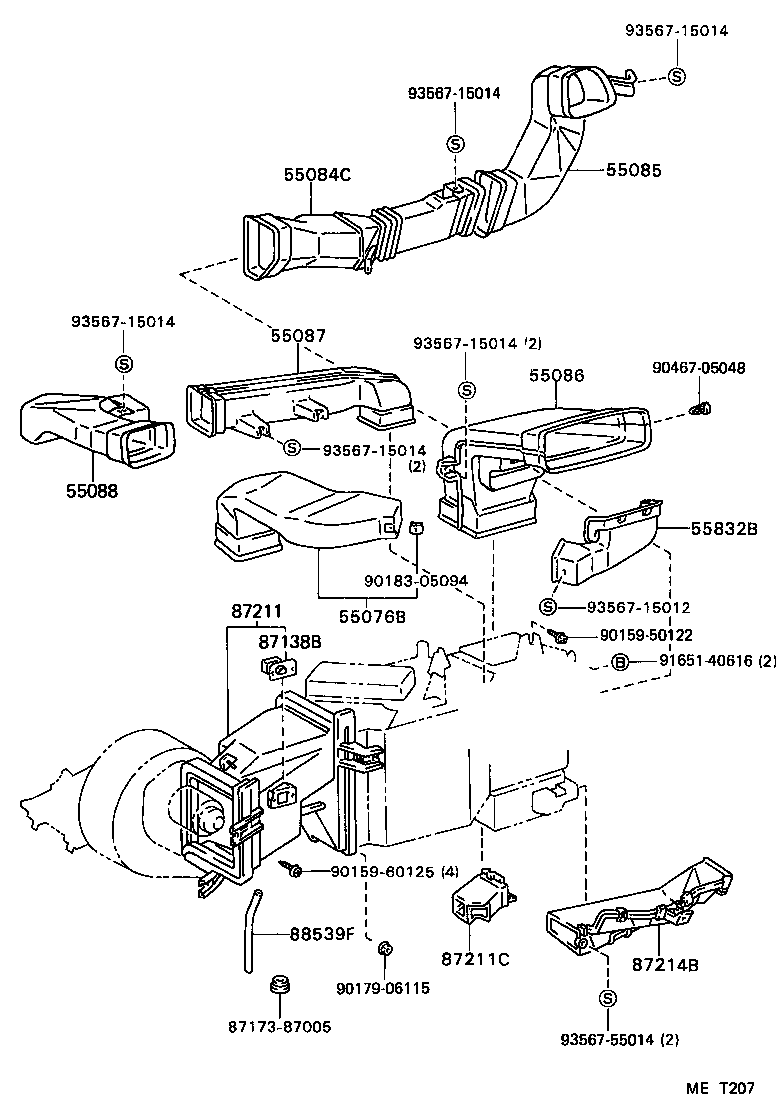

Figure MEX196A MEX196A 1992-01 → — Figure MET235B MET235B 1992-01 → — Figure MET242A MET242A 1992-01 → — Figure MET207 MET207 1992-01 → — Figure MET224A MET224A 1992-01 → — Figure MET252C MET252C 1992-01 → —

Part groups

PNCDescription
55076B Duct Sub-assy, Heater Air
55084C Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55086 Duct Sub-assy, Heater TO Register, NO.3
55087 Duct Sub-assy, Heater TO Register, NO.4
55088 Duct Sub-assy, Heater TO Register, NO.5
55519 Plate, Heater Control Name
55519R Plate, Heater Control Name
55538A Cover, Cooler Switch Hole
55832B Duct, Heater TO Register
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55909R Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55910R Control Assy, Heater
55933A Clamp, Heater Control Cable
55937 Knob, Heater Control Lever
55937R Knob, Heater Control Lever
87138B Resistor, Heater Blower
87203 Duct, Heater Air, Rear NO.1
87203A Duct Assy, Heater Air, Rear
87211 Duct, Air, NO.1
87211C Duct, Air, NO.4
87214B Duct, Air, Side NO.3 RH
87216 Duct, Heater Interior Air (TO REAR)
88539F Hose, Drain
88561B Grille, Cooler Air Inlet
88571B Grille, Air Outlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
