Toyota Previa

1990-05 → 1999-12 · chassis TCR1#,2# · catalogue 652240 · Europe

Discontinued model Data version 2000-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

15 part groups · 2 illustrations

Illustrations

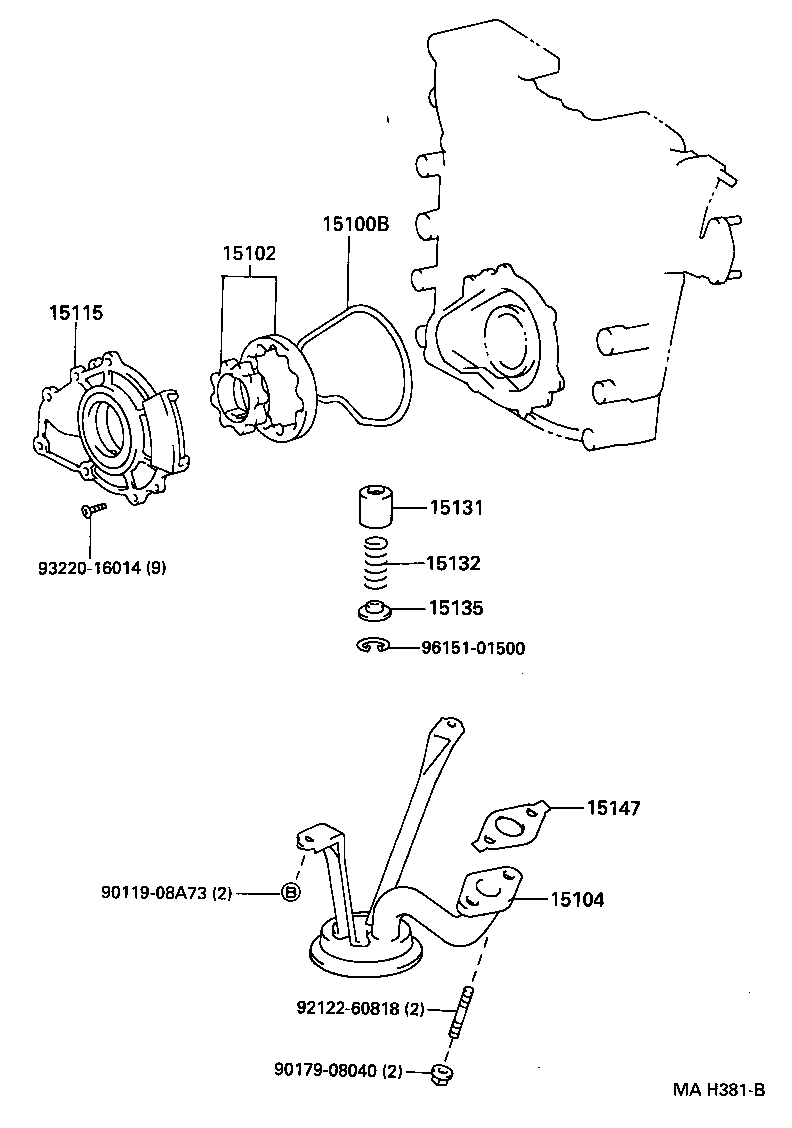

Figure MAH793A MAH793A 1990-05 → 1996-08 Figure MAH381B MAH381B 1996-08 → —

Part groups

PNCDescription
15100B Ring, O(FOR OIL PUMP)
15102 Rotor Set, Oil Pump
15104 Strainer Sub-assy, Oil
15115 Cover, Oil Pump
15121 Gear, Oil Pump Drive
15122 Gear, Oil Pump Driven
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15135 Retainer, Oil Pump Relief Valve
15147 Gasket, Oil Strainer
15380 Tank & Motor Assy, Oil
15381 Tank, Oil
15382 Cap, Oil Tank
15387 Bracket, Oil Tank
15390 Motor & Pump Assy, Oil Tank
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
