Toyota Previa

1990-05 → 1999-12 · chassis TCR1#,2# · catalogue 652240 · Europe

Discontinued model Data version 2000-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

83 part groups · 7 illustrations

Illustrations

550138B 1990-05 → —

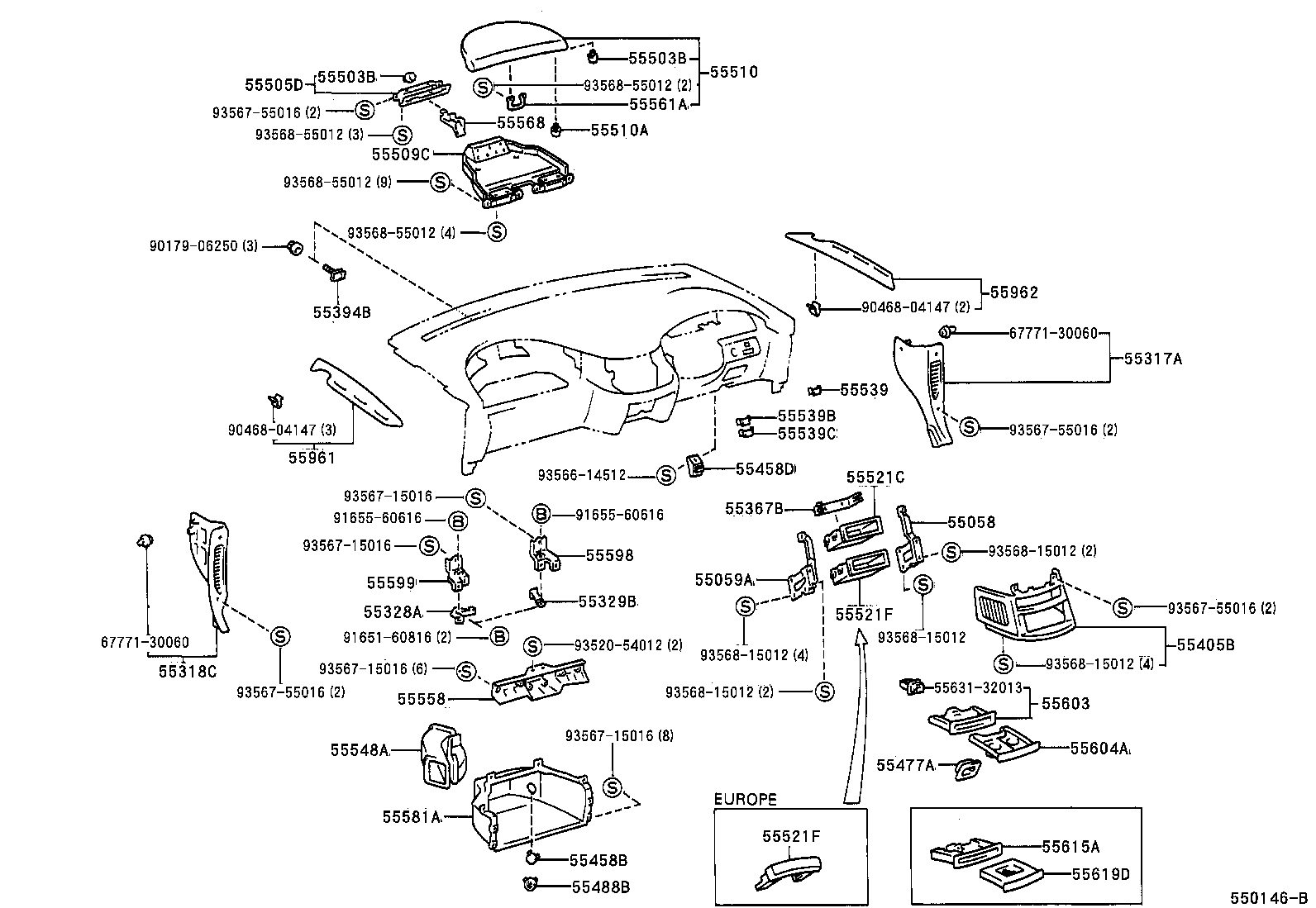

550146B 1990-05 → 1996-08

Part groups

PNC	Description
55045A	Panel Sub-assy, Instrument Panel Finish, Lower RH
55046A	Panel Sub-assy, Instrument Panel Finish, Lower LH
55047B	Insert Sub-assy, Instrument Panel Safety Pad, NO.1
55048B	Insert Sub-assy, Instrument Panel Safety Pad, NO.2
55058	Retainer Sub-assy, Radio Tuner Opening, RH
55059A	Retainer Sub-assy, Radio Tuner Opening, LH
55301	Panel Sub-assy, Instrument
55303A	Stay Sub-assy, Instrument Panel
55305B	Reinforcement Sub-assy, Instrument Panel, NO.1
55305C	Reinforcement Sub-assy, Instrument Panel
55306A	Brace Sub-assy, Instrument Panel, NO.1
55307C	Brace Sub-assy, Instrument Panel, NO.2
55308C	Bracket Sub-assy, Instrument Panel, Center
55308E	Cap, Instrument Panel Bracket
55309C	Reinforcement Sub-assy, Instrument Panel, Center
55317A	Panel, Instrument Side, RH
55318C	Panel, Instrument Side, LH
55323A	Bracket, Instrument Panel, NO.3
55324B	Bracket, Instrument Panel, NO.4
55328A	Stay, Instrument Panel, NO.3
55329B	Stay, Instrument Panel, NO.4
55330B	Reinforcement Assy, Instrument Panel
55331	Reinforcement, Instrument Panel
55349A	Cushion, Instrument Panel
55349C	Cushion, Instrument Panel
55350	Brace Assy, Instrument Panel
55367B	Bracket, Instrument Panel Box Mounting
55374C	Bracket, Instrument Panel Lower Mounting, NO.1
55375B	Bracket, Instrument Panel Lower Mounting, NO.2
55376	Bracket, Instrument Panel Mounting, NO.1
55377A	Bracket, Instrument Panel Mounting, NO.2
55394B	Bolt, Instrument Panel
55404C	Panel Sub-assy, Instrument Cluster Finish, NO.2
55405B	Panel Sub-assy, Instrument Cluster Finish, Center
55410D	Panel Assy, Instrument Cluster Finish, End
55420A	Panel Assy, Instrument Cluster Finish, Center
55439A	Retainer, Instrument Panel Finish Panel, NO.3
55441	Box, Instrument Panel
55445B	Plate, Instrument Panel Finish
55458B	Cover, Instrument, Lwr
55458D	Cover, Instrument Lower, RH
55465B	Knob, Instrument Panel Box Lock
55477A	Bezel, Cigarette Lighter Hole
55488B	Lens, Front Foot Lamp, NO.1
55503B	Cushion(FOR GLOVE COMPARTMENT)
55505D	Hinge Sub-assy, Glove Compartment Door
55509C	Panel Sub-assy, Glove Compartment
55510	Door Assy, Glove Compartment
55510A	Cushion(FOR GLOVE COMPARTMENT DOOR)
55521C	Cover, Stereo Opening
55521F	Cover, Stereo Opening, NO.2
55524	Cover, Switch Bace Hole
55524B	Cover, Switch Base Hole
55534A	Cover, Illumination Lamp Hole
55539	Cover, Spare Switch Hole
55539B	Cover, Spare Switch Hole, NO.2
55539C	Cover, Spare Switch Hole
55548A	Cover, Instrument Panel Hole
55551A	Door, Glove Compartment, Outer
55552B	Door, Glove Compartment, Inner
55557B	Stopper, Glove Compertment Door Check
55558	Reinforcement, Glove Compartment Door
55560A	Lock Assy, Glove Compartment Door
55561A	Striker, Glove Compartment Door Lock
55568	Plate, Glove Compartment Door Pad
55581A	Compartment, Glove
55581C	Clip, Compartment Glove
55586	Support, Shell Box, NO.1
55587	Support, Shell Box, NO.2
55598	Bracket, Glove Compartment Door Hinge, RH
55599	Bracket, Glove Compartment Door Hinge, LH
55603	Case Sub-assy, Instrument Panel Cup Holder
55604A	Holder Sub-assy, Instrument Panel Cup
55615A	Case, Instrument Panel Cup Holder, Outer
55619D	Cover, Cup Holder Hole
55961	Nozzle, Side Defroster, NO.1
55962	Nozzle, Side Defroster, NO.2
55991	Bracket, Defroster Duct, NO.1
55992	Bracket, Defroster Duct, NO.2
55993	Bracket, Defroster Duct, NO.3
55994	Bracket, Defroster Duct, NO.4
73970A	Airbag Assy, Instrument Panel Passenger
74598B	Label, Passenger Airbag Caution

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
