Toyota Previa
1990-05 → 1999-12 · chassis TCR1#,2# · catalogue 652240 · Europe
Discontinued model
Data version 2000-07

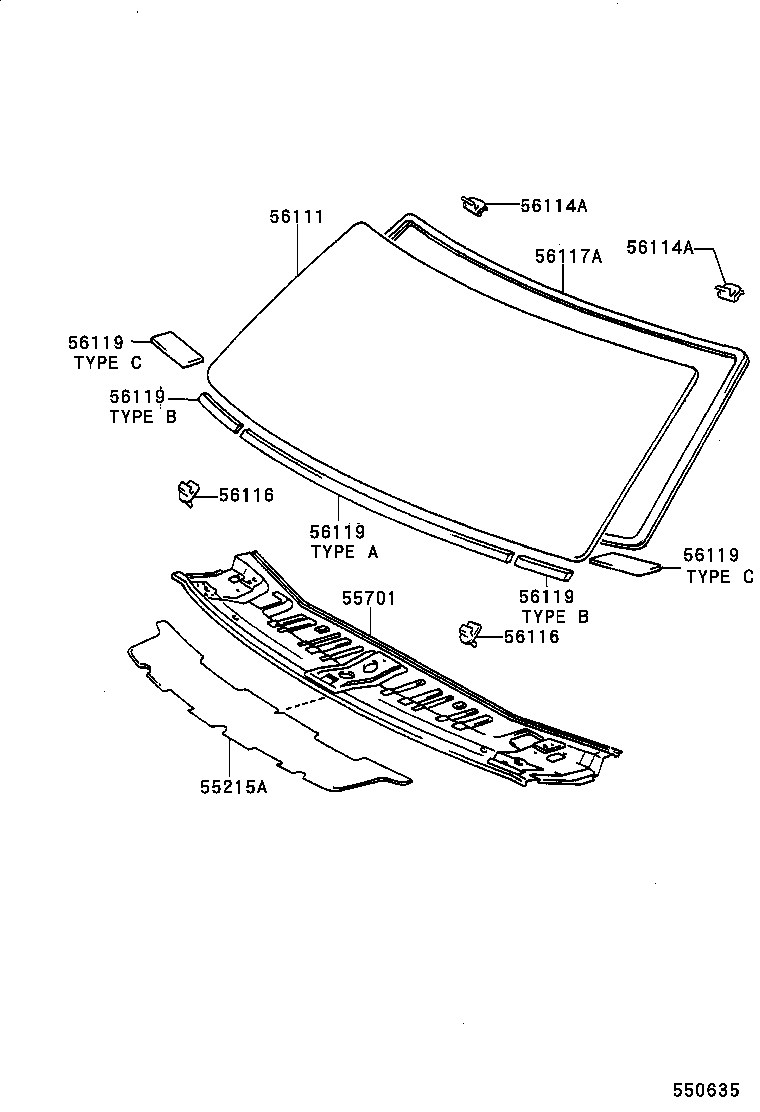

Cowl Panel & Windshield Glass
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04562 | Dam Kit, Windshield Glass |
| 55215A | Pad, Dash Panel Insulator, NO.3 |
| 55701 | Panel Sub-assy, Cowl |
| 56111 | Glass, Windshield |
| 56114A | Retainer, Back Window Glass |
| 56116 | Spacer, Windshield Glass |
| 56117A | Dam, Window Glass Adhesive |
| 56118B | Dam, Window Glass Adhesive, NO.2 |
| 56119 | Seal, Windshield Glass |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
