Toyota Previa

1990-05 → 1999-12 · chassis TCR1#,2# · catalogue 652240 · Europe

Discontinued model Data version 2000-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

21 part groups · 2 illustrations

Illustrations

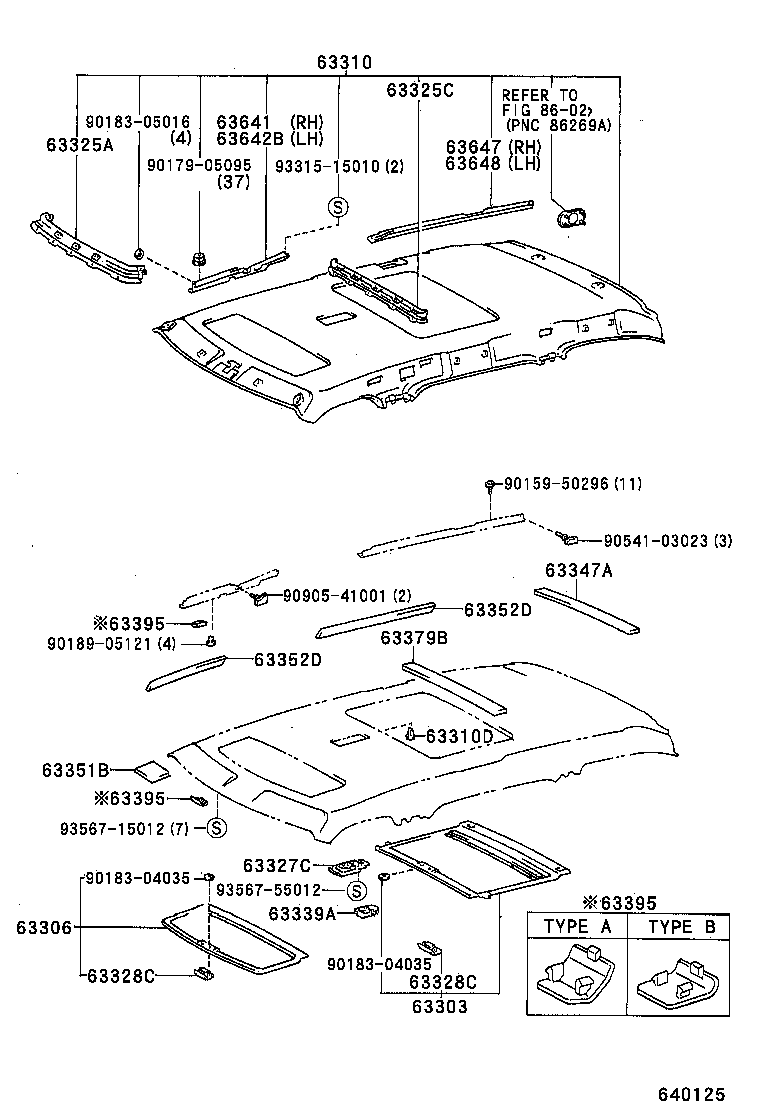

Figure MN0865B MN0865B 1990-01 → — Figure 640125 640125 1990-01 → —

Part groups

PNCDescription
63303 Trim Sub-assy, Sunshade, NO.2
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63325A Plate, Sunshade Trim Set, NO.1
63325C Plate, Sunshade Trim Set, NO.2
63327C Garnish, Sun Roof Switch
63328C Knob, Sunshade Trim
63339A Cover, Roof Headlining Service Hole
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63347A Pad, Roof Silencer, NO.7
63351B Pad, Roof Headlining
63352D Pad, Roof Headlining, NO.2
63379B Cover, Roof Headlining Moulding End
63395 Clip, Roof Headlining Trim
63641 Rail, Sunshade, NO.1 Front RH
63642B Rail, Sunshade, NO.1 Front LH
63647 Rail, Sunshade, NO.2 Rear RH
63648 Rail, Sunshade, NO.2 Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
