Toyota Previa

1990-05 → 1999-12 · chassis TCR1#,2# · catalogue 652240 · Europe

Discontinued model Data version 2000-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Panel & Glass

29 part groups · 3 illustrations

Illustrations

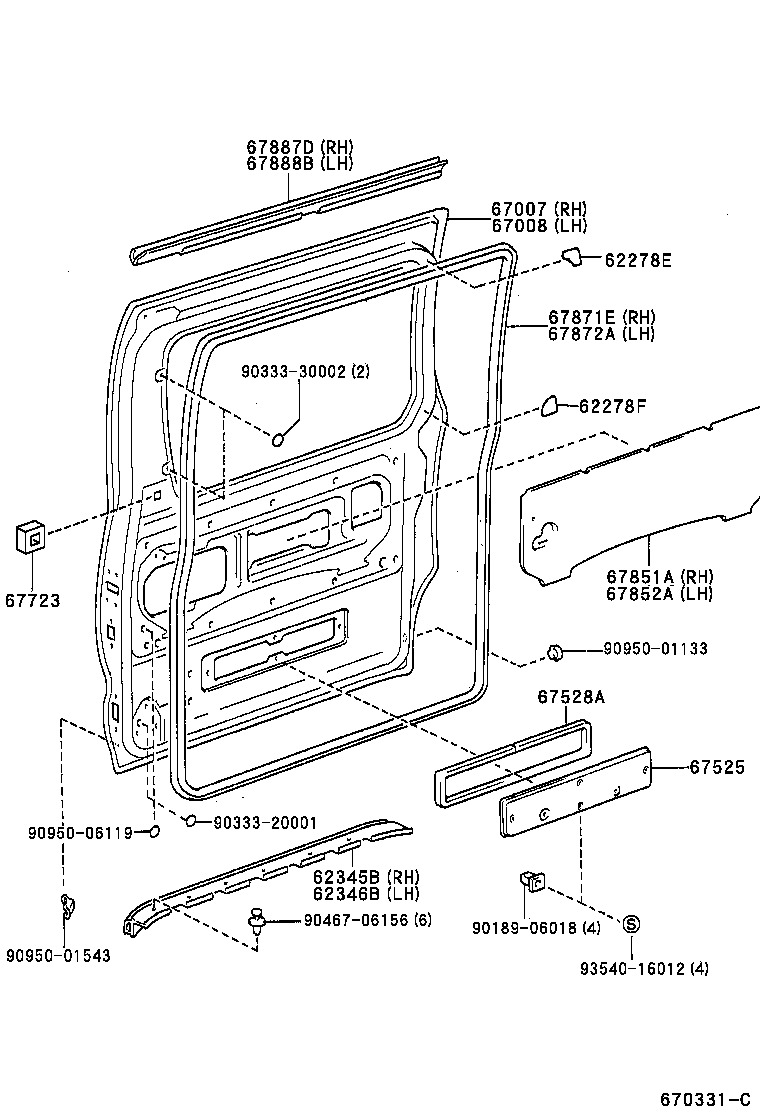

Figure 670309 670309 1990-05 → — Figure 670331C 670331C 1990-05 → — Figure 670310 670310 1990-05 → —

Part groups

PNCDescription
61937A Bracket, Side Window Garnish
62278E Protector, Side Window
62278F Protector, Side Window
62345B Weatherstrip, Slide Door, NO.3 RH
62346B Weatherstrip, Slide Door, NO.3 LH
67007 Panel Sub-assy, Slide Door, RH
67008 Panel Sub-assy, Slide Door, LH
67525 Cover, Slide Door Panel, Lower
67528A Packing, Slide Door Lower Cover
67603 Board Sub-assy, Rear Door Trim, RH
67603A Retainer(FOR REAR DOOR TRIM BOARD)
67604 Board Sub-assy, Rear Door Trim, LH
67604B Clip(FOR SLIDE DOOR TRIM BOARD)
67645B Bracket, Slide Door Trim Base
67663A Garnish, Door Frame, RH
67663B Garnish, Door Frame, Upper RH
67663C Clip(FOR DOOR FRAME GARNISH)
67664A Garnish, Door Frame, LH
67664B Garnish, Door Frame, Upper LH
67667A Garnish, Slide Door Window, RH
67668A Garnish, Slide Door Window, LH
67723 Pad, Rear Door Trim, Upper
67772F Cap, Rear Door Trim Retainer
67851A Cover, Slide Door Service Hole, NO.1
67852A Cover, Slide Door Service Hole, NO.2
67871E Weatherstrip, Slide Door, NO.1 RH
67872A Weatherstrip, Slide Door, NO.1 LH
67887D Weatherstrip, Slide Door, NO.2 RH
67888B Weatherstrip, Slide Door, NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
