Toyota Previa

1990-05 → 1999-12 · chassis TCR1#,2# · catalogue 652240 · Europe

Discontinued model Data version 2000-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

25 part groups · 9 illustrations

Illustrations

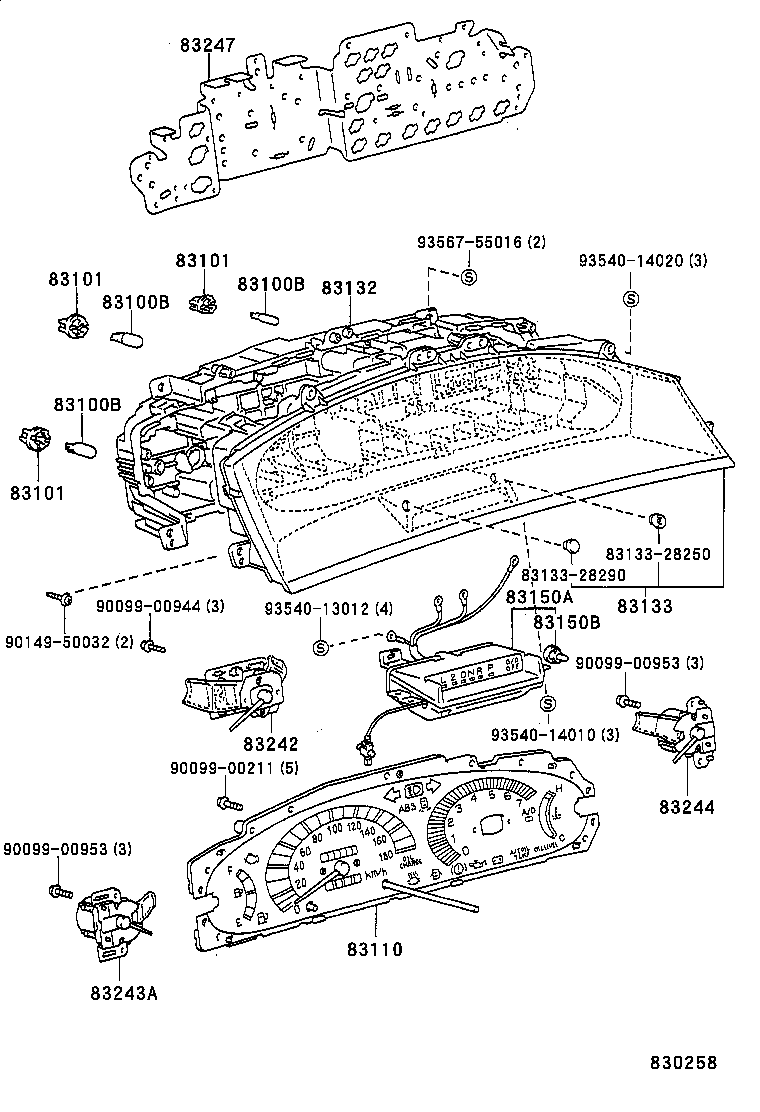

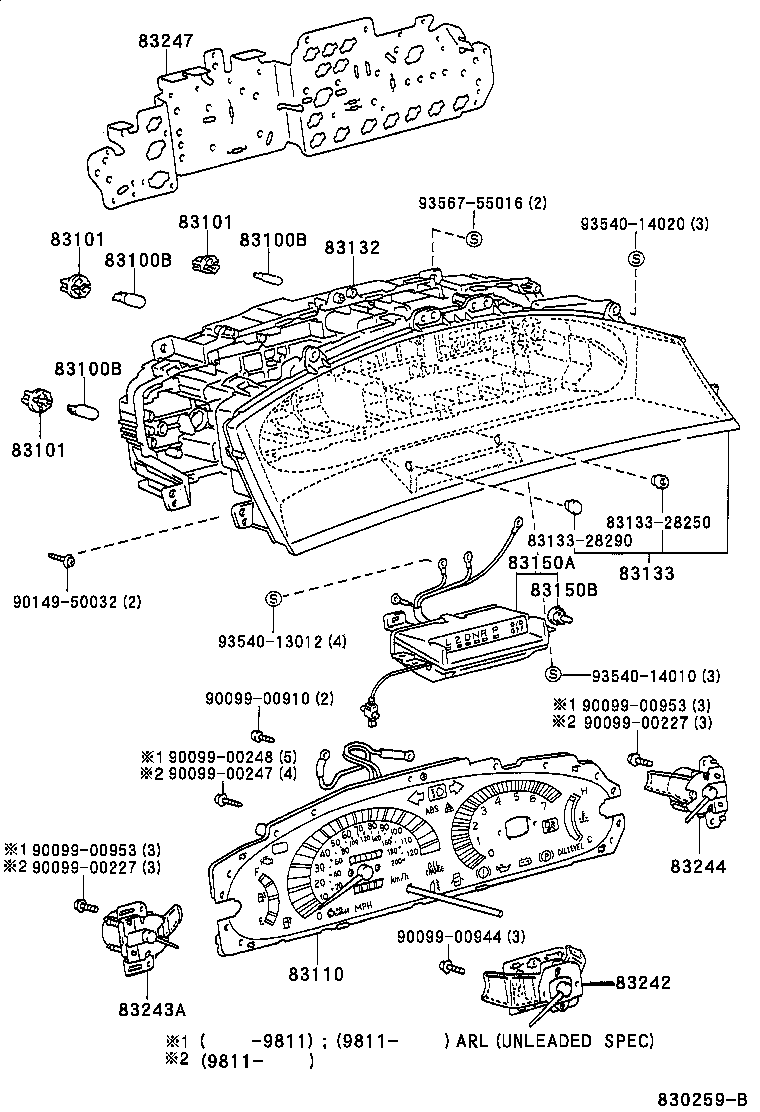

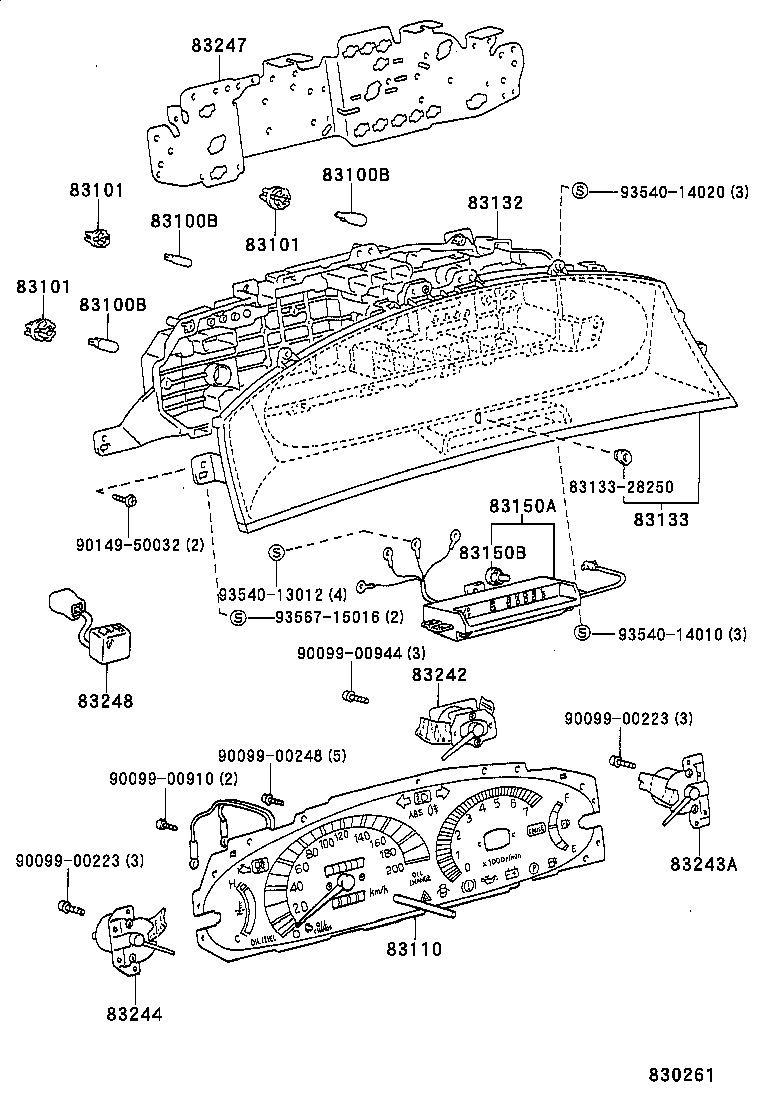

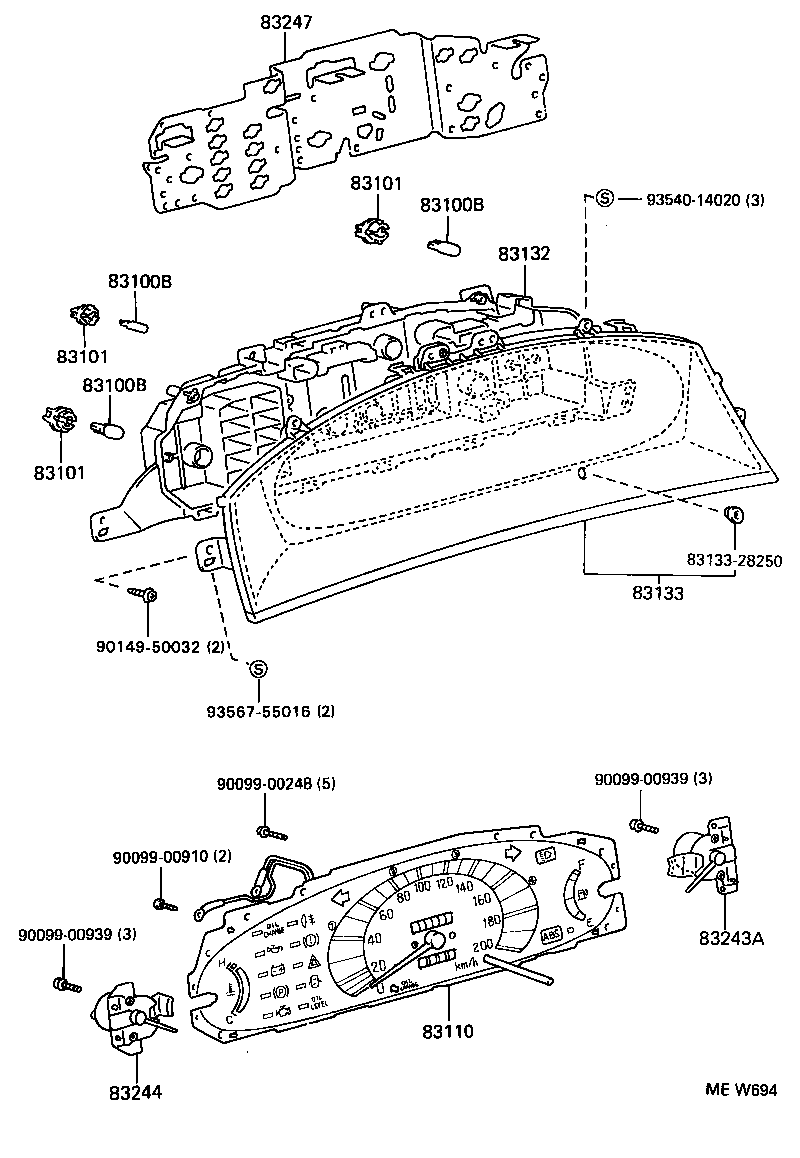

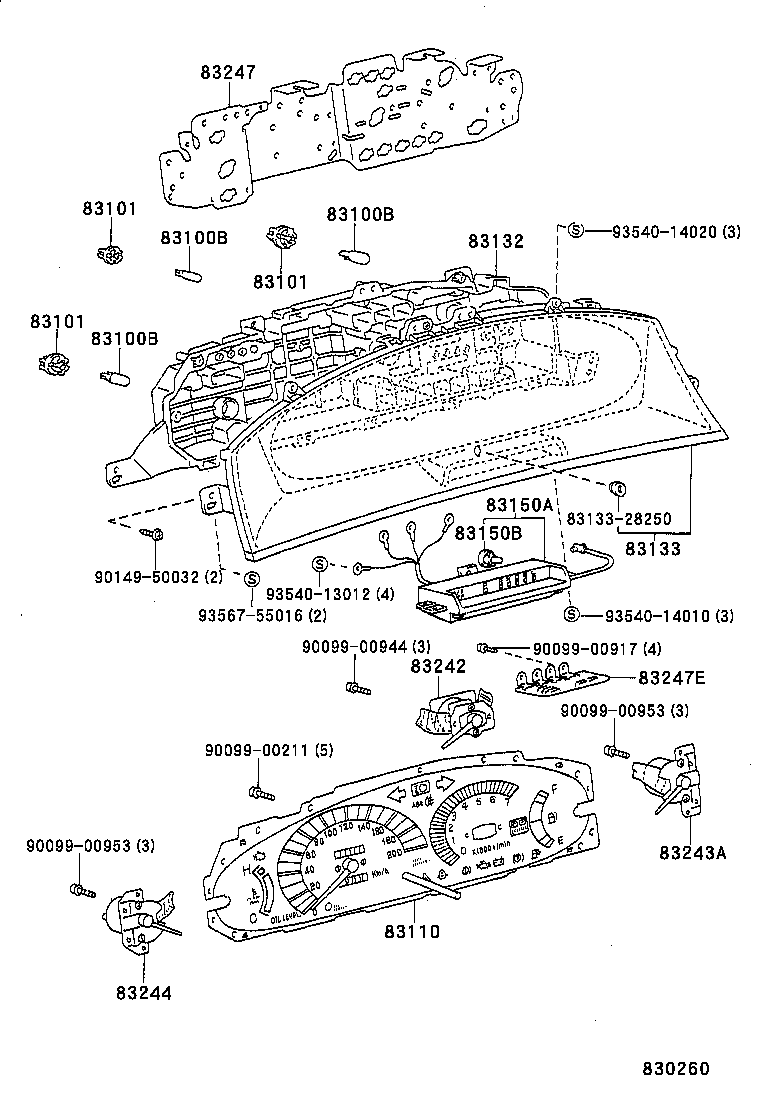

Figure MEQ462B MEQ462B 1990-05 → 1993-08 Figure MEW694 MEW694 1993-08 → — Figure 830258 830258 1990-05 → 1993-08 Figure 830259B 830259B 1993-08 → — Figure 830260 830260 1990-05 → 1993-08 Figure 830261 830261 1993-08 → — Figure MEP874B MEP874B 1990-05 → — Figure MEQ465A MEQ465A 1990-05 → 1993-08 Figure 830095 830095 1990-05 → —

Part groups

PNCDescription
80310 Guide Assy, Shift Indicator Control Name
83100B Bulb, Combination Meter, NO.1
83101 Socket Sub-assy, Combination Meter Bulb
83110 Speedometer Assy
83132 Case, Combination Meter
83133 Plate, Combination Meter, NO.1
83150A Indicator Assy
83150B Bulb (FOR INDICATOR)
83159B Relay Assy, Meter
83181A Sensor, Speedometer
83181B Ring, O (FOR SPEEDOMETER SENSOR)
83242 Tachometer Assy, Engine
83243A Gauge Sub-assy, Fuel Receiver
83244 Gauge Sub-assy, Water Temperature Receiver
83247 Plate, Meter Circuit
83247E Plate, Mater Circuit, NO.4
83248 Chime, Speed Warning
83390B Hose, Vacuum(FOR ECONOMETER)
83390C Union(FOR ECONOMETER)
83391D Switch, Vacuum
83399B Bracket, Vacuum Switch
83550A Hose, ED Monitor Gage
83550B Union OR Way, ED Monitor Gage
83783 Key, Speedmeter Sensor
83910 Clock Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
