Toyota Previa

1990-05 → 1999-12 · chassis TCR1#,2# · catalogue 652240 · Europe

Discontinued model Data version 2000-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Wiper

12 part groups · 2 illustrations

Illustrations

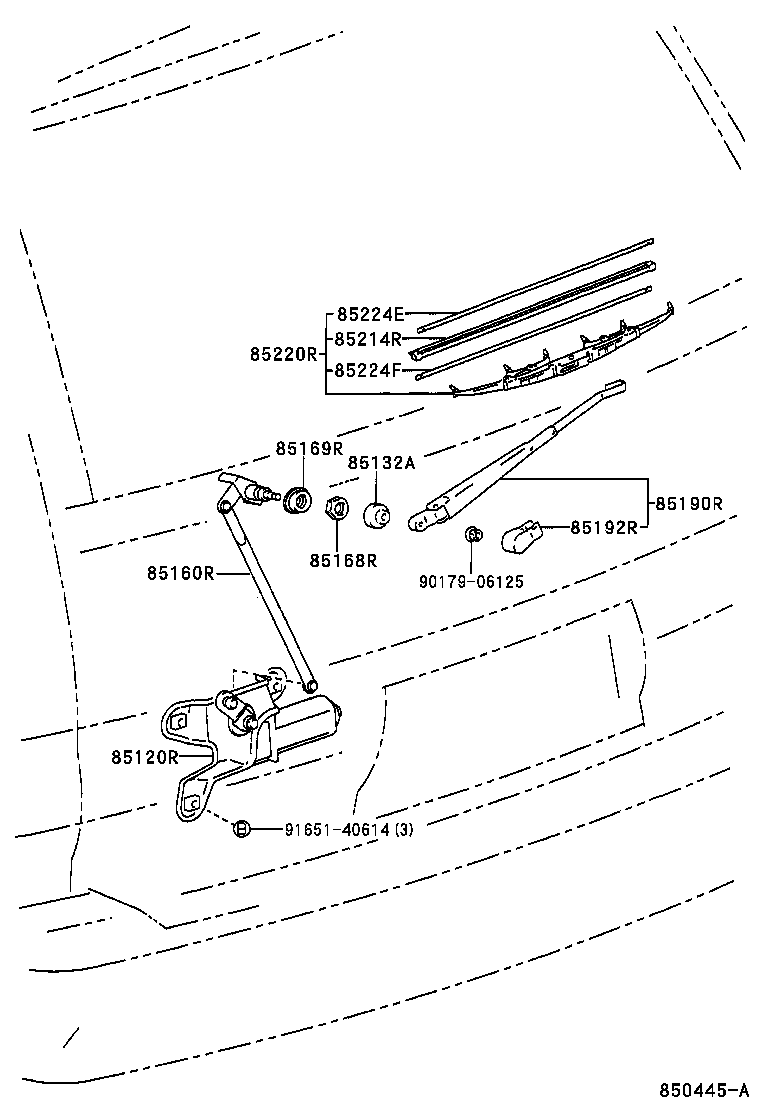

Figure MEP699B MEP699B 1990-05 → 1998-01 Figure 850445A 850445A 1998-01 → —

Part groups

PNCDescription
85120R Motor And Bracket Assy, Rear Wiper
85132A Cover, Rear Wiper Shaft
85160R Link Assy, Rear Wiper
85168R Nut, Rear Wiper Link Pivot, NO.1
85169R Washer, Rear Wiper Link Pivot, NO.1
85190R Arm Assy, Rear Wiper
85192R Cover, Rear Wiper Arm
85214R Rubber, Rear Wiper
85220R Blade Assy, Rear Wiper
85221R Blade, Rear Wiper
85224E Plate, Rear Wiper Rubber Backing, NO.1
85224F Plate, Rear Wiper Rubber Backing, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
