Toyota Previa

1990-05 → 1999-12 · chassis TCR1#,2# · catalogue 652240 · Europe

Discontinued model Data version 2000-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

19 part groups · 3 illustrations

Illustrations

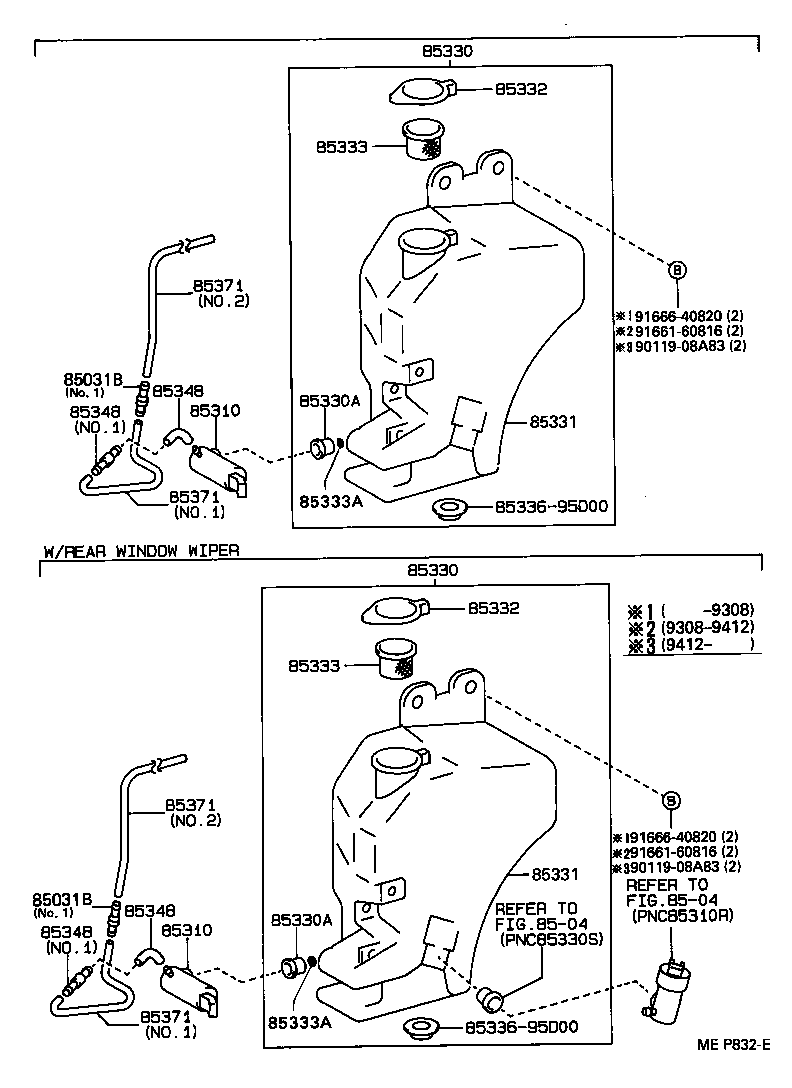

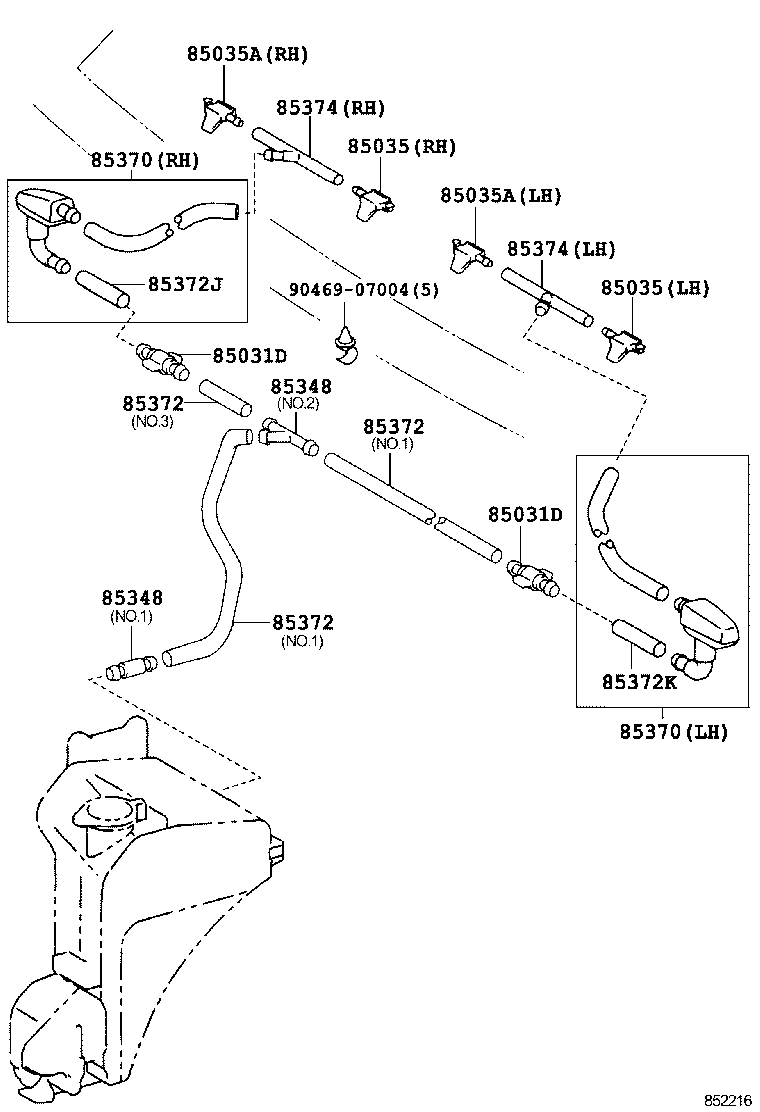

Figure MEP831E MEP831E 1990-05 → 1993-08 Figure 852216 852216 1993-08 → — Figure MEP832E MEP832E 1990-05 → —

Part groups

PNCDescription
85031B Valve Sub-assy, Washer
85031D Valve Sub-assy, Washer NO.2
85035 Nozzle Sub-assy, Washer
85035A Nozzle, FR Washer, RH
85310 Motor And Pump Assy, Windshield Washer
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85331 Jar Sub-assy, Windshield Washer
85332 Cap, Windshield Washer Jar
85333 Filter, Windshield Washer Jar
85333A Filter, Windshield Washer Jar, NO.2
85348 Joint, Windshield Washer Hose, NO.1
85370 Hose Assy, Windshield Washer
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85372J Hose, Windshield Washer (FROM JOINT TO JOINT), NO.4
85372K Hose, Windshield Washer (FROM JOINT TO JOINT), NO.5
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
85374 Hose, Windshield Washer (FROM NOZZLE TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
