Toyota Previa
1990-05 → 1999-12 · chassis TCR1#,2# · catalogue 652240 · Europe
Discontinued model
Data version 2000-07
Radio Receiver & Amplifier & Condenser
7 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 86011A | Condenser, Radio Setting |
| 86011C | Filter, Noise |

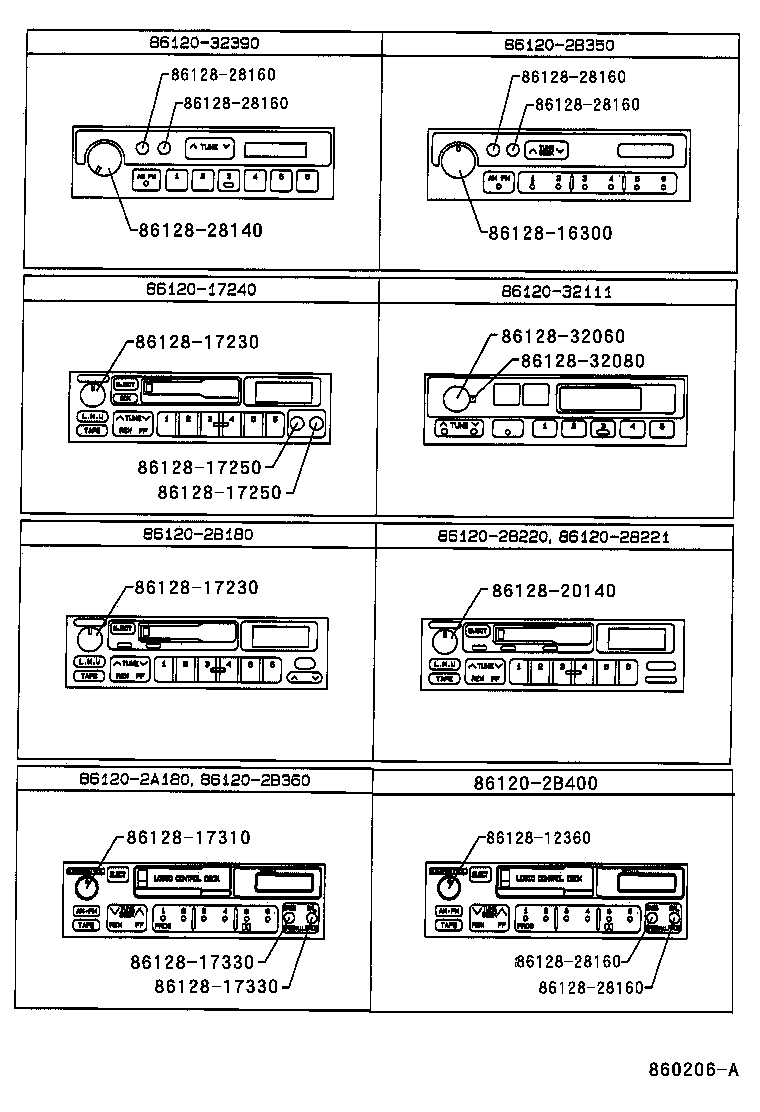

| 86120 | Receiver Assy, Radio |
| 86170 | Switch And Volume Assy, Radio |
| 86174 | Case, Switch & Volume |

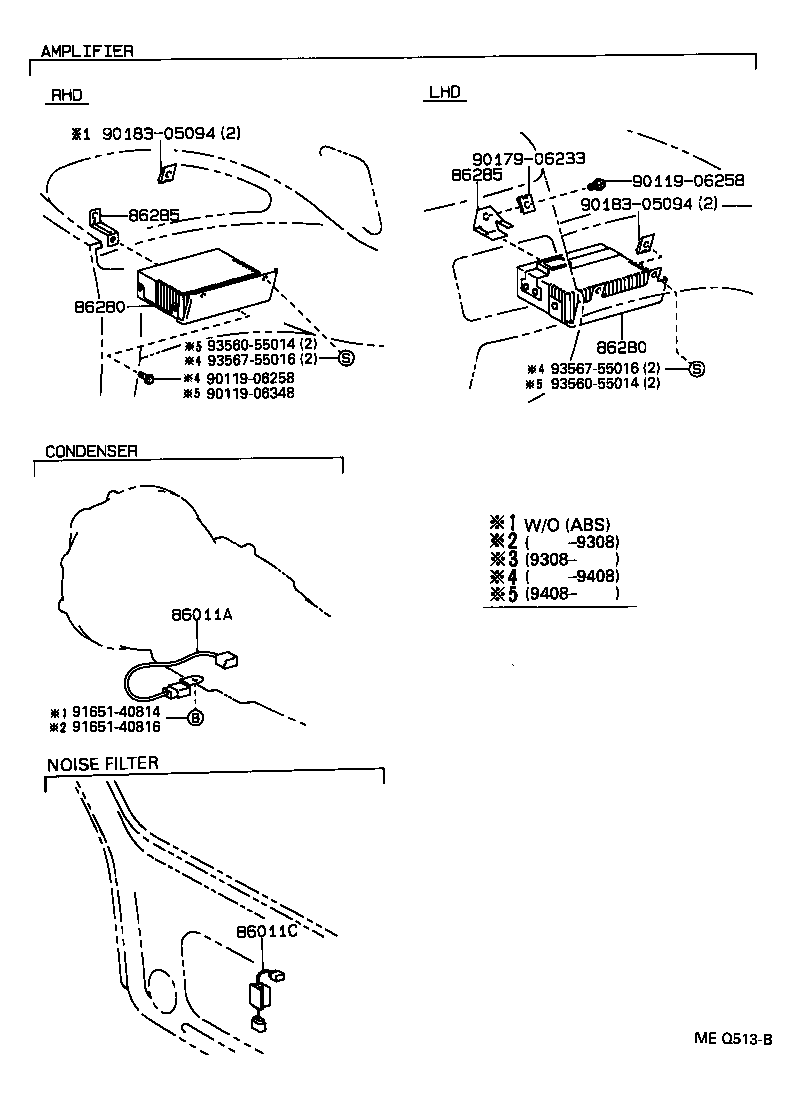

| 86280 | Amplifier Assy, Stereo Component |
| 86285 | Bracket, Amplifier, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
