Factory parts data · Europe

Toyota Previa

1990-05 → 1999-12 · chassis TCR1#,2# · catalogue 652240 · Europe

Discontinued model Data version 2000-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

7 part groups · 4 illustrations

Illustrations

Figure MEQ554

MEQ554 1990-05 → 1991-08

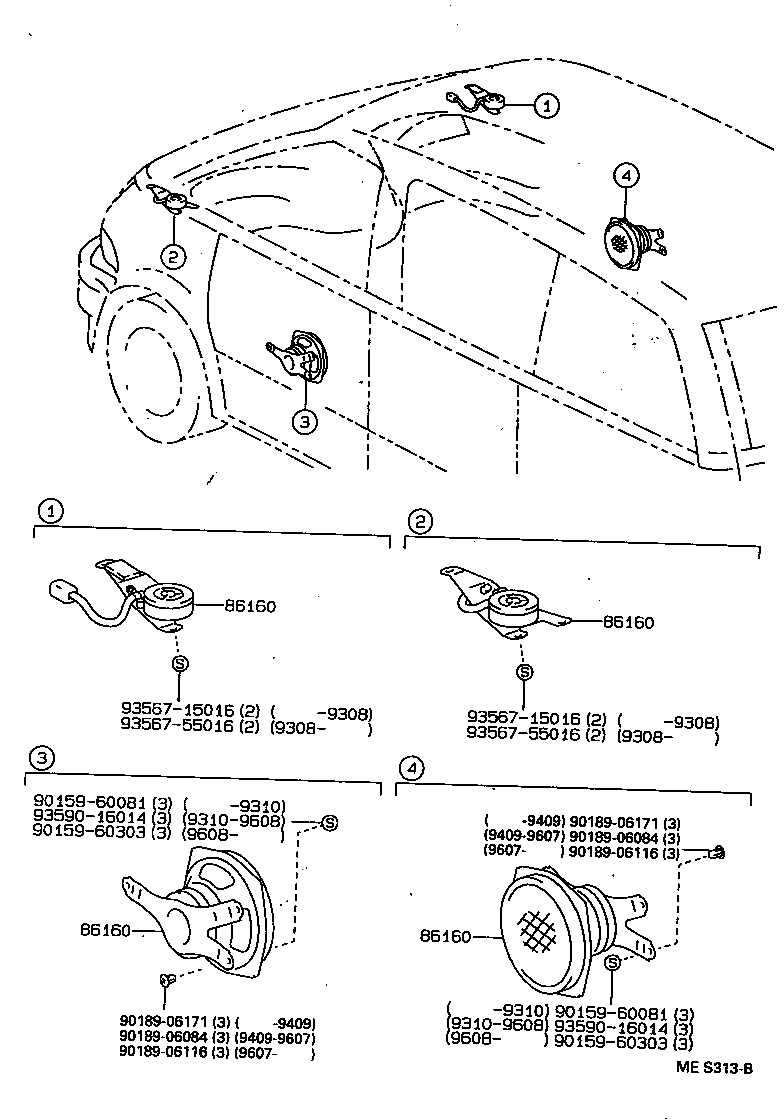

Figure MES313B

MES313B 1991-08 → —

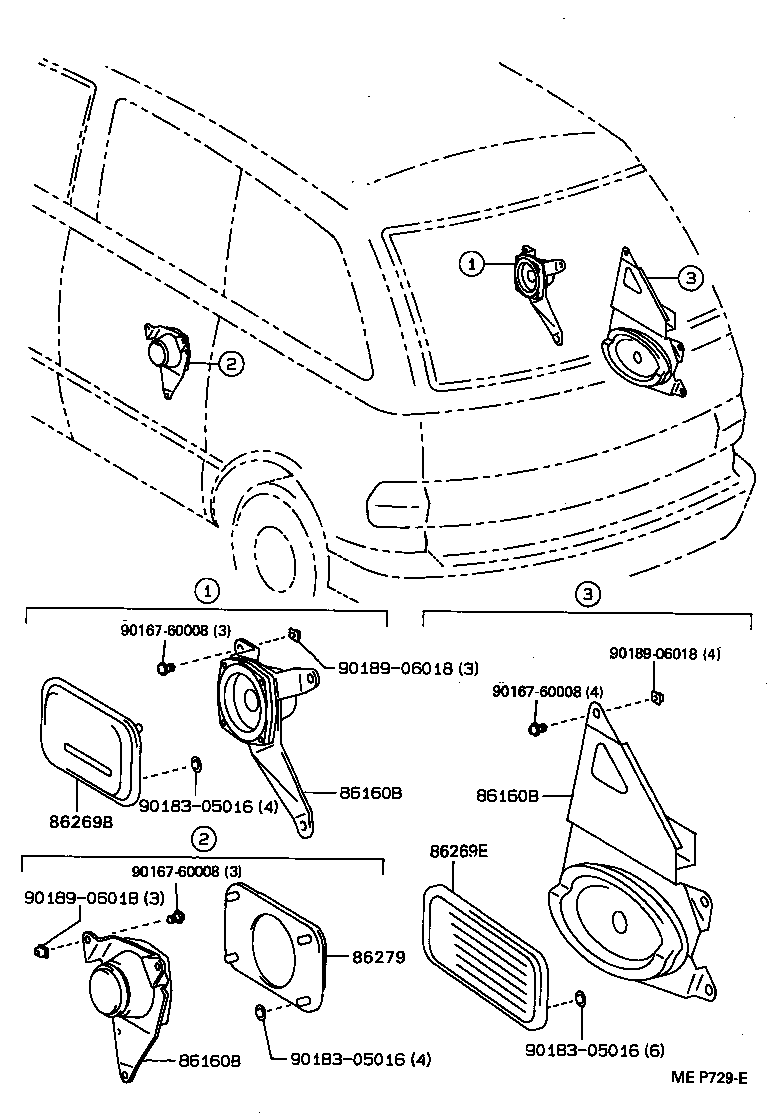

Figure MEP729E

MEP729E 1990-05 → —

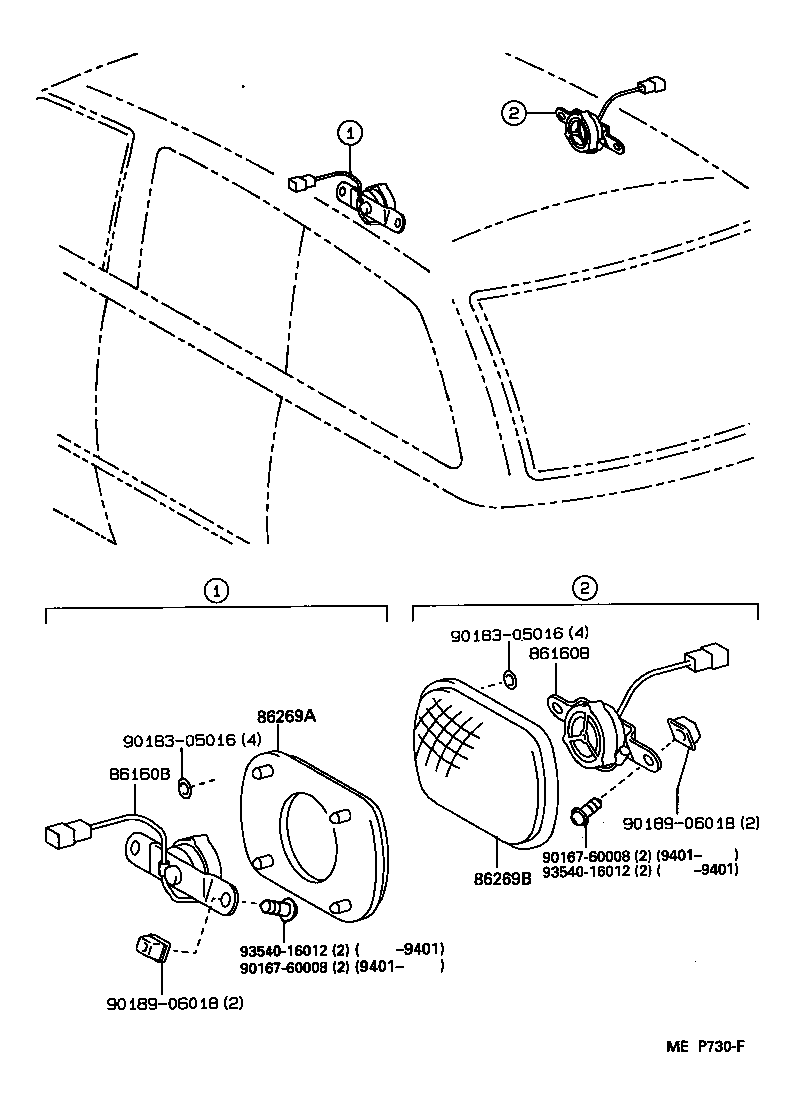

Figure MEP730F

MEP730F 1992-08 → —

Part groups

PNC	Description
86160	Speaker Assy, Front NO.1
86160B	Speaker Assy, Rear
86161D	Bracket, Speaker Mounting, NO.1
86269A	Grille, Speaker
86269B	Grille, Speaker
86269E	Grille, Speaker
86279	Grille, Speaker, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
