Heating & Air Conditioning - Cooler Unit

74 part groups · 14 illustrations

Illustrations

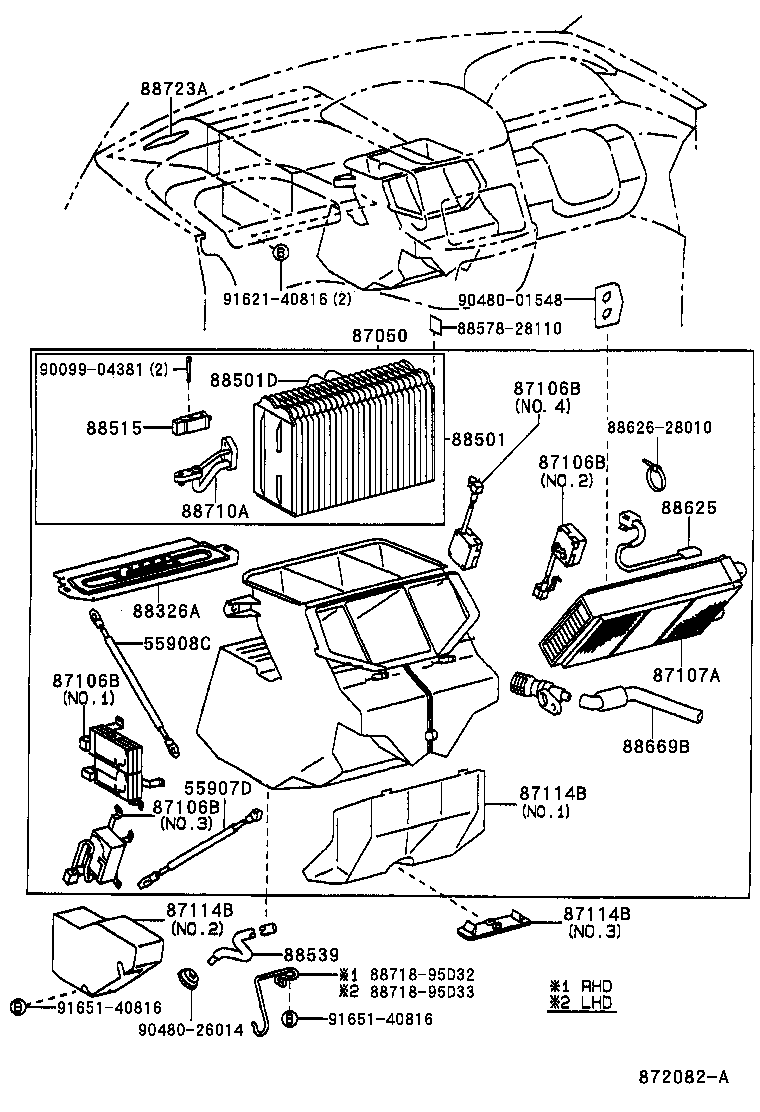

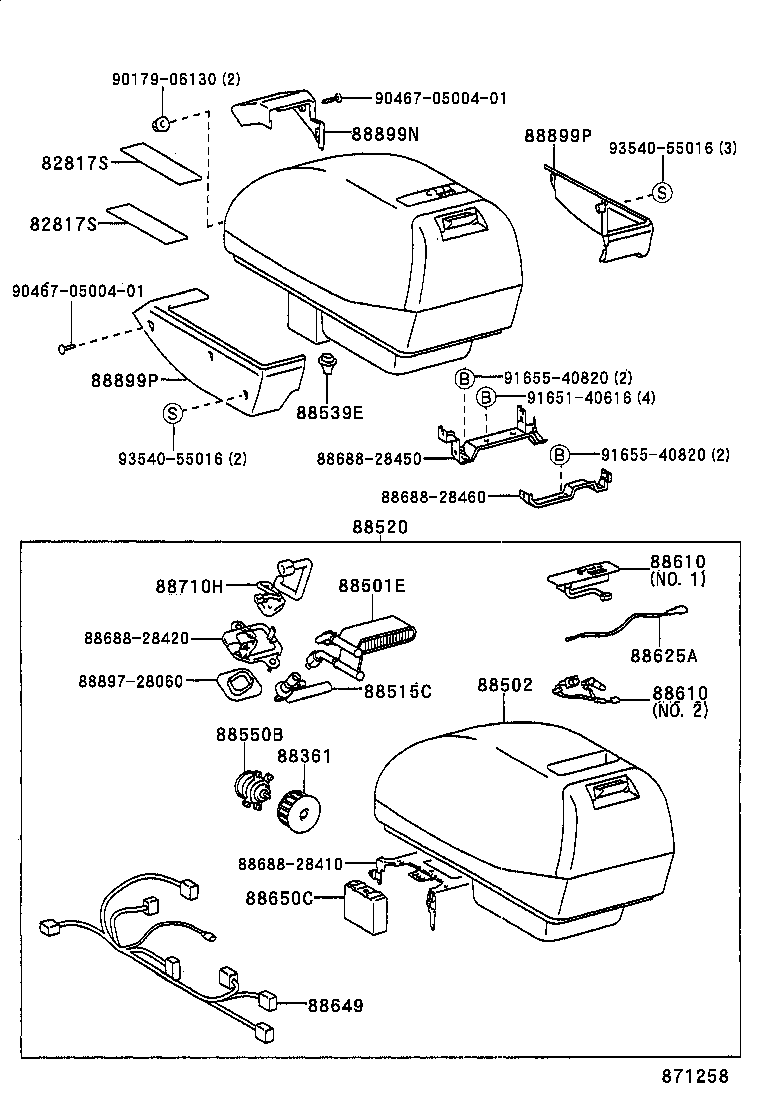

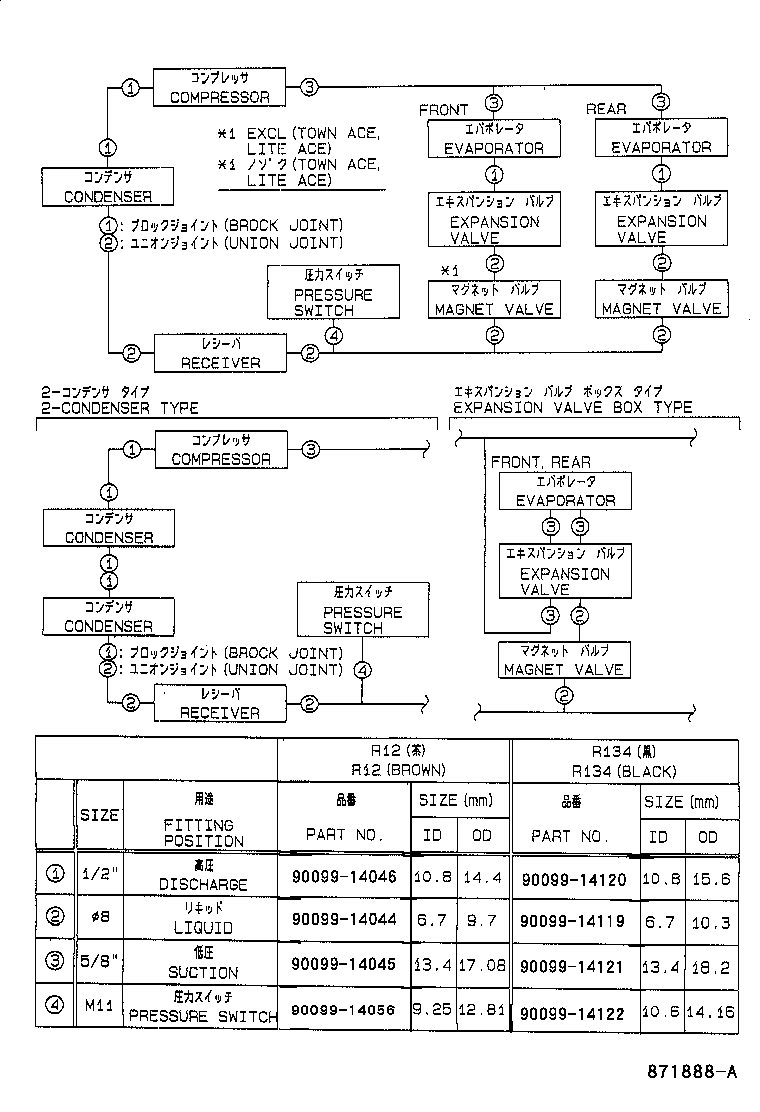

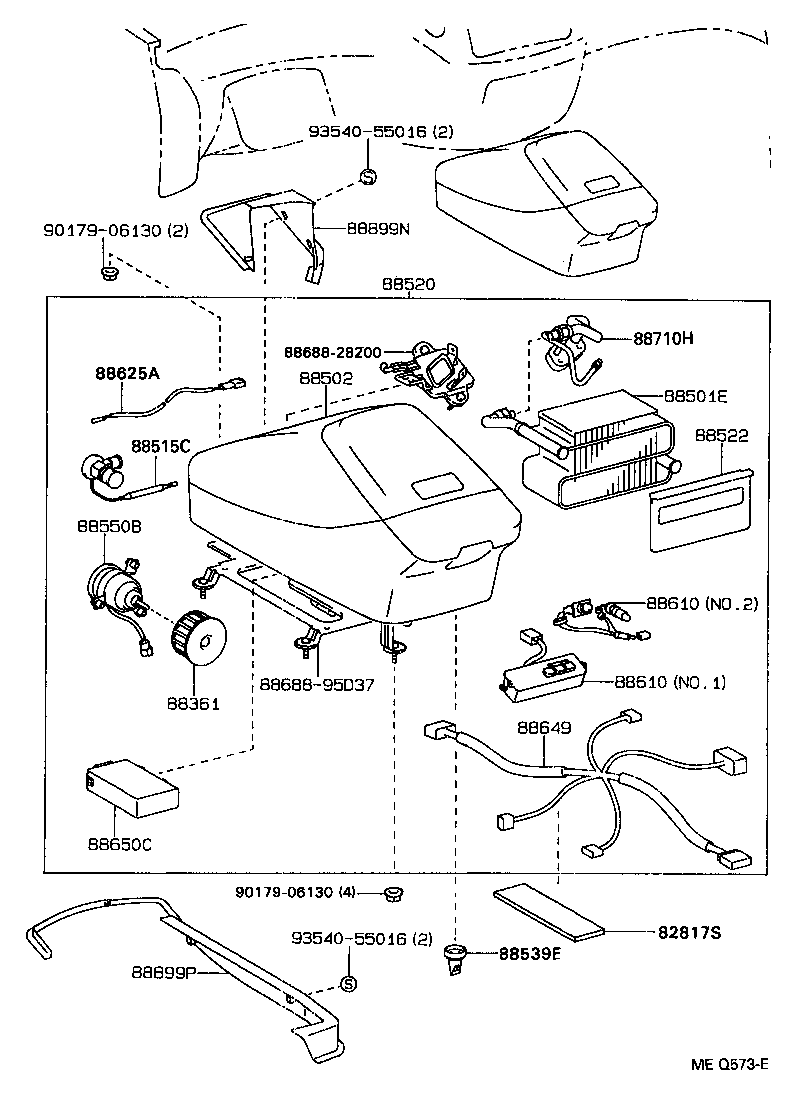

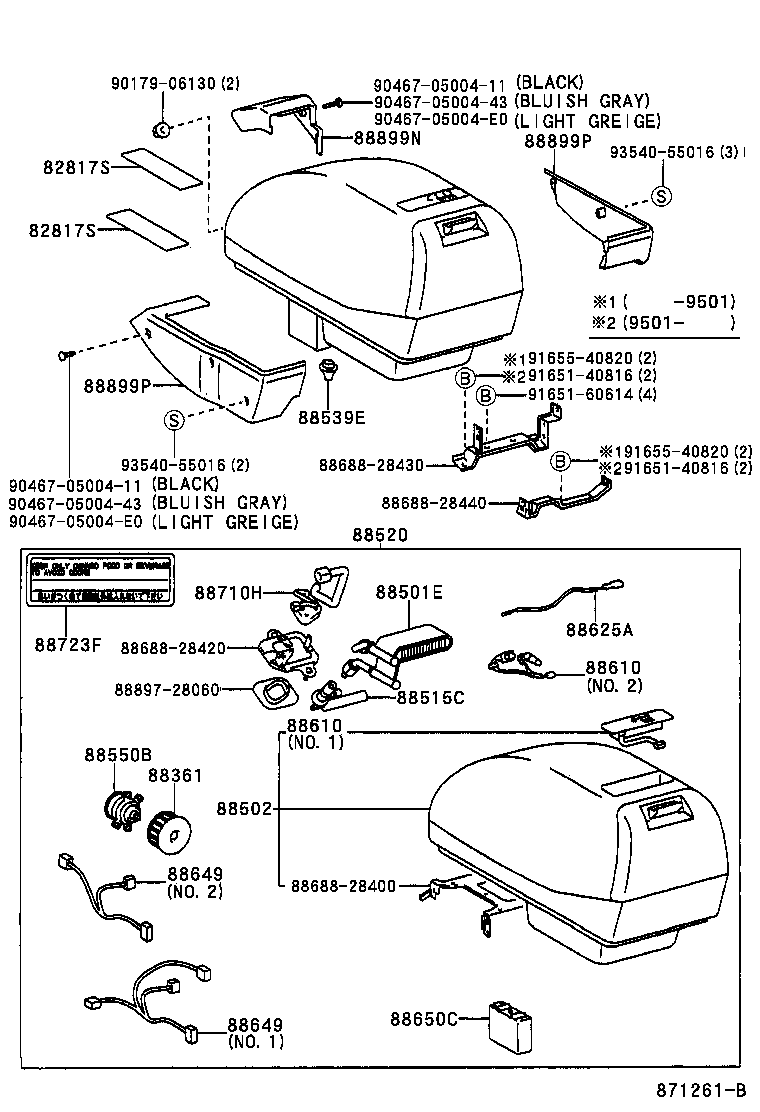

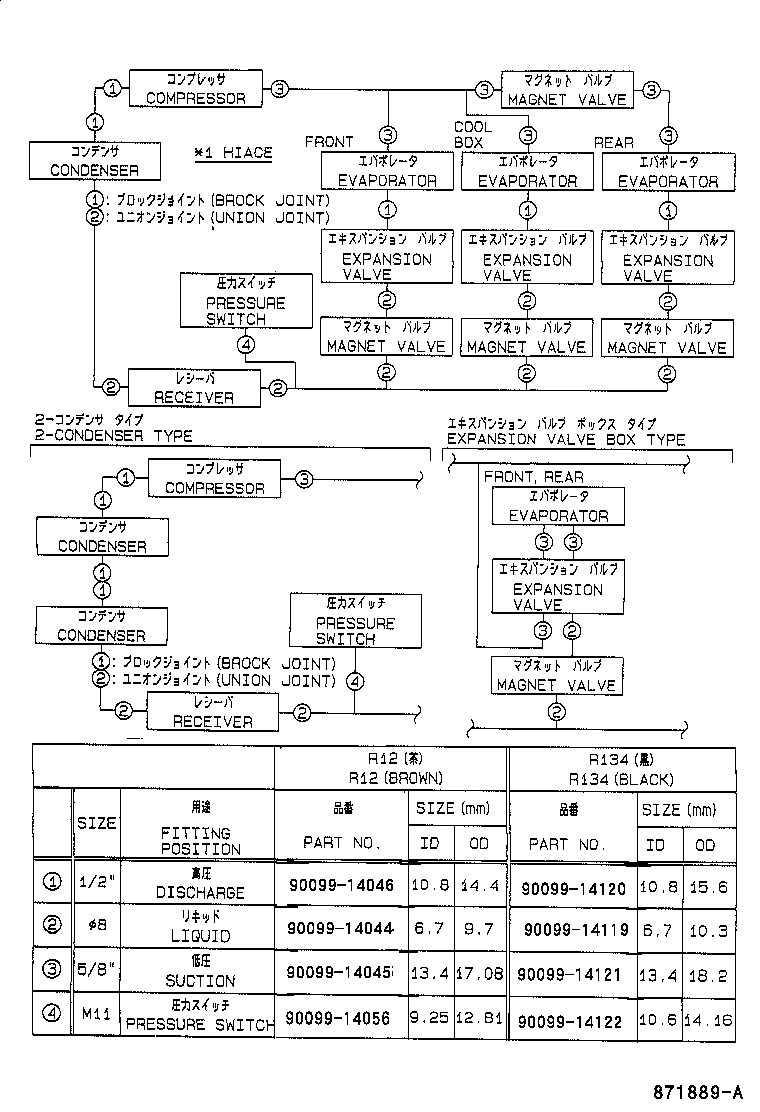

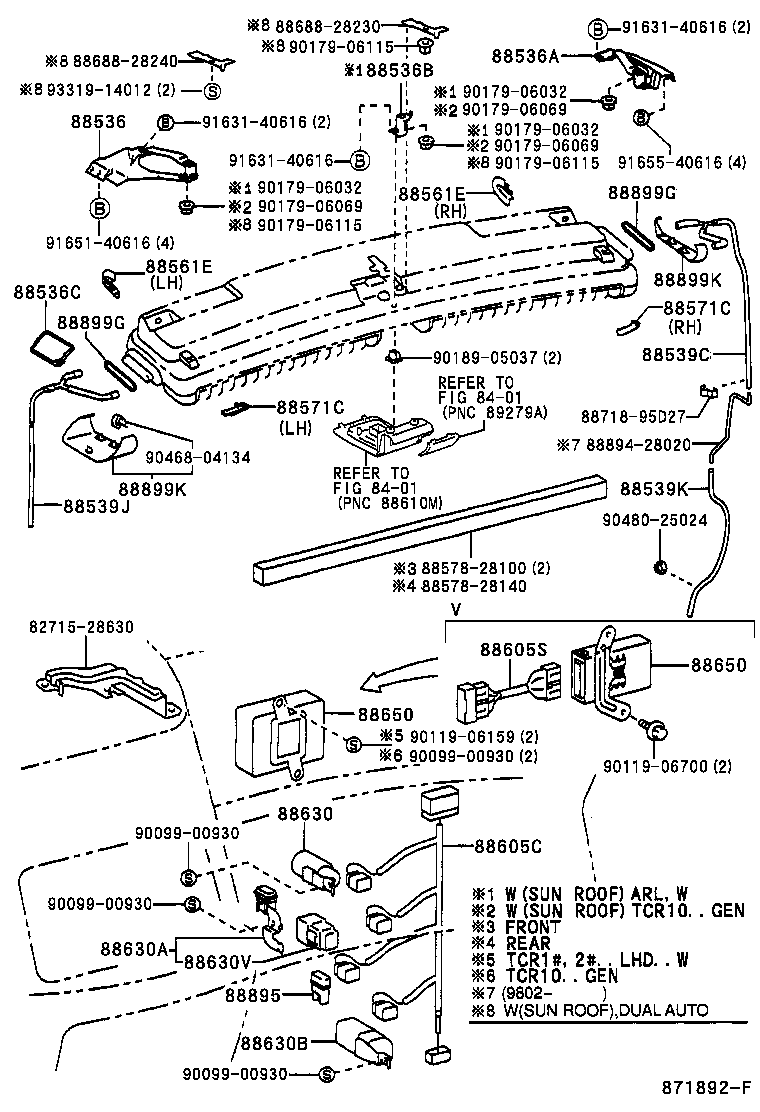

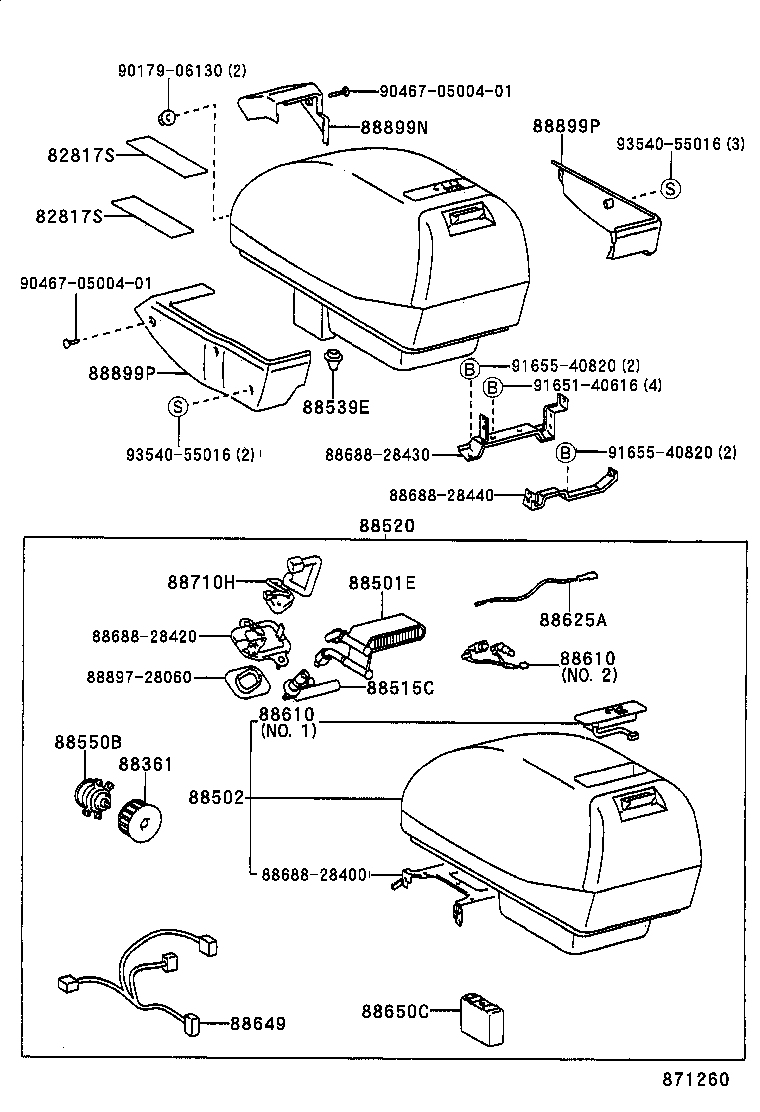

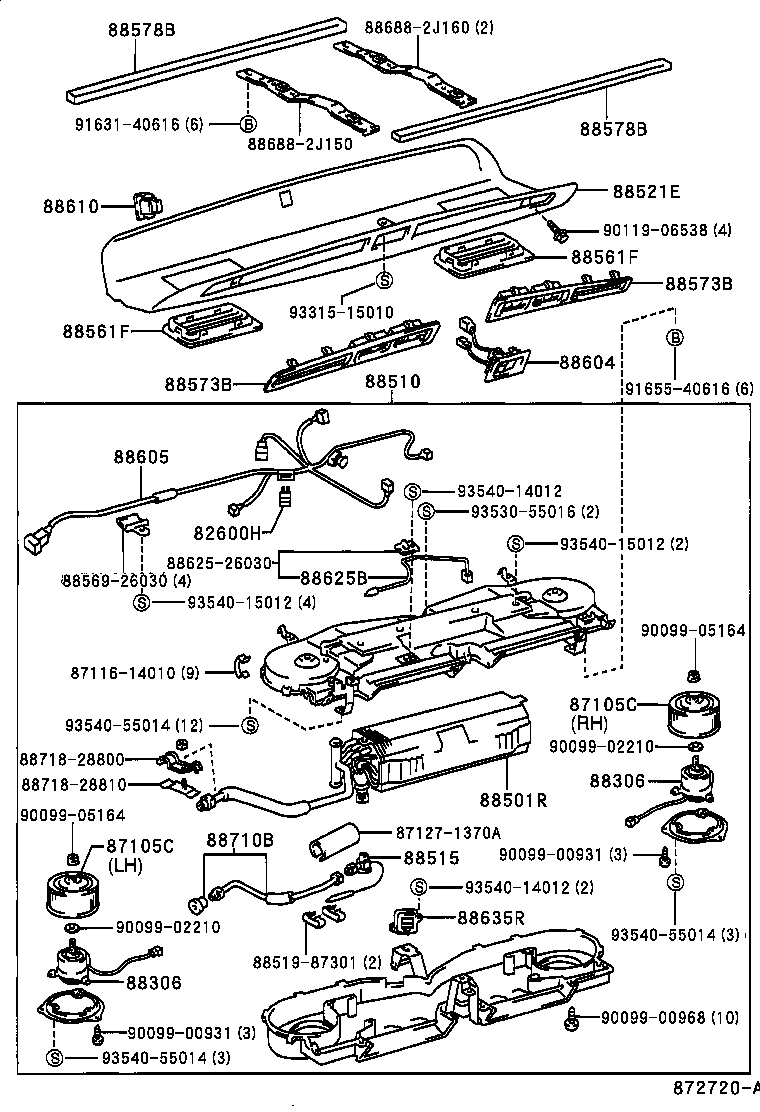

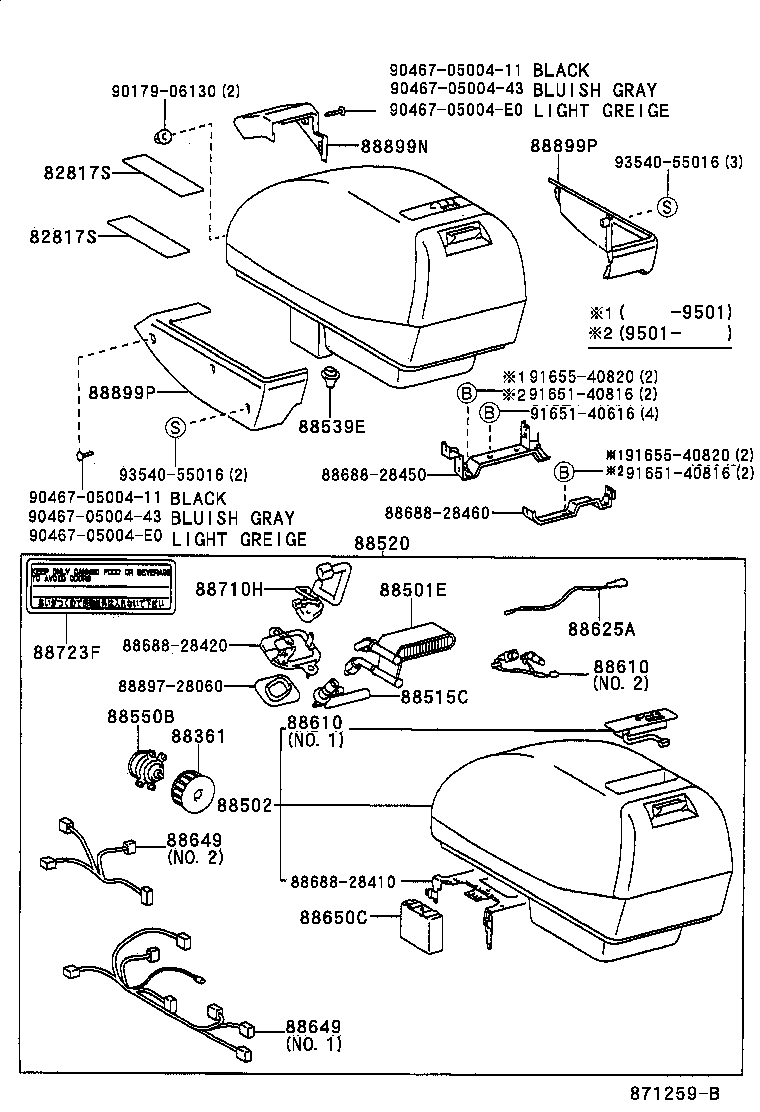

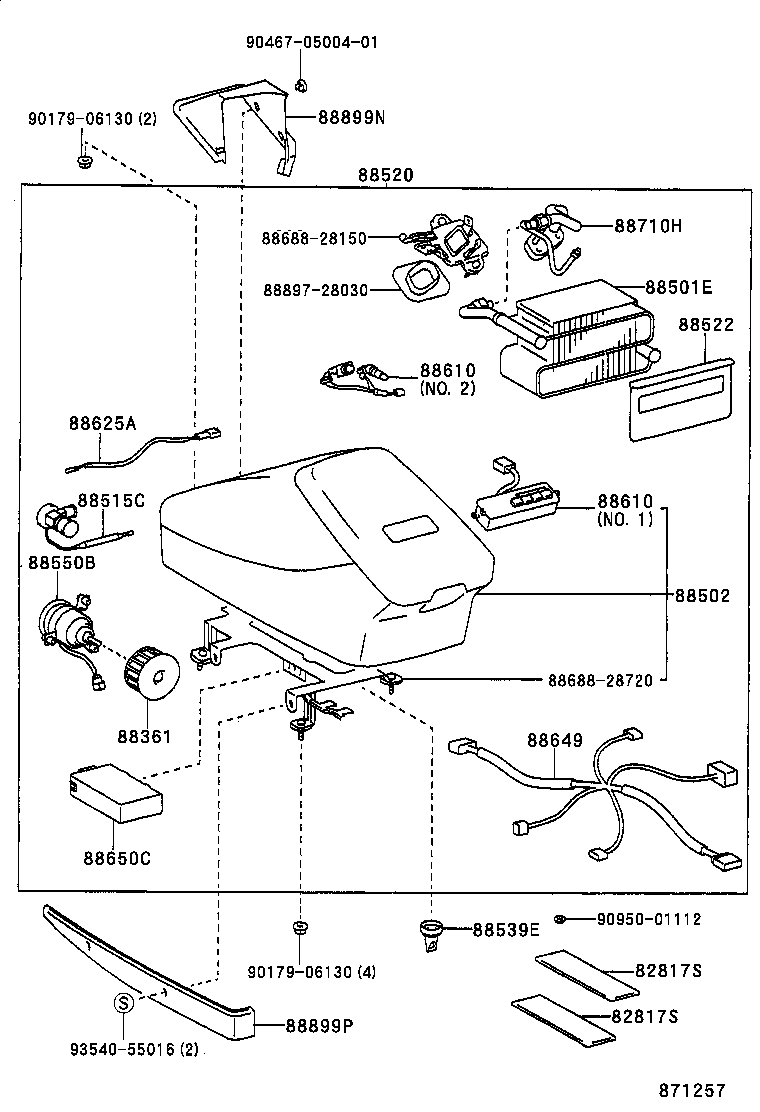

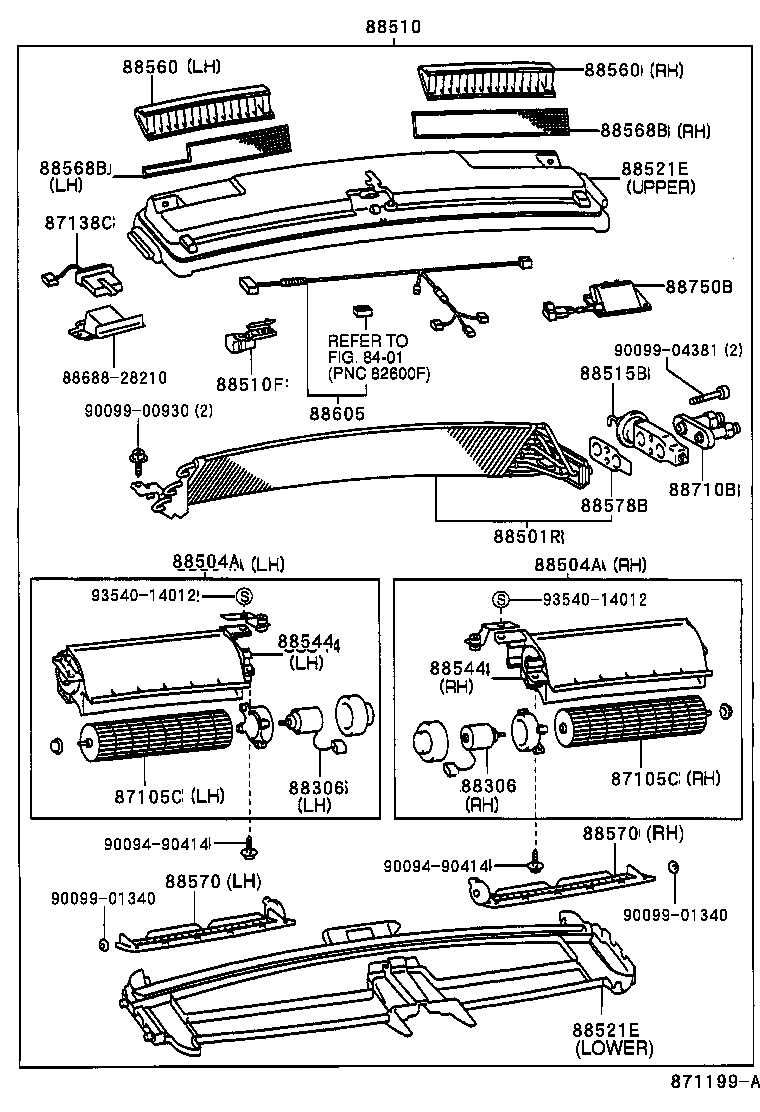

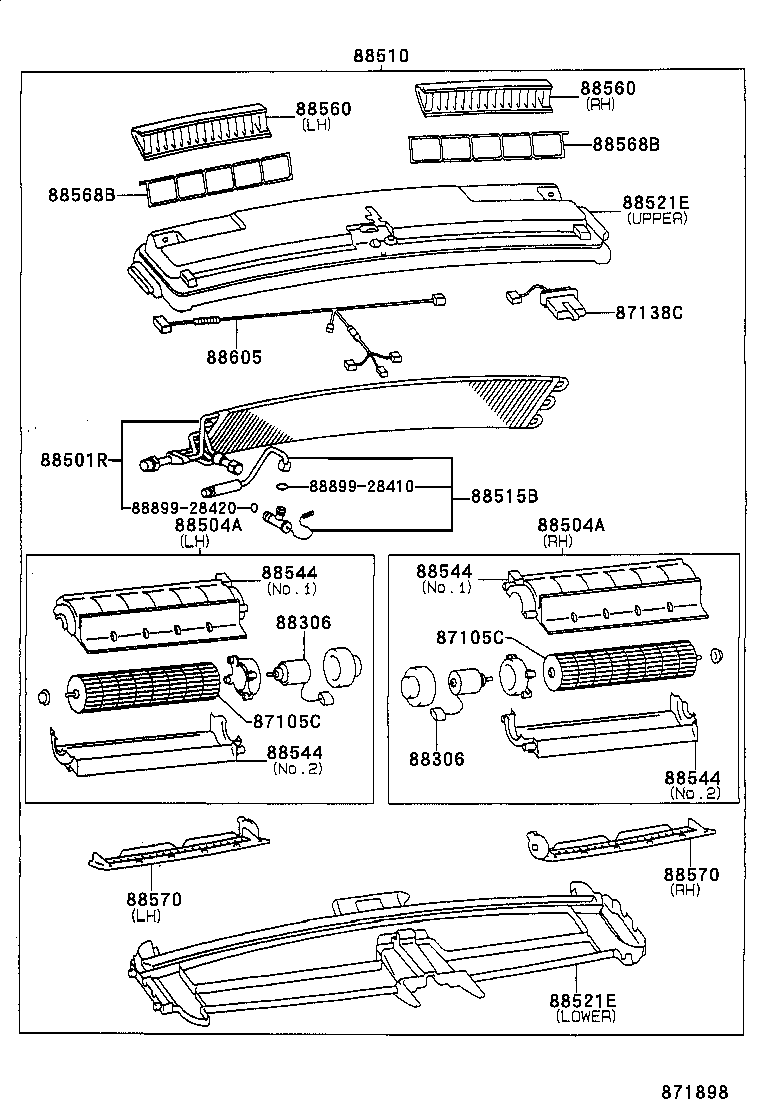

Figure 872594 872594 1990-05 → — Figure 872082A 872082A 1991-08 → — Figure 871257 871257 1990-05 → 1991-08 Figure 871258 871258 1991-08 → 1993-08 Figure 871259B 871259B 1993-08 → — Figure MEQ573E MEQ573E 1990-05 → 1991-08 Figure 871260 871260 1991-08 → 1993-08 Figure 871261B 871261B 1993-08 → — Figure 871199A 871199A 1990-05 → — Figure 871898 871898 1992-08 → — Figure 871892F 871892F 1990-05 → — Figure 872720A 872720A 1994-08 → — Figure 871888A 871888A 1990-05 → — Figure 871889A 871889A 1990-05 → —

Part groups

PNCDescription
55907D Cable Sub-assy, Water Valve Control
55908C Cable Sub-assy, Air Inlet Damper Control
82600H Fuse, Fuse Block
82817S Protector, Wiring Harness
87050 Radiator Assy, Air Conditioner
87105C Fan Sub-assy, Blower, Rear
87106B Servo Sub-assy, Damper(FOR COOLING UNIT)
87107A Unit Sub-assy, Heater Radiator
87114B Cover, Heater
87138C Resistor, Blower
88306 Motor Sub-assy, Cooler Blower, NO.1
88326A Plate, Cover
88361 Fan, Cooler Blower, NO.1
88501 Evaporator Sub-assy, Cooler, NO.1
88501D Evaporator Sub-assy, Cooler, NO.2
88501E Evapolator Sub-assy, Cooler (COOL BOX)
88501R Evaporator Sub-assy (REAR)
88502 Case Sub-assy, Cooling Unit
88504A Case Sub-assy, Blower
88510 Unit Assy, Cooler
88510F Holder, Fuse
88515 Valve, Cooler Expansion
88515B Valve, Rear Cooling Unit Expansion
88515C Valve, Cooling Box Expansion
88520 Box Assy, Cooling
88521E Case Sub-assy, Cooling Unit
88522 Door, Cooling Unit
88536 Bracket, Cooling Unit, NO.1
88536A Bracket, Cooling Unit, NO.2
88536B Bracket, Cooling Unit, NO.3
88536C Bracket, Cooling Unit, NO.4
88539 Hose, Cooler Unit Drain, NO.1
88539C Hose, Cooler Unit Drain, NO.2
88539E Hose, Cooler Unit Drain, NO.3
88539J Hose, Drain Cooler
88539K Hose, Drain Cooler
88544 Case, Cooler Blower
88550B Motor Assy, Blower
88560 Grille Assy, Cooler Air Inlet
88561E Grille, Air Inlet
88561F Grille, Air Inlet
88568B Filter, Air
88570 Grille Sub-assy, Cooler Air Outlet
88571C Grille, Cooler Air Outlet
88573B Base, Grille
88578B Packing, Cooling Unit, NO.1
88604 Panel Sub-assy, Cooler Control
88605 Harness Sub-assy, Cooler Wiring, NO.1
88605C Harness Sub-assy, Cooler Wiring, NO.2
88605S Harness Sub-assy, Wiring Air Conditioner
88610 Switch Assy, Cooler Control
88625 Thermistor, Cooler, NO.1
88625A Thermistor, Cooler NO.2
88625B Thermistor, Cooler NO.3
88630 Relay Assy, Cooler
88630A Relay Assy, Cooler
88630B Relay Assy, Cooler
88630V Relay Assy
88635R Resistor, Blower
88649 Wiring, Cooler, NO.2
88650 Amplifier Assy, Cooler Stabilizer
88650C Amplifier Sub-assy, Airconditioner
88669B Hose, Cooler Air
88710A Tube Assy, Air Conditioner
88710B Tube Assy, Air Conditioner
88710H Tube & Accessory Assy, Air Conditioner
88723A Label, Cooler Service Caution
88723F Label, Cooler Service Caution
88750B Transistor Assy, Blower Resistor
88895 Holder, Fuse
88899G Moulding, Protector
88899K Plate, Cover
88899N Plate, Cover
88899P Plate, Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
