Toyota Previa

1990-05 → 1999-12 · chassis TCR1#,2# · catalogue 652240 · Europe

Discontinued model Data version 2000-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

10 part groups · 2 illustrations

Illustrations

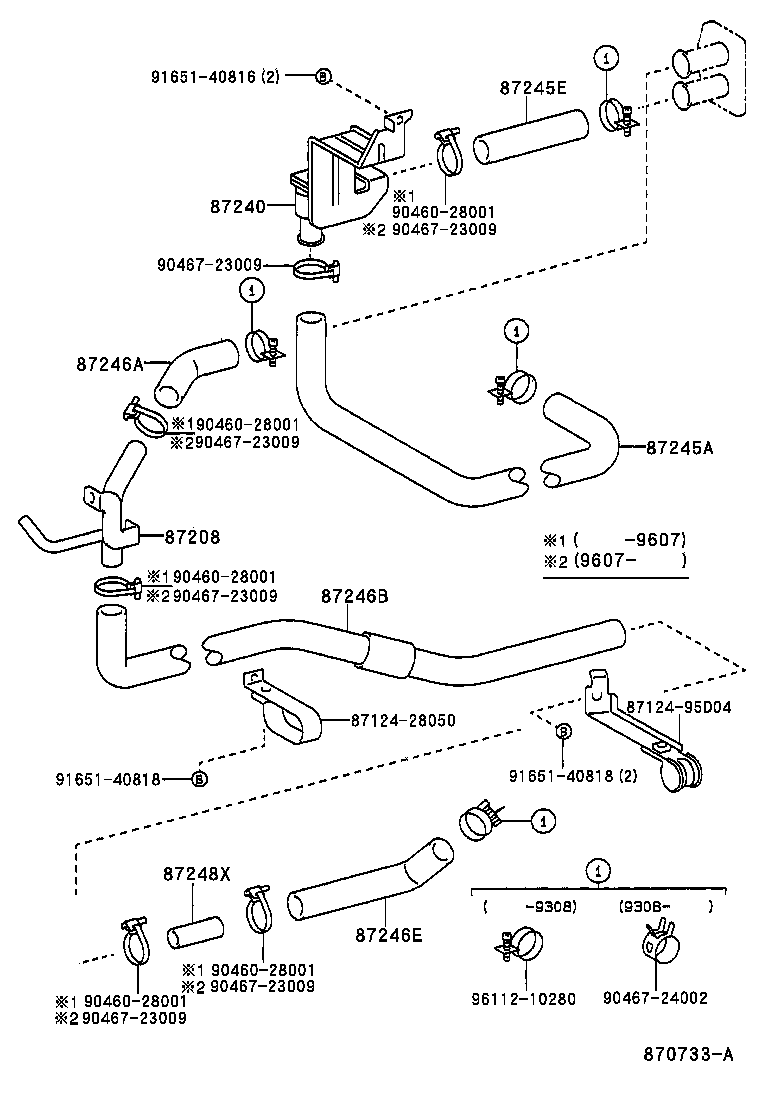

Figure 872439 872439 1990-05 → — Figure 870733A 870733A 1990-05 → —

Part groups

PNCDescription
87208 Pipe Sub-assy, Heater Water
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246E Hose, Heater Water, Outlet E
87248 Pipe Sub-assy, Water
87248X Pipe, Heater Water
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
