Toyota Previa

1990-05 → 1999-12 · chassis TCR1#,2# · catalogue 652240 · Europe

Discontinued model Data version 2000-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

42 part groups · 16 illustrations

Illustrations

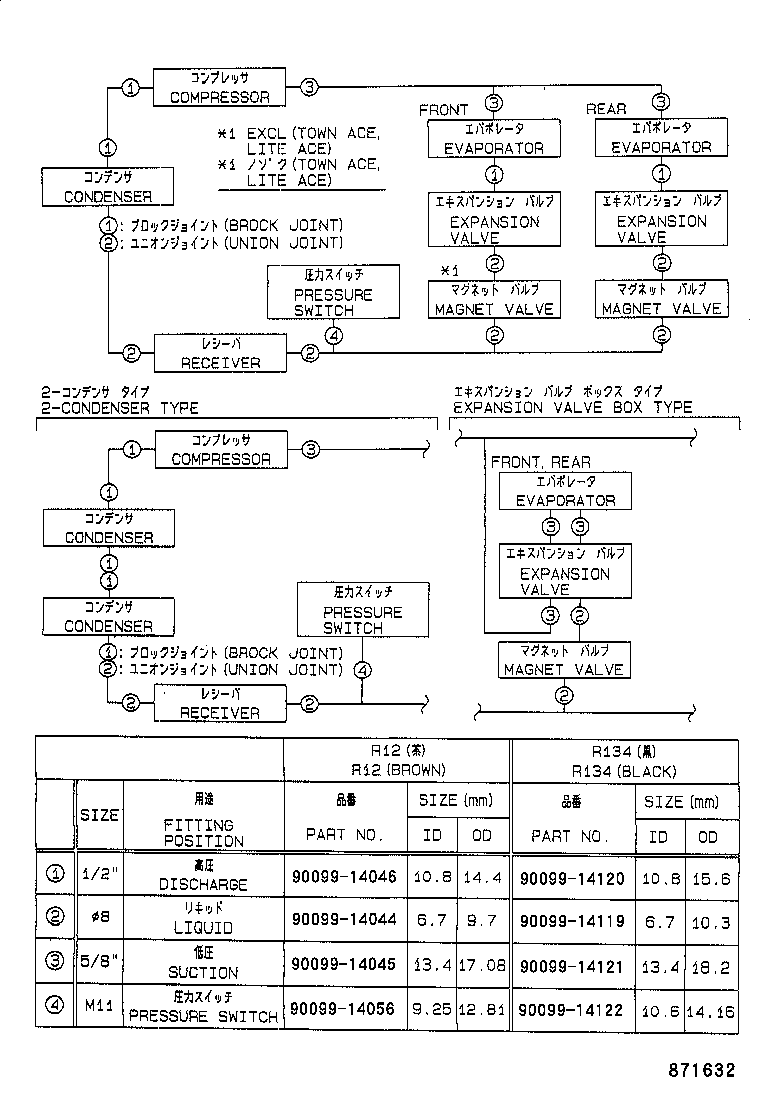

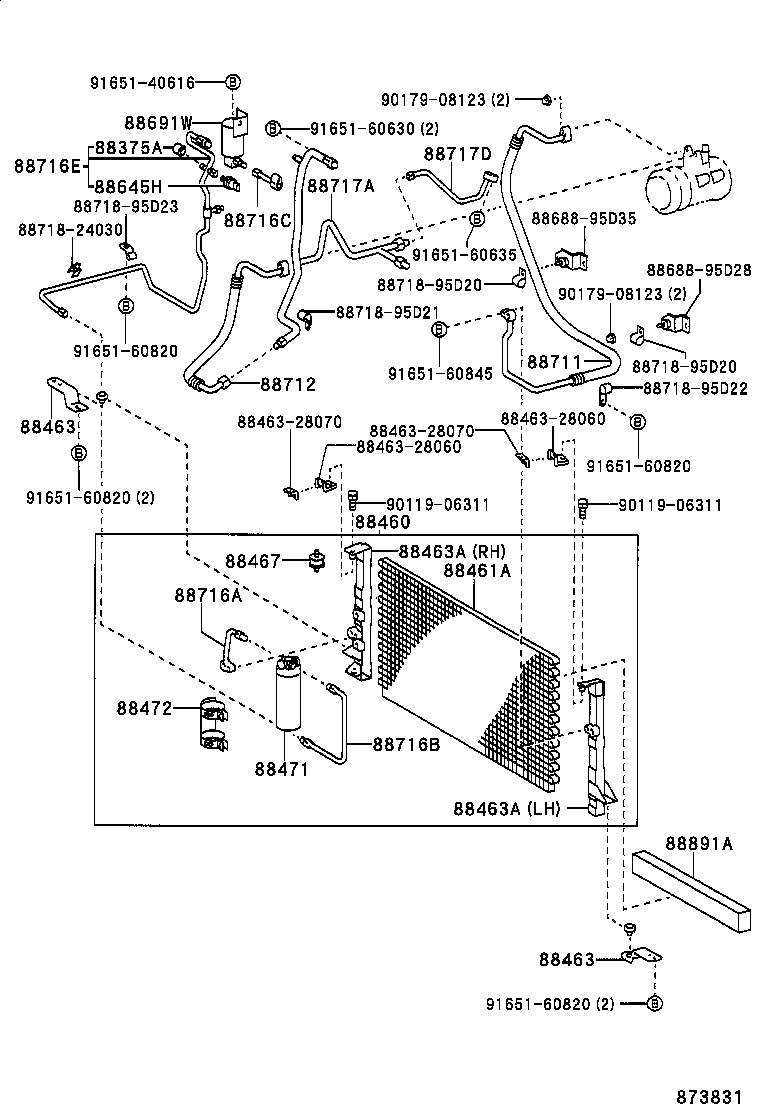

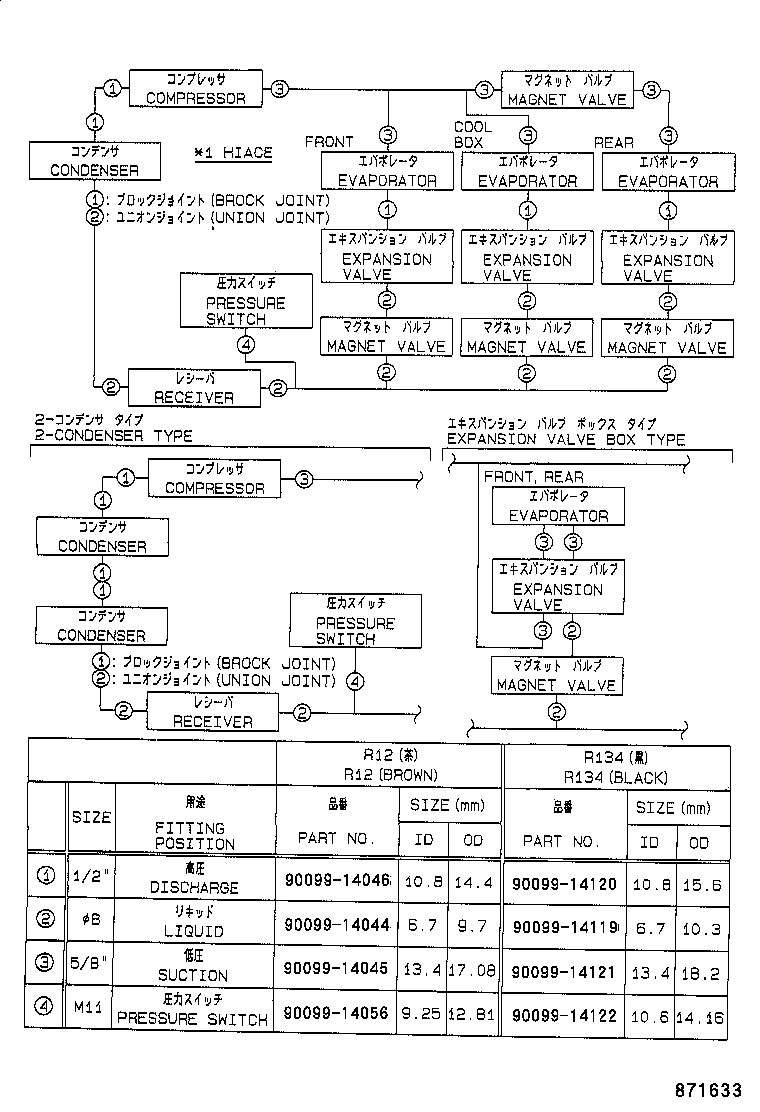

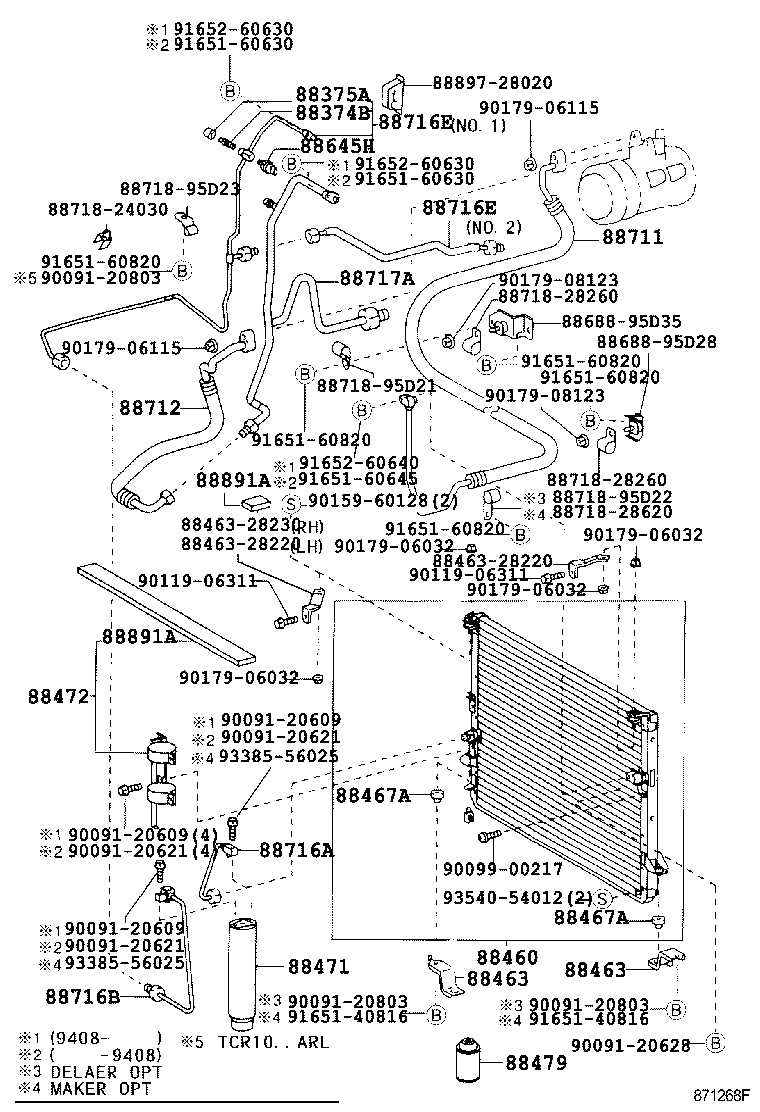

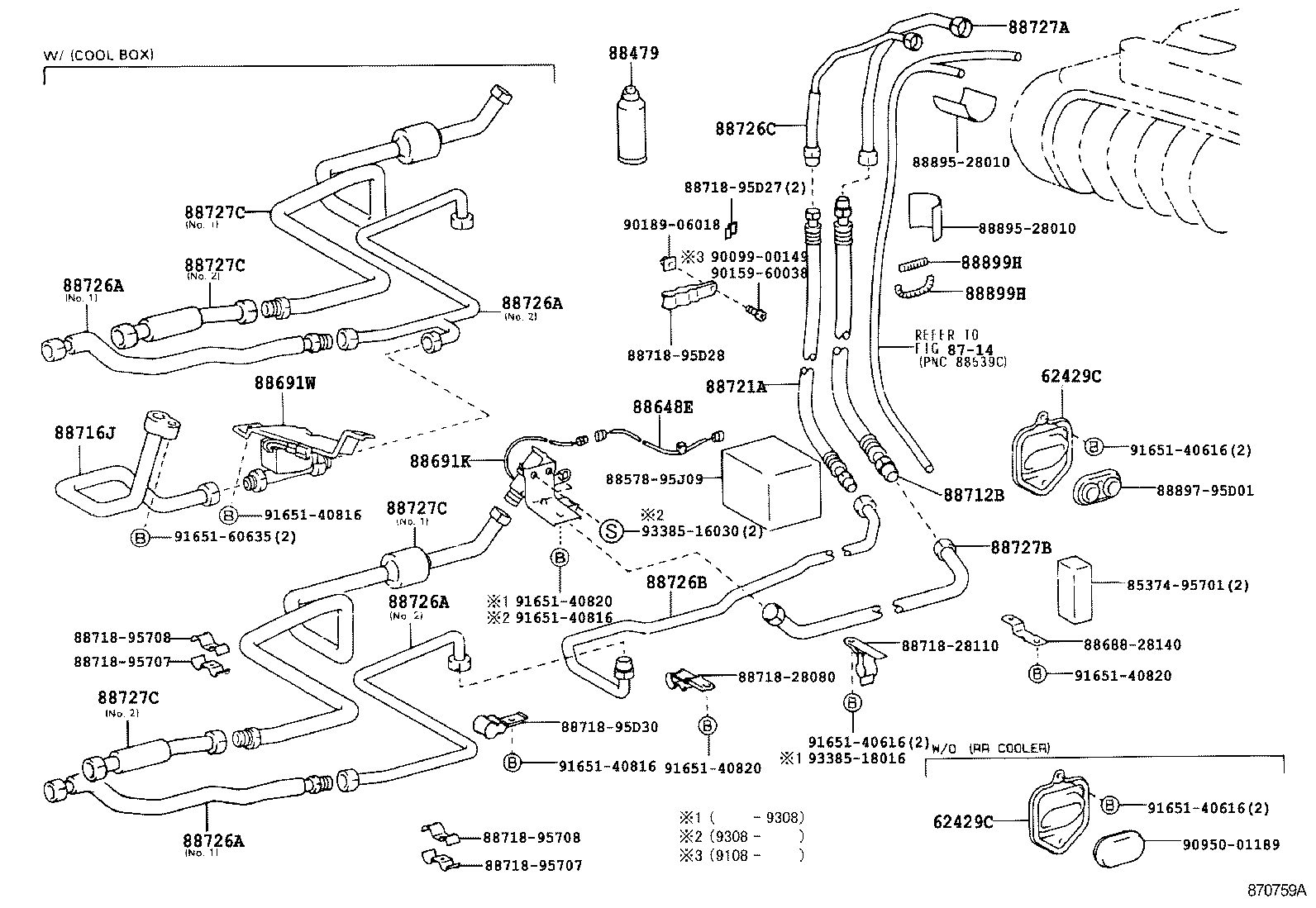

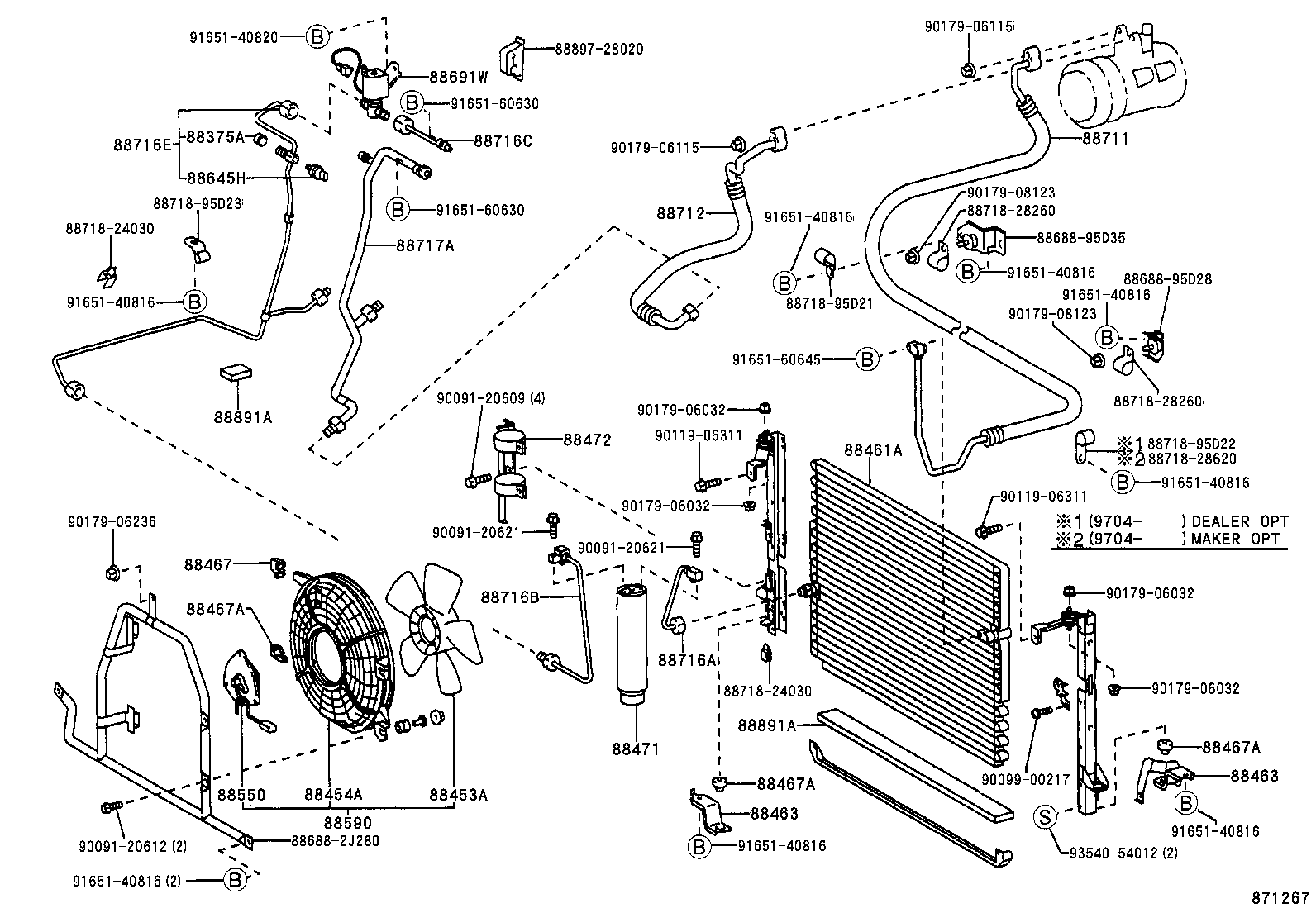

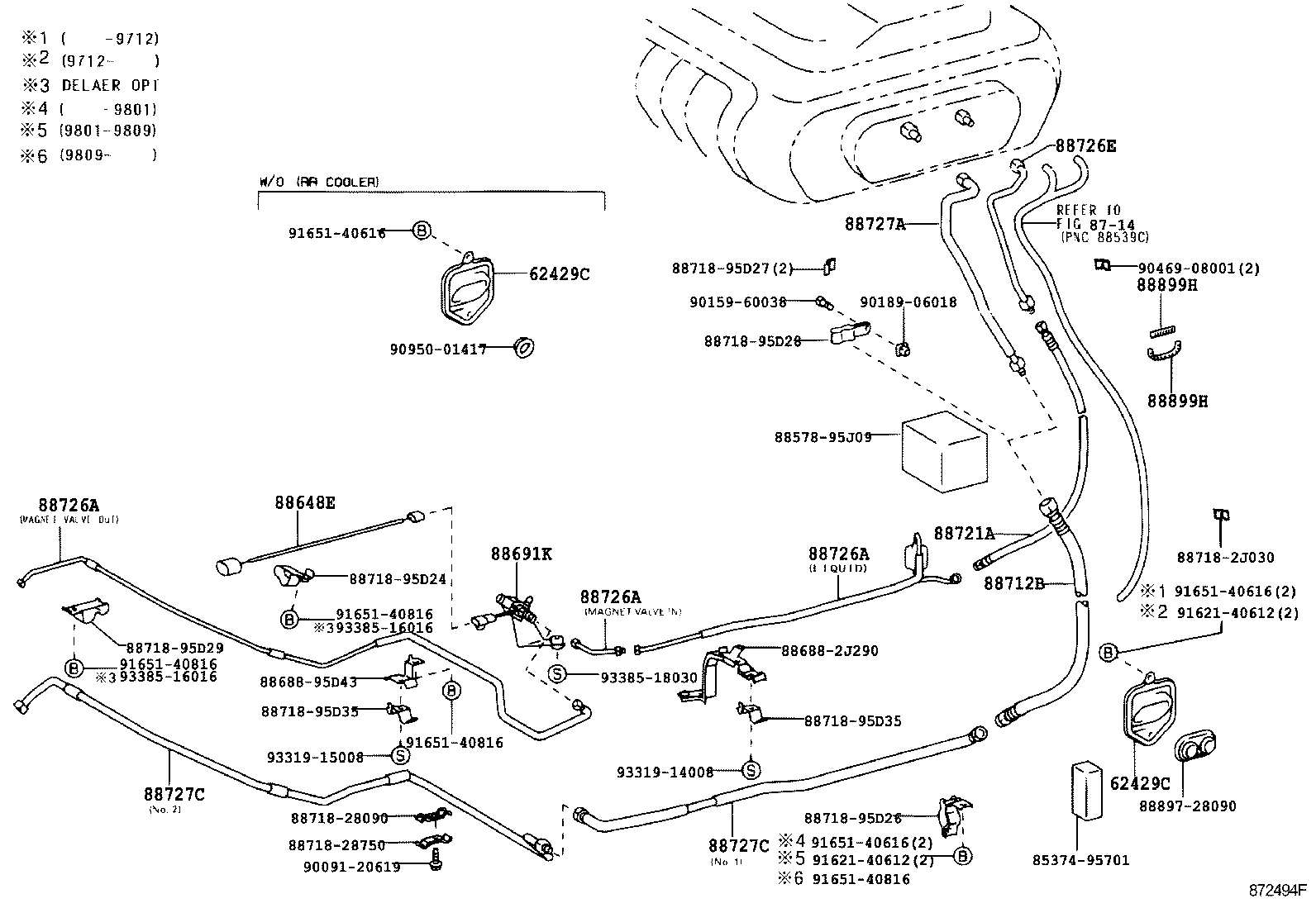

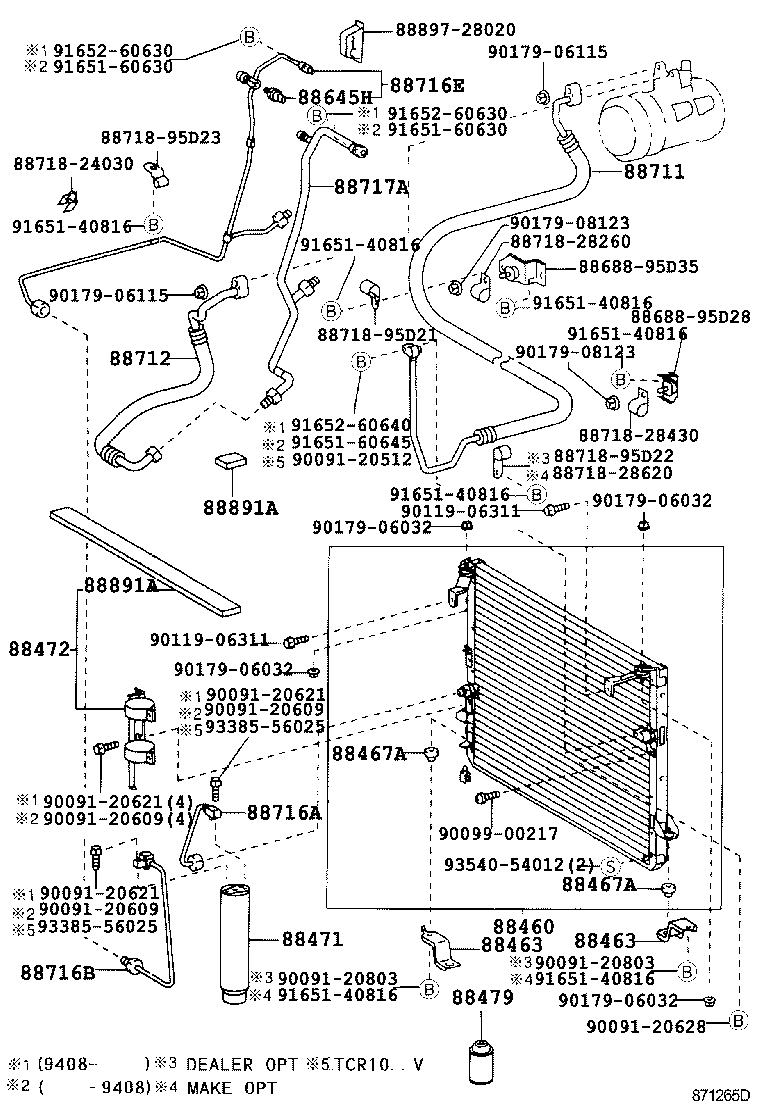

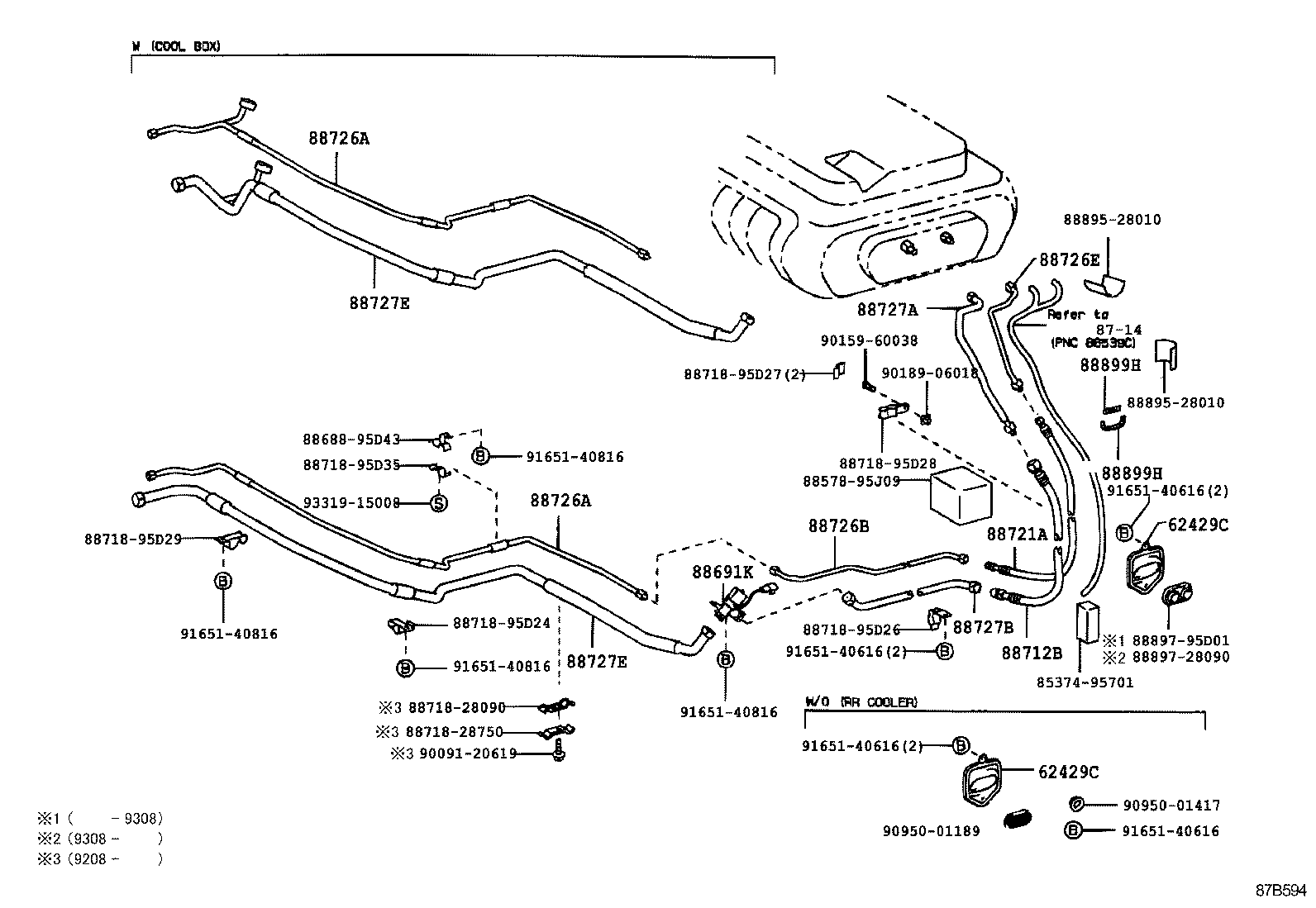

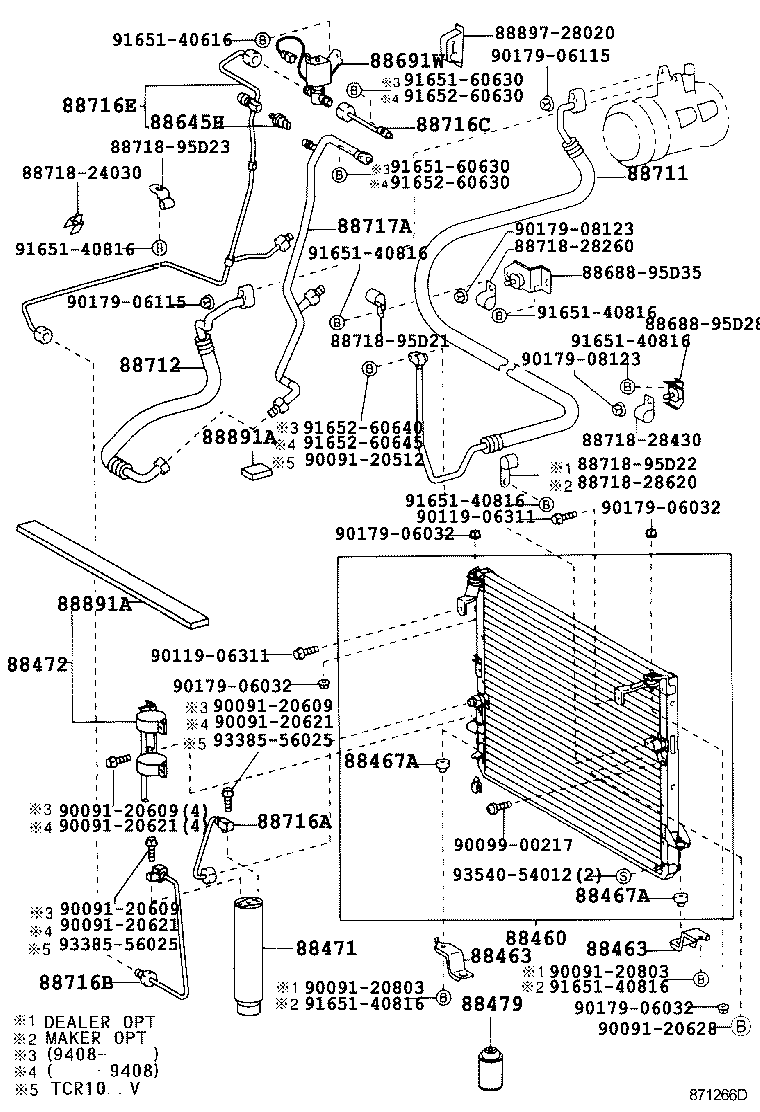

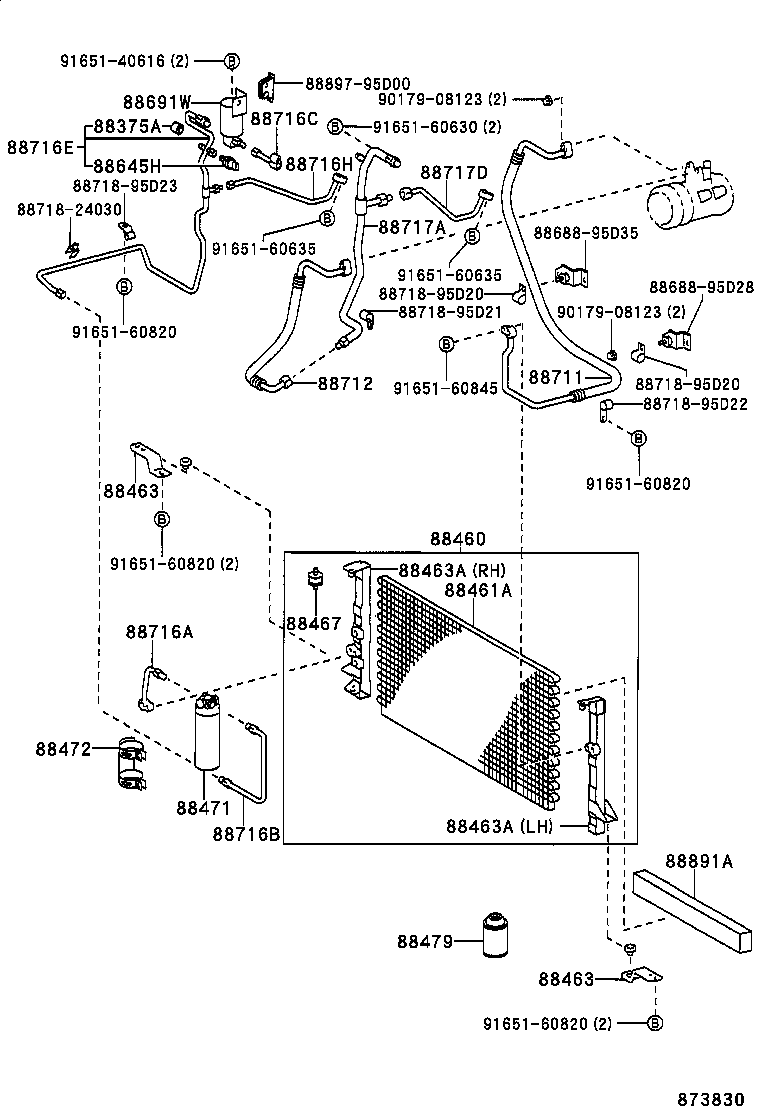

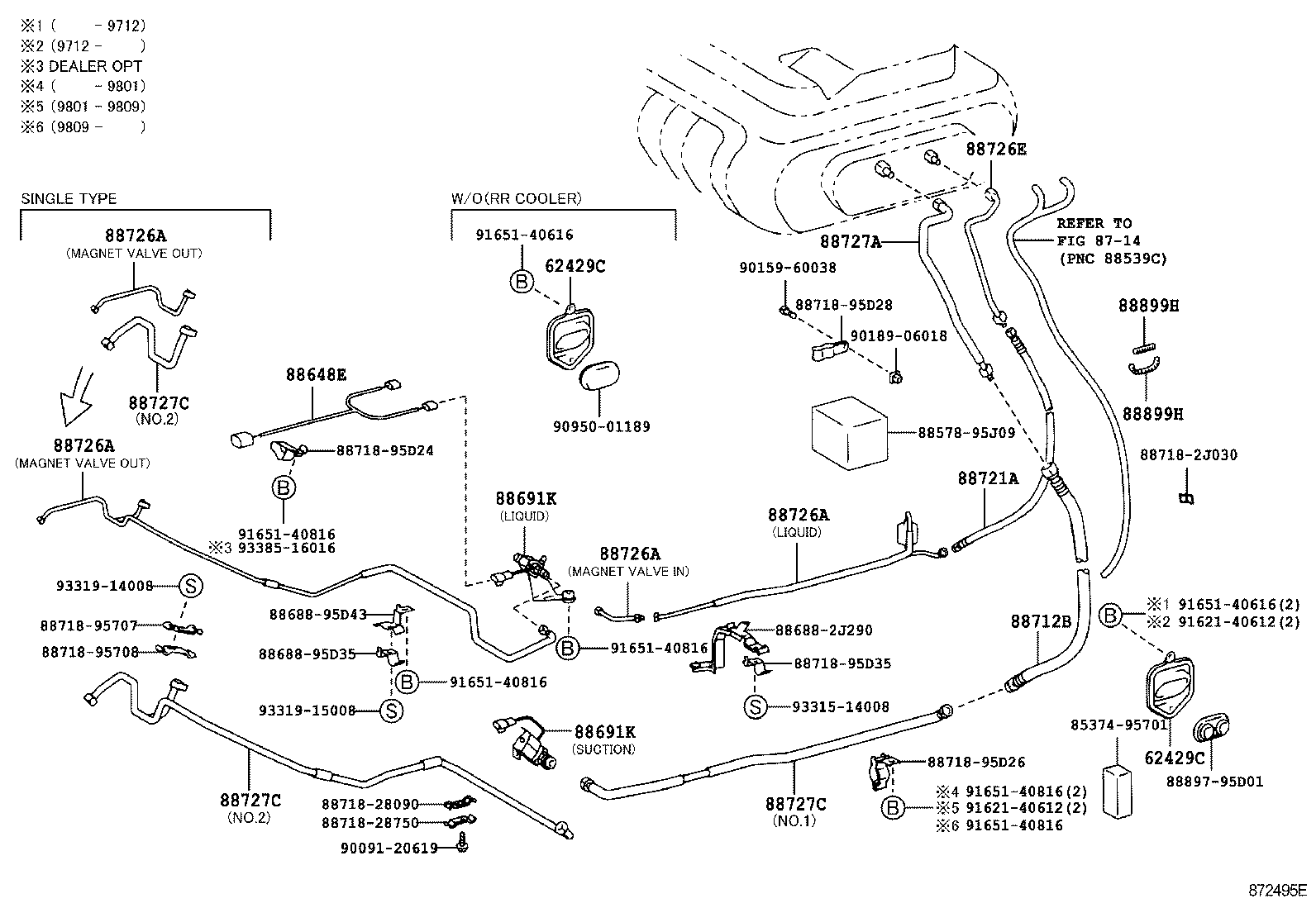

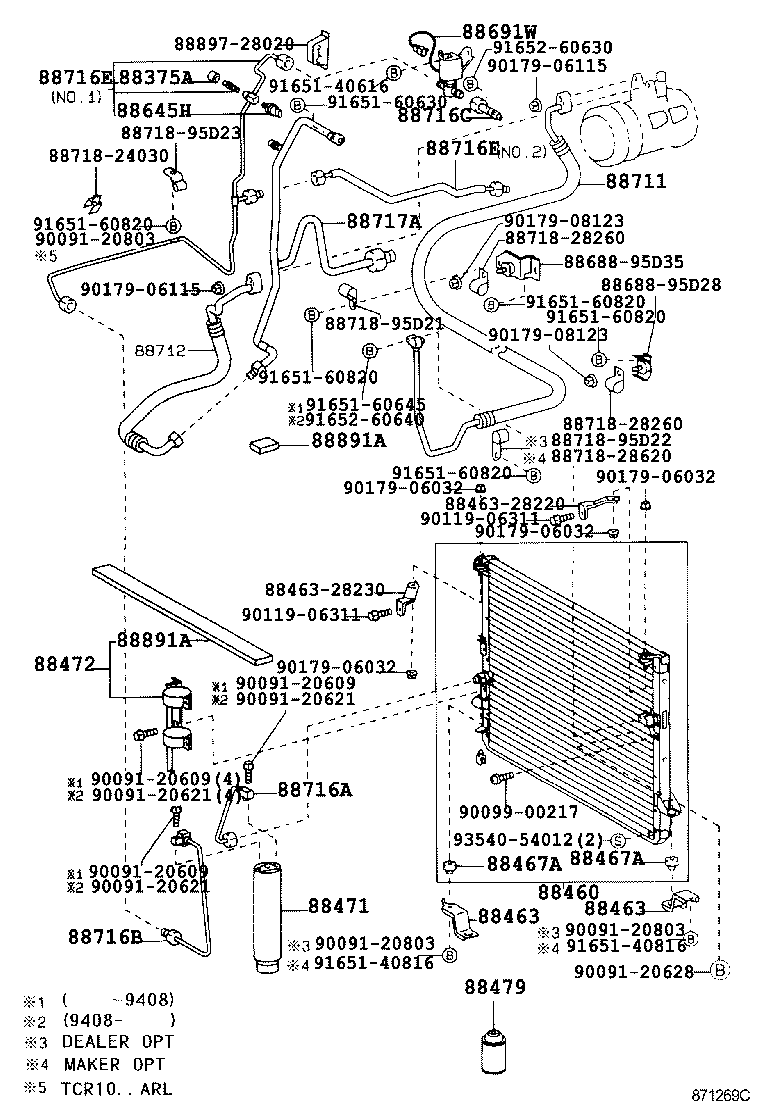

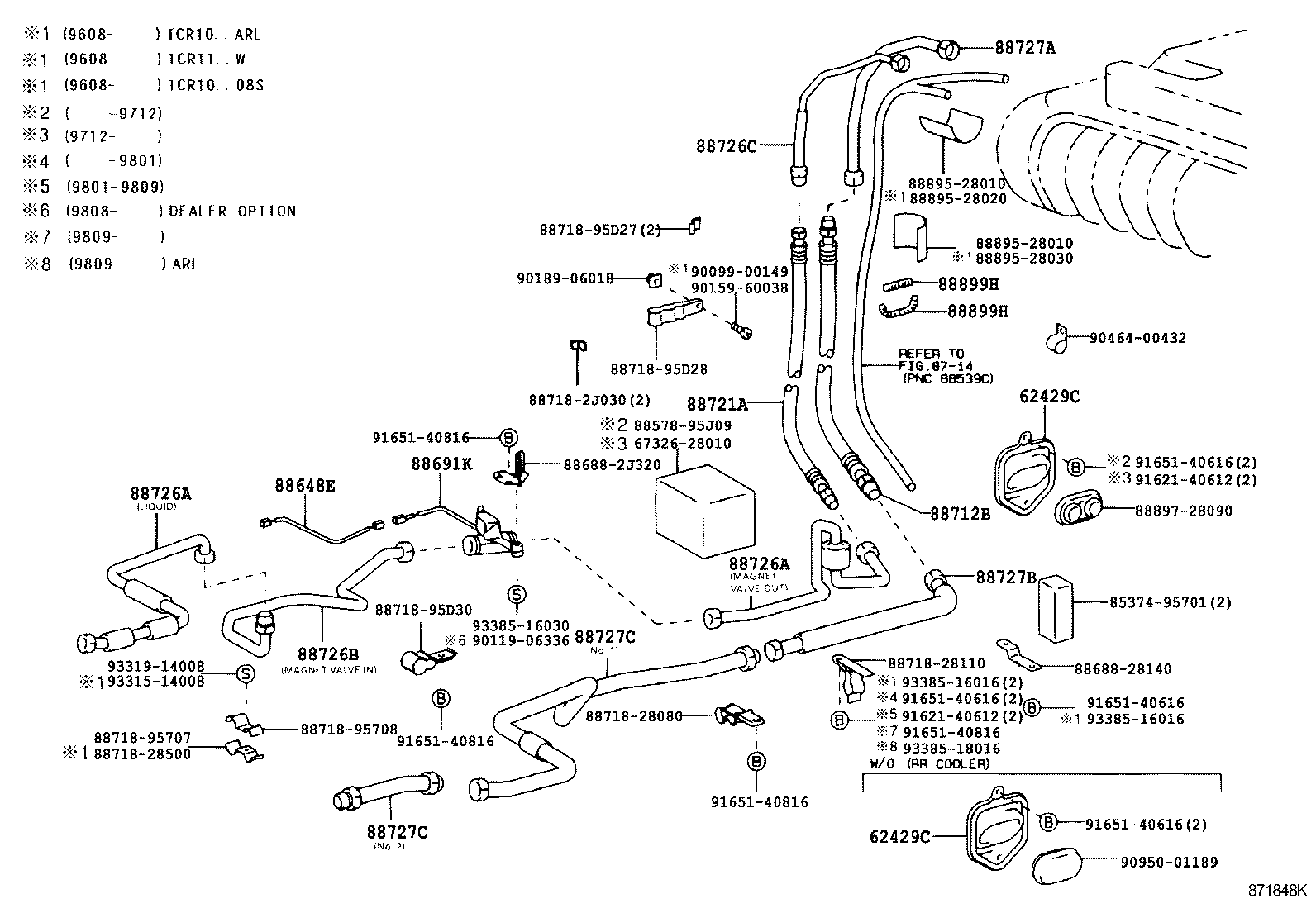

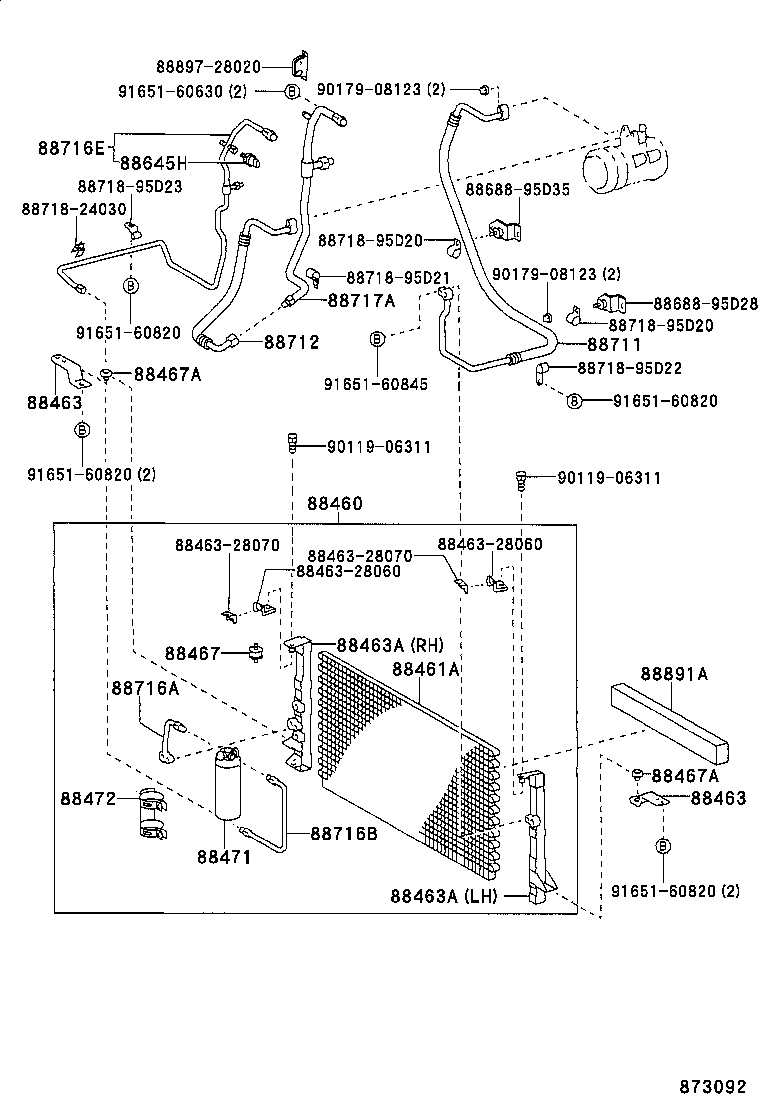

Figure 873829A 873829A 1990-05 → 1993-08 Figure 873830 873830 1990-05 → 1993-08 Figure 871265D 871265D 1993-08 → — Figure 871266D 871266D 1993-08 → — Figure 873092 873092 1990-05 → 1993-08 Figure 873831 873831 1990-05 → 1993-08 Figure 871268F 871268F 1993-08 → — Figure 871269C 871269C 1993-08 → — Figure 871267 871267 1994-08 → — Figure 870759A 870759A 1990-05 → 1994-10 Figure 871848K 871848K 1994-10 → — Figure 87B594 87B594 1990-05 → 1994-10 Figure 872494F 872494F 1994-10 → — Figure 872495E 872495E 1994-10 → — Figure 871632 871632 1990-05 → — Figure 871633 871633 1990-05 → —

Part groups

PNCDescription
62429C Cover, Center Pillar Service Hole
88374B Valve, Service, NO.1
88375A Cap, Service Valve (FOR COOLER PIPE)
88453A Fan, Cooling
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88461A Core, Cooler Condenser
88463 Bracket, Cooler Condenser, NO.1
88463A Bracket, Cooler Condenser, NO.2
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88645H Switch, Pressure NO.1
88648E Wiring, Cooler
88691K Valve Assy, Magnet
88691W Valve, Magnet
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88712B Hose, Cooler Refrigerant Suction
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716E Pipe, Cooler Refrigerant Liquid, E
88716H Pipe, Cooler Refrigerant Liquid, H
88716J Pipe, Cooler Refrigerant Liquid, J
88717A Pipe, Cooler Refrigerant Suction, A
88717D Pipe, Cooler Refrigerant Suction, D
88721A Hose, Liquid, A
88726A Pipe, Cooler Refrigerant Liquid, A
88726B Pipe, Cooler Refrigerant Liquid, B
88726C Pipe, Cooler Refrigerant Liquid, C
88726E Pipe, Cooler Refrigerant Liquid, E
88727A Pipe, Cooler Refrigerant Suction, A
88727B Pipe, Cooler Refrigerant Suction, B
88727C Pipe, Cooler Refrigerant Suction, C
88727E Pipe, Cooler Refrigerant Suction, E
88891A Packing A (FOR COOLER)
88899H Moulding, Protector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
