Toyota Previa
1990-05 → 1999-12 · chassis TCR1#,2# · catalogue 652240 · Europe
Discontinued model
Data version 2000-07

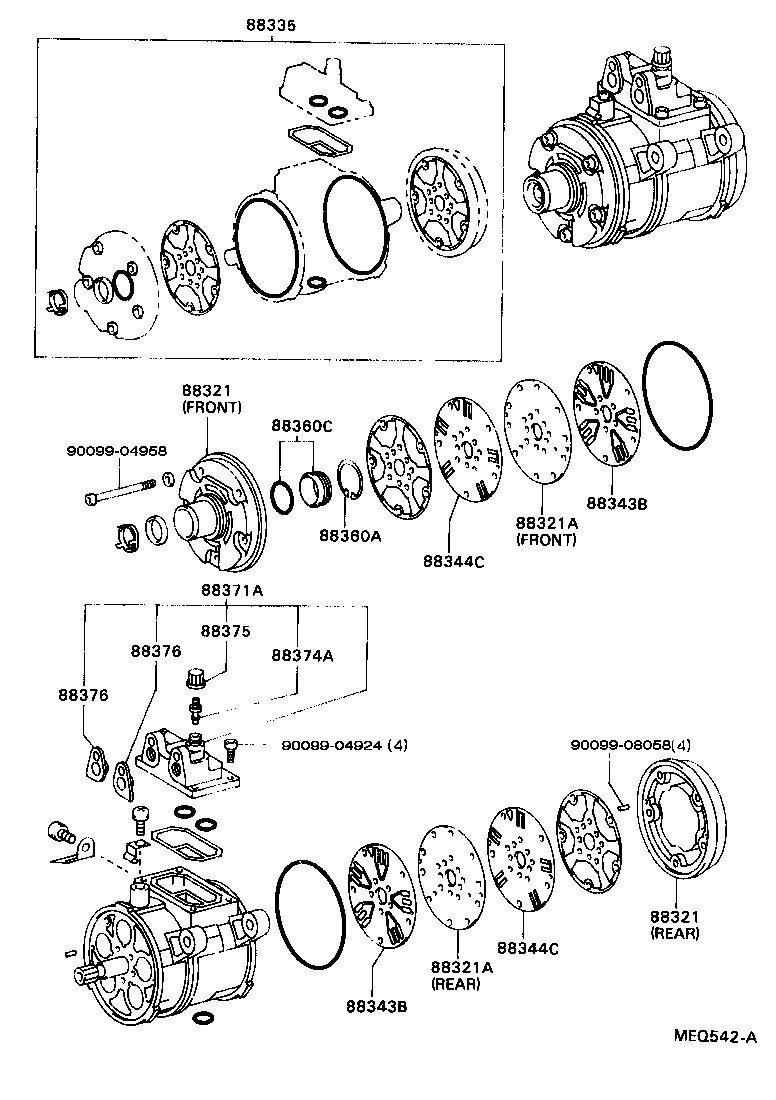

Heating & Air Conditioning - Compressor
20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88301 | Rotor Sub-assy, Magnet Clutch |
| 88302 | Stator Sub-assy, Magnet Clutch |
| 88320 | Compressor Assy, Cooler |
| 88321 | Head, Cooler Compressor Cylinder |
| 88321A | Plate Sub-assy, Valve |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88335 | Gasket Kit, Overhaul |
| 88343B | Reed, Suction Valve |
| 88344C | Reed, Discharge Valve |
| 88360A | Ring, Compressor Seal Plate Snap |
| 88360C | Seal Assy, Shaft |
| 88371A | Valve, Suction |
| 88374A | Valve, Service |
| 88375 | Cap, Cooler Compressor Service Valve |
| 88376 | Cap, Blind |
| 88403 | Hub Sub-assy, Magnet Clutch |
| 88410 | Clutch Assy, Magnet |
| 88442 | Shaft, Idle Pulley |
| 88447A | Plate, Belt Adjust |
| 88447B | Plate, Velt Adjust |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
