Radiator & Water Outlet

44 part groups · 10 illustrations

Illustrations

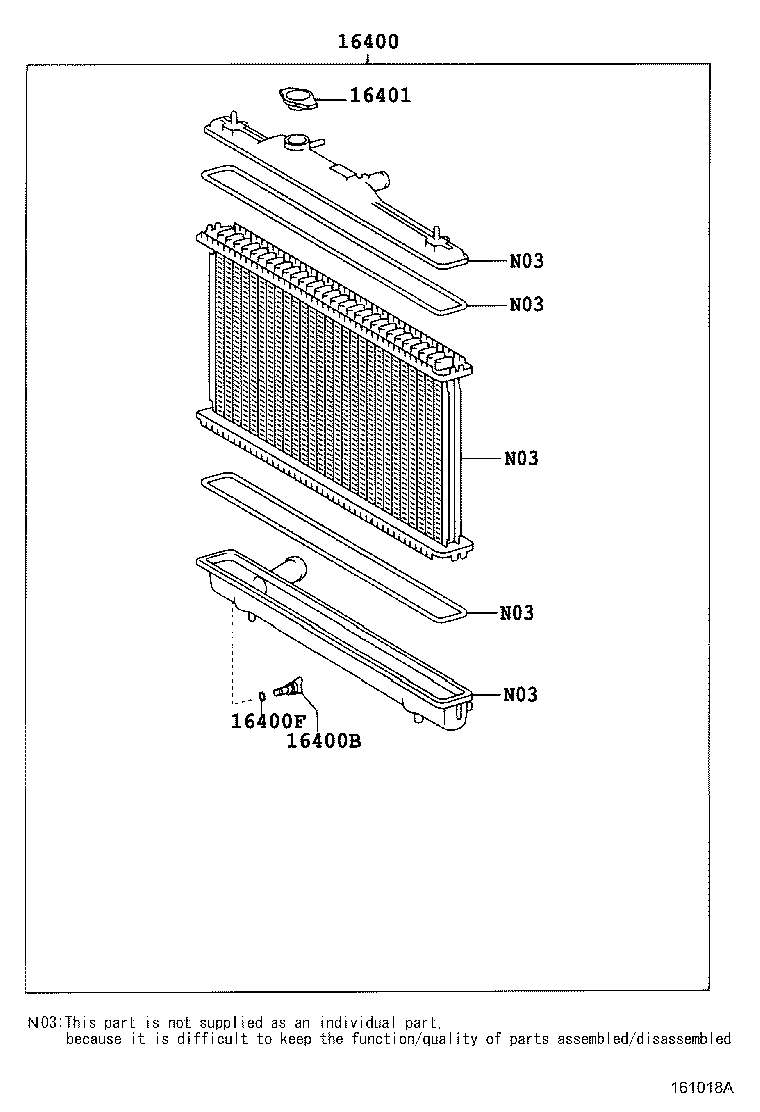

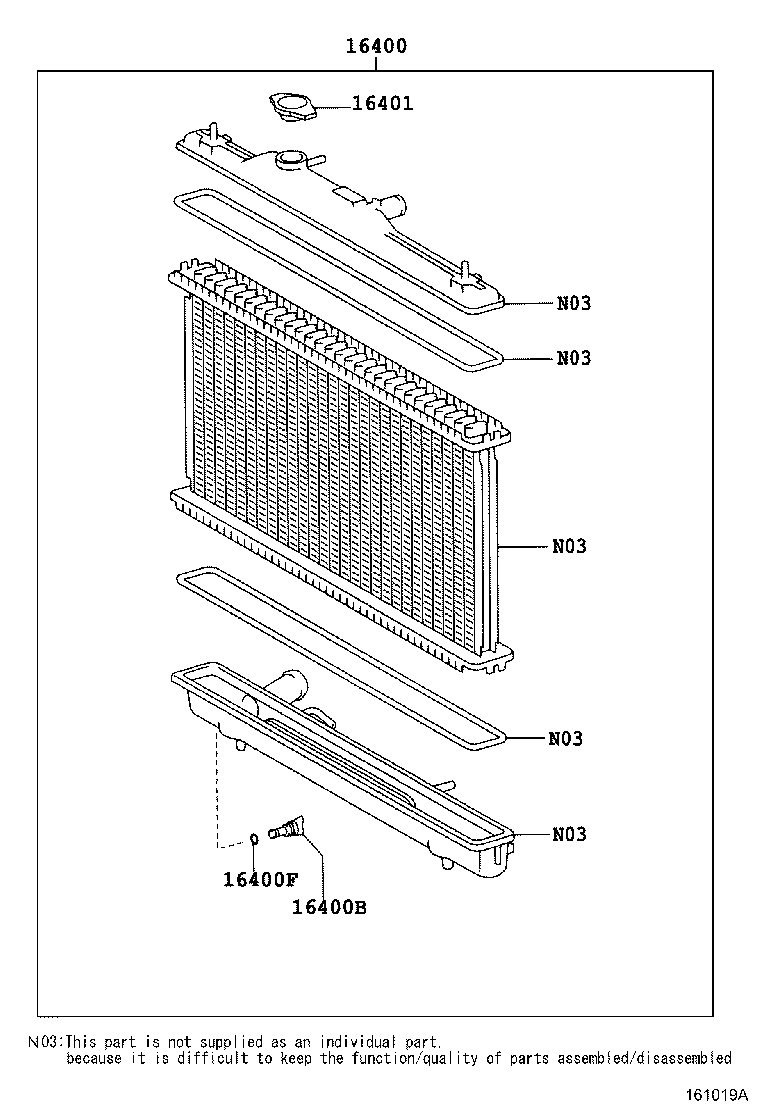

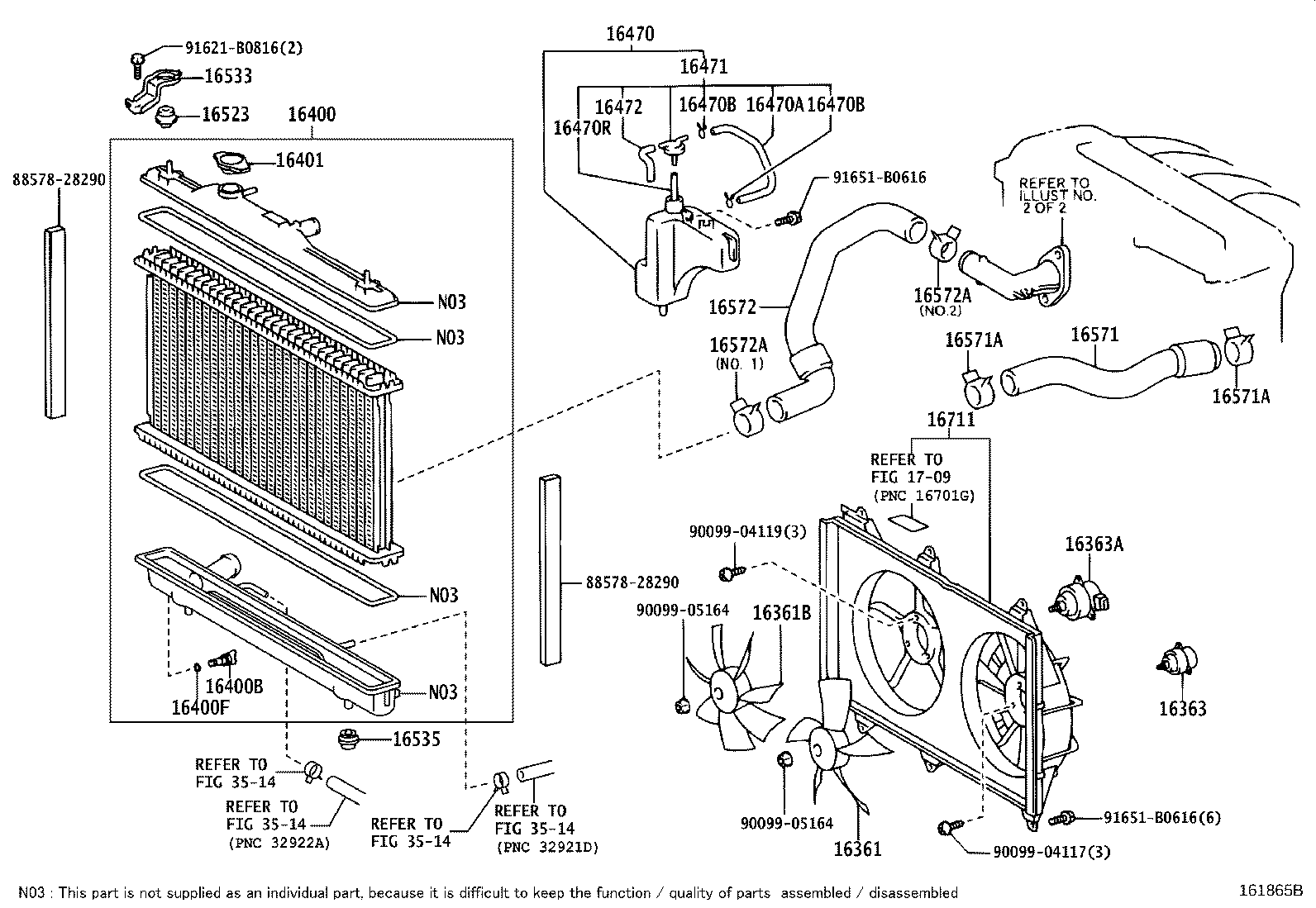

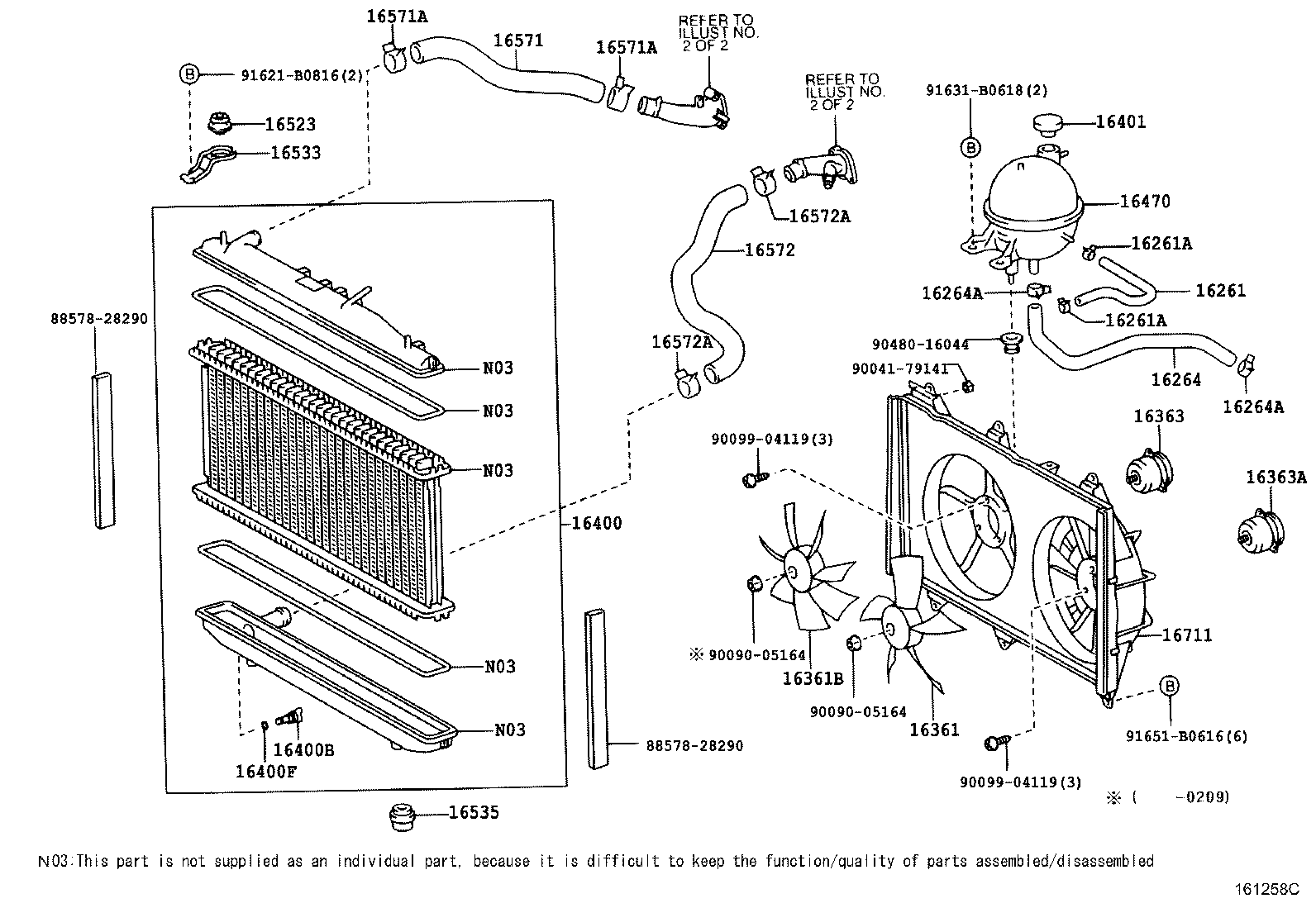

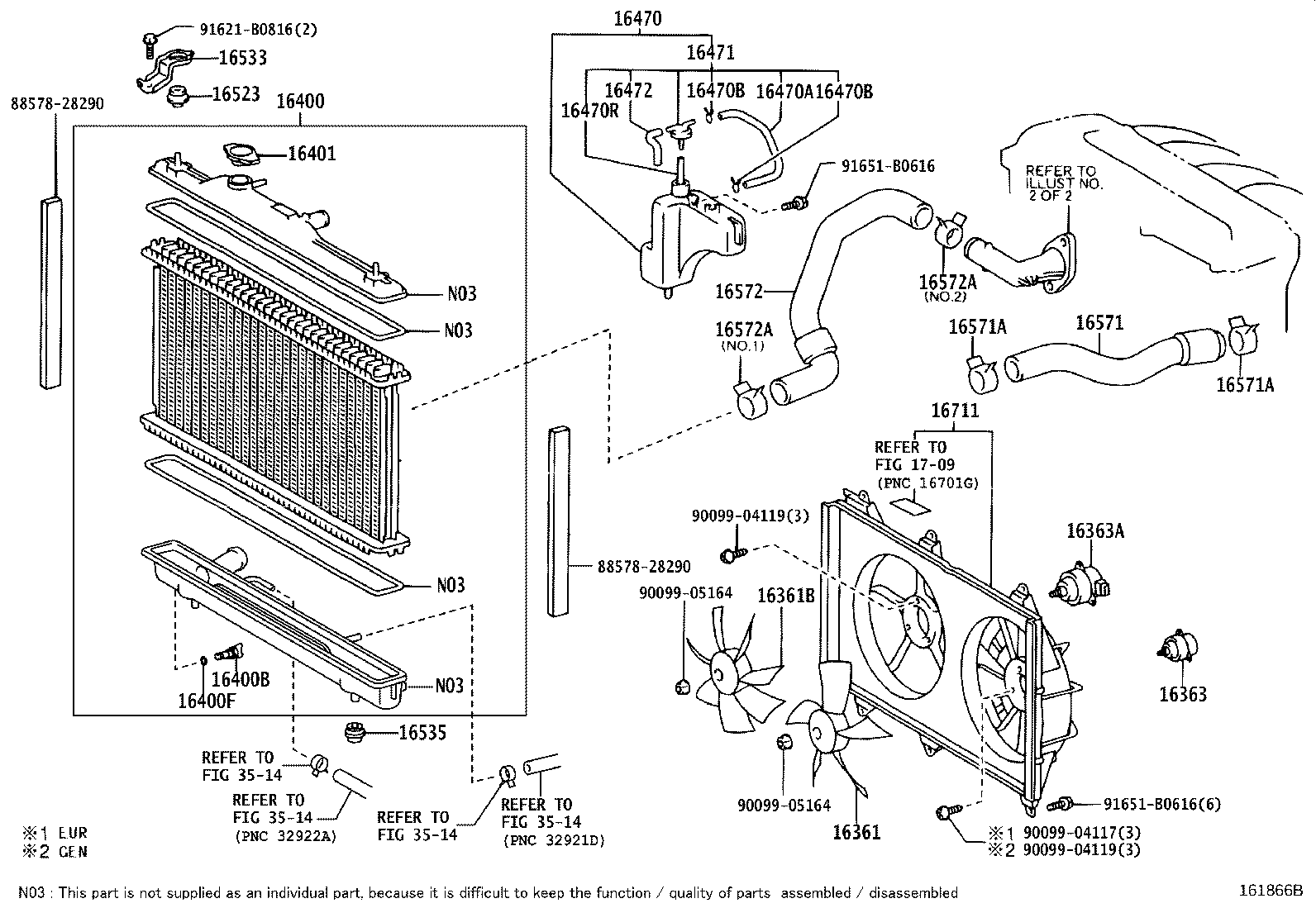

Figure 161017I 161017I 2000-02 → 2003-04 Figure 161018A 161018A 2000-02 → 2000-05 Figure 161018A 161018A 2000-05 → 2003-04 Figure 161019A 161019A 2000-02 → 2000-05 Figure 161019A 161019A 2000-05 → 2003-04 Figure 161865B 161865B 2003-04 → — Figure 161866B 161866B 2003-04 → — Figure 161864A 161864A 2003-04 → — Figure 161258C 161258C 2001-02 → — Figure 161259A 161259A 2001-02 → —

Part groups

PNCDescription
16027 Pipe Sub-assy, Turbo Water, NO.1
16258A Gasket(FOR HEATER RETURN)
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16268 Pipe, Water By-pass, NO.1
16278 Pipe, Water By-pass, NO.2
16278A Gasket, Water By-pass
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16282 Hose, Water By-pass, NO.5
16282A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16284 Hose, Turbo Water, NO.1
16284A Clip(FOR TURBO WATER HOSE NO.1)
16285 Hose, Turbo Water, NO.2
16285A Clip(FOR TURBO WATER HOSE NO.2)
16304 Outlet Sub-assy, Water
16321 Inlet, Water
16325 Gasket, Water Inlet Housing, NO.1
16331A Thermostat
16341 Gasket, Water Outlet
16361 Fan
16361B Fan, NO.2
16363 Motor, Cooling Fan
16363A Motor, Cooling Fan, NO.2
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16401 Cap Sub-assy, Radiator
16470 Tank Assy, Radiator Reserve
16470A Hose OR Pipe(FOR RADIATOR RESERVE TANK)
16470B Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
16470R Hose, NO.2(FOR RADIATOR RESERVE TANK)
16471 Cap Sub-assy, Reserve Tank
16472 Hose, Breather
16523 Cushion, Sub-radiator Support
16533 Support, Radiator, Upper
16535 Support, Radiator, Lower
16571 Hose, Radiator, Inlet
16571A Clamp OR Clip, Hose(FOR RADIATOR INLET)
16572 Hose, Radiator, Outlet
16572A Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
16711 Shroud, Fan
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
