Toyota Previa/Tarago

2000-02 → 2006-01 · chassis ACR30,CLR30 · catalogue 652250 · Europe

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

14 part groups · 4 illustrations

Illustrations

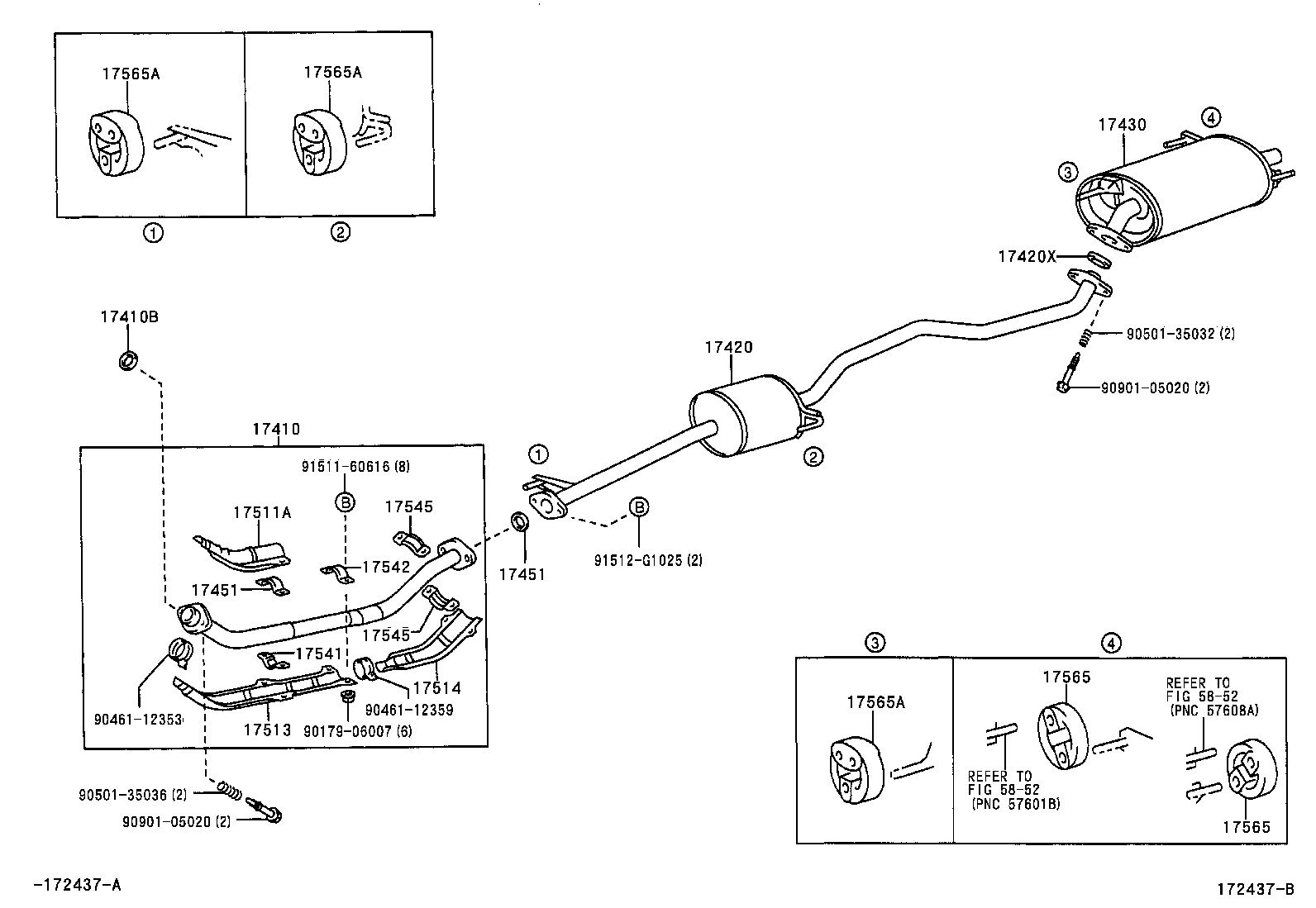

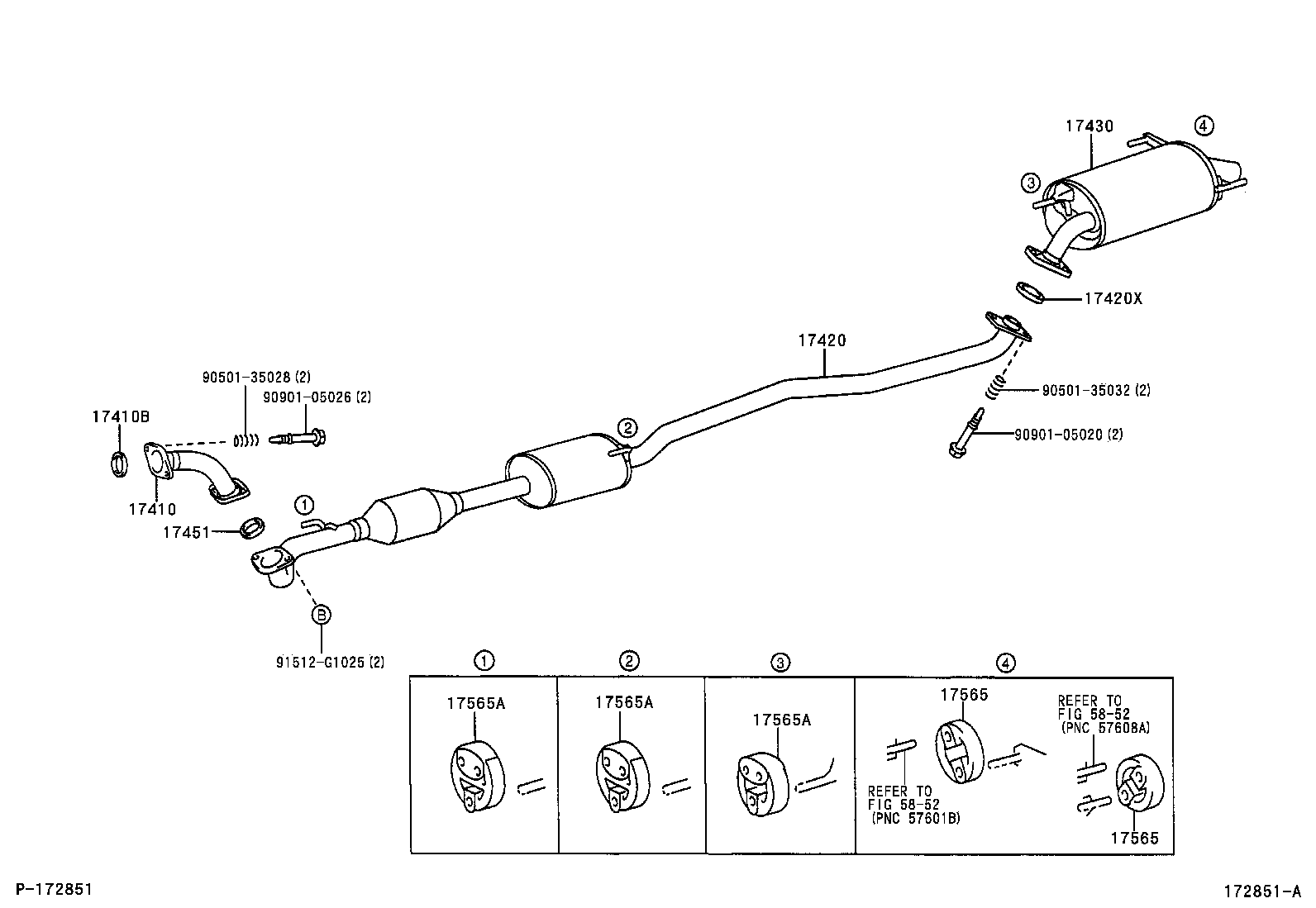

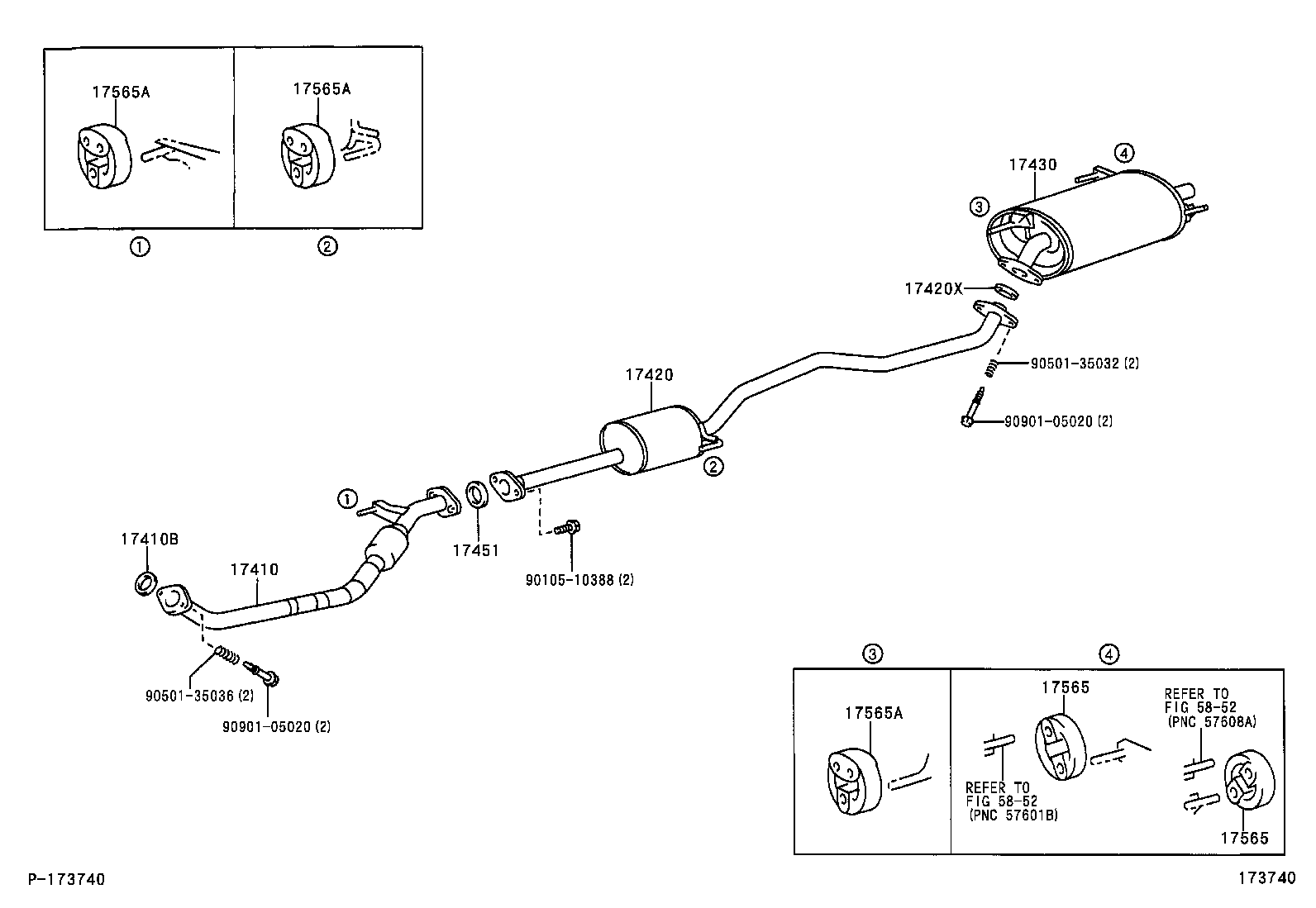

Figure 172436B 172436B 2000-02 → 2003-04 Figure 172437B 172437B 2000-02 → 2003-04 Figure 173740 173740 2003-04 → — Figure 172851A 172851A 2001-02 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17511A Insulator, Exhaust Pipe, Upper NO.1
17513 Insulator, Exhaust Pipe, Lower NO.1
17514 Insulator, Exhaust Pipe, Lower NO.2
17541 Stay, Exhust Pipe Protector, NO.1
17542 Stay, Exhaust Pipe Protector, NO.2
17545 Stay, Exhaust Pipe Protector, NO.5
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
