Toyota Previa/Tarago

2000-02 → 2006-01 · chassis ACR30,CLR30 · catalogue 652250 · Europe

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

24 part groups · 2 illustrations

Illustrations

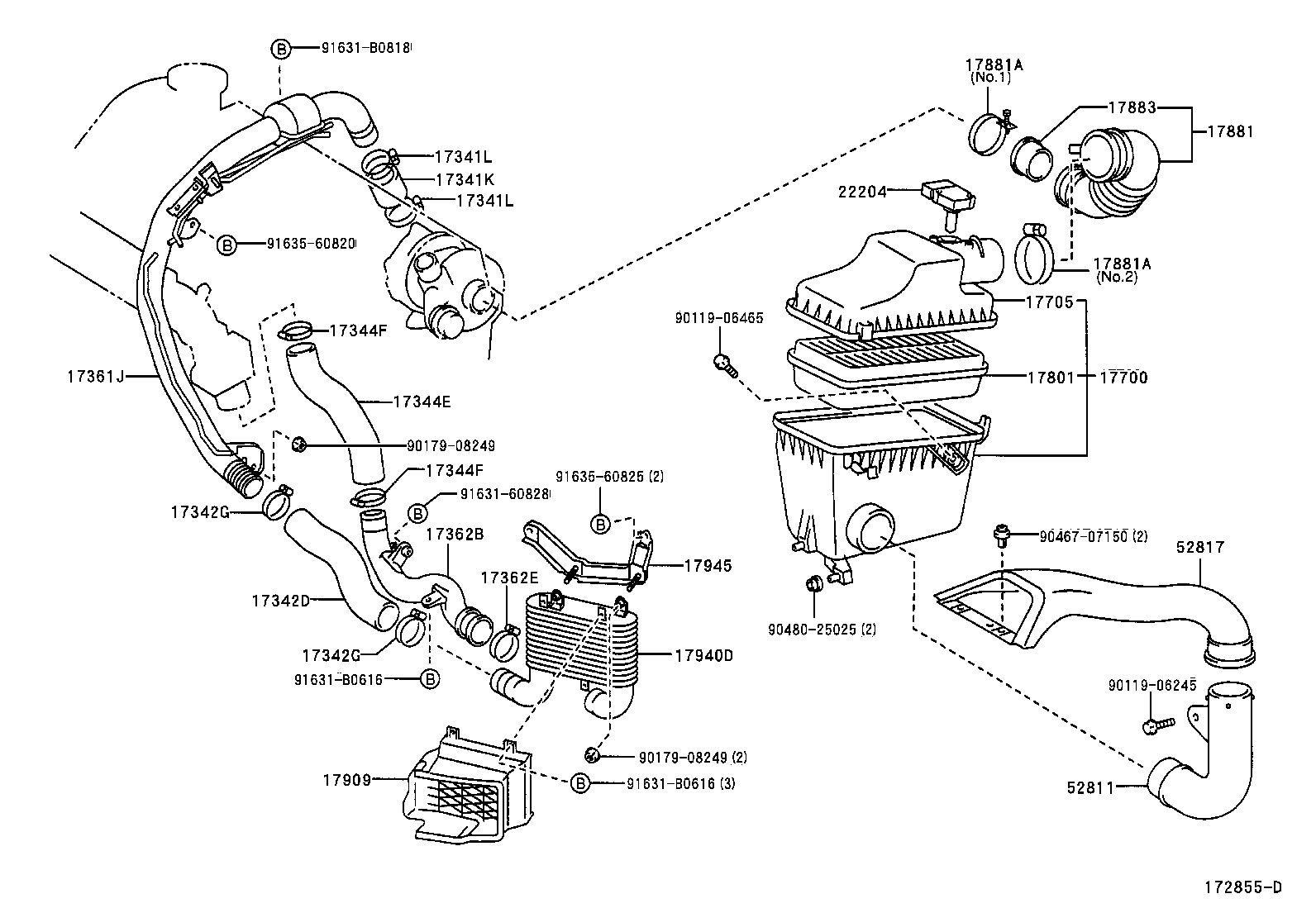

Figure 172438E 172438E 2000-02 → — Figure 172855D 172855D 2001-02 → —

Part groups

PNCDescription
17119A Bracket, Air Cleaner
17341K Hose, Air, NO.1(FOR INTERCOOLER)
17341L Clamp, Hose
17342D Hose, Air, NO.2
17342G Clamp, Hose, NO.2(FOR INTERCOOLER)
17344E Hose, Air, NO.4
17344F Clamp, Hose(FOR AIR HOSE, NO.4)
17361J Tube, Air, NO.1
17362B Tube, Air, NO.2
17362E Clamp, NO.2(FOR AIR TUBE, NO.2)
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17883 Hose, Air Cleaner, NO.3
17909 Duct Sub-assy, Intercooler Cooling Air
17912 Duct, Cool Air Intake, NO.2
17940D Intercooler Assy
17945 Bracket, Intercooler Support
22204 Meter Sub-assy, Intake Air Flow
22204A Ring, O(FOR INTAKE AIR FLOW METER)
52811 Duct, Cool Air Intake, NO.1
52817 Duct, Cool Air Intake, NO.7
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
