Toyota Previa/Tarago
2000-02 → 2006-01 · chassis ACR30,CLR30 · catalogue 652250 · Europe
Discontinued model
Data version 2006-09

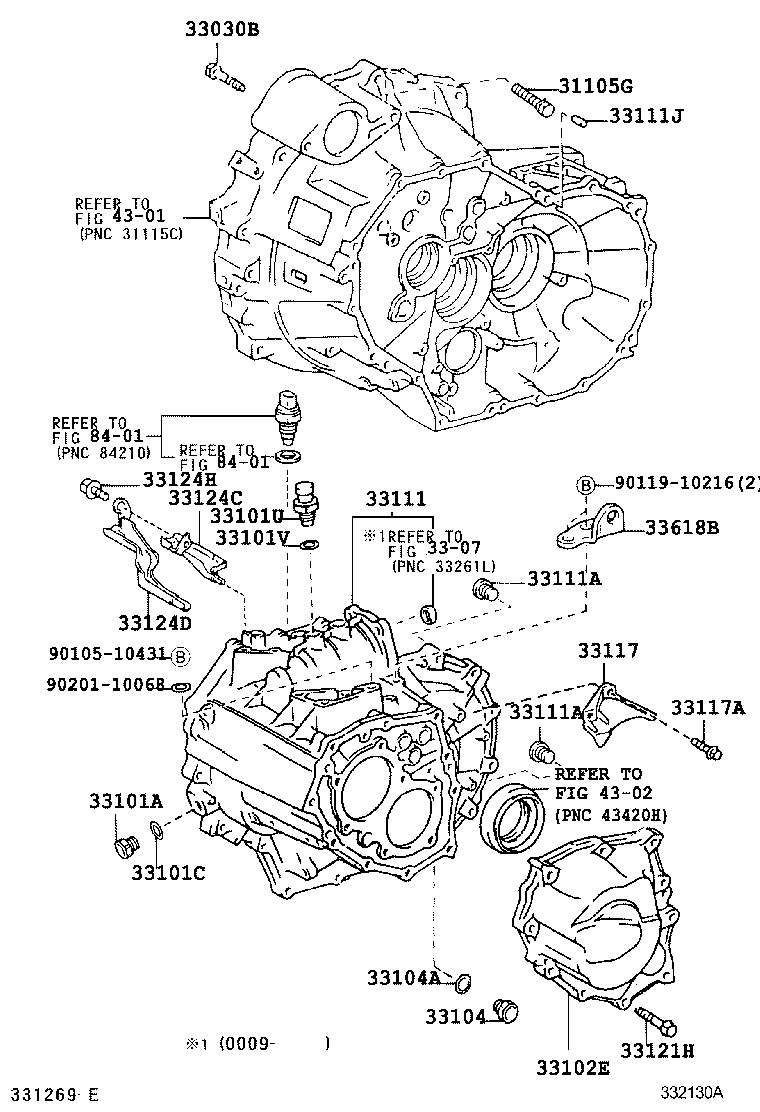

Clutch Housing & Transmission Case (MTM)
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 31105G | Bolt(FOR TRANSAXLE CASE & ENGINE SETTING) |
| 33030B | Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) |
| 33101A | Plug(FOR MANUAL TRANSMISSION FILLER) |
| 33101C | Gasket(FOR MANUAL TRANSMISSION FILLER PLUG) |
| 33101U | Plug, Breather(FOR MANUAL TRANSMISSION) |
| 33101V | Gasket(FOR MANUAL TRANSMISSION BREATHER PLUG) |
| 33102E | Cover Sub-assy, Manual Transmission Case |
| 33104 | Plug Sub-assy, Drain(MTM) |
| 33104A | Gasket, Drain Plug(MTM) |
| 33111 | Case, Manual Transmission |
| 33111A | Plug, Manual Transmission Case |
| 33111C | Plug(FOR TRANSMISSION CASE) |
| 33111J | Pin, Straight(FOR MANUAL TRANSMISSION CASE) |
| 33117 | Protector, Manual Transmission Case |
| 33117A | Bolt(FOR MANUAL TRANSMISSION CASE PROTECTOR) |
| 33121H | Bolt, W/Washer(FOR TRANSMISSION CASE COVER) |
| 33124C | Pipe, Oil Receiver, NO.1(MTM) |
| 33124D | Pipe, Oil Receiver, NO.2(MTM) |
| 33124H | Bolt(FOR OIL RECEIVER PIPE) |
| 33195 | Hanger, Transmission Case, NO.1 |
| 33618B | Support, Selecting Bellcrank |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
