Toyota Previa/Tarago

2000-02 → 2006-01 · chassis ACR30,CLR30 · catalogue 652250 · Europe

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Control Shaft & Crossshaft

9 part groups · 2 illustrations

Illustrations

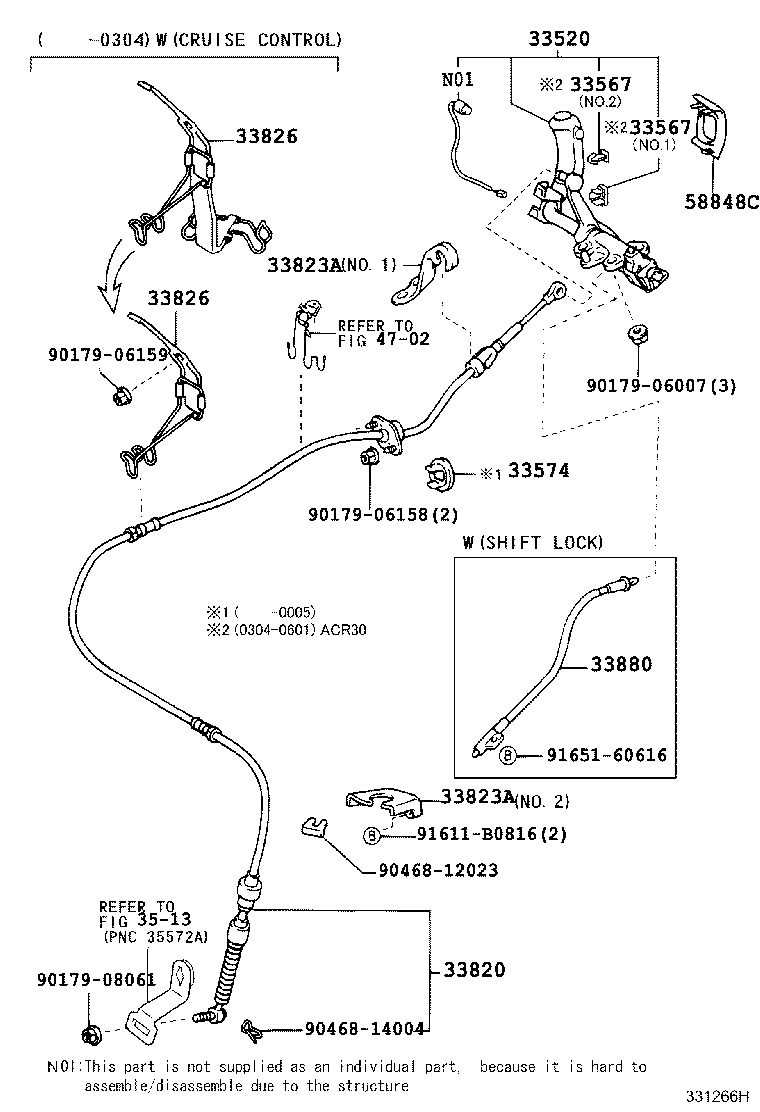

Figure 331265F 331265F 2000-02 → — Figure 331266H 331266H 2000-02 → —

Part groups

PNCDescription
33520 Shaft Assy, Control
33567 Clamp, Control Shaft Tube
33574 Retainer, Dust Seal (FOR COLUMN SHIFT CONTROL SHAFT)
33820 Cable Assy, Transmission Control (FOR COLUMN SHIFT)
33823A Bracket, Transmission Control Cable
33826 Bracket, Transmission Control Cable, NO.2
33829F Clamp, Transmission Control Cable, NO.2
33880 Cable Assy, Parking Lock (FOR COLUMN SHIFT)
58848C Cover, Shift Lever Hole
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
