Toyota Previa/Tarago

2000-02 → 2006-01 · chassis ACR30,CLR30 · catalogue 652250 · Europe

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Drive Shaft

48 part groups · 8 illustrations

Illustrations

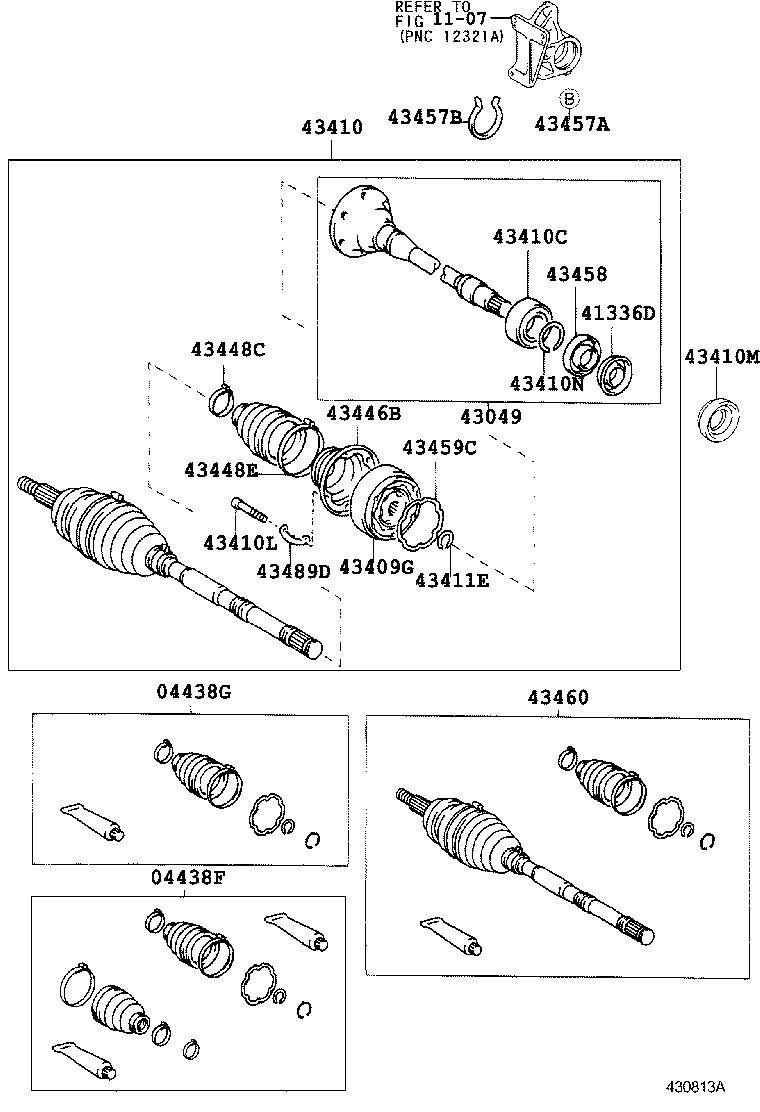

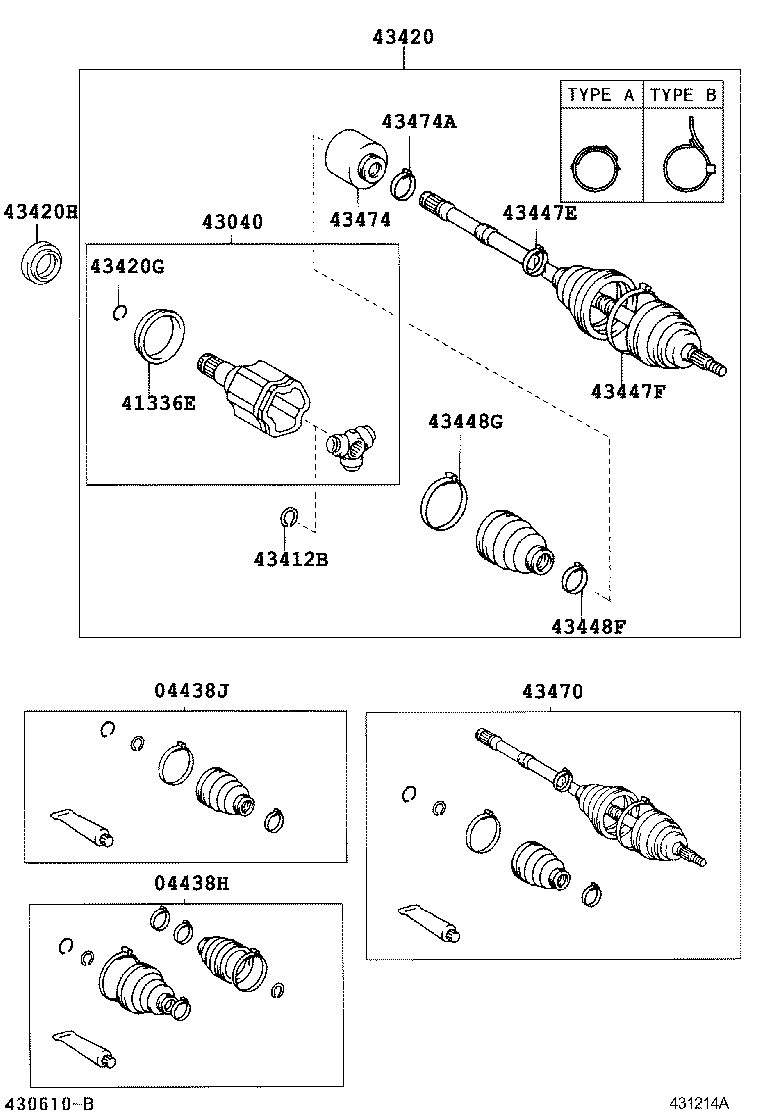

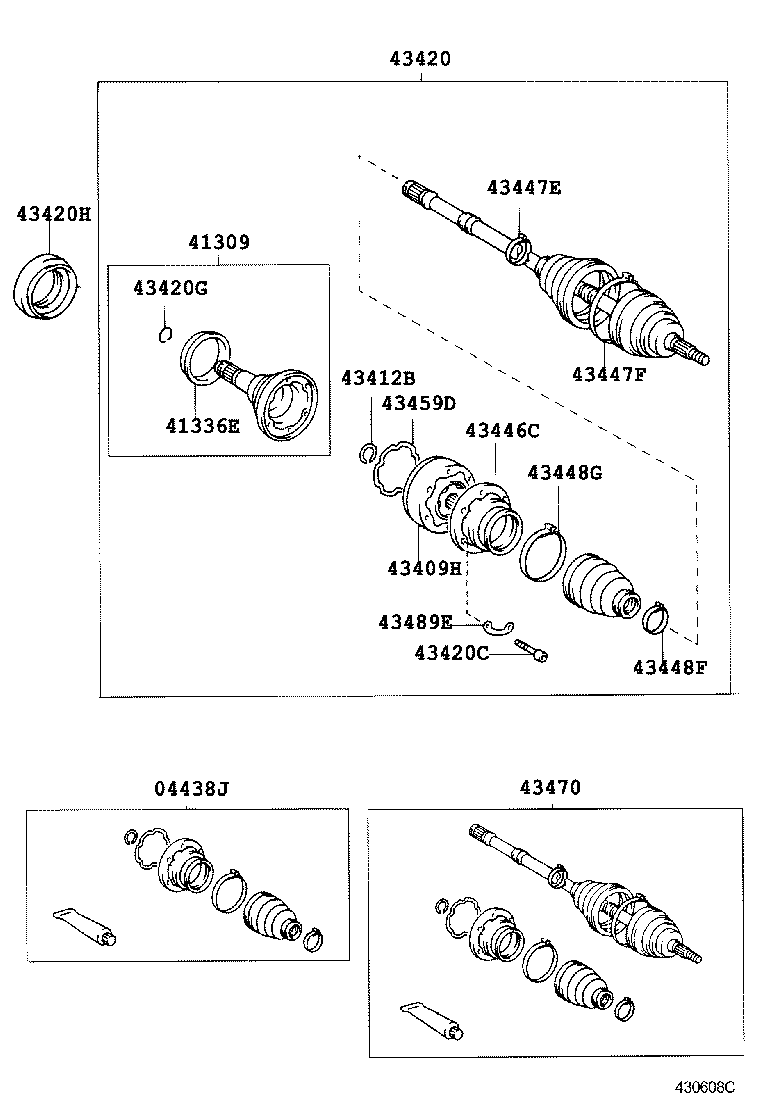

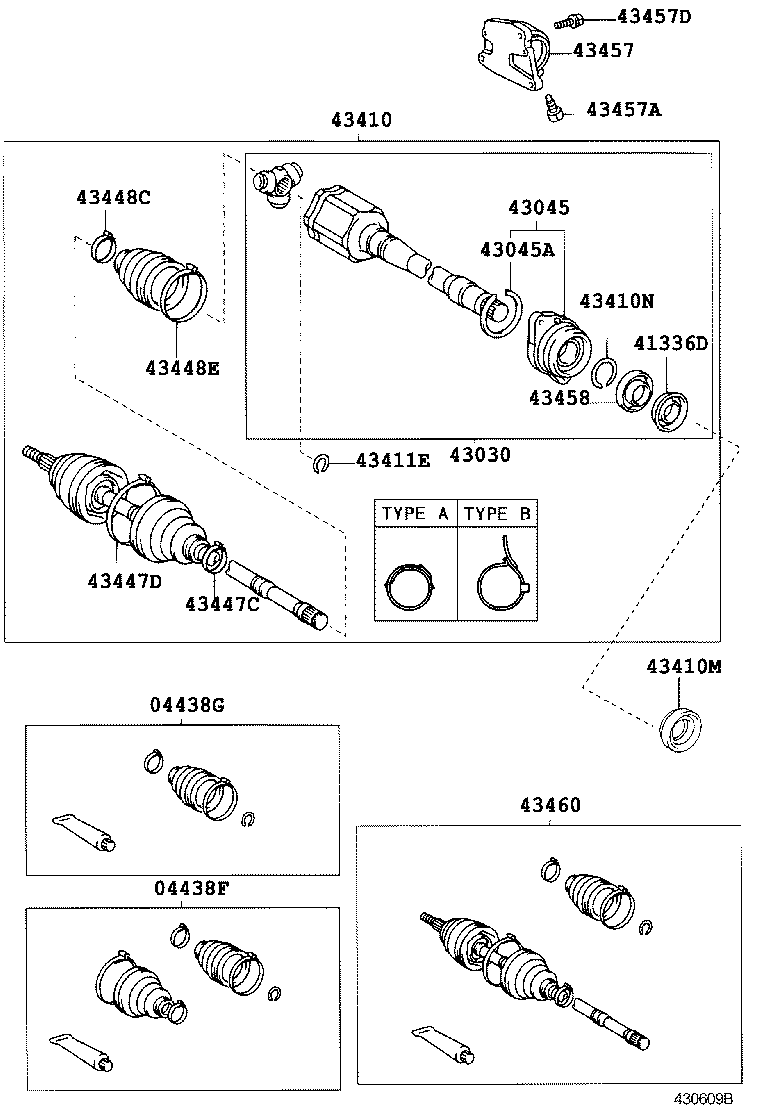

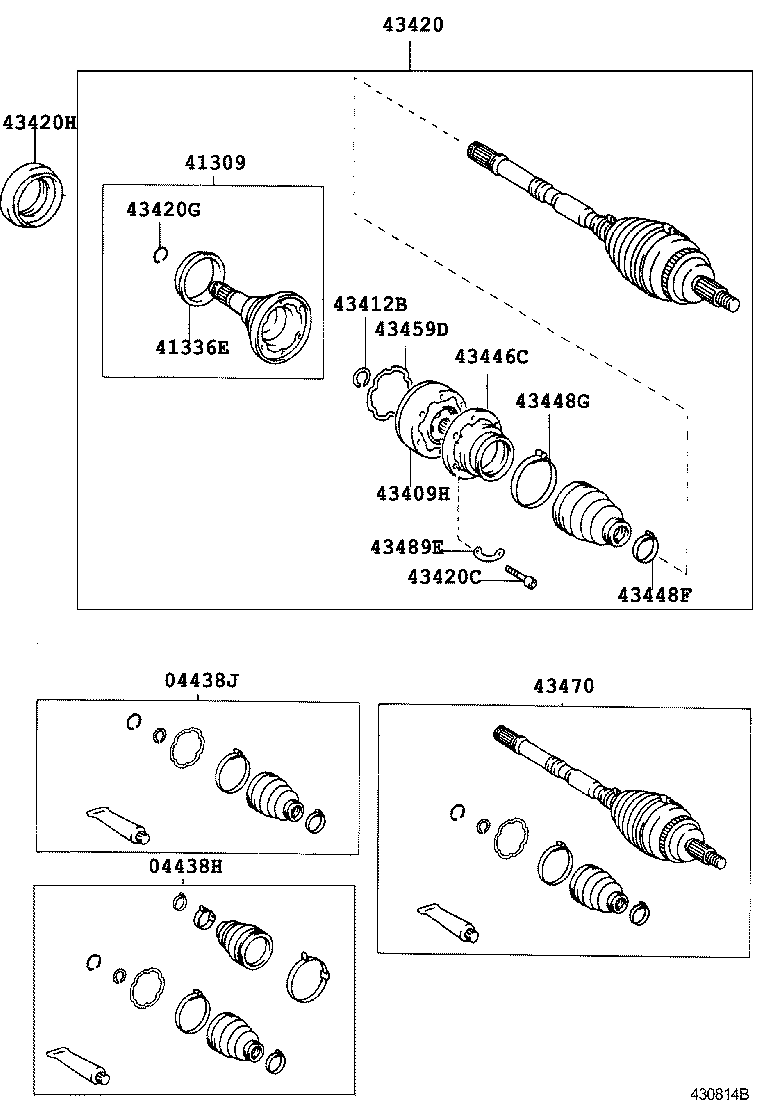

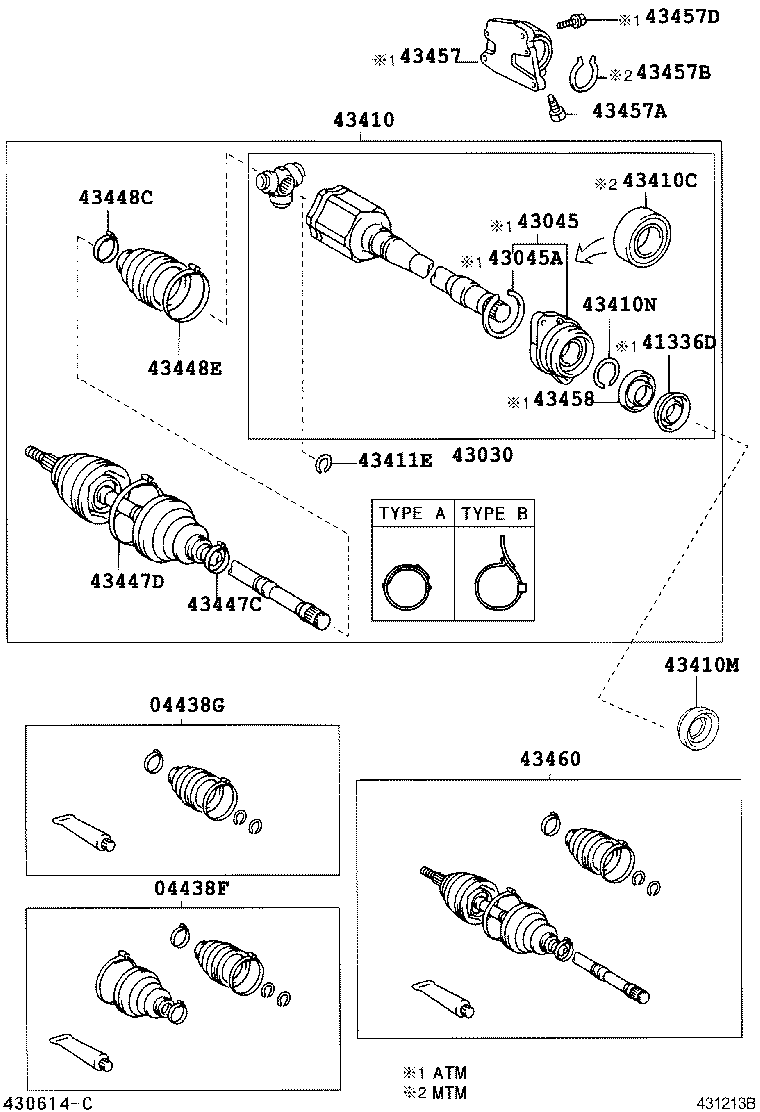

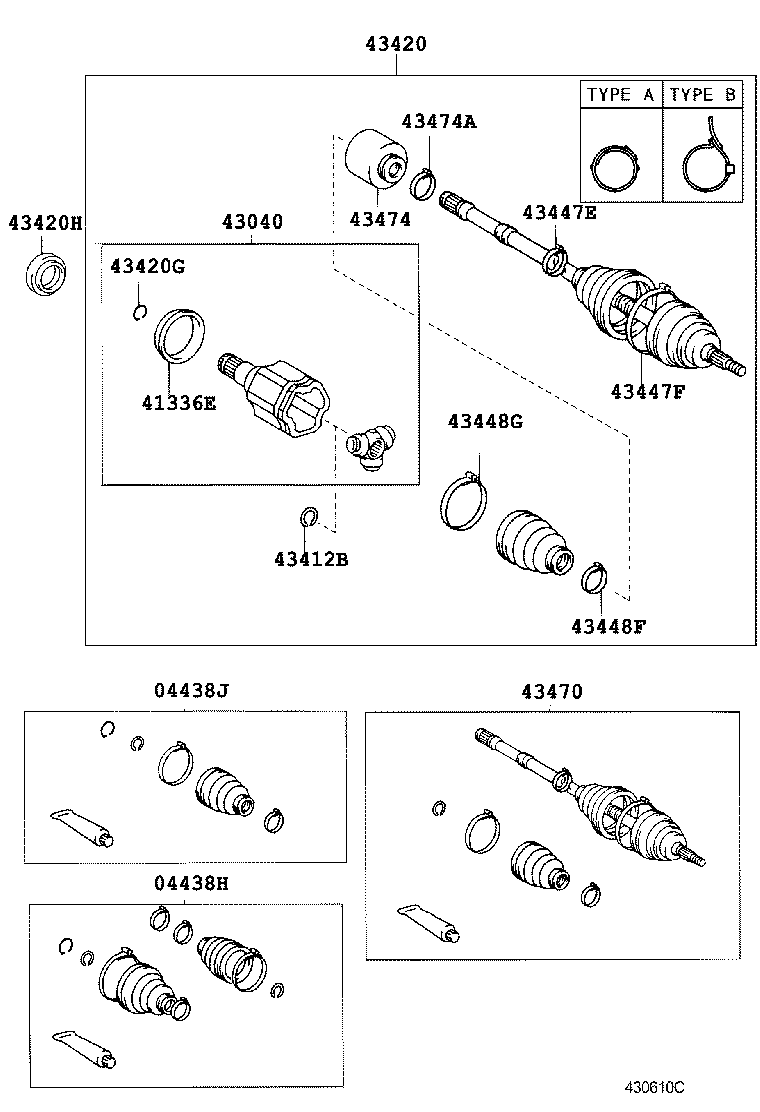

Figure 430607B 430607B 2000-02 → 2001-05 Figure 430608C 430608C 2000-02 → 2001-05 Figure 430813A 430813A 2001-05 → 2003-04 Figure 430814B 430814B 2001-05 → 2003-04 Figure 430609B 430609B 2000-02 → 2003-04 Figure 430610C 430610C 2000-02 → 2003-04 Figure 431213B 431213B 2003-04 → — Figure 431214A 431214A 2003-04 → —

Part groups

PNCDescription
04438F Boot Kit, Front Drive Shaft, IN & Outboard, RH
04438G Boot Kit, Front Drive Shaft Inboard Joint, RH
04438H Boot Kit, Front Drive Shaft, IN & Outboard, LH
04438J Boot Kit, Front Drive Shaft Inboard Joint, LH
41309 Shaft Sub-assy, Differential Side Gear, LH
41336D Cover, Front Drive Shaft Dust, RH
41336E Cover, Front Drive Shaft Dust, LH
43030 Joint Assy, Front Drive Inboard, RH
43040 Joint Assy, Front Drive Inboard, LH
43045 Case Sub Assy, Drive Shaft Bearing
43045A Ring, Snap (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)
43049 Shaft Sub-assy, Front Drive Flange
43409G Joint Sub-assy, Front Drive Shaft Cross Groove, RH
43409H Joint Sub-assy, Front Drive Shaft Cross Groove, LH
43410 Shaft Assy, Front Drive, RH
43410C Bearing (FOR FRONT DRIVE SHAFT)
43410L Bolt (FOR FRONT DRIVE SHAFT CROSS GROOVE JOINT RH)
43410M Oil Seal, Front Drive Shaft, RH
43410N Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
43411E Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
43412B Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
43420 Shaft Assy, Front Drive, LH
43420C Bolt (FOR FRONT DRIVE SHAFT CROSS GROOVE JOINT LH)
43420G Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
43420H Oil Seal, Front Drive Shaft, LH
43446B Cover, Front Axle Inboard Joint, RH
43446C Cover, Front Axle Inboard Joint, LH
43447C Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447D Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447E Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
43447F Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
43448C Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43448E Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43448F Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
43448G Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
43457 Bracket, Drive Shaft Bearing
43457A Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
43457B Ring, Hole Snap (FOR DRIVE SHAFT BEARING BRACKET)
43457D Bolt(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
43458 Cover, Front Drive Shaft Dust
43459C Gasket, Front Drive Shaft Cross Groove Joint, RH
43459D Gasket, Front Drive Shaft Cross Groove Joint, LH
43460 Shaft Assy, Front Drive Outboard Joint, RH
43470 Shaft Assy, Front Drive Outboard Joint, LH
43474 Damper, Drive Shaft
43474A Clamp (FOR DRIVE SHAFT DAMPER SETTING)
43489D Washer, Front Drive Shaft Cross Groove Joint, RH
43489E Washer, Front Drive Shaft Cross Groove Joint, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
