Toyota Previa/Tarago

2000-02 → 2006-01 · chassis ACR30,CLR30 · catalogue 652250 · Europe

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

41 part groups · 17 illustrations

Illustrations

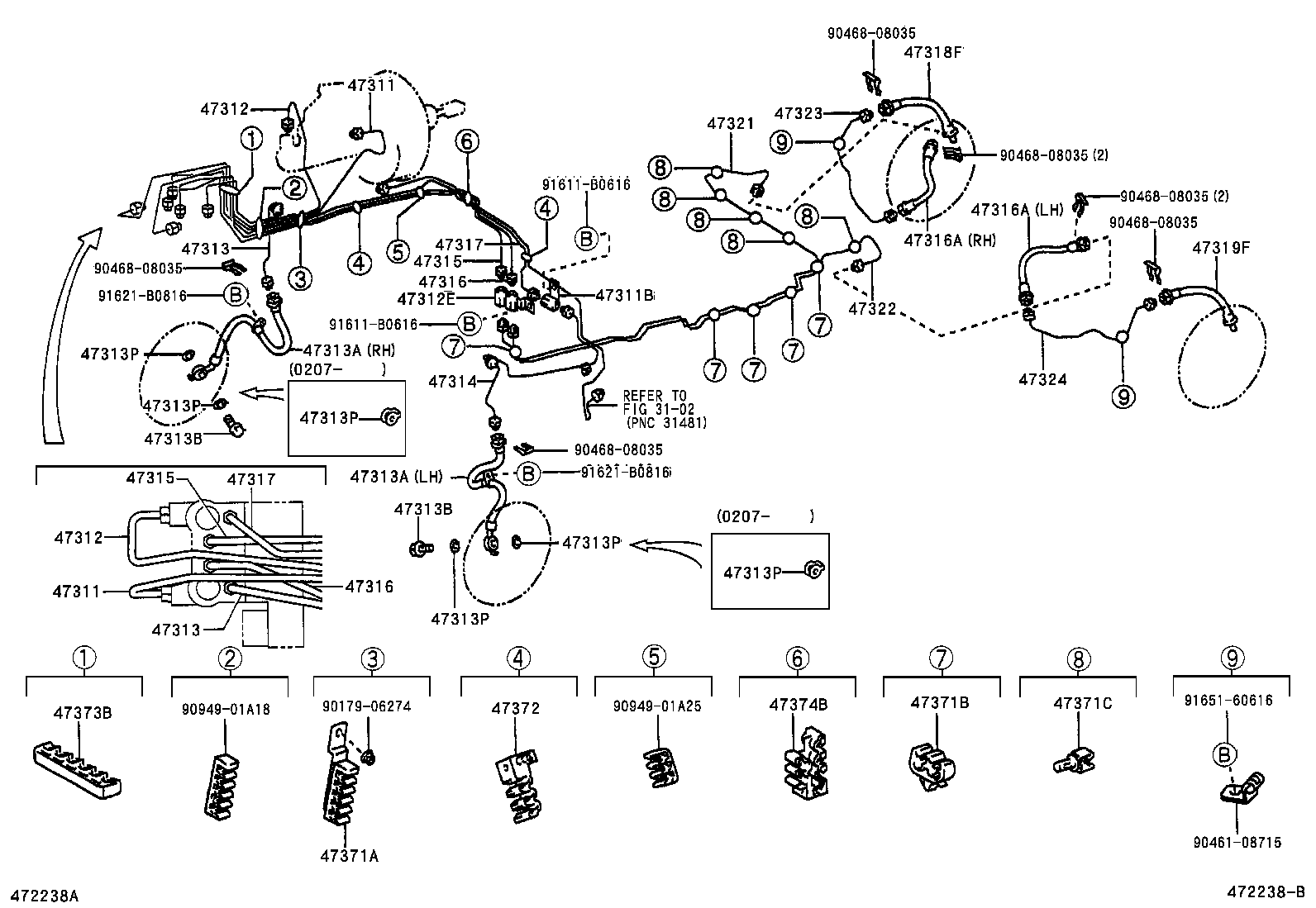

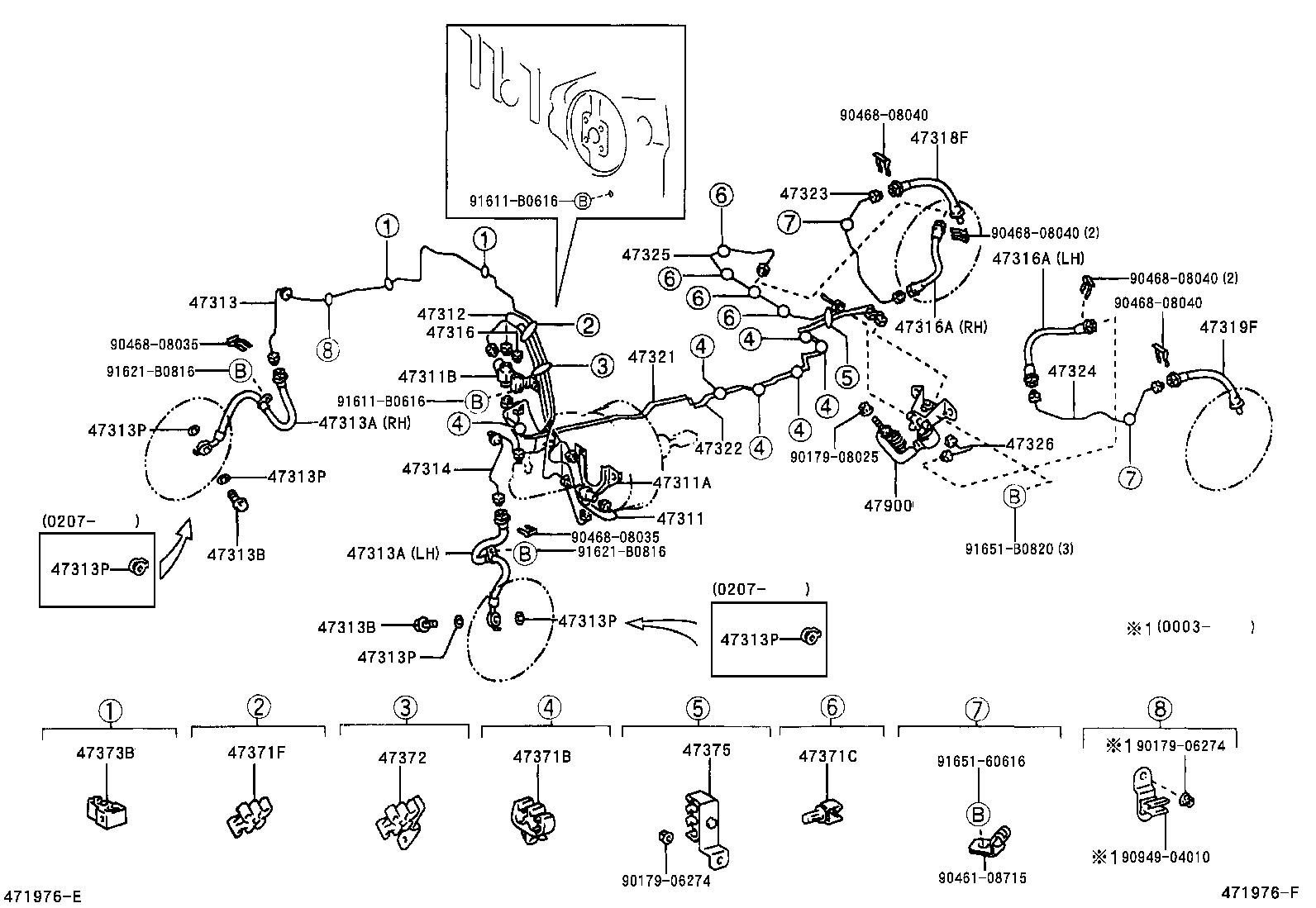

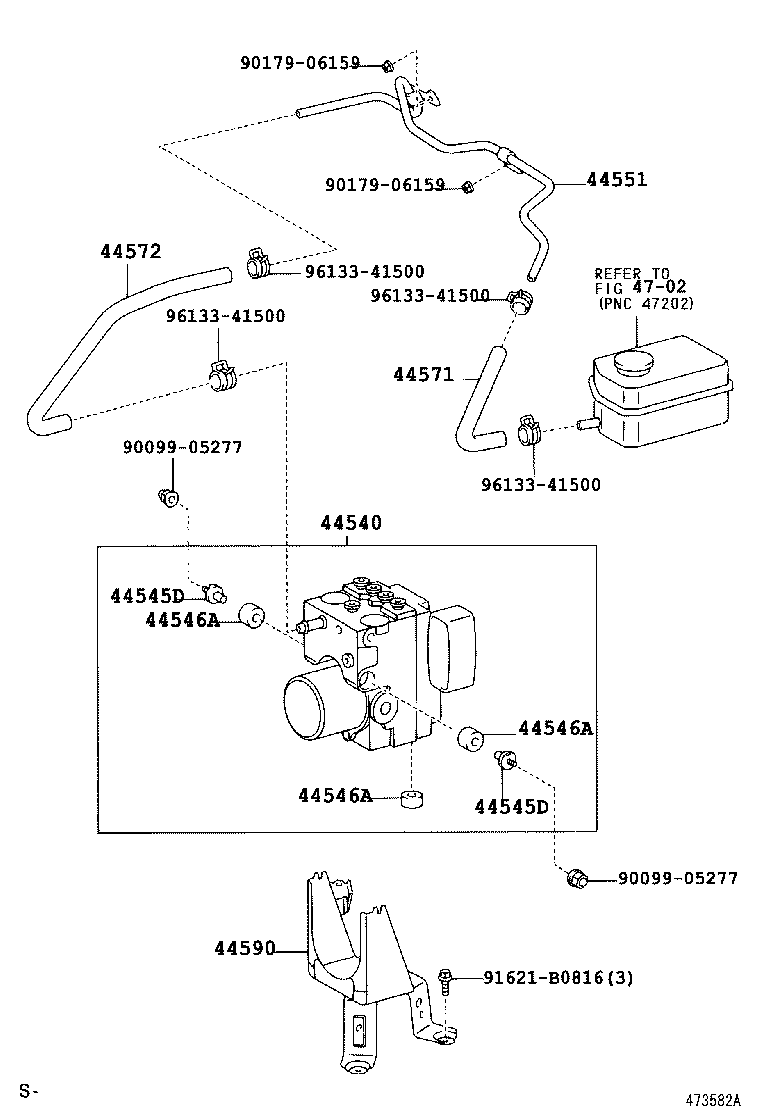

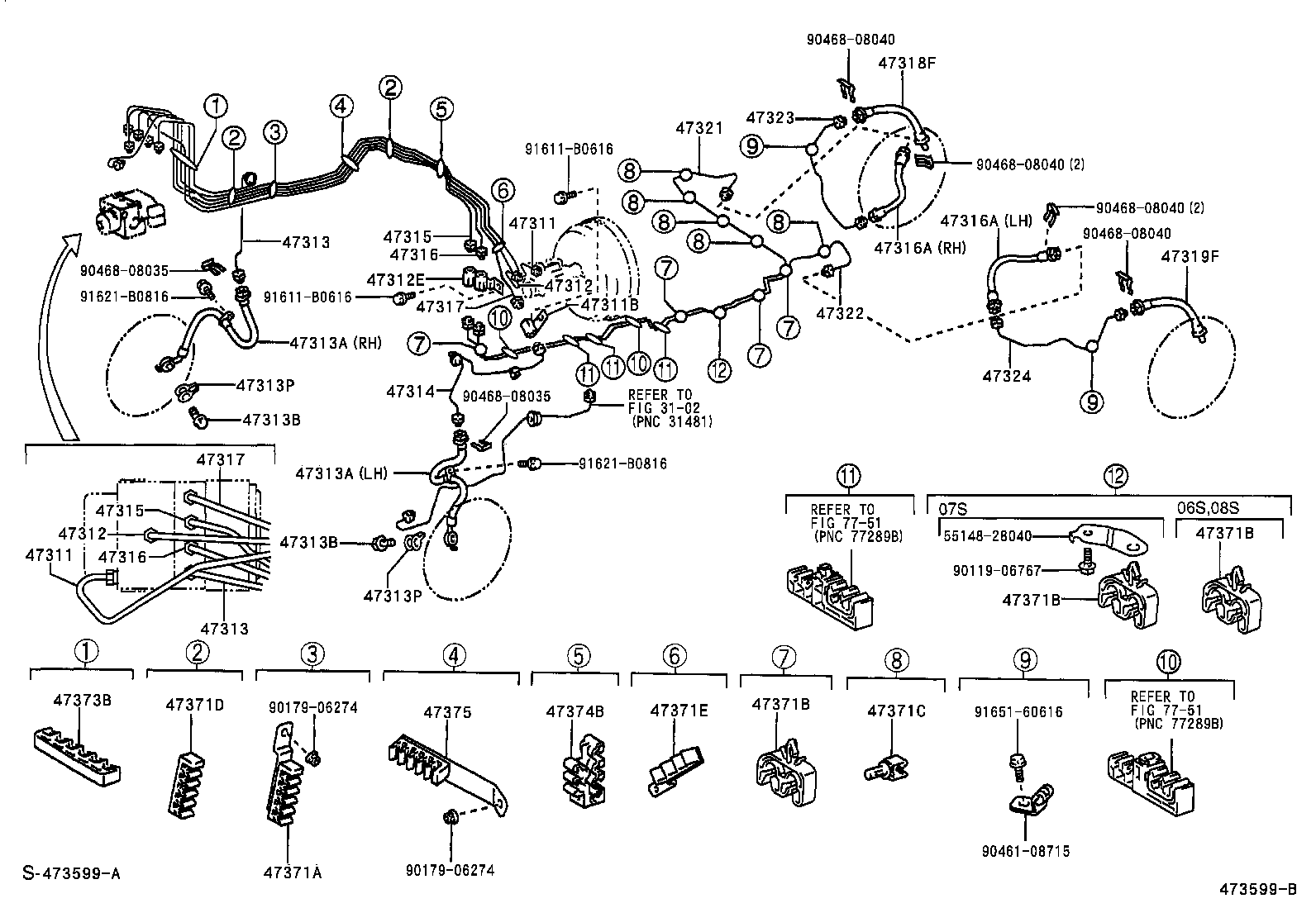

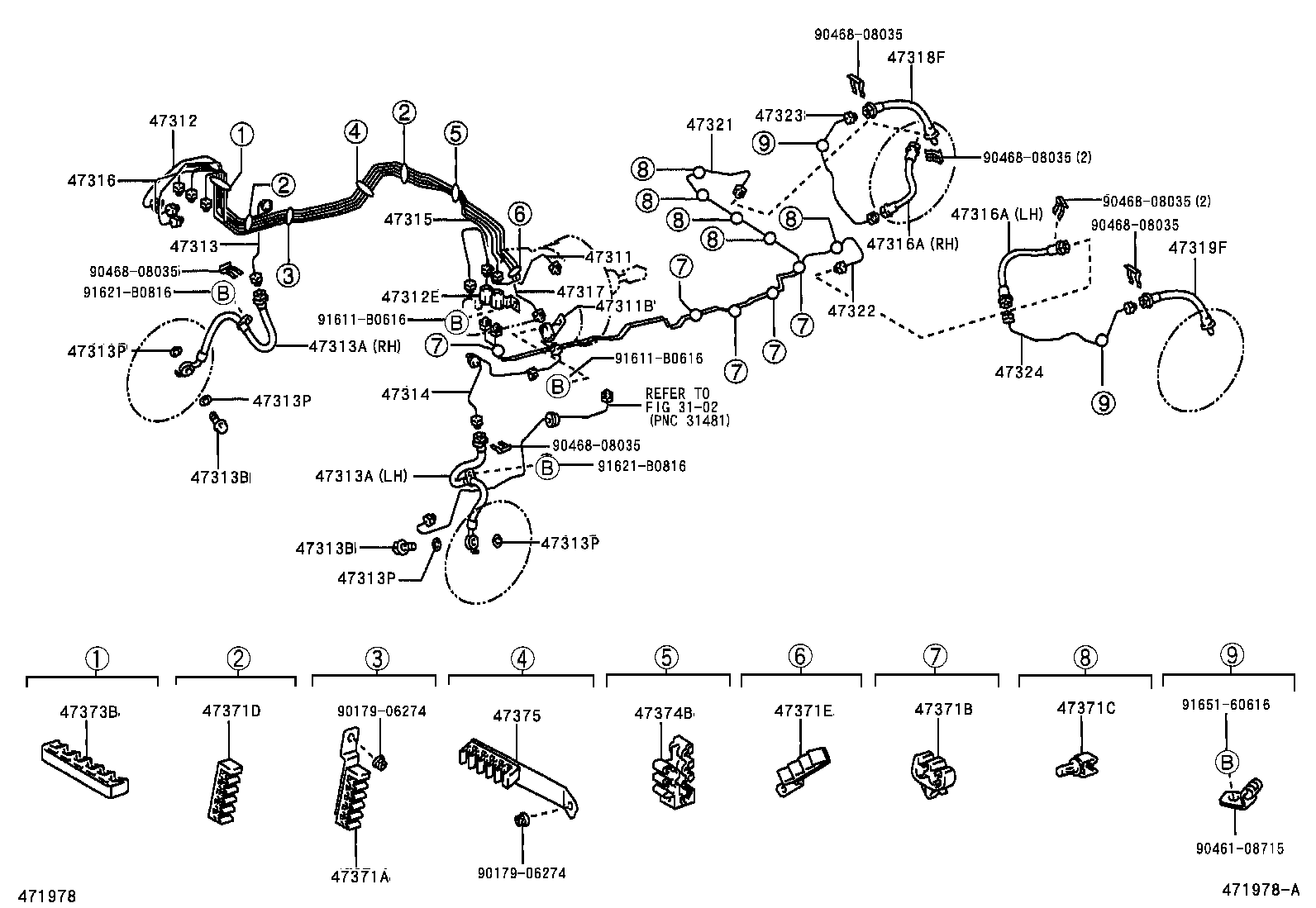

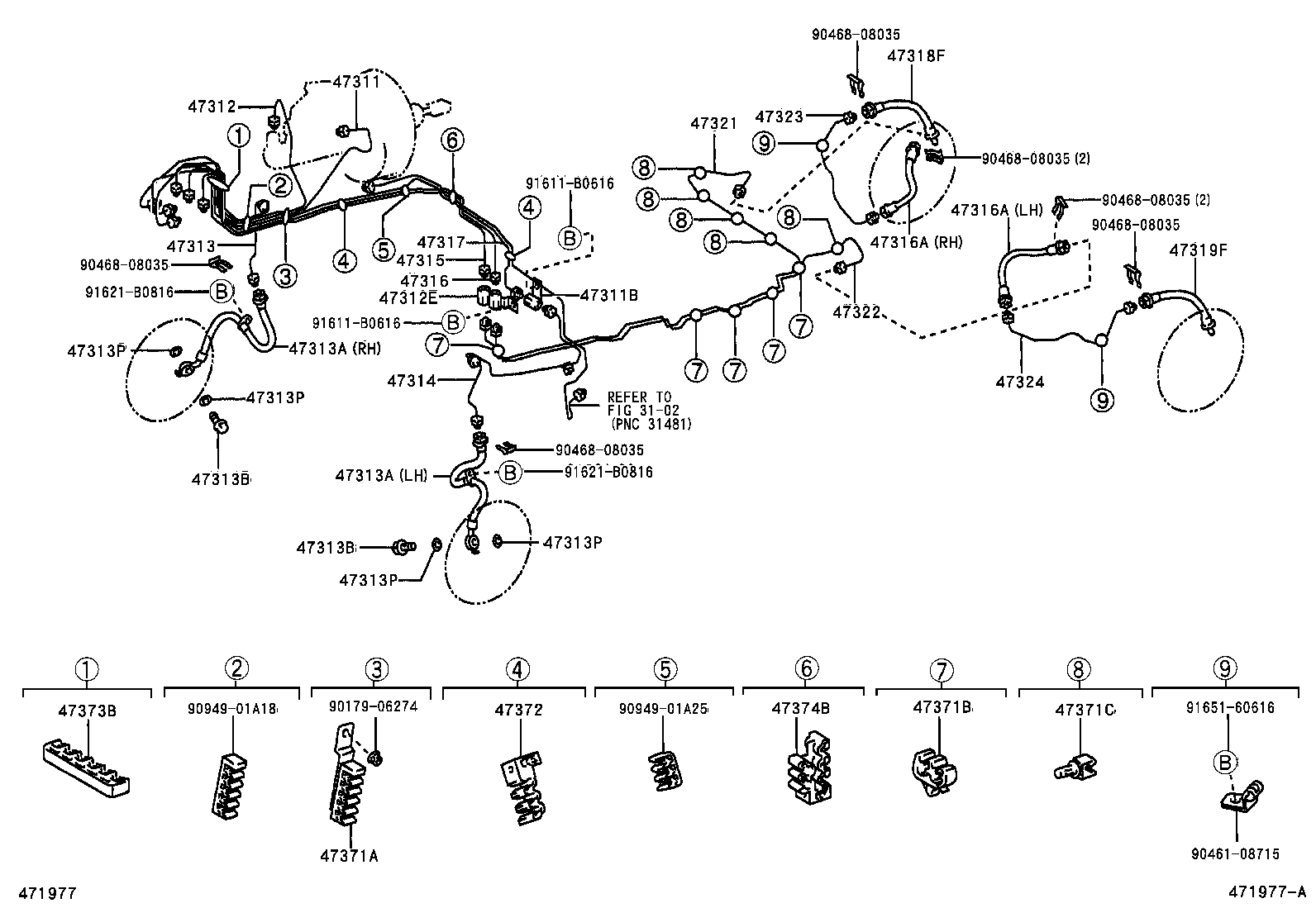

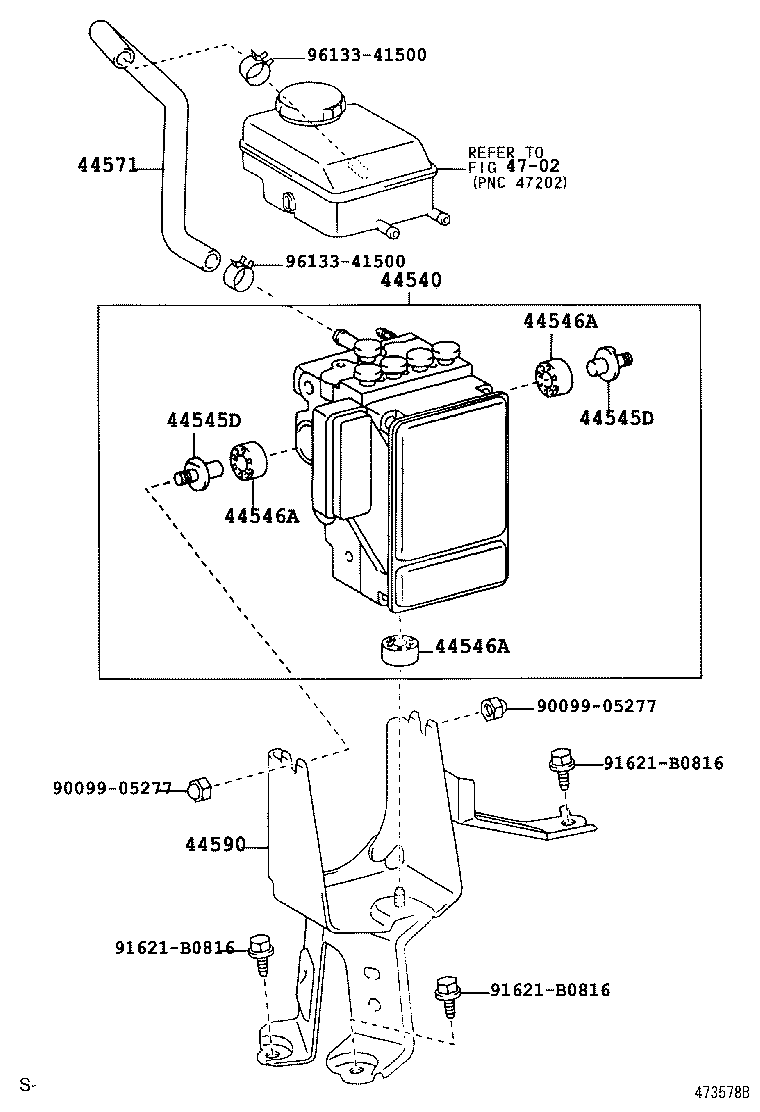

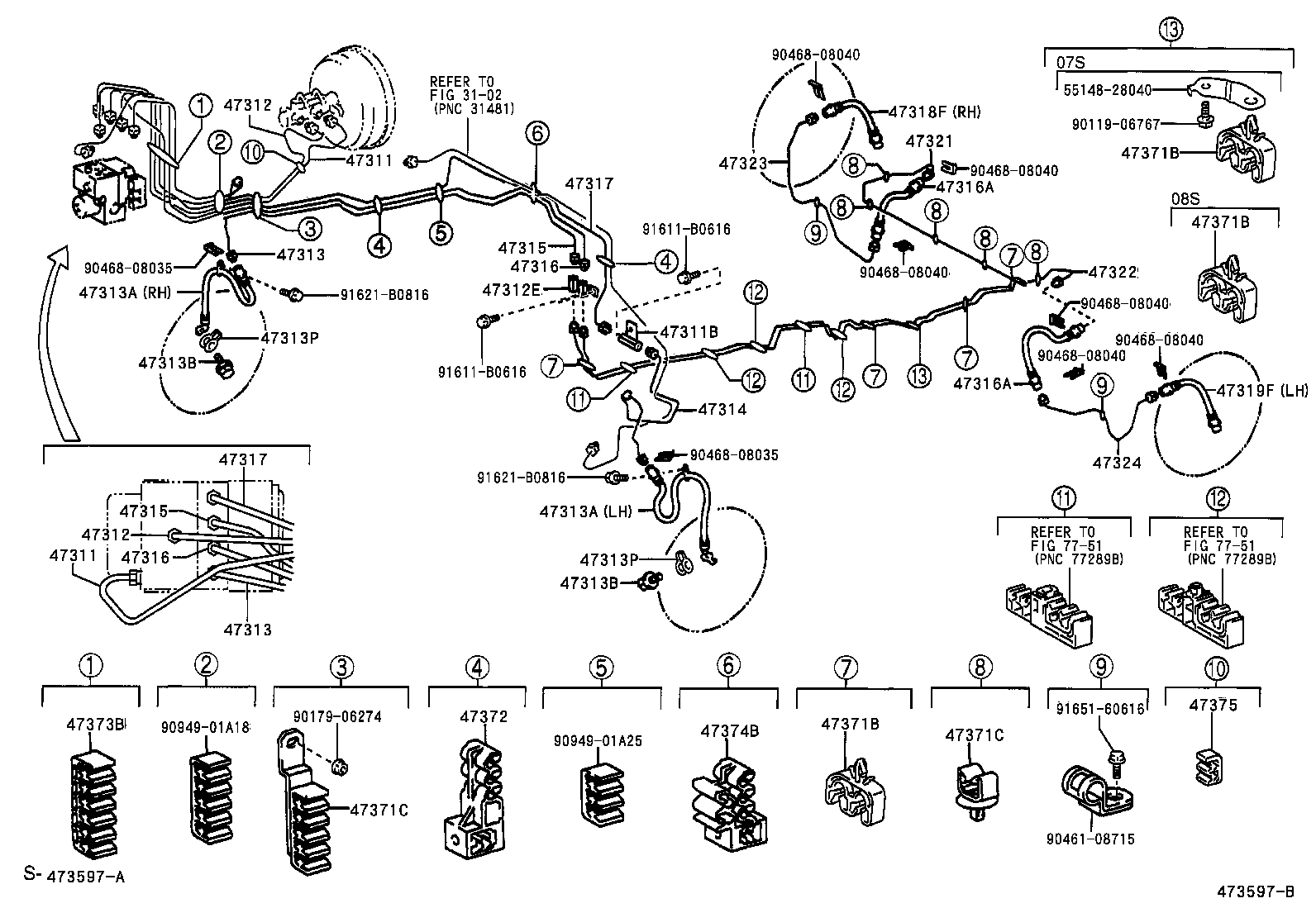

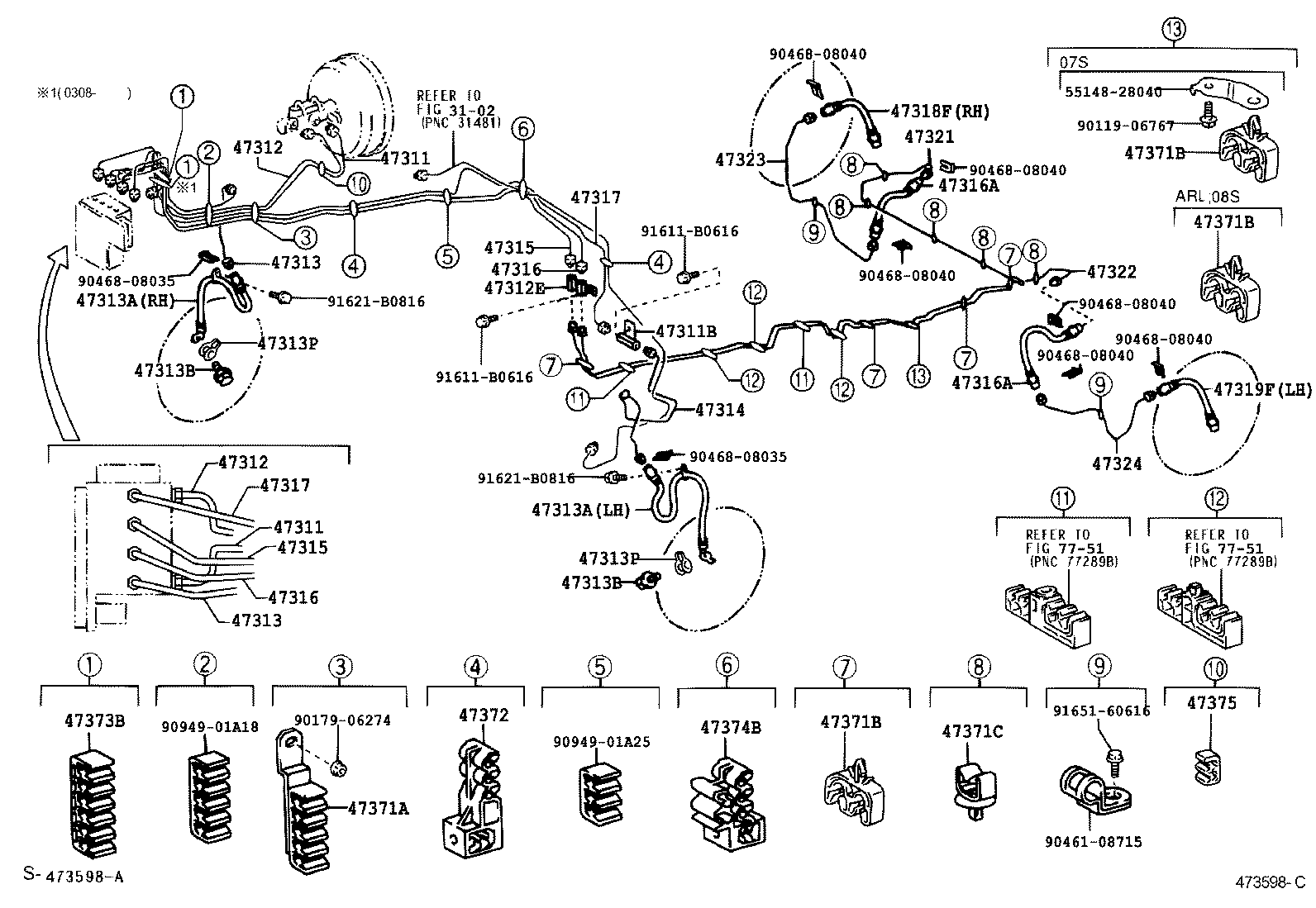

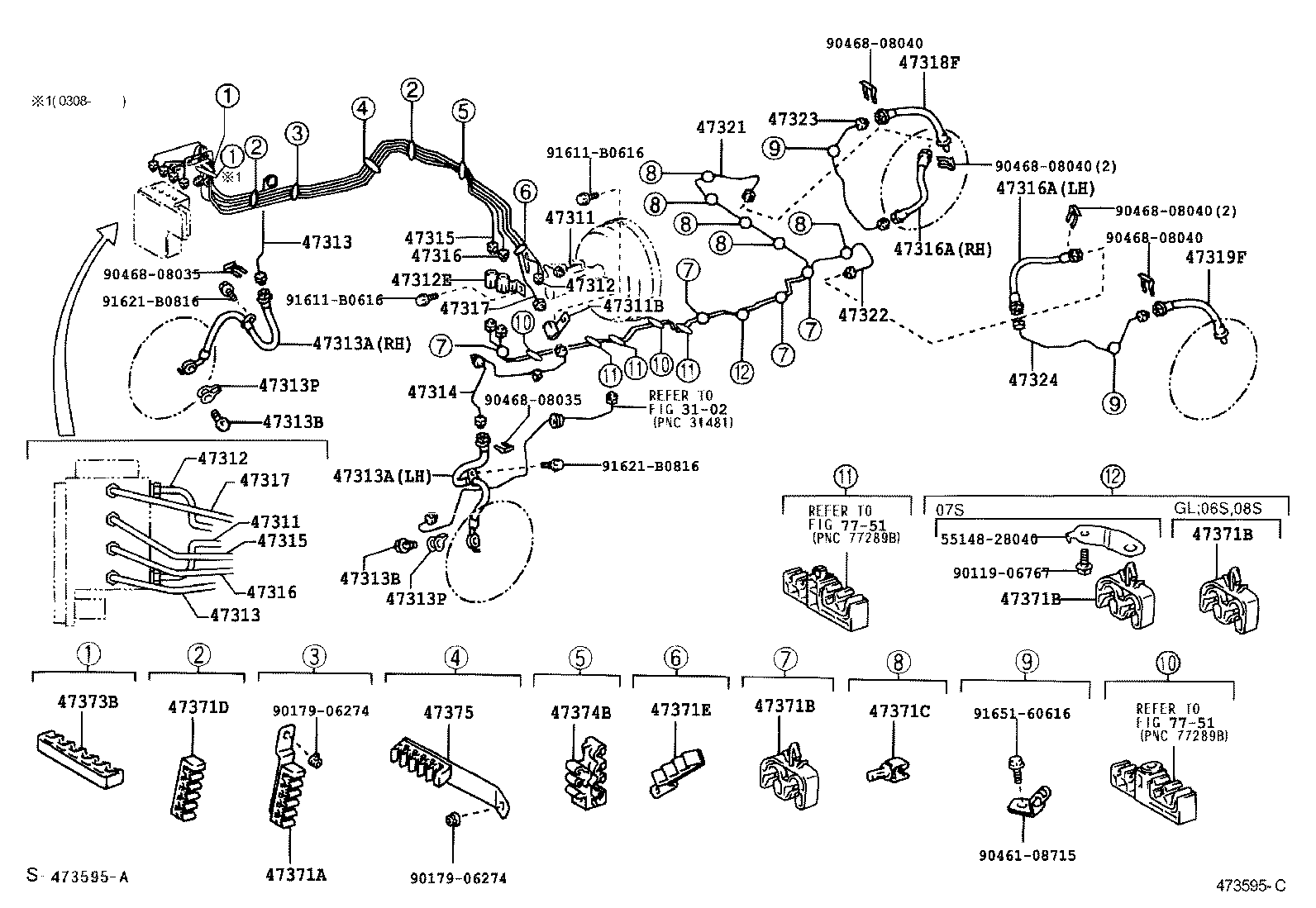

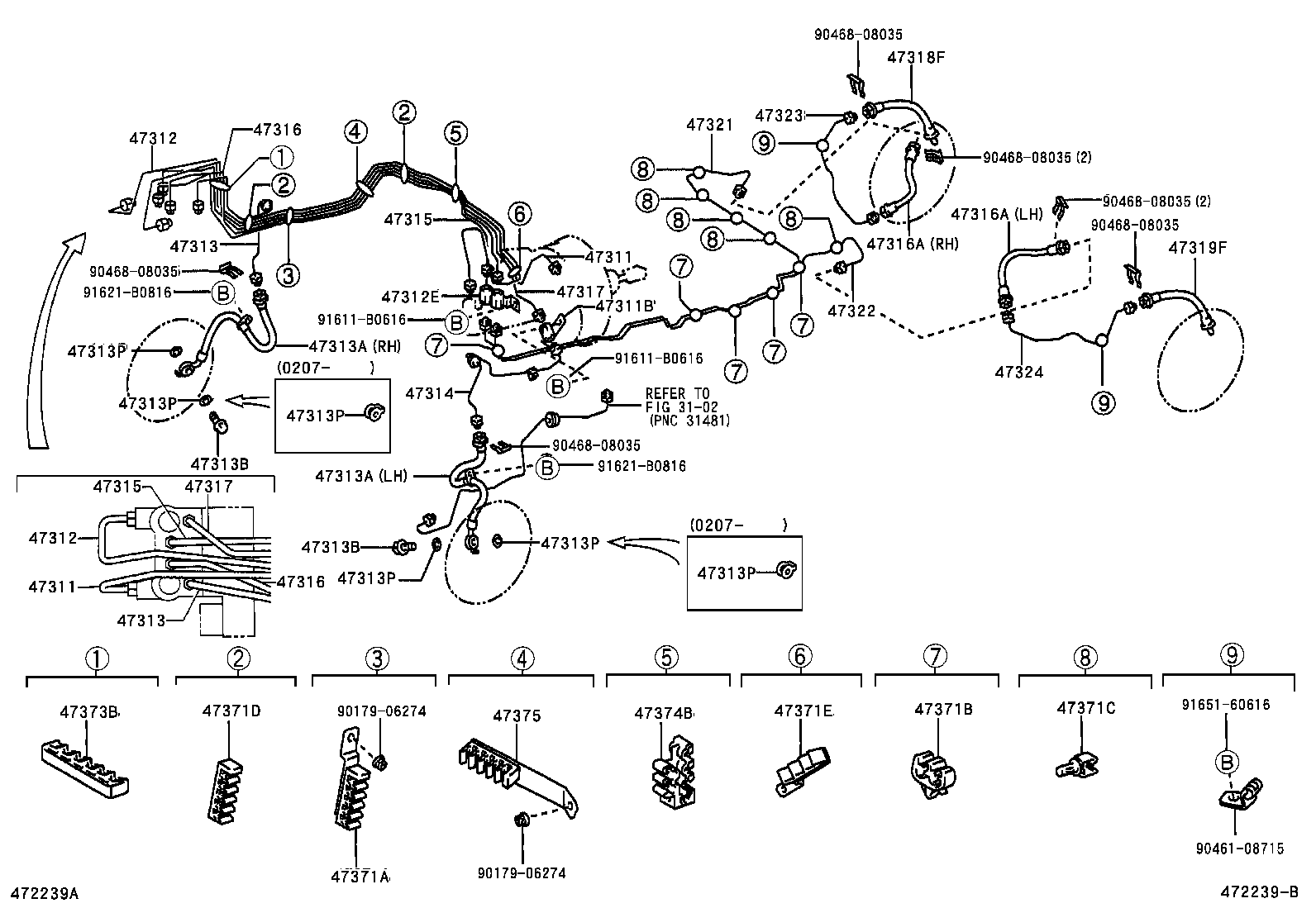

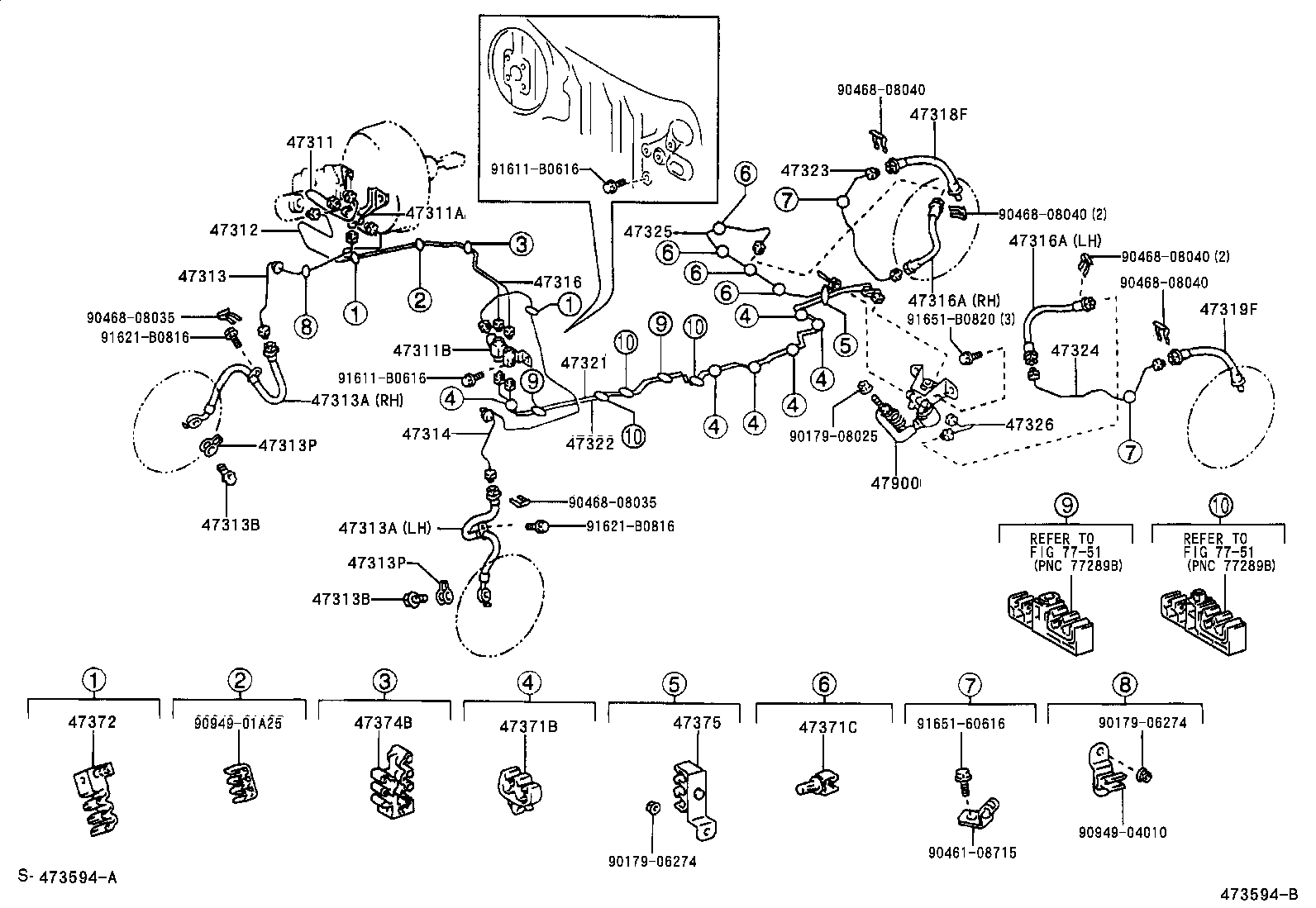

Figure 471975D 471975D 2000-02 → 2003-04 Figure 473594B 473594B 2003-04 → — Figure 471976F 471976F 2000-02 → 2003-04 Figure 471976F 471976F 2003-04 → — Figure 471977A 471977A 2000-02 → 2000-07 Figure 471978A 471978A 2000-02 → 2000-07 Figure 472238B 472238B 2000-07 → 2003-04 Figure 472239B 472239B 2000-07 → 2003-04 Figure 473598C 473598C 2003-04 → — Figure 473595C 473595C 2003-04 → — Figure 473597B 473597B 2003-04 → — Figure 473599B 473599B 2003-04 → — Figure 471956B 471956B 2000-02 → 2000-07 Figure 472237C 472237C 2000-07 → 2003-04 Figure 473574A 473574A 2003-04 → — Figure 473578B 473578B 2003-04 → — Figure 473582A 473582A 2003-04 → —

Part groups

PNCDescription
44510 Actuator Assy, Brake
44540 Actuator Assy, Abs & Traction
44545D Holder, Brake Actuator Bolt
44546A Cushion, Brake Actuator Bolt
44551 Tube, Brake Actuator, NO.1
44571 Hose, Brake Actuator
44572 Hose, Brake Actuator, NO.2
44590 Bracket Assy, Brake Actuator
47311 Tube, Front Brake, NO.1
47311A Way(FOR FRONT BRAKE TUBE)
47311B Way, NO.1(FOR FRONT BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47312E Way, NO.2(FOR FRONT BRAKE TUBE)
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47316 Tube, Front Brake, NO.6
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47317 Tube, Front Brake, NO.7
47318F Hose, Flexible(FOR REAR RH)
47319F Hose, Flexible(FOR REAR LH)
47321 Tube, Rear Brake, NO.1
47322 Tube, Rear Brake, NO.2
47323 Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47371A Clamp, Brake Tube, NO.1
47371B Clamp, Brake Tube, NO.6
47371C Clamp, Brake Tube, NO.7
47371D Clamp, Brake Tube, NO.8
47371E Clamp, Brake Tube, NO.9
47371F Clamp, Brake Tube, NO.10
47372 Clamp, Brake Tube, NO.2
47373B Clamp, Brake Tube, NO.3
47374B Clamp, Brake Tube, NO.4
47375 Clamp, Brake Tube, NO.5
47900 Valve Assy, Load Sensing W/Spring
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
