Toyota Previa/Tarago

2000-02 → 2006-01 · chassis ACR30,CLR30 · catalogue 652250 · Europe

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

7 part groups · 2 illustrations

Illustrations

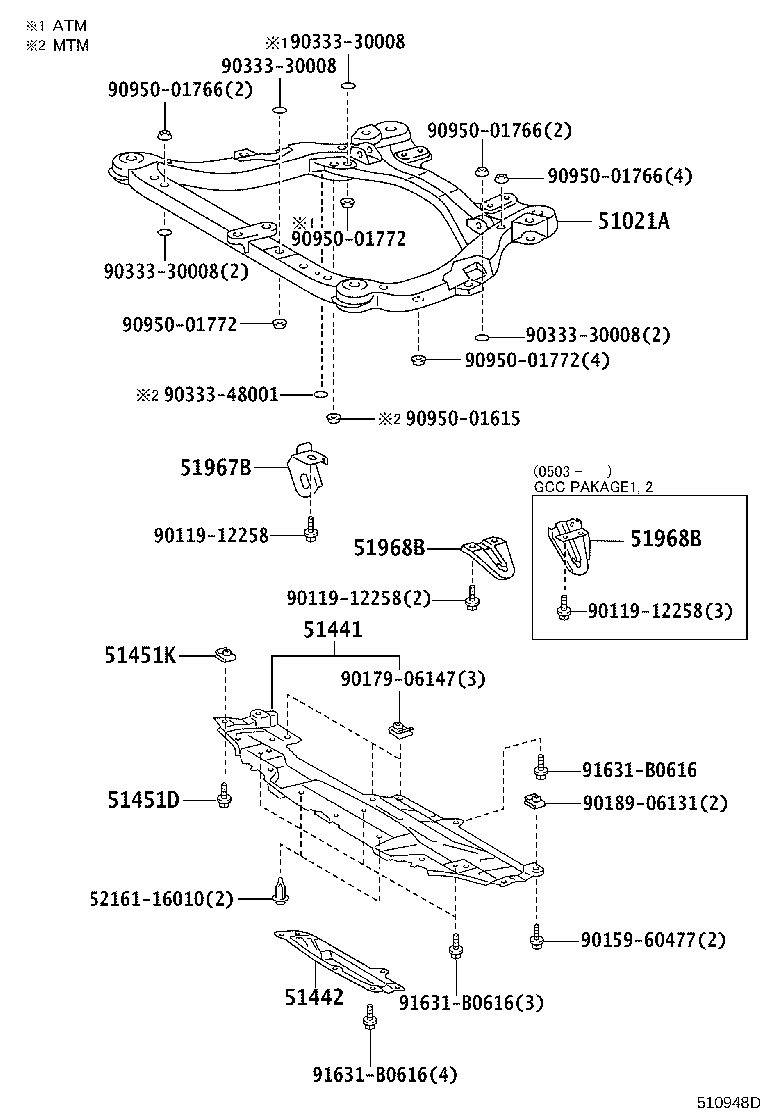

Figure 510575I 510575I 2000-02 → 2003-04 Figure 510948D 510948D 2003-04 → —

Part groups

PNCDescription
51021A Member Sub-assy, Engine Front Support
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51451D Screw, NO.1
51451K Grommet, Screw, NO.1
51967B Hook, Transport, Rear RH
51968B Hook, Transport, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
