Toyota Previa/Tarago
2000-02 → 2006-01 · chassis ACR30,CLR30 · catalogue 652250 · Europe
Discontinued model
Data version 2006-09

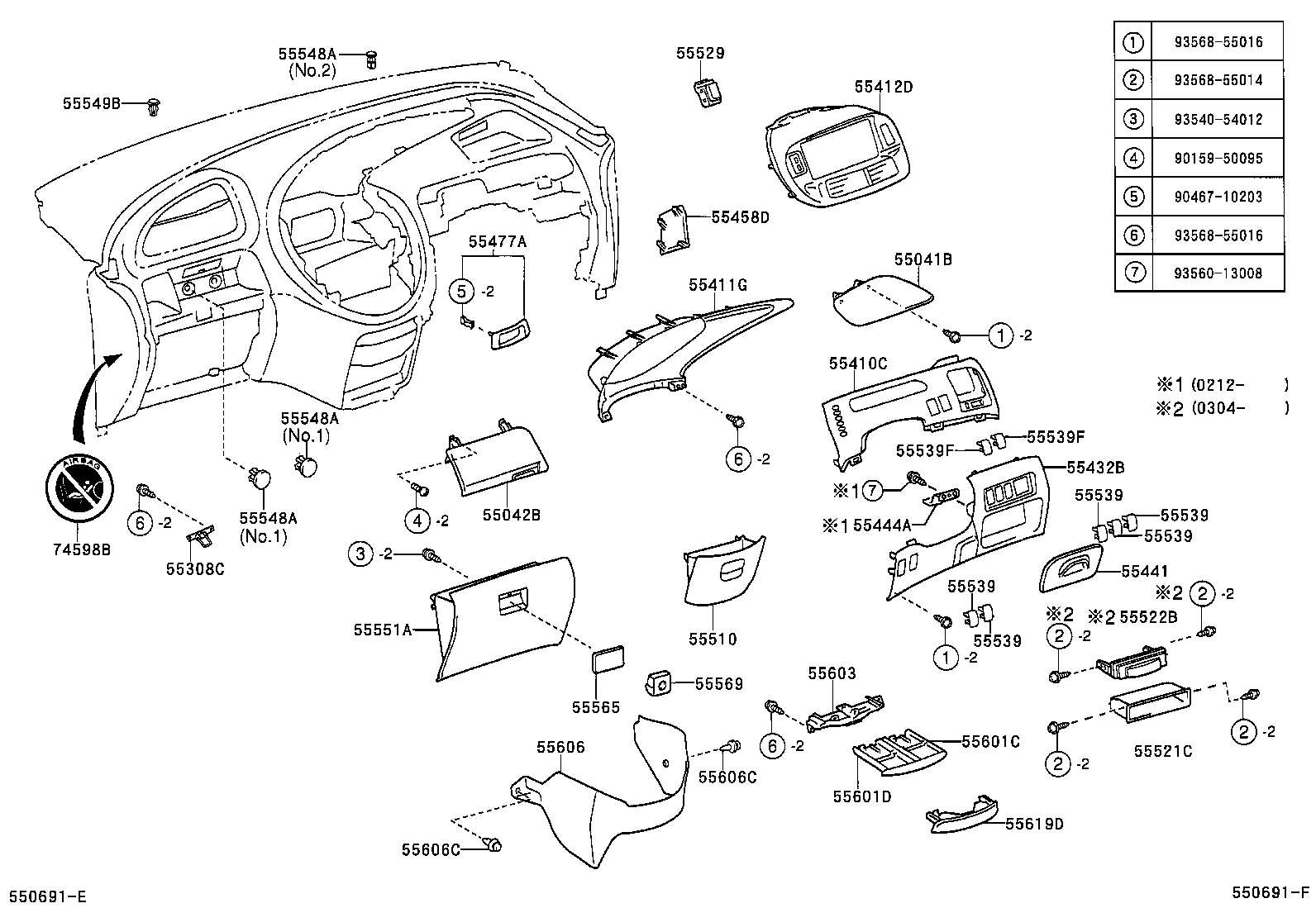

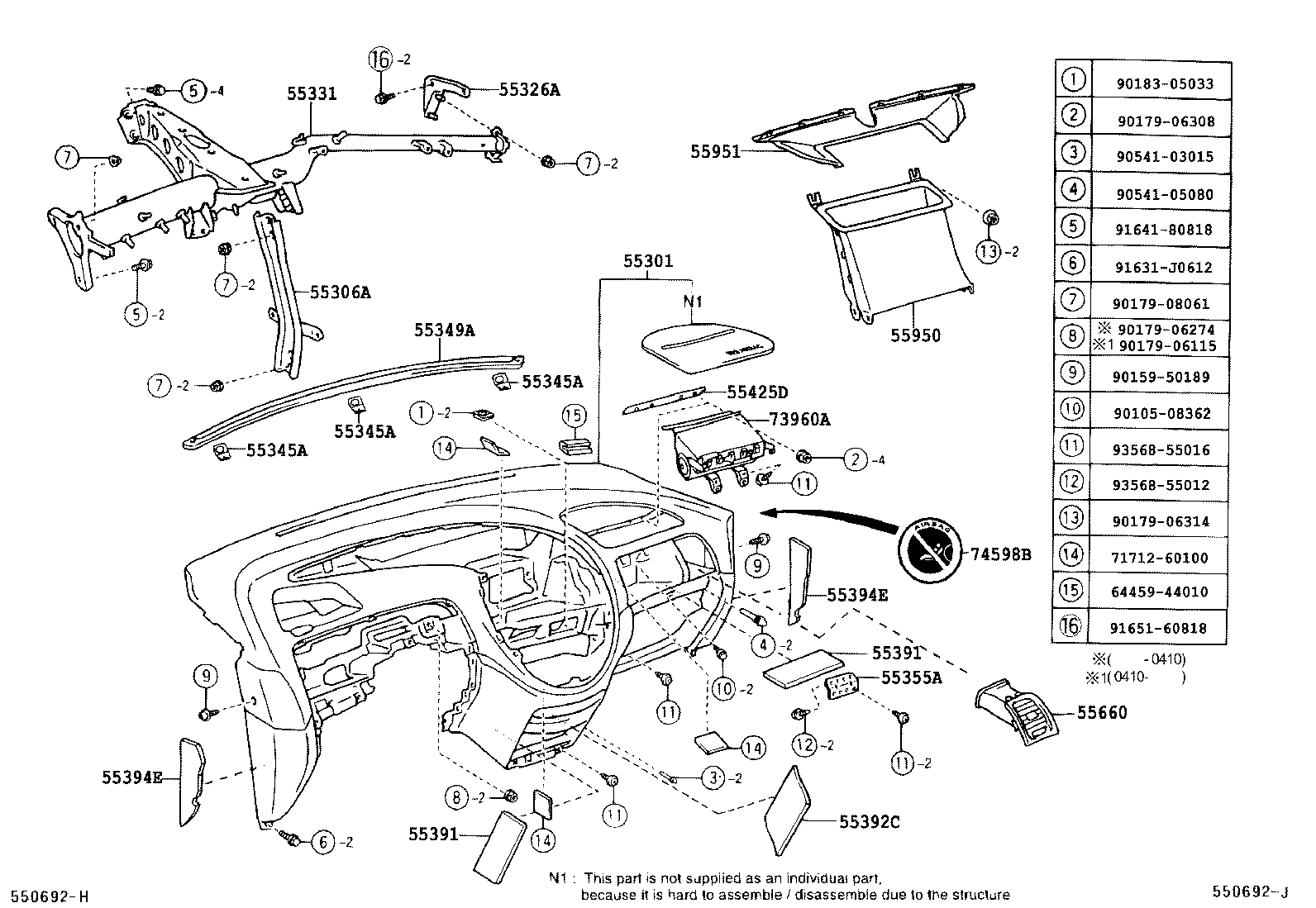

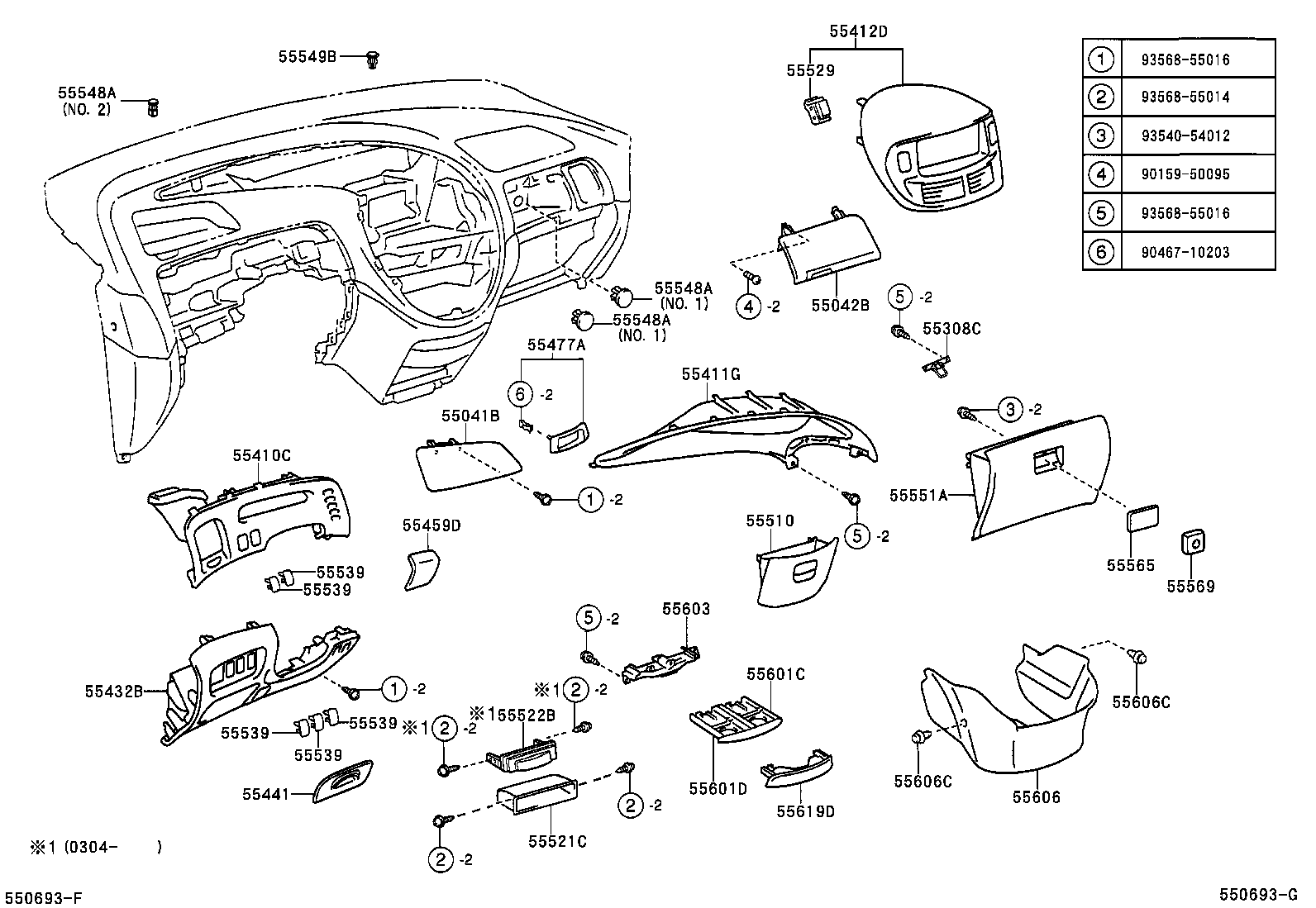

Instrument Panel & Glove Compartment
45 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55041B | Door Sub-assy, Instrument Panel Box, NO.1 |
| 55042B | Door Sub-assy, Instrument Panel Box, NO.2 |
| 55301 | Panel Sub-assy, Instrument |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55326A | Stay, Instrument Panel, NO.1 |
| 55331 | Reinforcement, Instrument Panel |
| 55345A | Clip, Instrument Panel, NO.1 |
| 55349A | Cushion, Instrument Panel |
| 55355A | Plate, Instrument Panel |
| 55391 | Cushion, Instrument Panel, Lower NO.1 |
| 55392C | Cushion, Instrument Panel, Lower NO.2 |
| 55394E | Cushion, Instrument Panel, Lower NO.4 |
| 55410C | Panel Assy, Instrument Cluster Finish |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55412D | Panel, Instrument Cluster Finish, Center |
| 55425D | Base, Airbag Passenger Mounting |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55441 | Box, Instrument Panel |
| 55444A | Spring, Instrument Panel Box |
| 55458D | Cover, Instrument Lower, RH |
| 55459D | Cover, Instrument, Lower LH |
| 55477A | Bezel, Cigarette Lighter Hole |
| 55510 | Door Assy, Glove Compartment |
| 55521C | Cover, Stereo Opening |
| 55522B | Cover, Radio Tuner Opening |
| 55529 | Cover, Warning Lamp Hole |
| 55539 | Cover, Spare Switch Hole |
| 55539F | Cover, Spare Switch Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55549B | Cover, Instrument Panel Hole, NO.2 |
| 55551A | Door, Glove Compartment, Outer |
| 55565 | Handle, Glove Compartment Door Lock |
| 55569 | Cover, Glove Compartment Door Lock |
| 55601C | Tray Sub-assy, Instrument Panel Under |
| 55601D | Tray Sub-assy, Instrument Panel Under, LH |
| 55603 | Case Sub-assy, Instrument Panel Cup Holder |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55606C | Clip(FOR INSTRUMENT PANEL UNDER COVER) |
| 55619D | Cover, Cup Holder Hole |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55950 | Nozzle Assy, Defroster |
| 55951 | Nozzle, Defroster, Front |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
| 74598B | Label, Passenger Airbag Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
