Toyota Previa/Tarago

2000-02 → 2006-01 · chassis ACR30,CLR30 · catalogue 652250 · Europe

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

17 part groups · 2 illustrations

Illustrations

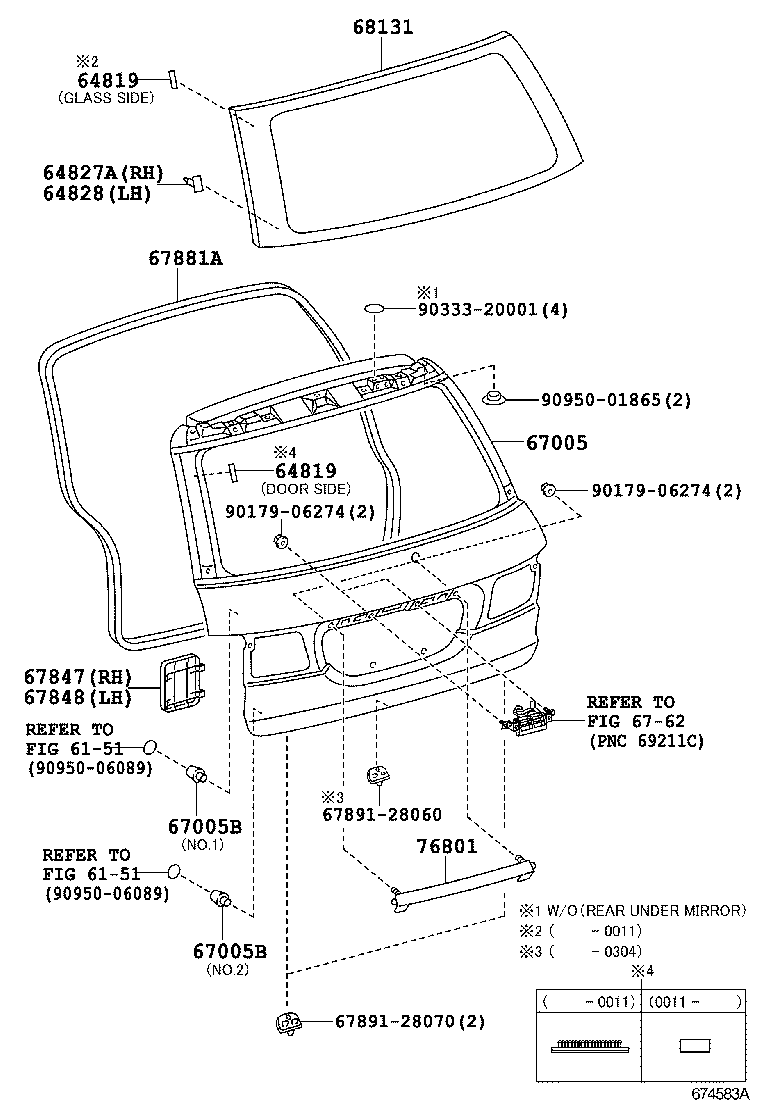

Figure 671884H 671884H 2000-02 → — Figure 674583A 674583A 2000-02 → —

Part groups

PNCDescription
62581H Garnish, Rear Window Side, RH
62582H Garnish, Rear Window Side, LH
64819 Spacer, Back Window Glass, NO.2
64827A Clip, Back Window Glass, RH
64828 Clip, Back Window Glass, LH
67005 Panel Sub-assy, Back Door
67005B Cushion(FOR BACK DOOR PANEL)
67159 Retainer, Back Door Trim
67687C Garnish, Back Window
67750 Board Assy, Back Door Trim
67750A Clip(FOR BACK DOOR TRIM)
67751A Clip(FOR BACK DOOR TRIM BOARD)
67847 Cover, Back Door Service Hole, RH
67848 Cover, Back Door Service Hole, LH
67881A Weatherstrip, Back Door
68131 Glass, Back Door
76801 Garnish Sub-assy, Back Door, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
