Toyota Previa/Tarago

2000-02 → 2006-01 · chassis ACR30,CLR30 · catalogue 652250 · Europe

Discontinued model Data version 2006-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

264 part groups · 21 illustrations

Illustrations

711589E 2000-02 → 2003-04

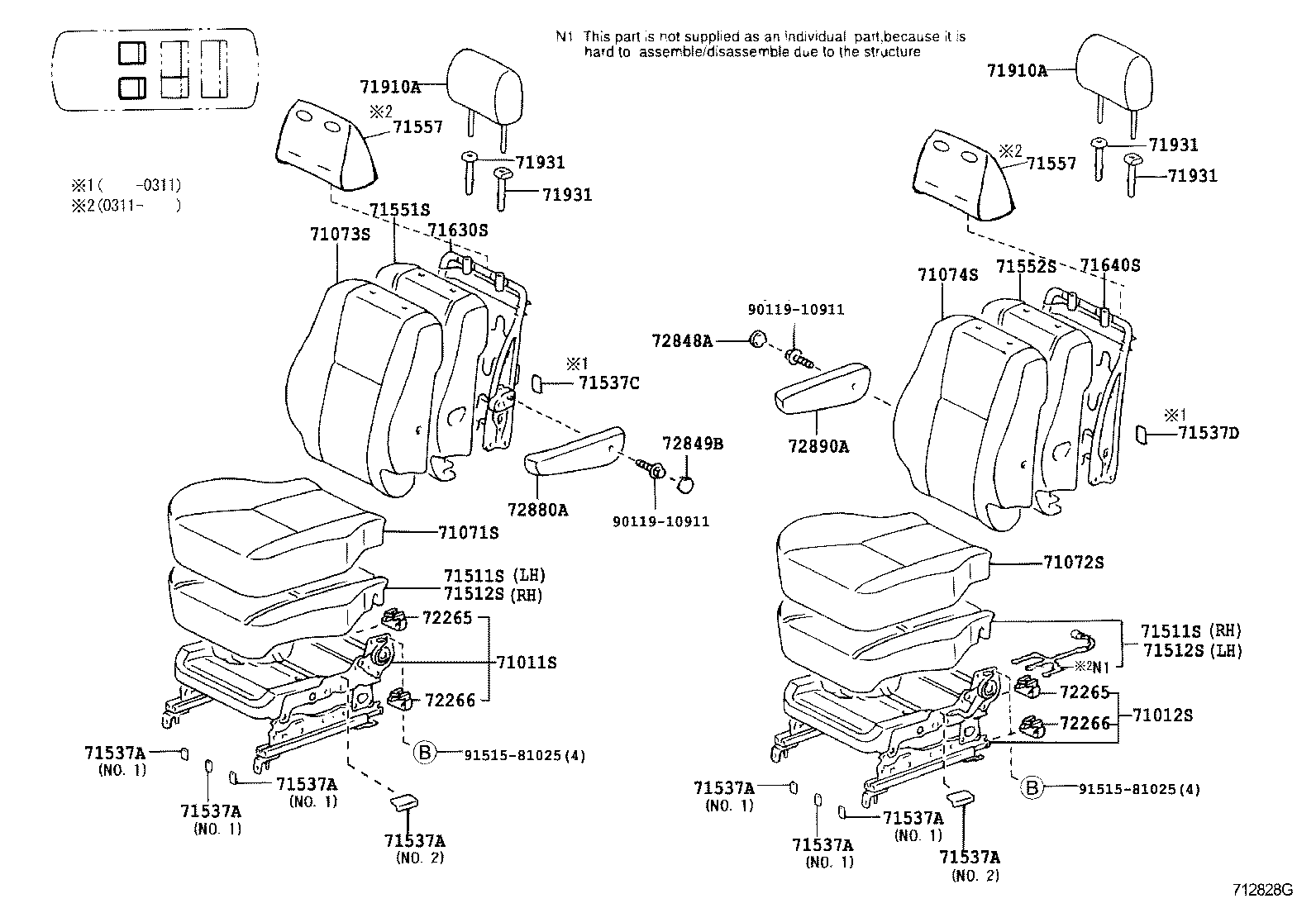

712828G 2003-04 → —

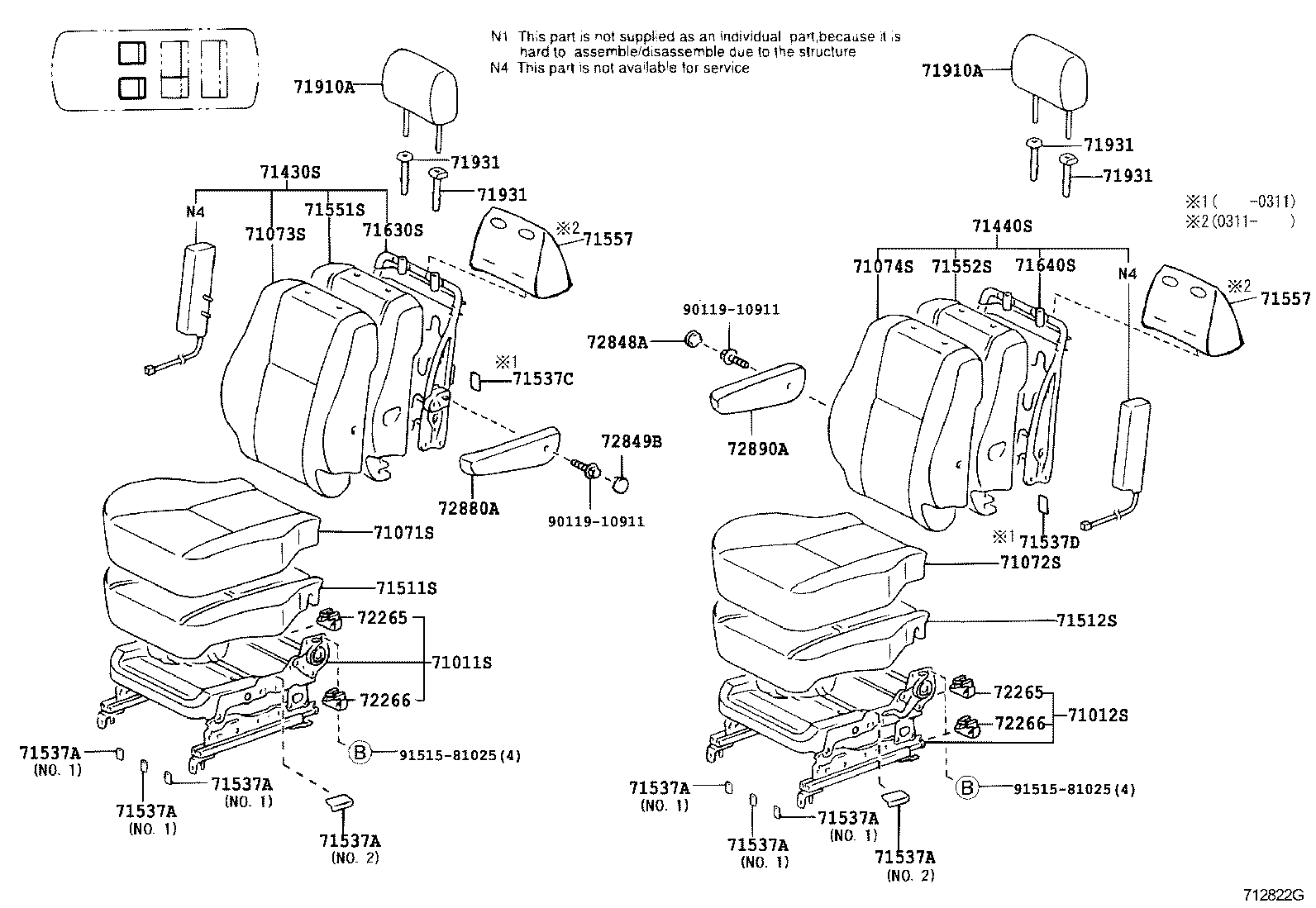

712822G 2003-04 → —

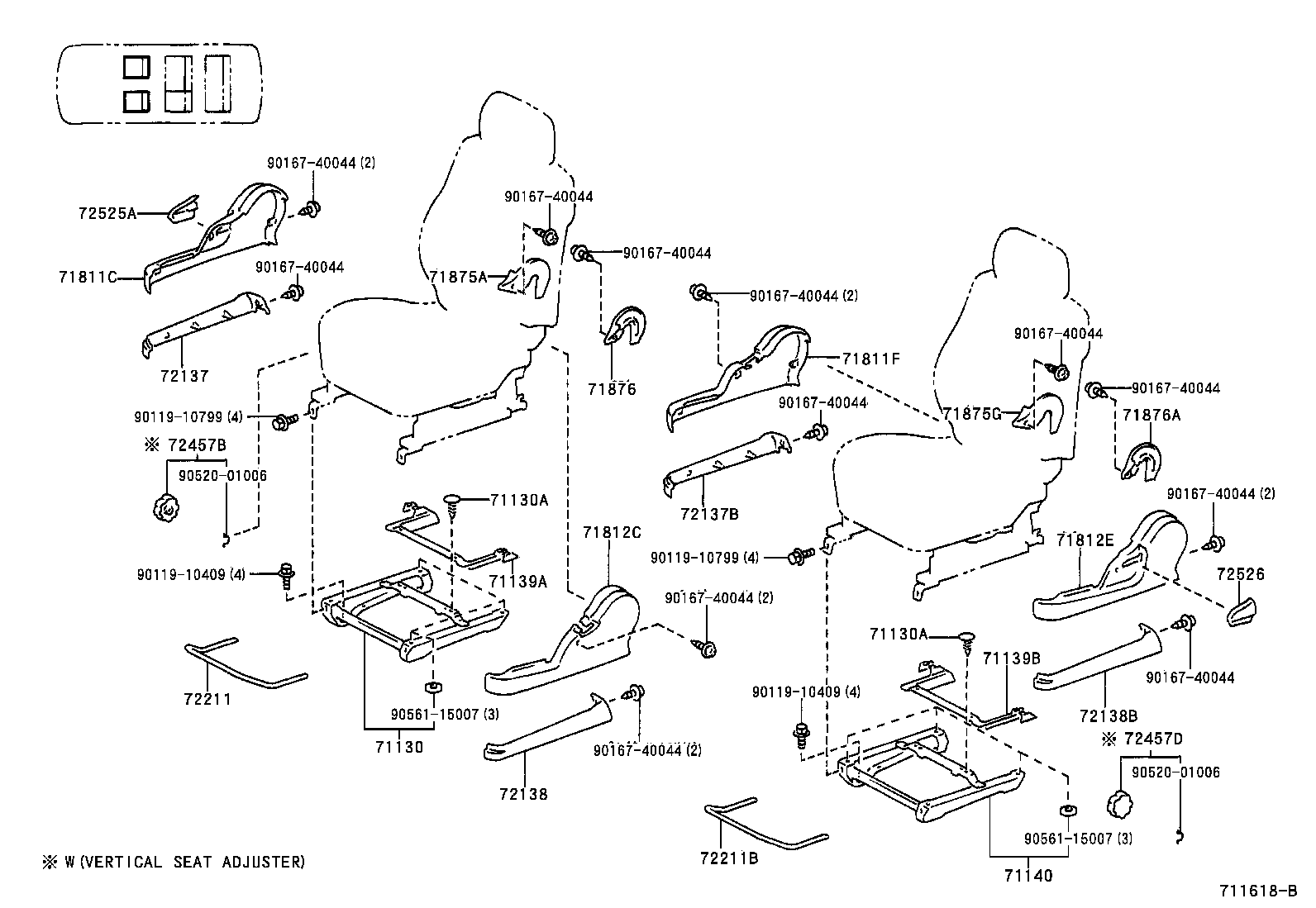

711618B 2000-02 → —

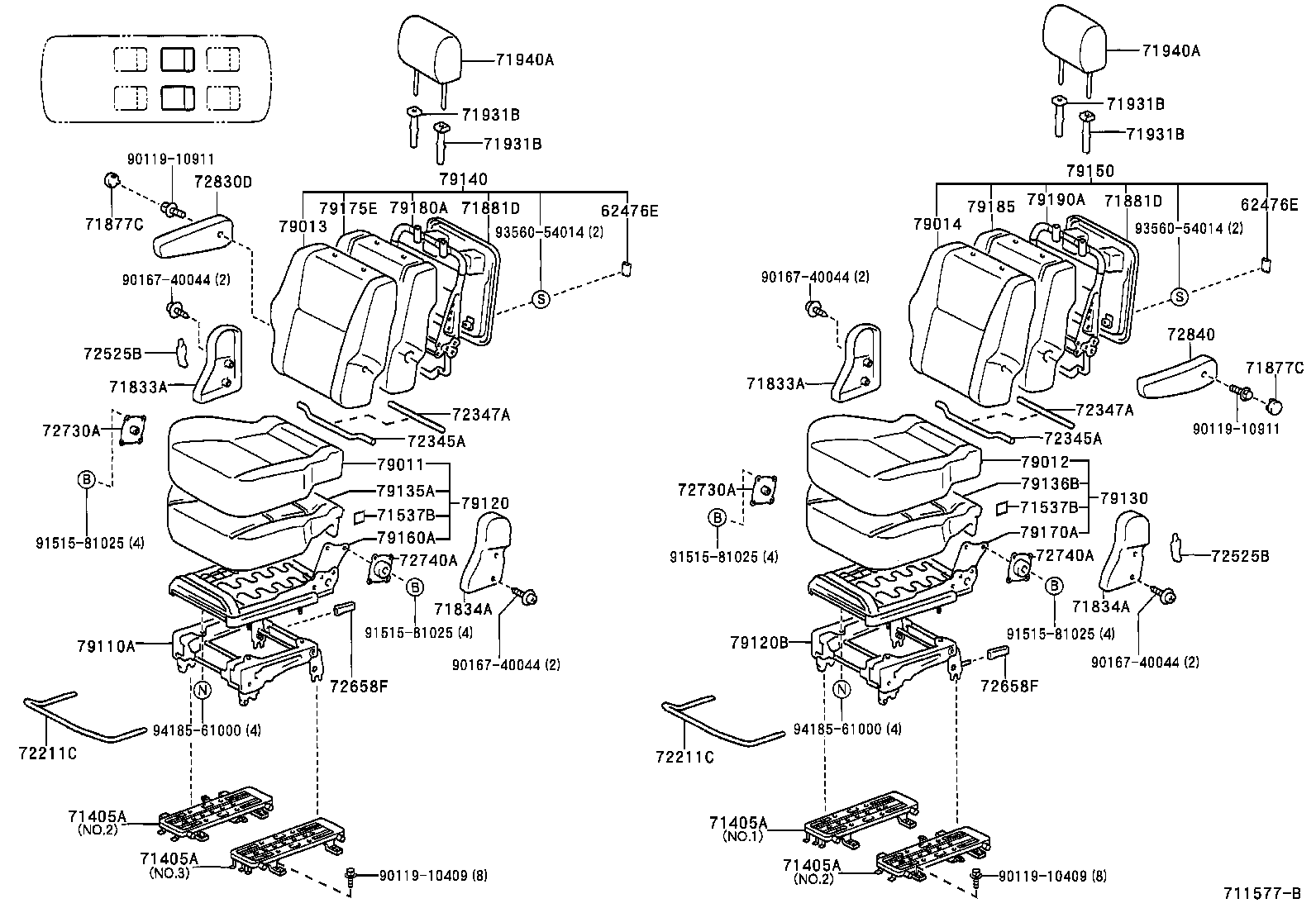

711577B 2000-02 → 2003-04

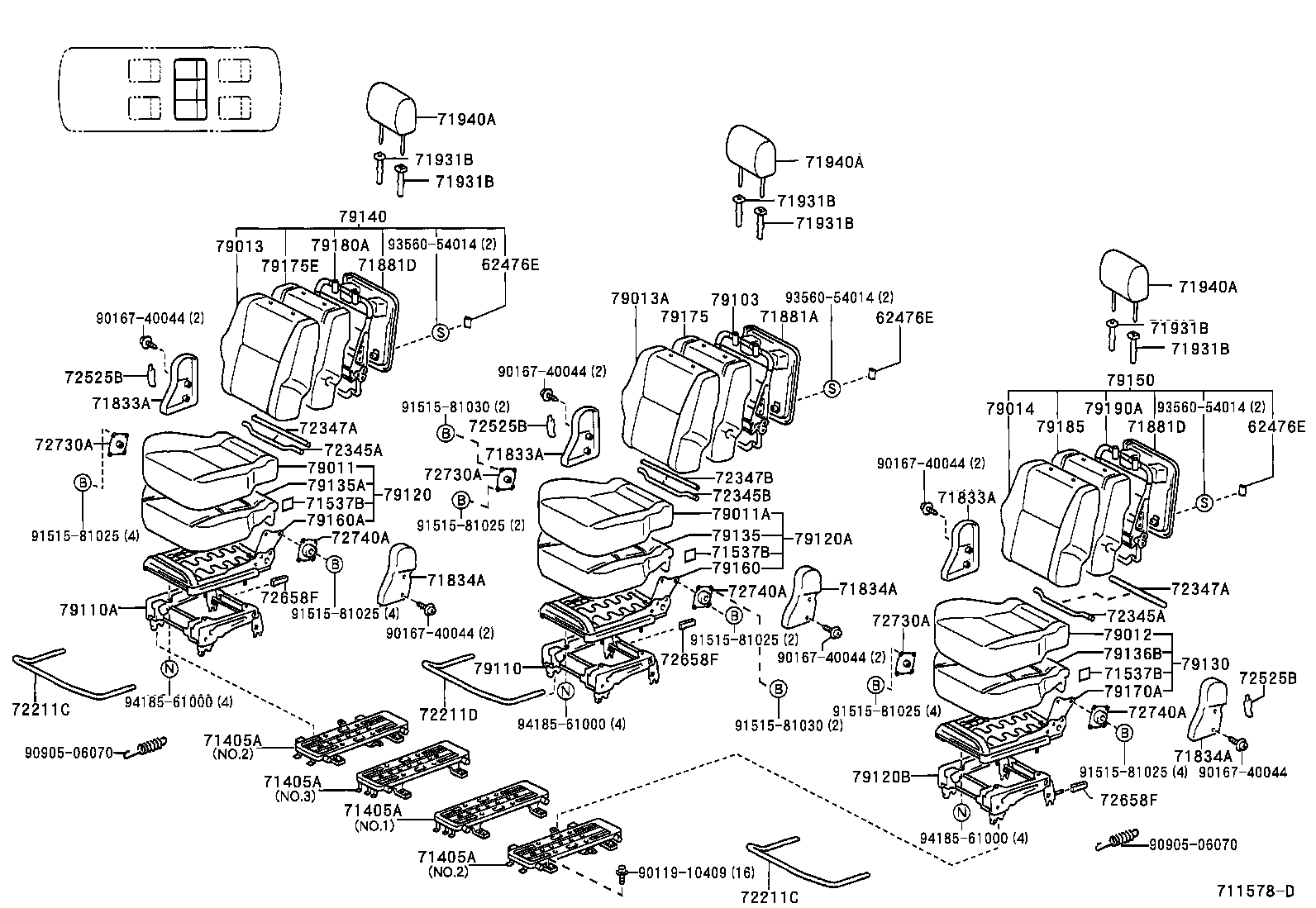

711578D 2000-02 → 2003-04

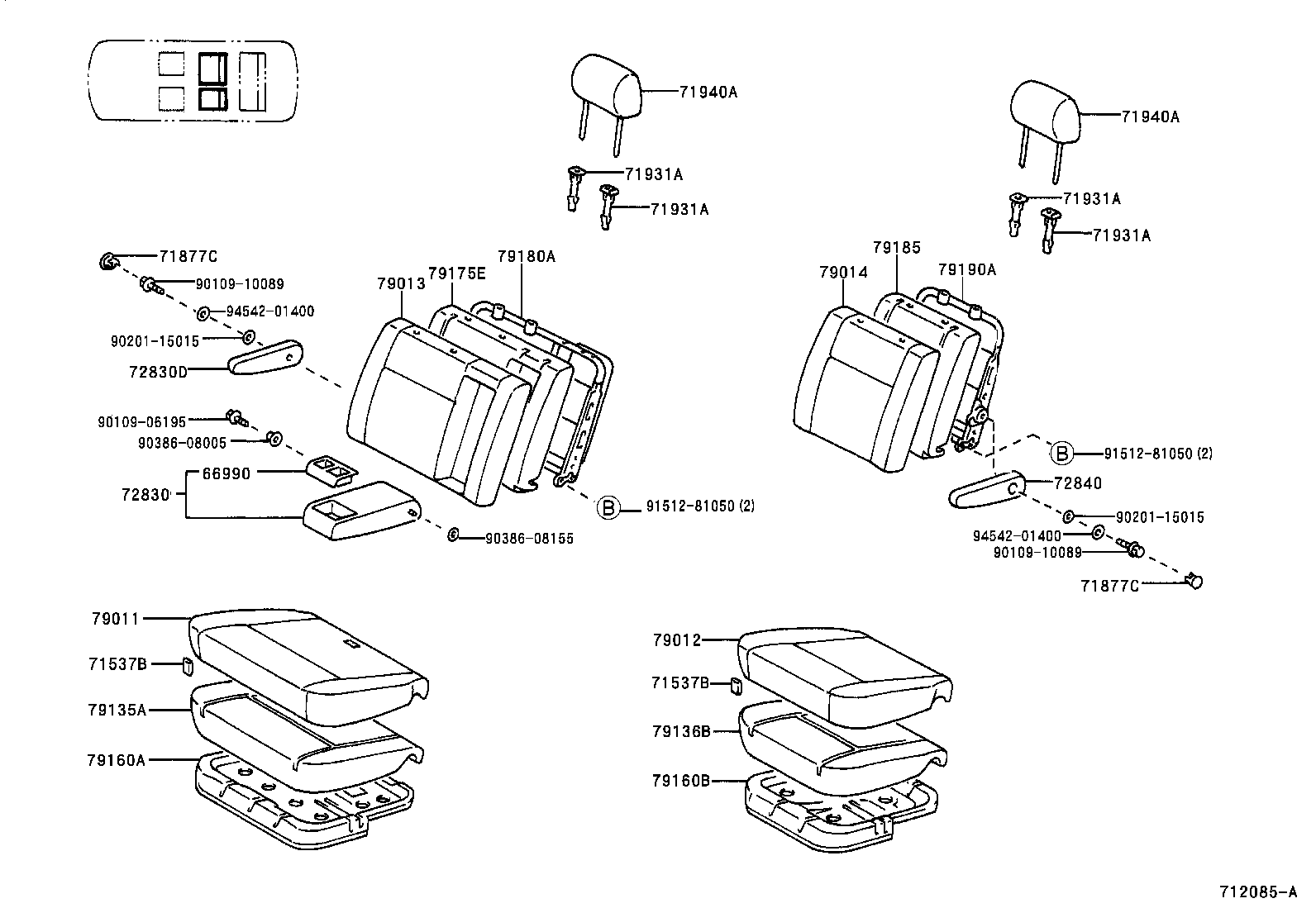

712085A 2001-05 → 2003-04

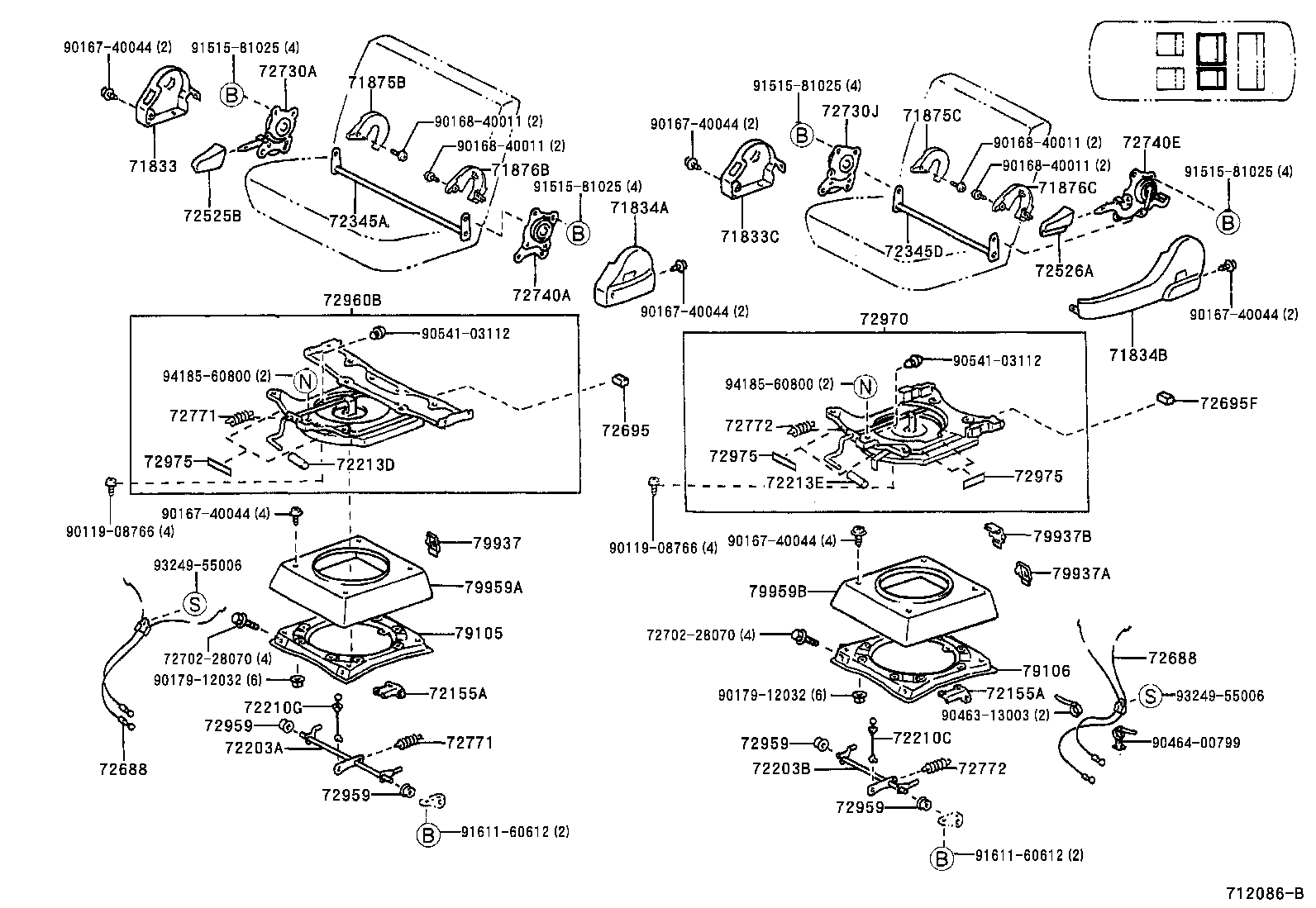

712086B 2001-05 → 2003-04

Part groups

PNC	Description
62476E	Cap, Rear Seat
66990	Holder Assy, Cup
71011S	Frame Sub-assy, Front Seat Cushion, RH
71012S	Frame Sub-assy, Front Seat Cushion, LH
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075E	Clip(FOR REAR SEAT)
71130	Leg Assy, Front Seat, RH
71130A	Clip, Front Seat Leg
71139A	Cover, Front Seat Leg, NO.1
71139B	Cover, Front Seat Leg, NO.2
71140	Leg Assy, Front Seat, LH
71324J	Cushion, Rear Seat
71349C	Cover, Rear Seatback Hinge
71395B	Cover, Center Seat Hinge, RH
71396B	Cover, Center Seat Hinge, LH
71397C	Stopper, Rear Seat
71397D	Stopper, Rear Seat
71405A	Striker Sub-assy, Rear Seat Lock, RH
71405B	Striker Sub-assy, Rear Seat Lock, RH
71410S	Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S	Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71461	Spring, Rear Seat Cushion
71499B	Damper, Seat Cushion Spring
71499C	Damper, Rear Seat Cushion Spring
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A	Protector, Front Seat Cushion
71537B	Protector, Rear Seat Cushion
71537C	Protector, Front Seat Cushion Edge, RH
71537D	Protector, Front Seat Cushion Edge, LH
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71557	Cloth, Front Seatback Under
71628E	Spacer, Rear Seat Cushion
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S	Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71695A	Protector, Rear Seat, NO.1 RH
71695B	Protector, Rear Seat, NO.1 LH
71695C	Protector, Rear Seat, NO.1
71811C	Cover, Reclining Adjuster, RH
71811F	Cover, Reclining Adjuster, RH
71812C	Cover, Reclining Adjuster, LH
71812E	Cover, Reclining Adjuster, LH
71812J	Clip, Rear Seat Cover
71833	Mat, Rear Seat Floor, Front
71833A	Cover, Rear Seat Reclining, NO.1 RH
71833C	Cover, Rear Seat Reclining, NO.2 RH
71833D	Cover Rear Seat Reclining, RH
71834A	Cover, Rear Seat Reclining, NO.1 LH
71834B	Cover, Rear Seat Reclining, NO.2 LH
71834C	Cover, Rear Seat Reclining, NO.3 LH
71865	Bezel, Rear Seat Cover, NO.1
71875A	Cover, Reclining Adjuster Inside, RH
71875B	Cover, Reclining Adjuster Inside, RH
71875C	Cover, Reclining Adjuster Inside, RH
71875G	Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876	Cover, Reclining Adjuster Inside, LH
71876A	Cover, Reclining Adjuster Inside, LH
71876B	Cover, Reclining Adjuster Inside, LH
71876C	Cover, Reclining Adjuster Inside, LH
71877C	Cover, Rear Seat Armrest Hole LH
71877D	Cover, Rear Seat Armrest Hole
71879A	Cover, Rear Seat Reclining, Inner LH
71881A	Board, Rear Seatback
71881D	Board, Rear Seatback, RH
71884A	Cover, Rear Seatback Board
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
71931A	Support, Rear Seat Headrest
71931B	Support Assy, Rear NO.1 Seat Headrest
71940A	Headrest Assy, Rear Seat
71940C	Headrest Assy, Rear NO.1 Seat, RH
72030	Adjuster Assy, Rear NO.1 Seat
72058B	Lever Sub-assy, Rear Seat Lock Control, LH
72065	Belt Sub-assy, Rear Seat Hook, RH
72125A	Cover, Seat Track, Upper Rear
72125D	Cover, Seat Track, Upper Rear NO.2
72129	Protector, Seat Track Lower Rail, NO.1
72129A	Protector, Seat Track Lower Rail, NO.2
72137	Cover, Seat Track, Outer RH
72137B	Cover, Seat Track, RH
72138	Cover, Seat Track, Outer LH
72138B	Cover, Seat Track, LH
72155A	Bracket, Seat Track Handle Support
72160	Track Assy, Rear Seat, Outer RH
72160B	Track Assy, Rear NO.1 Seat, RH
72170	Track Assy, Rear Seat, Outer LH
72170B	Track Assy, Rear NO.1 Seat, LH
72201A	Handle Sub-assy, Seat Track RH
72201B	Handle Sub-assy, Seat Track LH
72203A	Handle Sub-assy, Rear Seat Track, RH
72203B	Handle Sub-assy, Rear Seat Track, LH
72210	Cable Assy, Seat Track Control
72210B	Cable Assy, Seat Track Control, RH
72210C	Cable Assy, Seat Track Control, LH
72210F	Cable Assy, Seat Track Control
72210G	Cable Assy, Rear NO.1 Seat Track Control, RH
72210J	Cable Assy, Seat Track Control
72210K	Cable Assy, Seat Track Control
72210L	Cable Assy, Seat Track Control
72211	Handle, Seat Track Adjusting
72211B	Handle, Seat Track Adjusting
72211C	Handle, Seat Track Adjusting
72211D	Handle, Seat Track Adjusting
72211E	Handle, Seat Track Adjusting
72213	Knob, Seat Track Adjusting Handle
72213A	Knob, Seat Track Adjusting Handle
72213B	Knob, Seat Track Adjusting Handle, RH
72213D	Knob, Seat Track Adjusting Handle
72213E	Knob, Seat Track Adjusting Handle
72219	Cover, Adjuster Spring Hook
72265	Cover, Seat Track Upper Rail, RH
72266	Cover, Seat Track Upper Rail, LH
72301	Wire Sub-assy, Seat Track Equalizing
72302B	Wire Sub-assy, Rear Seat Track Equalizing
72345A	Pipe, Reclining Connecting
72345B	Pipe, Reclining Connecting
72345D	Pipe, Reclining Connecting, LH
72345E	Pipe, Reclining Connecting
72347A	Cover, Reclining Connecting Hook
72347B	Cover, Reclining Connecting Hook
72347C	Cover, Reclining Connecting Hook
72380	Cable Assy, Seat Adjuster Control, NO.2
72457B	Knob, Vertical Seat Adjuster, RH
72457D	Knob, Vertical Seat Adjuster, LH
72507A	Handle Sub-assy, Reclining Release
72525A	Handle, Reclining Adjuster Release, RH
72525B	Handle, Reclining Adjuster Release, RH
72525D	Handle, Reclining Adjuster Release, NO.2 RH
72526	Handle, Reclining Adjuster Release, LH
72526A	Handle, Reclining Adjuster Release, LH
72526B	Handle, Reclining Adjuster Release, NO.1 LH
72630B	Adjuster Assy, Rear NO.1 Seat, Inner RH
72658B	Knob, Rear Seat Lock Handle
72658D	Knob, Rear Seat Lock Handle
72658F	Knob, Rear Seat Lock Handle
72665	Cover, Rear Seatback Lock, RH
72665B	Cover, Rear Seatback Lock
72666	Cover, Rear Seatback Lock, LH
72666A	Cover, Front Seatback Lock, LH
72667	Bezel, Rear Seatback Lock, Upper
72688	Cable, Rear Seat Track & Turn Control
72690B	Lever Assy, Seat Cushion Lock Release, RH
72690C	Lever Assy, Seat Cushion Lock Release, LH
72695	Silencer, Rear Seatback Lock Control Rod
72695A	Cable, Rear Seat Lock Control
72695F	Silencer, Rear Seatback Lock Control Rod
72730A	Adjuster Assy, Rear Seat Reclining, RH
72730C	Adjuster Assy, NO.2 Seat Reclining, RH
72730J	Adjuster Assy, Rear Seat Reclining, RH
72740A	Adjuster Assy, Rear Seat Reclining, LH
72740C	Adjuster Assy, NO.2 Seat Reclining, LH
72740E	Adjuster Assy, Rear Seatback, Outer LH
72748	Wire, Rear Seat Reclining Control
72750E	Adjuster Assy, Rear NO.2 Seat Reclining, Outer RH
72760F	Adjuster Assy, Rear NO.2 Seat Reclining, Outer LH
72771	Spring, Rear Seat Turn NO.1
72772	Spring, Rear Seat Turn NO.2
72830	Armrest Assy, Rear Seat, Center
72830D	Armrest Assy, Rear Seat, RH
72830L	Armrest Assy, Rear NO.2 Seat, RH
72830M	Armrest Assy, Seat Center, RH
72840	Armrest Assy, Rear NO.1 Seat, LH
72840A	Armrest Assy, Rear NO.2 Seat, LH
72848	Cap, NO.3 Seat Armrest
72848A	Cap, Seat Armrest, NO.1
72849	Cap, Seat Armrest, NO.2
72849B	Cap, Seat Armrest, NO.1
72880A	Armrest Assy, Front Seat, Inner RH
72890A	Armrest Assy, Front Seat, Inner LH
72959	Spacer, Rear Seat Turn Side
72960B	Table Assy, Rear Seat Turn, RH
72970	Table Assy, Rear Seat Turn, LH
72975	Protector, Rear Seat Turn Plate
72996A	Cover, Rear Seatback
78067	Bracket Sub-assy, Rear Seat Legrest, Outer
78068	Bracket Sub-assy, Rear Seat Legrest, Inner
78656	Cover, Rear Seat Legrest
78656A	Cover, Rear Seat Legrest
78980	Footrest Assy, Rear Seat
78980A	Footrest Assy, Rear Seat
78980B	Footrest Assy, Rear Seat
78987	Cover, Rear Seat Footrest, NO.1
79011	Cover Sub-assy, NO.1 Seat Cushion, RH
79011A	Cover Sub-assy, NO.1 Seat Cushion
79012	Cover Sub-assy, NO.1 Seat Cushion, LH
79013	Cover Sub-assy, NO.1 Seatback, RH
79013A	Cover Sub-assy, NO.1 Seatback
79014	Cover Sub-assy, NO.1 Seatback, LH
79021	Cover Sub-assy, NO.2 Seat Cushion, RH
79021A	Cover Sub-assy, NO.2 Seat Cushion
79022	Cover Sub-assy, NO.2 Seat Cushion, LH
79023	Cover Sub-assy, NO.2 Seatback, RH
79023A	Cover Sub-assy, NO.2 Seatback
79024	Cover Sub-assy, NO.2 Seatback, LH
79025A	Pad Sub-assy, NO.2 Seat Cushion, RH
79026	Pad Sub-assy, NO.2 Seat Cushion, LH
79027A	Pad Sub-assy, NO.2 Seatback, RH
79028A	Pad Sub-assy, NO.2 Seatback, LH
79101B	Frame Sub-assy, NO.1 Seat Cushion, RH
79102	Frame Sub-assy, NO.1 Seat Cushion, LH
79103	Frame Sub-assy, NO.1 Seatback
79105	Leg Sub-assy, NO.1 Seat, RH
79106	Leg Sub Assy, NO.1 Seat, LH
79110	Leg Assy, NO.1 Seat
79110A	Leg Assy, NO.1 Seat, RH
79120	Cushion Assy, NO.1 Seat, RH
79120A	Cushion Assy, NO.1 Seat
79120B	Leg Assy, NO.1 Seat, LH
79130	Cushion Assy, NO.1 Seat, LH
79131	Leg, NO.1 Seat
79135	Pad, NO.1 Seat Cushion
79135A	Pad, NO.1 Seat Cushion, RH
79136B	Pad, NO.1 Seat Cushion, LH
79140	Back Assy, NO.1 Seat, RH
79150	Back Assy, NO.1 Seat, LH
79160	Spring Assy, NO.1 Seat Cushion
79160A	Spring Assy, NO.1 Seat Cushion, RH
79160B	Spring Assy, NO.1 Seat Cushion, LH
79170A	Spring Assy, NO.1 Seat Cusuion, LH
79175	Pad, NO.1 Seatback
79175E	Pad, NO.1 Seatback, RH
79180A	Spring Assy, NO.1 Seatback, RH
79185	Pad, NO.1 Seatback, LH
79190A	Spring Assy, NO.1 Seatback, LH
79203	Frame Sub-assy, NO.2 Seatback
79205B	Leg Sub-assy, NO.2 Seat, RH
79206B	Leg Sub-assy, NO.2 Seat, LH
79220	Cushion Assy, NO.2 Seat, RH
79220A	Cushion Assy, NO.2 Seat
79230	Cushion Assy, NO.2 Seat, LH
79232	Leg, Rear NO.2 Seat, RH
79235	Pad, NO.2 Seat Cushion
79240	Back Assy, NO.2 Seat, RH
79240A	Back Assy, NO.2 Seat
79250	Back Assy, NO.2 Seat, LH
79260	Spring Assy, NO.2 Seat Cushion
79275	Pad, NO.2 Seatback
79280	Spring Assy, NO.2 Seatback
79290A	Spring Assy, NO.2 Seatback, LH
79349	Plate, NO.3 Seat Cushion
79366	Cover, NO.3 Seat Leg, NO.1
79367	Cover, NO.3 Seat Leg, NO.2
79374	Cover, NO.3 Seat Leg, Rear RH
79384	Cover, NO.3 Seat Leg, Rear LH
79389	Bracket, NO.3 Seat Cushion, Front LH
79937	Cover, Rear Seat Leg, NO.2
79937A	Cover, Rear Seat Leg, NO.2
79937B	Cover, Rear Seat Leg, NO.2
79956	Cover, Rear Seat Leg Bracket
79956E	Cap(FOR REAR SEAT LEG SIDE COVER)
79959A	Cover, Rear Seat Leg, RH
79959B	Cover, Rear Seat Leg, LH
79965	Cover, Rear Seat Leg Side, NO.2
79966	Cover, Rear Seat Leg Side, NO.3
79967	Cover, Rear Seat Leg Side, NO.4
79968	Cover, Rear Seat Leg Side, NO.5
79968B	Clip
79969	Cover, Rear Seat Leg Side, NO.6

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
