Toyota Previa/Tarago

2000-02 → 2006-01 · chassis ACR30,CLR30 · catalogue 652250 · Europe

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

23 part groups · 7 illustrations

Illustrations

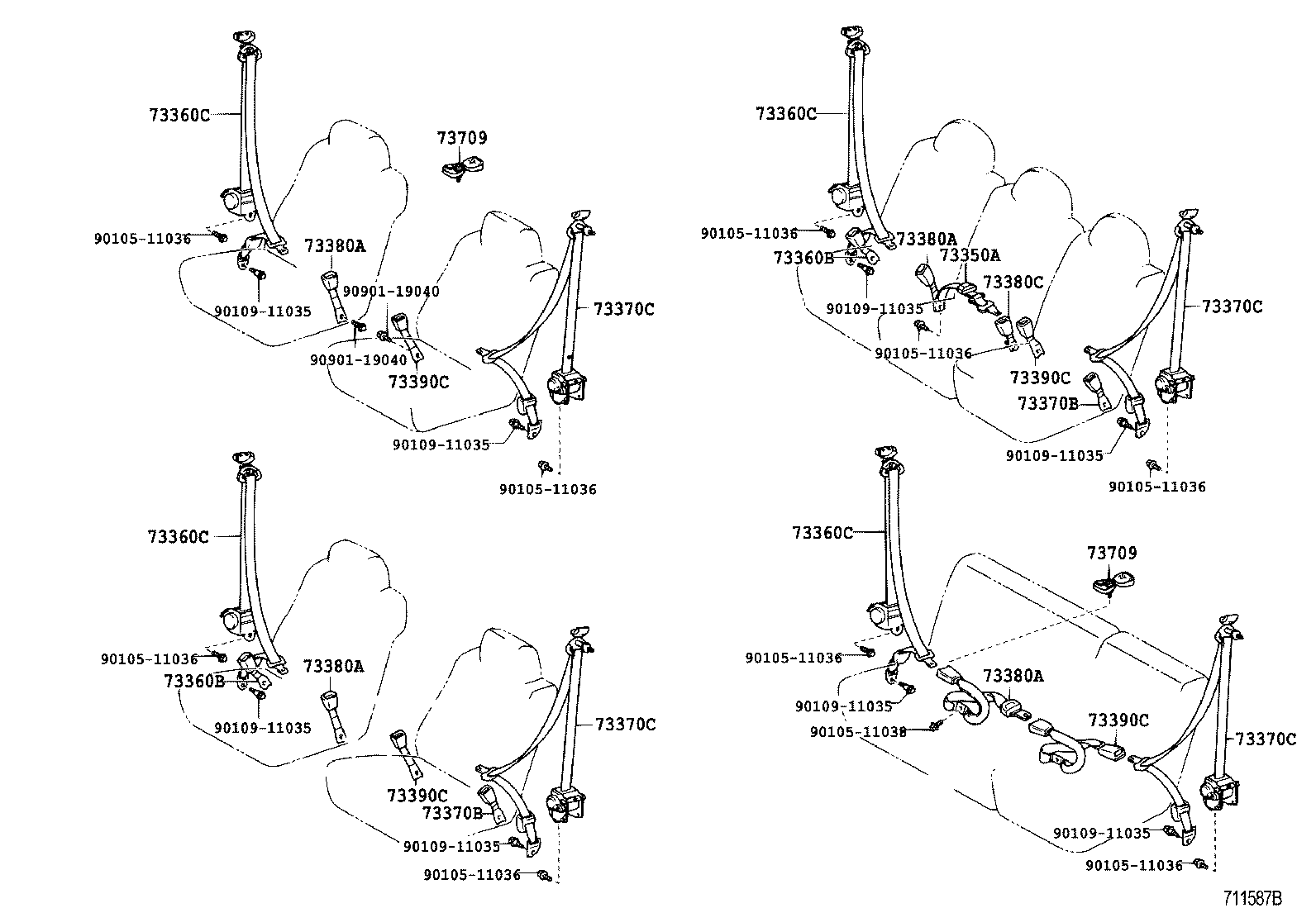

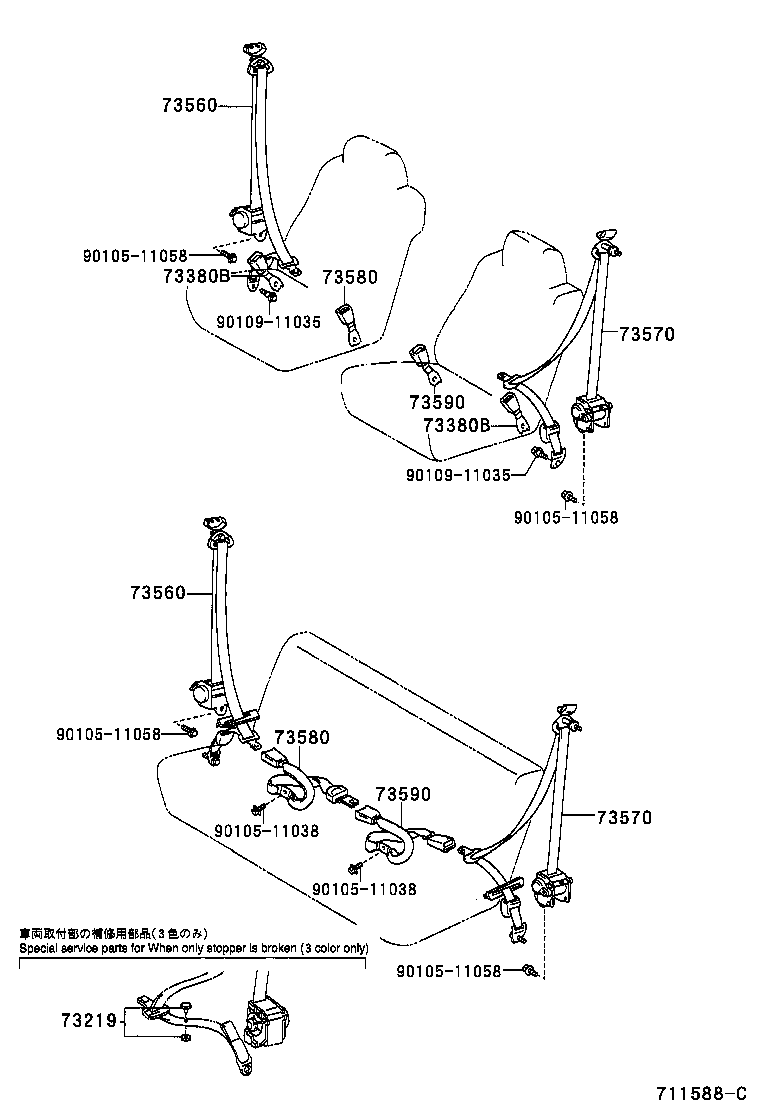

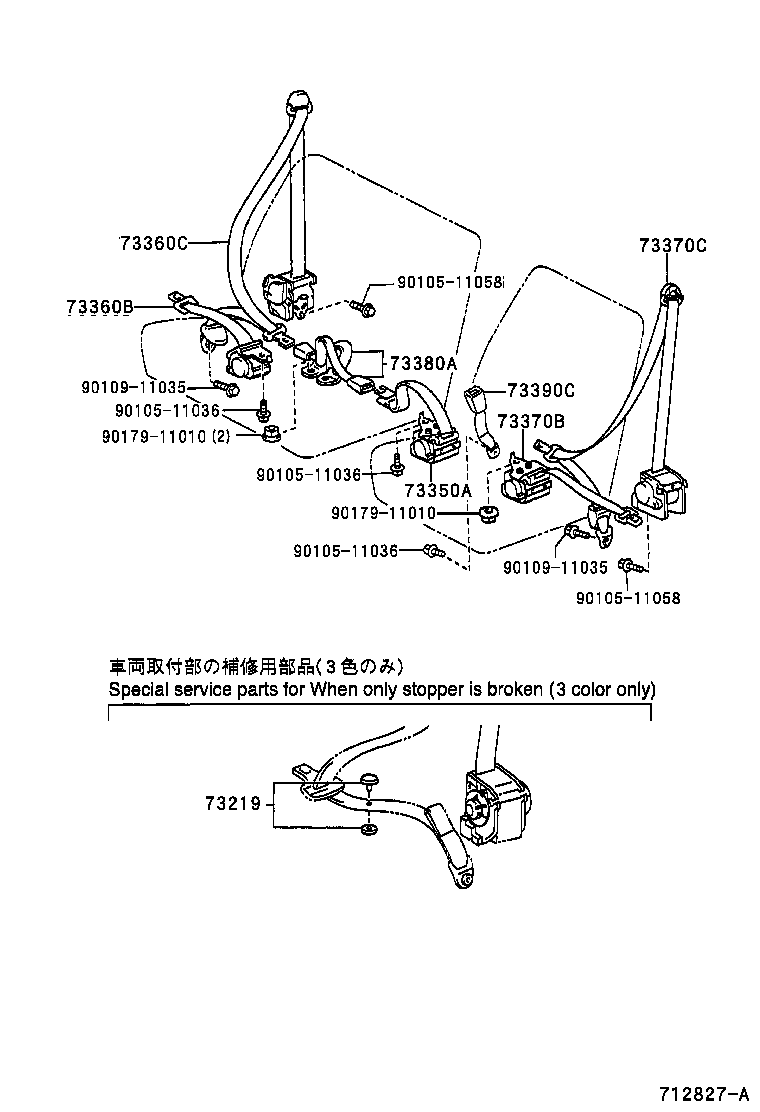

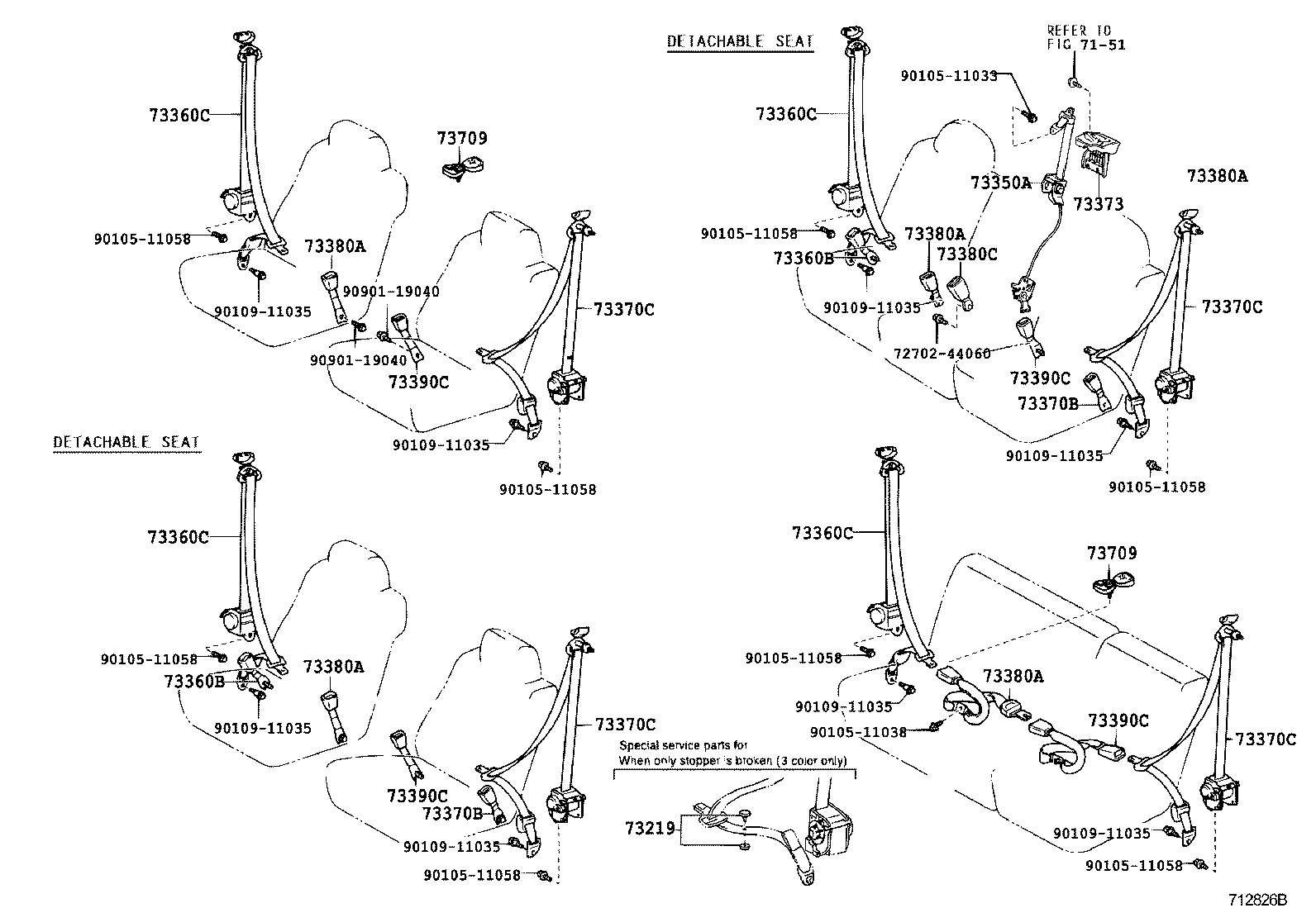

Figure 712823D 712823D 2000-02 → — Figure 711587B 711587B 2000-02 → 2003-04 Figure 711587B 711587B 2001-05 → 2003-04 Figure 712071A 712071A 2001-05 → 2003-04 Figure 712826B 712826B 2003-04 → — Figure 712827A 712827A 2003-04 → — Figure 711588C 711588C 2000-02 → —

Part groups

PNCDescription
73139B Cover, Seat Belt Anchor
73178A Cap, Seat Belt Anchor Cover
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73350A Belt Assy, Rear NO.1 Seat Lap Type, Center
73360B Belt Assy, Rear Seat, Outer
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370B Belt Assy, Rear Seat, Outer
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73373 Cover, Rear Seat Shoulder Belt
73380A Belt Assy, Rear Seat, Inner
73380B Belt Assy, Seat Lap Type, NO.4
73380C Belt Assy, Rear NO.1 Seat, Inner RH
73390C Belt Assy, Rear NO.1 Seat, Inner LH
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
73580 Belt Assy, Rear NO.2 Seat, Inner RH
73590 Belt Assy, Rear NO.2 Seat, Inner LH
73709 Bracket Sub-assy, Tether Anchor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
