Toyota Previa/Tarago

2000-02 → 2006-01 · chassis ACR30,CLR30 · catalogue 652250 · Europe

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

8 part groups · 6 illustrations

Illustrations

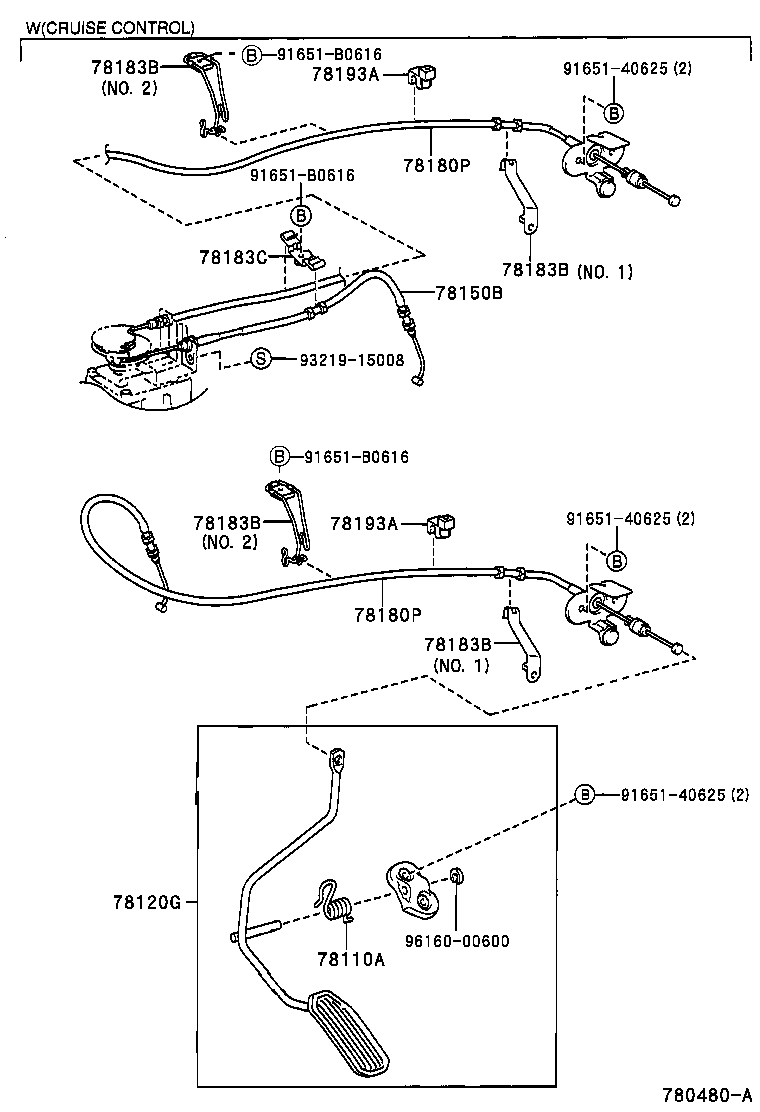

Figure 780481A 780481A 2000-02 → 2003-04 Figure 780480A 780480A 2000-02 → 2003-04 Figure 780565A 780565A 2001-02 → 2003-04 Figure 780565A 780565A 2003-04 → — Figure 780566A 780566A 2001-02 → 2003-04 Figure 780566A 780566A 2003-04 → —

Part groups

PNCDescription
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78111 Pedal, Accelerator
78120G Rod Assy, Accelerator Pedal
78150B Cable Assy, Accelerator Auto Drive
78180P Cable Assy, Accelerator Control
78183B Clamp, Accelerator Control Cable
78183C Clamp, Accelerator Control Cable
78193A Support, Accelerator Control Cable, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
