Toyota Previa/Tarago

2000-02 → 2006-01 · chassis ACR30,CLR30 · catalogue 652250 · Europe

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

12 part groups · 2 illustrations

Illustrations

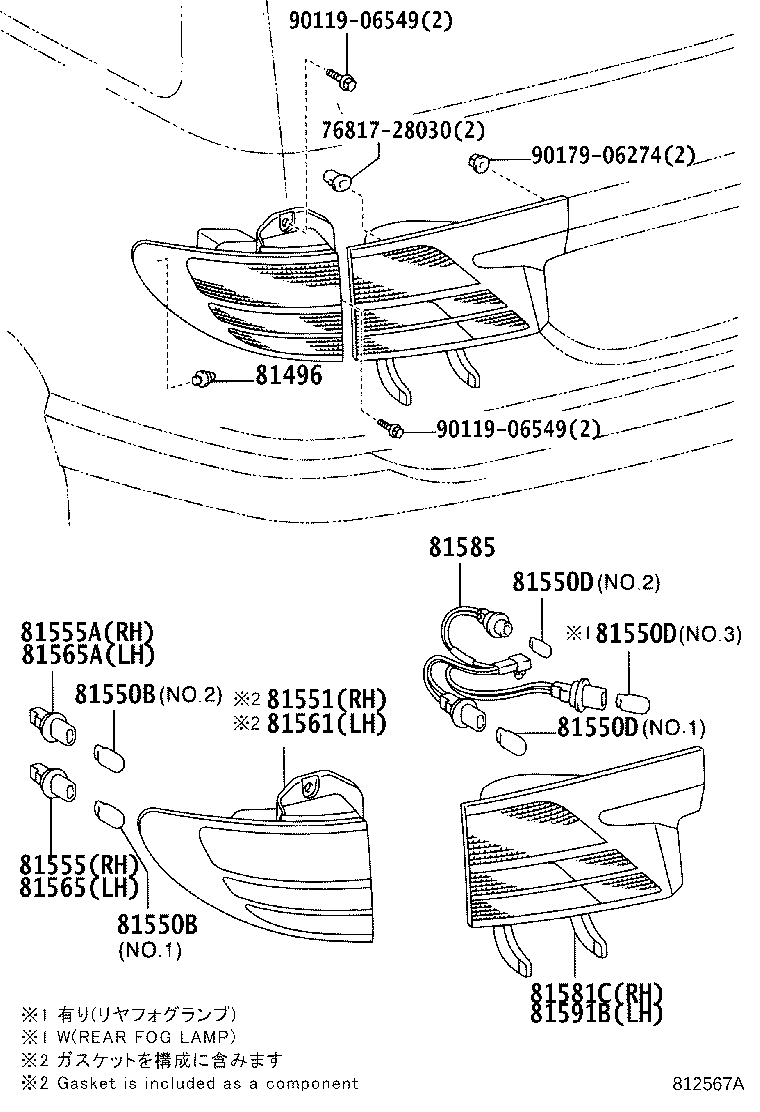

Figure 811357G 811357G 2000-02 → 2003-04 Figure 812567A 812567A 2003-04 → —

Part groups

PNCDescription
81496 Guide, Rear Combination Lamp
81550B Bulb(FOR REAR COMBINATION LAMP)
81550D Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81555A Socket & Wire Sub-assy, Rear Combination Lamp, RH
81561 Lens, Rear Combination Lamp, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81565A Socket & Wire Sub-assy, Rear Combination Lamp, LH
81581C Lens And Body, Rear Lamp, RH
81585 Socket & Wire, Rear Lamp
81591B Lens And Body, Rear Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
