Toyota Previa/Tarago
2000-02 → 2006-01 · chassis ACR30,CLR30 · catalogue 652250 · Europe
Discontinued model
Data version 2006-09

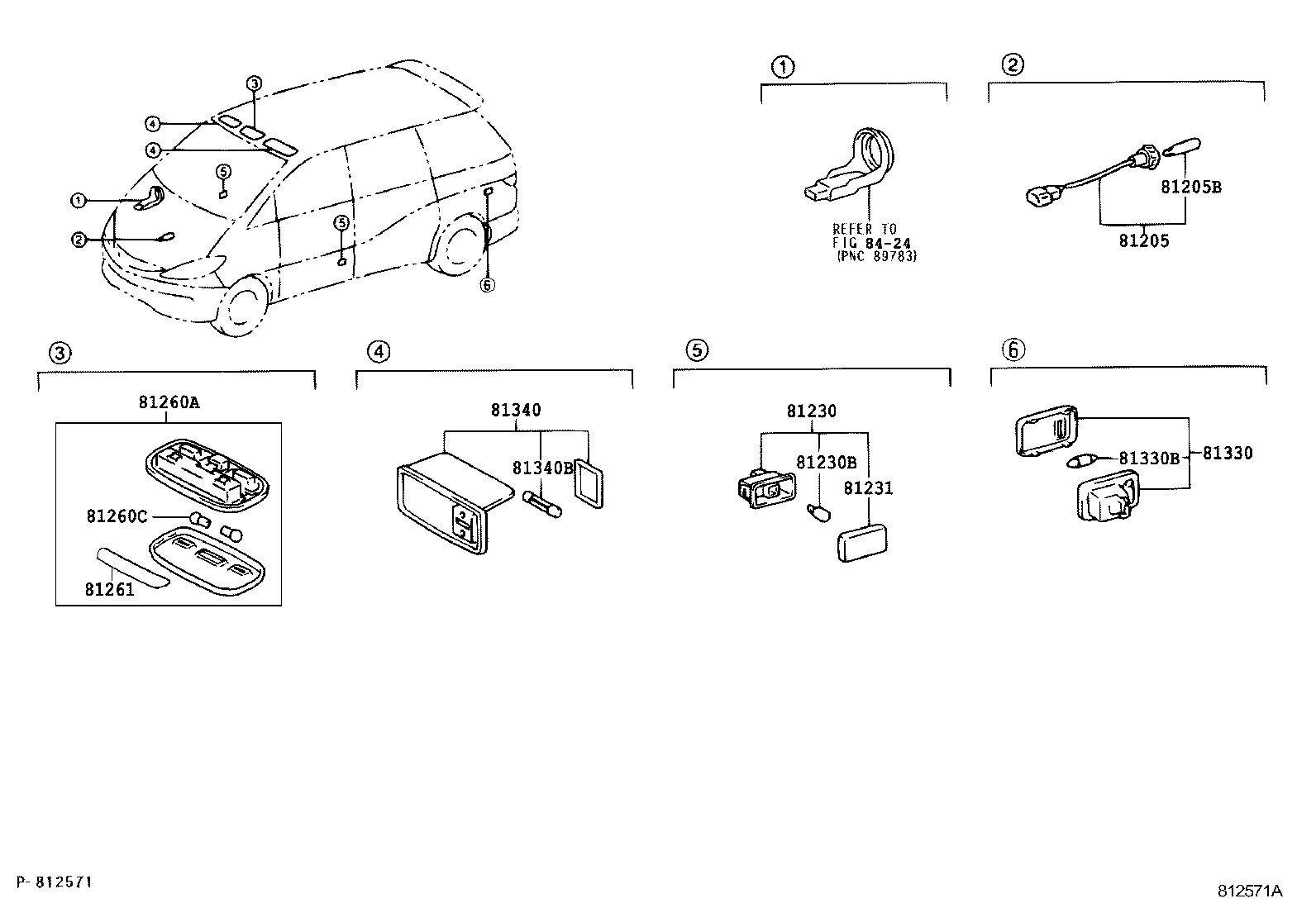

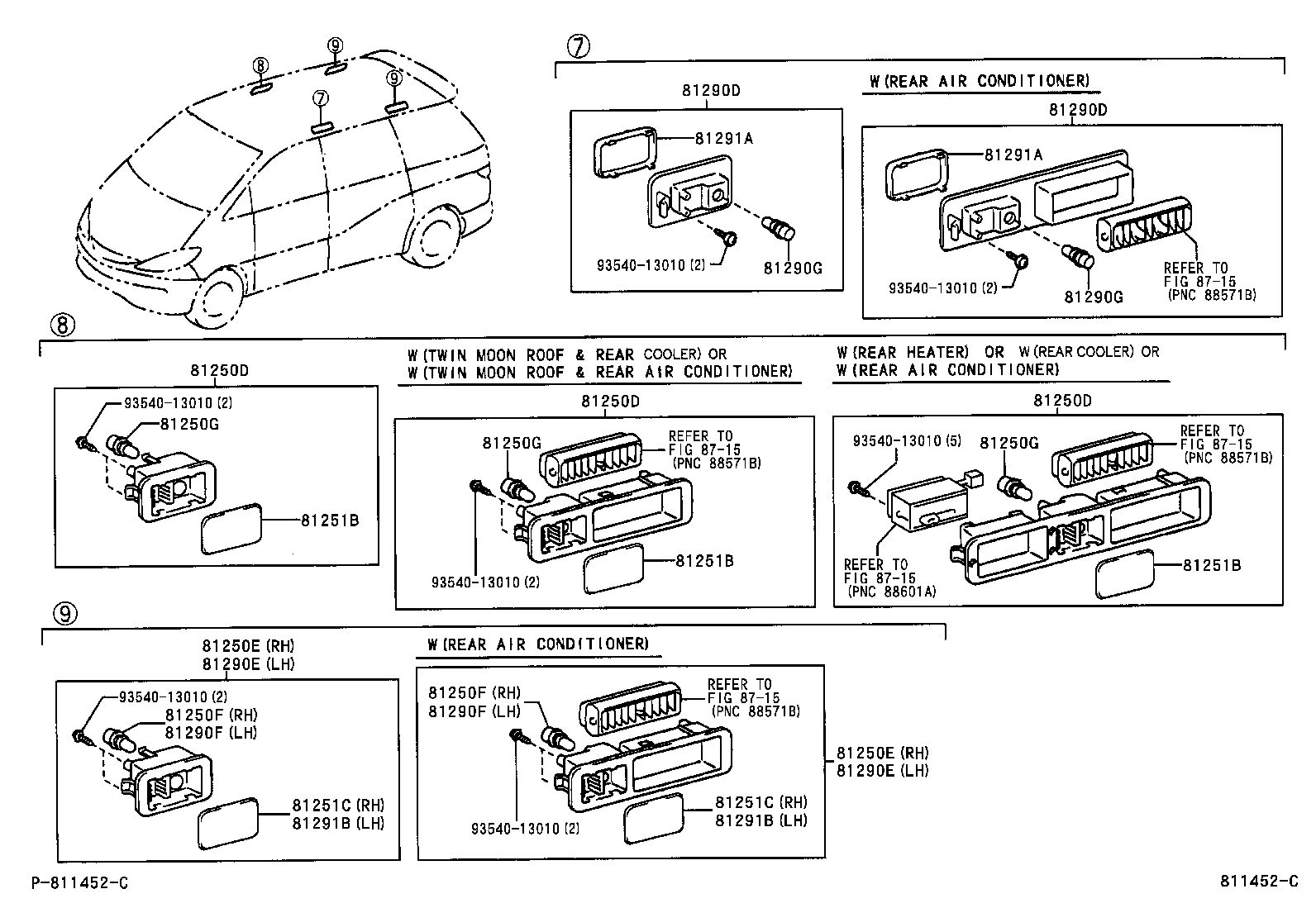

Interior Lamp
27 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 81205 | Lamp Sub-assy, Ash Receptacle |
| 81205B | Bulb, Ash Receptacle Lamp |
| 81230 | Lamp Assy, Courtesy |
| 81230B | Bulb(FOR COURTESY LAMP) |
| 81231 | Lens, Courtesy Lamp |
| 81250D | Lamp Assy, Rear Room, RH |
| 81250E | Lamp Assy, Rear Room, RH NO.2 |
| 81250F | Bulb, Rear Room Lamp RH NO.2 |
| 81250G | Bulb, Rear Room Lamp, RH |
| 81251B | Lens, Rear Room Lamp, RH |
| 81251C | Lens, Rear Room Lamp, RH NO.2 |
| 81260A | Lamp Assy, Map |
| 81260C | Bulb(FOR MAP LAMP) |
| 81261 | Lens And Cover, Map Lamp |
| 81290D | Lamp Assy, Rear Room, LH |
| 81290E | Lamp Assy, Rear Room, LH NO.2 |
| 81290F | Bulb, Rear Room Lamp LH NO.2 |
| 81290G | Bulb, Rear Room Lamp, LH |
| 81291A | Lens, Rear Room Lamp, LH |
| 81291B | Lens, Rear Room Lamp, LH NO.2 |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81330B | Bulb, Luggage Compartment Lamp |
| 81340 | Lamp Assy, Vanity |
| 81340B | Bulb (FOR VANITY LAMP) |
| 81870D | Lamp Assy, Key Cylinder |
| 81870E | Bulb, Key Cylinder Lamp |
| 81870F | Cap, Key Cylinder Lamp Bulb |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
